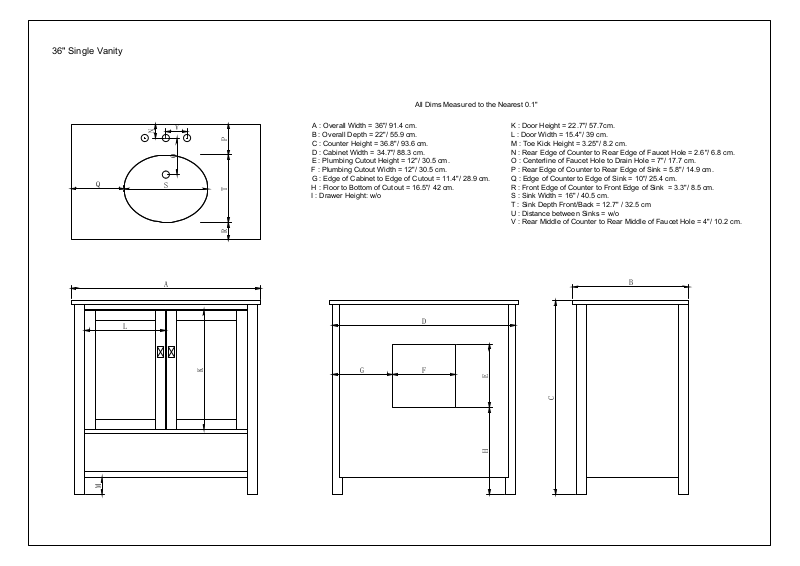

All Dims Measured to the Nearest 0.1"
A : Overall Width = 36"/ 91.4 cm.
B : Overall Depth = 22"/ 55.9 cm.
C : Counter Height = 36.8"/ 93.6 cm.
D : Cabinet Width = 34.7"/ 88.3 cm.
E : Plumbing Cutout Height = 12"/ 30.5 cm.
F : Plumbing Cutout Width = 12"/ 30.5 cm.
G : Edge of Cabinet to Edge of Cutout = 11.4"/ 28.9 cm.
H : Floor to Bottom of Cutout = 16.5"/ 42 cm.
I : Drawer Height: w/o
K : Door Height = 22.7"/ 57.7cm.
L : Door Width = 15.4"/ 39 cm.
M : Toe Kick Height = 3.25"/ 8.2 cm.
N : Rear Edge of Counter to Rear Edge of Faucet Hole = 2.6"/ 6.8 cm.
O : Centerline of Faucet Hole to Drain Hole = 7"/ 17.7 cm.
P : Rear Edge of Counter to Rear Edge of Sink = 5.8"/ 14.9 cm.
Q : Edge of Counter to Edge of Sink = 10"/ 25.4 cm.
R : Front Edge of Counter to Front Edge of Sink = 3.3"/ 8.5 cm.
S : Sink Width = 16" / 40.5 cm.
T : Sink Depth Front/Back = 12.7" / 32.5 cm
U : Distance between Sinks = w/o
V : Rear Middle of Counter to Rear Middle of Faucet Hole = 4"/ 10.2 cm.
36" Single Vanity
