Page 1
WARNING
Seller and Manufacturer disclaim all and any liability for
property damage, personal injury, or loss, direct, indirect, or
incidental, resulting from the incorrect assembly, inadequate
maintenance, improper use, or neglect of this product.
NOTICE
• Keep these assembly instructions for future reference.
• Do not use this product if there are missing parts,
damaged, or broken until repairs are made and/or factory
replacement parts are installed.
• Check all packing material carefully for small hardware
that may have become loose inside the carton
during shipment.
• Identify and count all hardware and parts to compare with
parts and hardware list.
• Follow assembly instructions closely. Improper assembly
can result in personal or property damage.
• Secure all bolts and screws before use.
• Every 90 days check all bolts and screws are secured.
• Some parts may have sharp corner or edges and may
be heavy.
• Do not use or store this product near open flames or
around flammable chemicals.
• When placing contents on non-carpeted flooring, it’s
recommended to use floor protection such as an area rug
or furniture pads. These are not included with the purchase.
REPLACEMENT PART OR HARDWARE REQUEST:
Request a replacement by logging into the marketplace
account in which the purchase was made and sending a
message to the seller. To assist in expediting the request
attach applicable images relevant to the request and/or
part number and quantity.

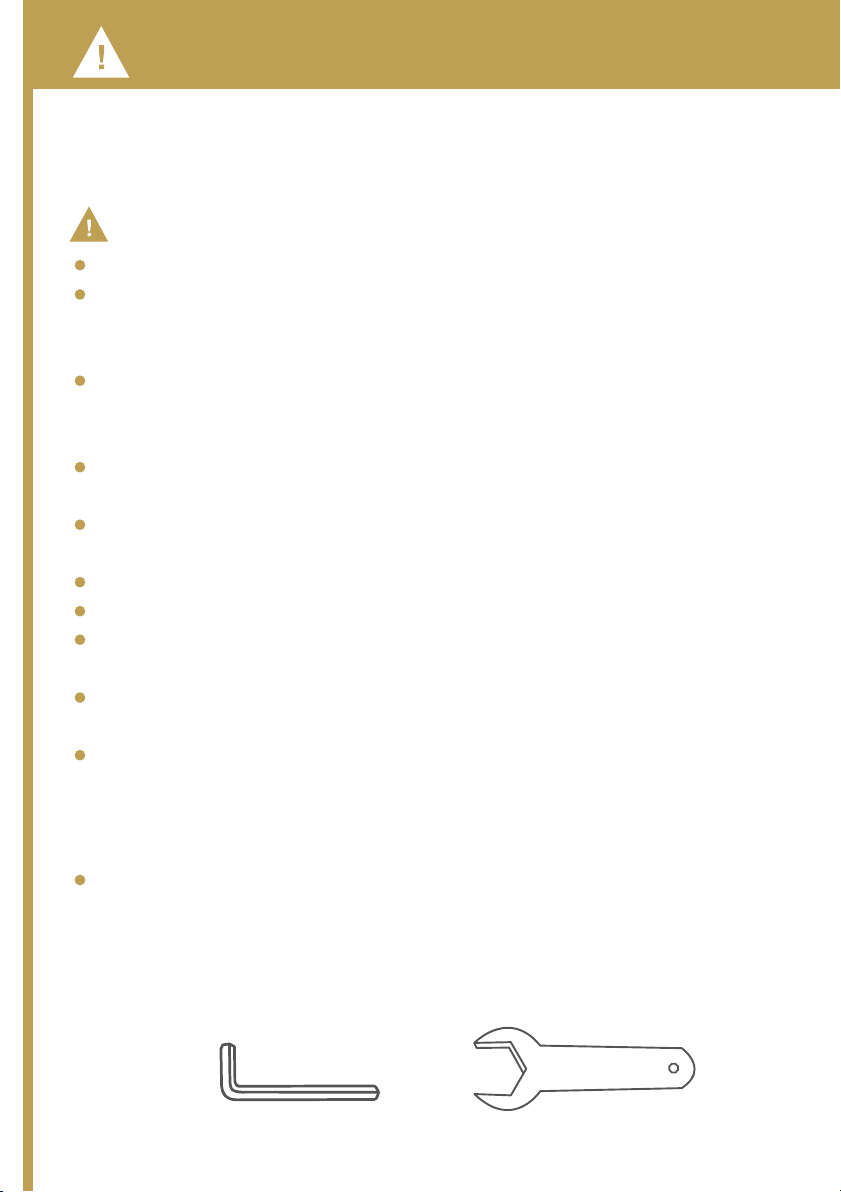

TOOLS REQUIRED:
ALLEN WRENCH
(PROVIDED)
WRENCH
(PROVIDED)
Page 2

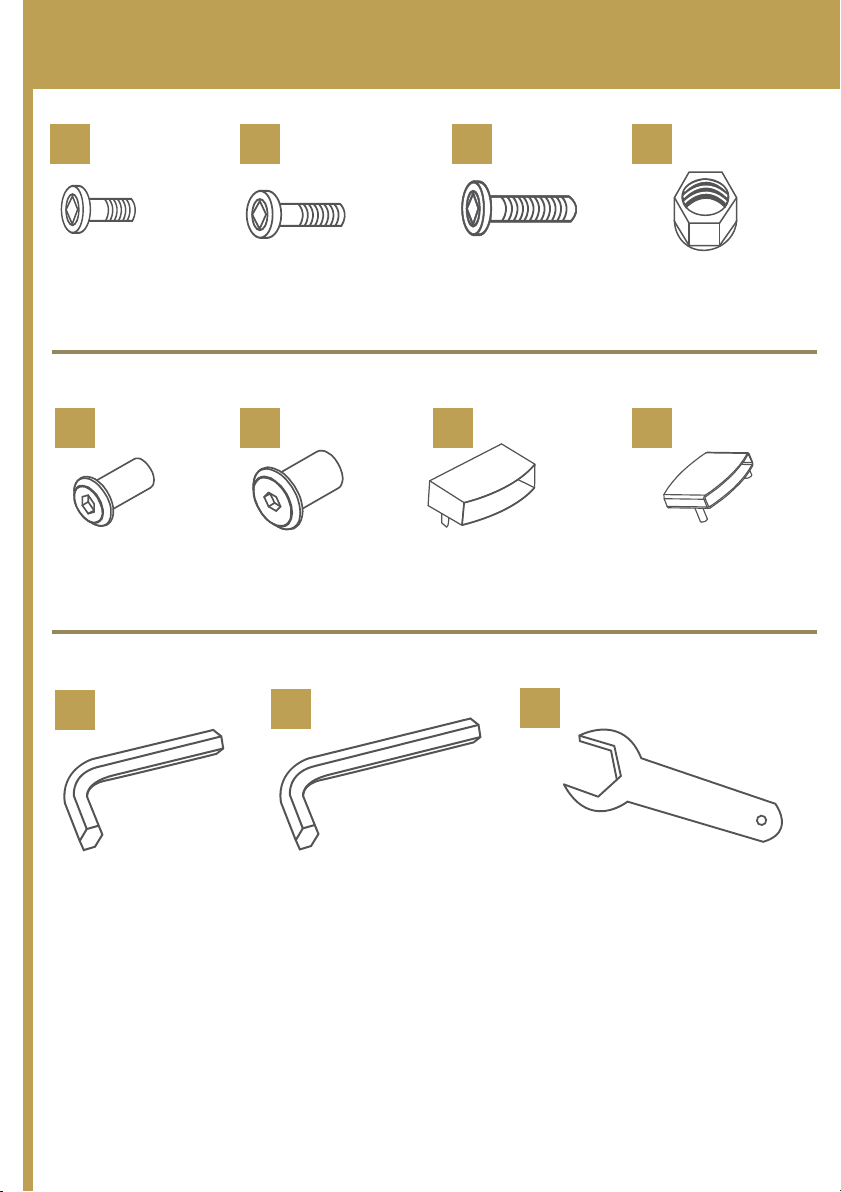

HARDWARE
BA C D
M6 x 12
8 PCS
E
M6 x 16
16 PCS
I
M6 x 35
25 PCS
F
M8 x 16
8 PCS
J
M8 x 35
8 PCS
G H
END SLAT HOLDER
24 PCs
K
M6
6 PCS
CENTER SLAT HOLDER
12 PCS
ALLEN KEY M4
2 PC
ALLEN KEY M5
1 PC
WRENCH
1 PC
Page 3

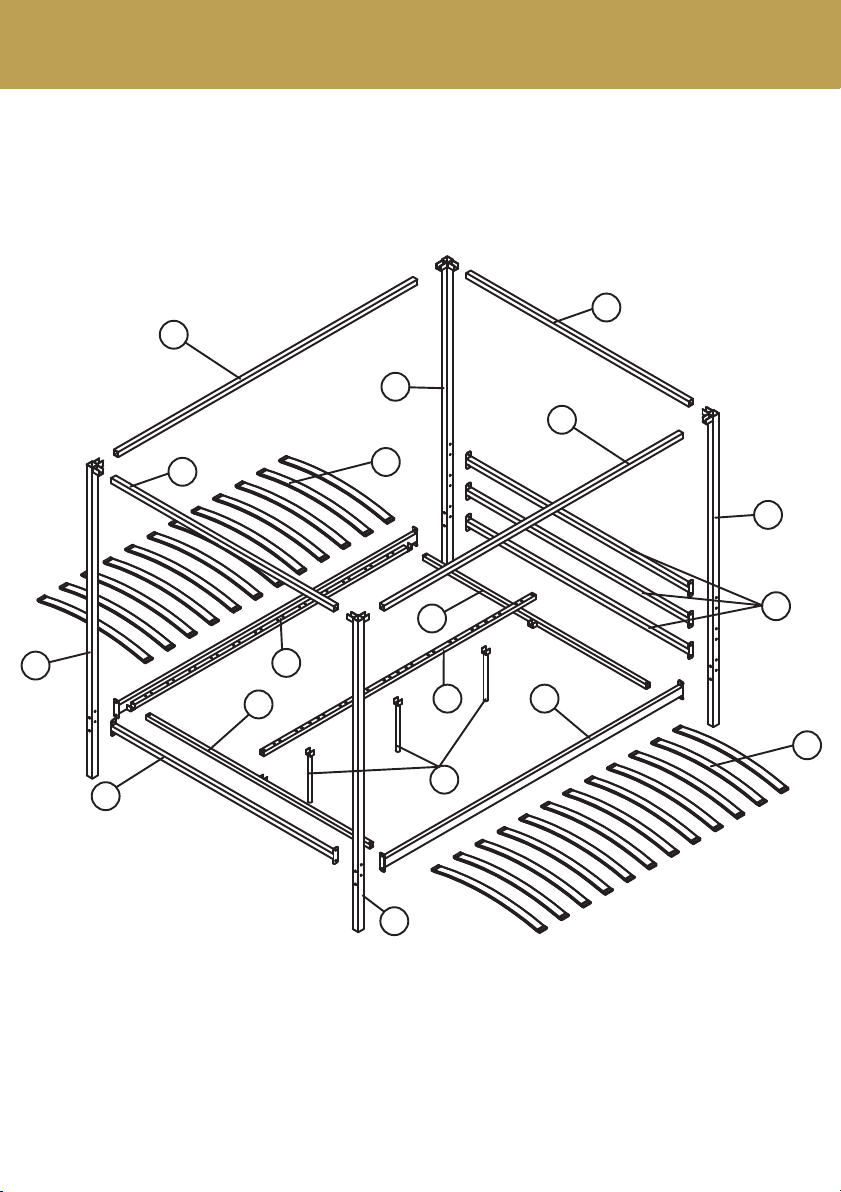

CHARLES BED FRAME DIAGRAM
8
7
2
7
8
3
5
6
9
12
1
9
10
11
4
6
5
12
Page 4

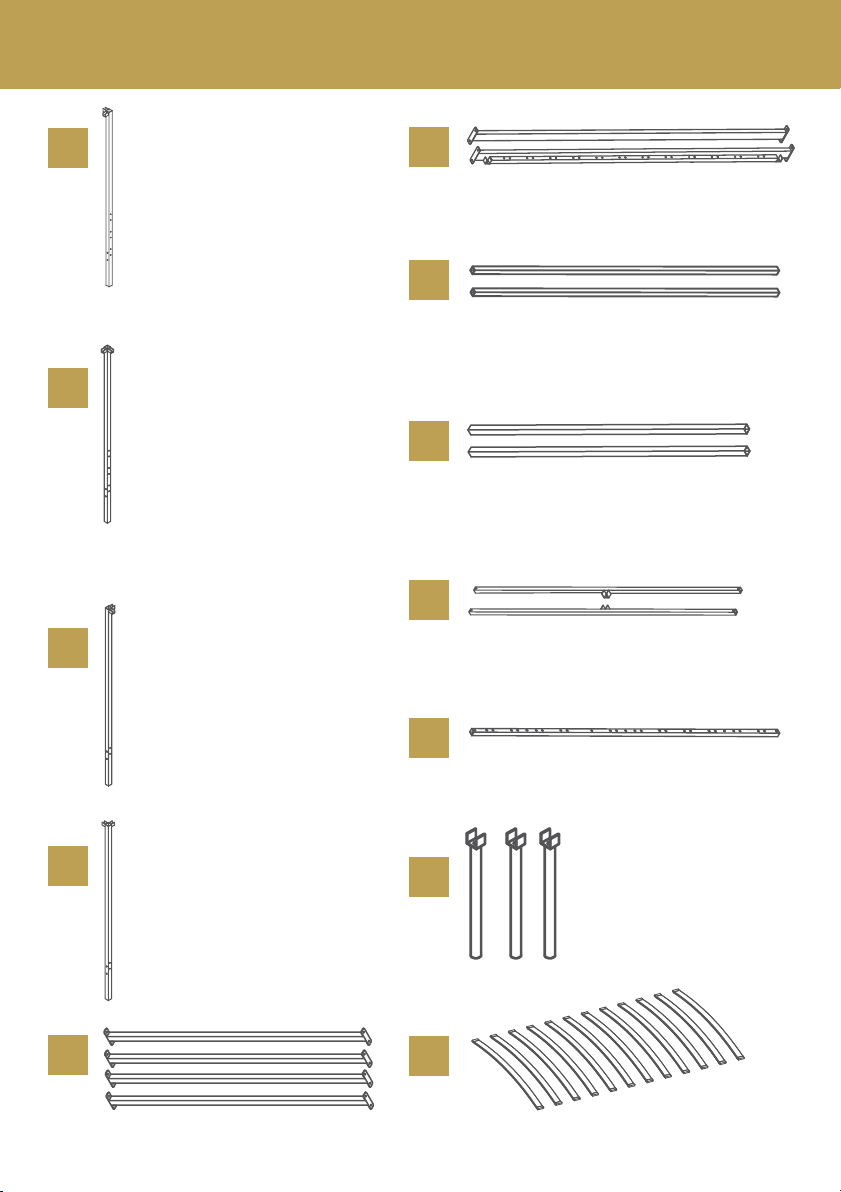

CHARLES BED FRAME PARTS
1
1 PC
6
2 PCS
7
2 PCS
2
1 PC
8
2 PCS
9
3
1 PC
2 PCS
10
4
5
1 PC
11
12
4 PCS
1 PC
3 PCS
24 PCS
Page 5
ASSEMBLY INSTRUCTION

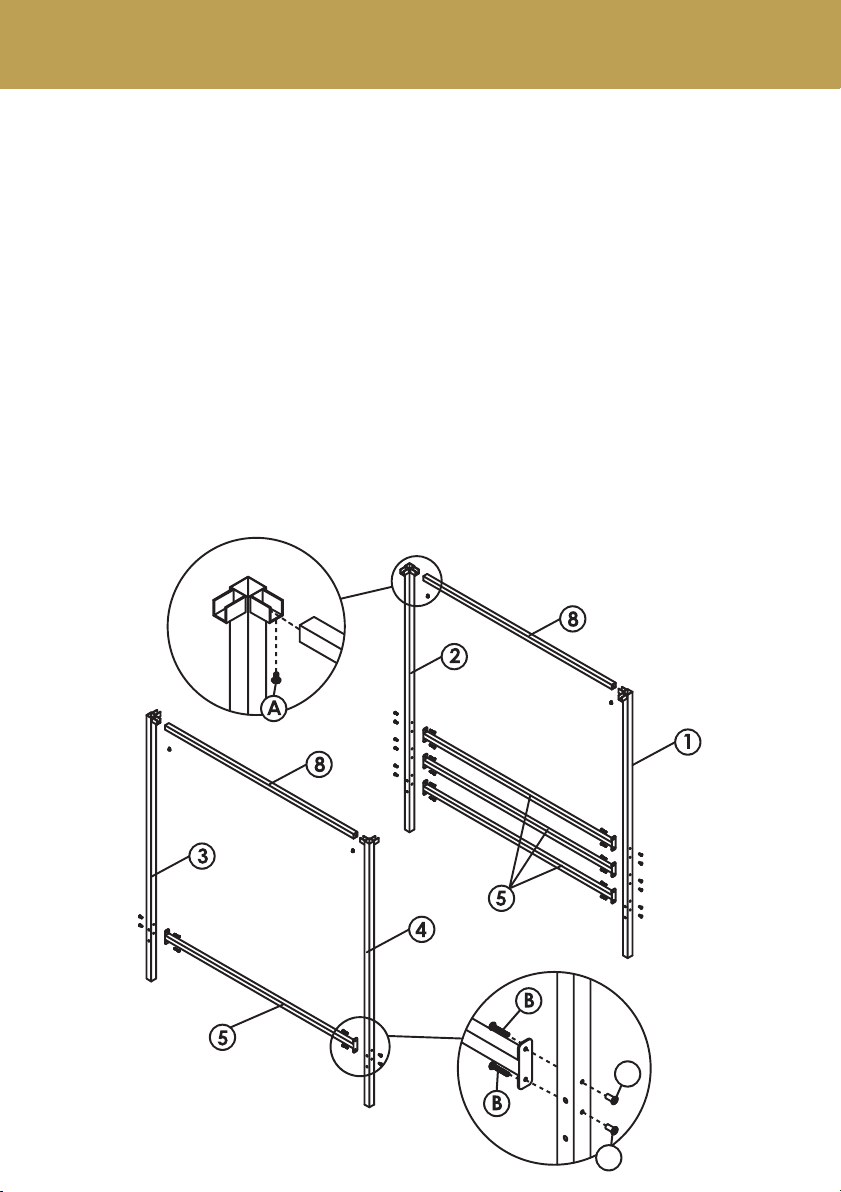

STEP 1
ASSEMBLY OF THE HEADBOARD FRAME: LAY OUT PARTS 1, 2, 5, AND 8 ON THE
GROUND AS SHOWN. BEFORE ASSEMBLY ENSURE PARTS 1 AND 2 ARE IN THE
CORRECT ORIENTATION TO INSTALL PART 8, SEE DIAGRAM. IN THE CORRECT
ORIENTATION INSERT PART 1 AND 2 INTO PART 8 AND USE PART A TO SECURE THE
PARTS, DO NOT FULLY TIGHTEN. ATTACH EACH OF PART 5 ONTO PART 1 AND 2 BY
USING PARTS B AND E TO SECURE THE PARTS, DO NOT FULLY TIGHTEN. ONCE ALL THE
PARTS OF THE HEADBOARD FRAME IS IN PLACE, FULLY TIGHTEN ALL PARTS A, B, AND
E OF THE HEADBOARD FRAME.
ASSEMBLY OF THE FOOTBOARD FRAME: LAY OUT PARTS 3, 4, 5, AND 8 ON THE
GROUND AS SHOWN. BEFORE ASSEMBLY, ENSURE PARTS 3 AND 4 ARE IN THE
CORRECT ORIENTATION TO INSTALL PART 8, SEE DIAGRAM. IN THE CORRECT
ORIENTATION INSERT PART 3 AND 4 INTO PART 8 AND USE PART A TO SECURE THE
PARTS, DO NOT FULLY TIGHTEN. ATTACH THE LAST PIECE OF PART 5 ONTO PART 3
AND 4 BY USING PARTS B AND E TO SECURE THE PARTS, DO NOT FULLY TIGHTEN.
ONCE ALL THE PARTS OF THE FOOTBOARD FRAME IS IN PLACE, FULLY TIGHTEN ALL
PARTS A, B, AND E OF THE FOOTBOARD FRAME.
E
E
Page 6

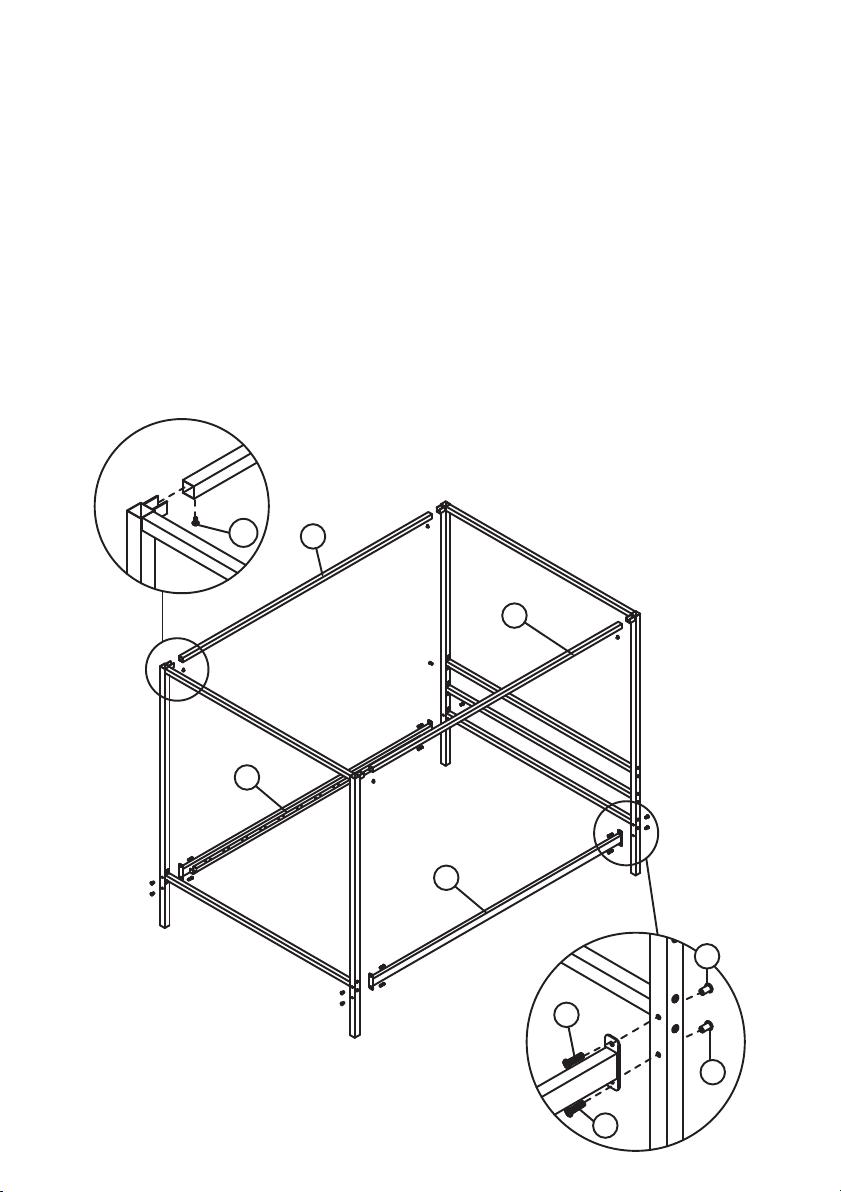

STEP 2
ASSEMBLY OF TOP CANOPY TO THE HEADBOARD AND FOOTBOARD FRAME: WITH
THE HELP OF ANOTHER PERSON INSERT PART 7 TO ANY SIDE OF THE BED FRAME TO
CONNECT THE HEADBOARD AND FOOTBOARD FRAME AS SHOWN AND USE PART A
TO SECURE THE PARTS, DO NOT FULLY TIGHTEN. REPEAT THIS STEP FOR THE OPPOSITE
SIDE, DO NOT FULLY TIGHTEN AT THIS STEP.
ASSEMBLY OF THE SIDE RAIL TO THE HEADBOARD AND FOOTBOARD FRAME: WITH
THE HELP OF ANOTHER PERSON ATTACH PART 6 TO ANY SIDE OF THE BED FRAME TO
CONNECT THE HEADBOARD AND FOOTBOARD FRAME AS SHOWN AND USE PARTS
C AND F TO SECURE THE PARTS, DO NOT FULLY TIGHTEN. REPEAT THIS STEP FOR THE
OPPOSITE SIDE. ONCE ALL THE PIECES FOR PART 6 AND 7 ARE IN PLACE, FULLY
TIGHTEN ALL PARTS A, C, AND F TO FULLY SECURE THE TOP CANOPY (PART 7) AND
SIDE RAIL (PART 6) TO THE HEADBOARD AND FOOTBOARD FRAME.
A
7
7
6
6
F
C
F
C
Page 7

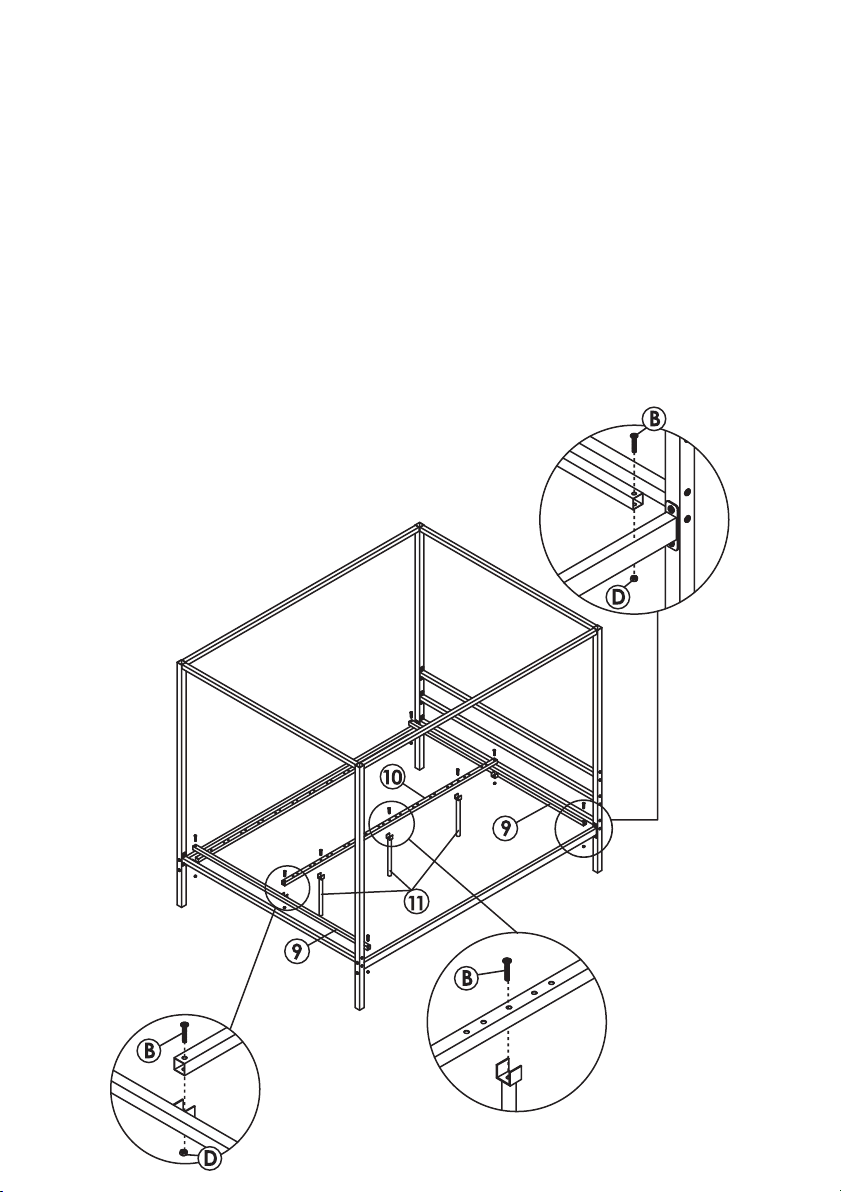

STEP 3
ASSEMBLY OF THE SIDE RAIL SLAT SUPPORT TO THE BED FRAME: ATTACH PART 9 TO
THE SIDE RAIL (PART 6) BY PLACING PART 9 INTO THE OPEN SLOT ON THE SIDE RAILS
(PART 6) NEAREST TO THE HEADBOARD AND FOOTBOARD, THEN USE PART B AND D
TO SECURE THE PARTS, DO NOT FULLY TIGHTEN. REPEAT THIS STEP FOR THE OPPOSITE
SIDE. ONCE BOTH PART 9 IS SECURED TO THE SIDE RAILS (PART 6) PROCEED TO FULLY
TIGHTEN ALL PARTS B AND D.
ASSEMBLY OF THE CENTER SLAT SUPPORT AND CENTER SLAT SUPPORT LEG: ATTACH
PART 10 TO THE SIDE RAIL SLAT SUPPORT (PART 9) BY PLACING PART 10 INTO THE
OPEN SLOT LOCATED AT THE CENTER OF EACH PART 9 AND USE PART B AND D TO
SECURE THE PARTS AND FULLY TIGHTEN. ATTACH THE CENTER SLAT SUPPORT LEG
(PART 11) TO PART 10 AS SHOWN IN THE DIAGRAM, THEN SECURE THE PARTS WITH
PART B AND FULLY TIGHTEN. REPEAT THIS STEP TO INSTALL THE REST OF PART 11 TO
PART 10.
Page 8

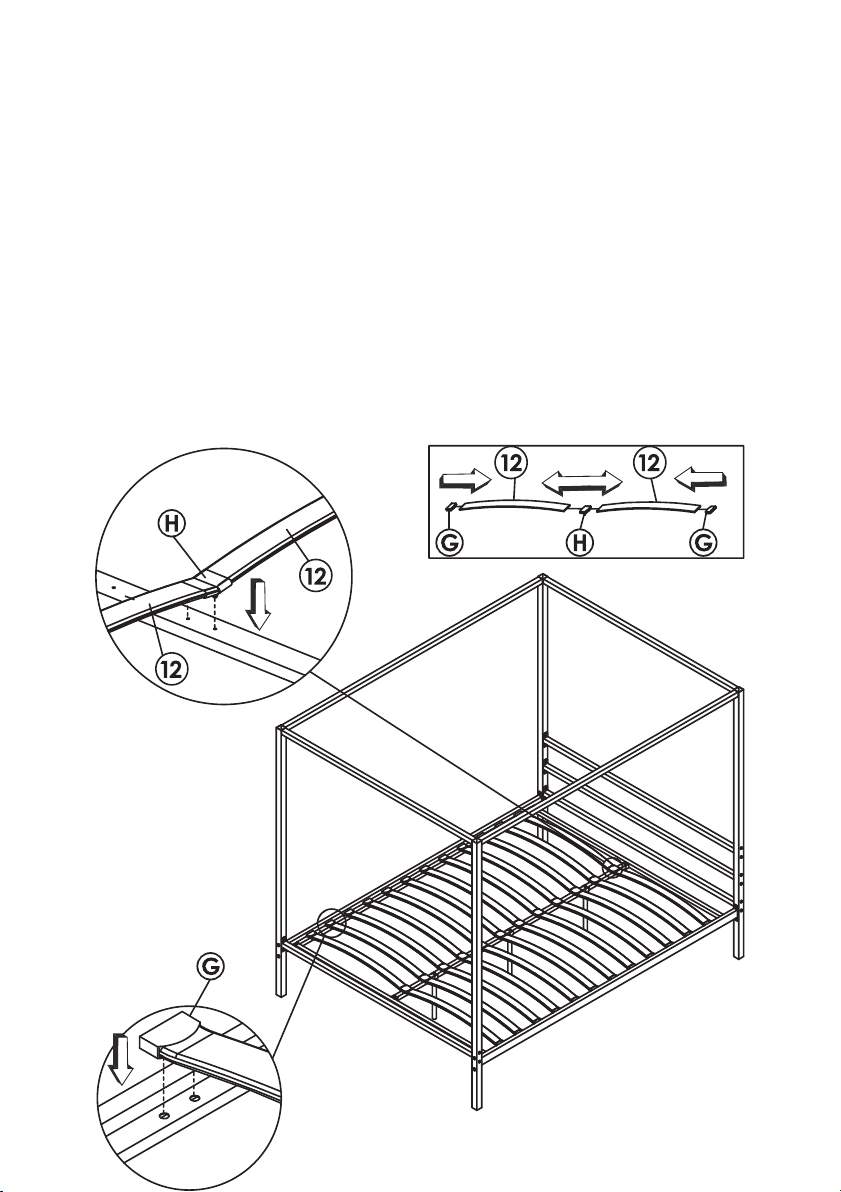

STEP 4
ASSEMBLE WOOD SLAT TO END SLAT HOLDER AND CENTER SLAT HOLDER: NOTE,
WHEN ATTACHING PART G AND H TO PART 12 ENSURE THE PRONGS ON PART G AND
H ARE POINTING TOWARDS THE GROUND. ATTACH PART G TO ANY END OF PART 12,
THEN ATTACH PART H TO THE OTHER END OF PART 12 FOLLOWED BY ATTACHING ANY
END OF ANOTHER PART 12 TO THE REMAINING END OF PART H, THEN ATTACH PART
G TO THE OPEN END OF PART 12. THIS WILL ASSEMBLE ONE COMPLETE SLAT, SEE
DIAGRAM. REPEAT THIS STEP UNTIL A TOTAL OF 12 COMPLETE SLATS IS ASSEMBLED.
INSTALL EACH OF THE COMPLETED SLATS TO THE SIDE RAIL AND CENTER SLAT
SUPPORT: INSTALL ONE COMPLETED SLAT BY INSERTING THE PRONGS FROM PART G
INTO THE HOLES ON THE SIDE RAIL (PART 6), THEN INSERT THE PRONGS FROM PART H
INTO THE HOLES IN THE CENTER SLAT SUPPORT (PART 10) FOLLOWED BY INSERTING
THE PRONG OF PART G FROM THE REMAINING END OF THE COMPLETED SLAT INTO
THE SIDE RAIL (PART 6). REPEAT THIS UNTIL ALL COMPLETED SLATS ARE INSTALLED.
