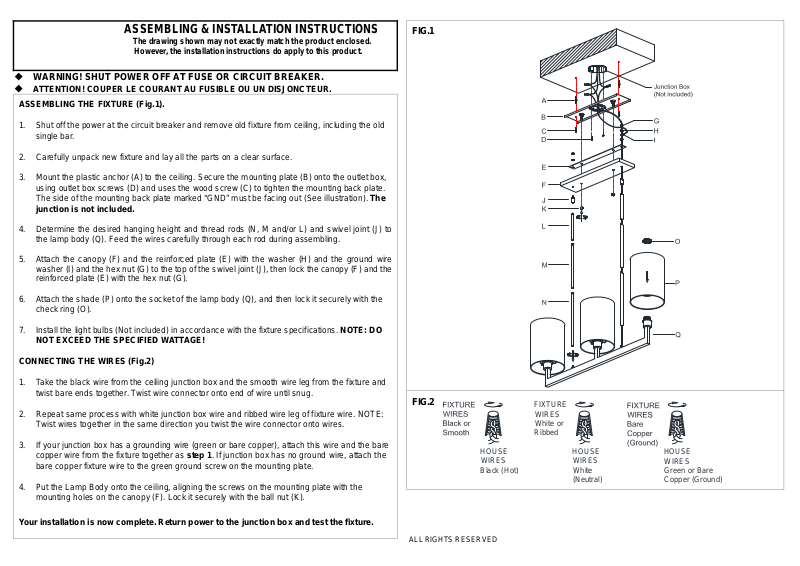

Zipcode Design W003220416 Assembling & Installation Instructions

ASSEMBLING & INSTALLATION INSTRUCTIONS

The drawing shown may not exactly match the product enclosed.

However, the installation instructions do apply to this product.

 WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.


ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.

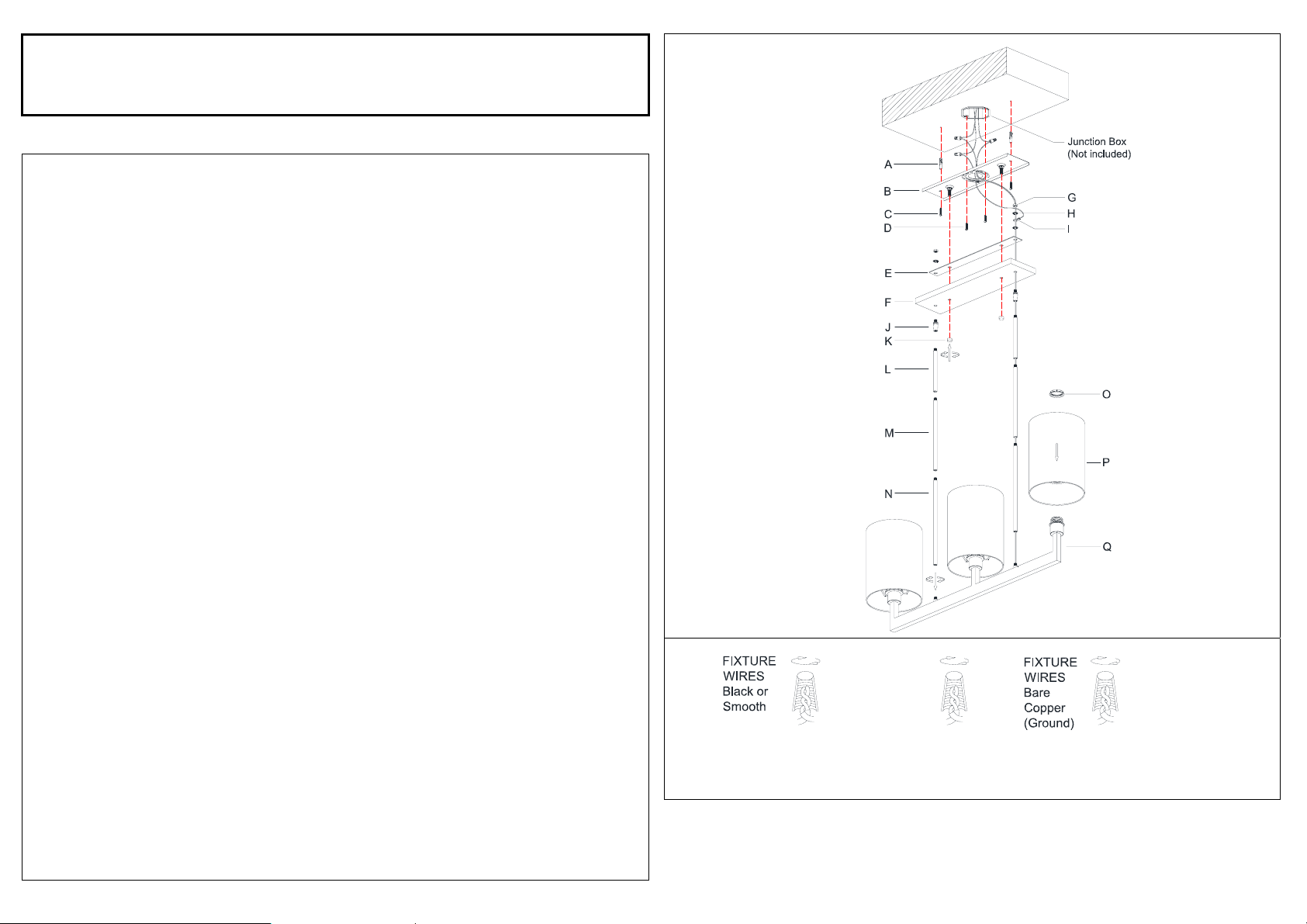

ASSEMBLING THE FIXTURE (Fig.1).

1. Shut off the power at the circuit breaker and remove old fixture from ceiling, including the old
single bar.

2. Carefully unpack new fixture and lay all the parts on a clear surface.

3. Mount the plastic anchor (A) to the ceiling. Secure the mounting plate (B) onto the outlet box,
using outlet box screws (D) and uses the wood screw (C) to tighten the mounting back plate.
The side of the mounting back plate marked “GND” must be facing out (See illustration). The

junction is not included.

4. Determine the desired hanging height and thread rods (N, M and/or L) and swivel joint (J) to
the lamp body (Q). Feed the wires carefully through each rod during assembling.

5. Attach the canopy (F) and the reinforced plate (E) with the washer (H) and the ground wire
washer (I) and the hex nut (G) to the top of the swivel joint (J), then lock the canopy (F) and the
reinforced plate (E) with the hex nut (G).

6. Attach the shade (P) onto the socket of the lamp body (Q), and then lock it securely with the
check ring (O).

7. Install the light bulbs (Not incl uded)

NOT EXCEED THE SPECIFIED WATTAGE!

CONNECTING THE WIRES (Fig.2)

1. Take the black wire from the ceiling junction box and the smooth wire leg from the fixture and
twist bare ends together. Twist wire connector onto end of wire until snug.

2. Repeat same process with white junction box wire and ribbed wire leg of fixture wire. NOTE:
Twist wires together in the same direction you twist the wire connector onto wires.

3. If your junction box has a grounding wire (green or bare copper), attach this wire and the bare
copper wire from the fixture together as step 1. If junction box has no ground wire, attach the
bare copper fixture wire to the green ground screw on the mounting plate.

4. Put the Lamp Body onto the ceiling, aligning the screws on the mounting plate with the
mounting holes on the canopy (F). Lock it securely with the ball nut (K).

Your installation is now complete. Return power to the junction box and test the fixture.

in accordance with the fixture specifications. NOTE: DO

FIG.1

FIG.2

HOUSE
WIRES
Black (Hot)

FIXTURE
WIRES
White or
Ribbed

HOUSE
WIRES
White
(Neutral)

HOUSE
WIRES
Green or Bare
Copper (Ground)
