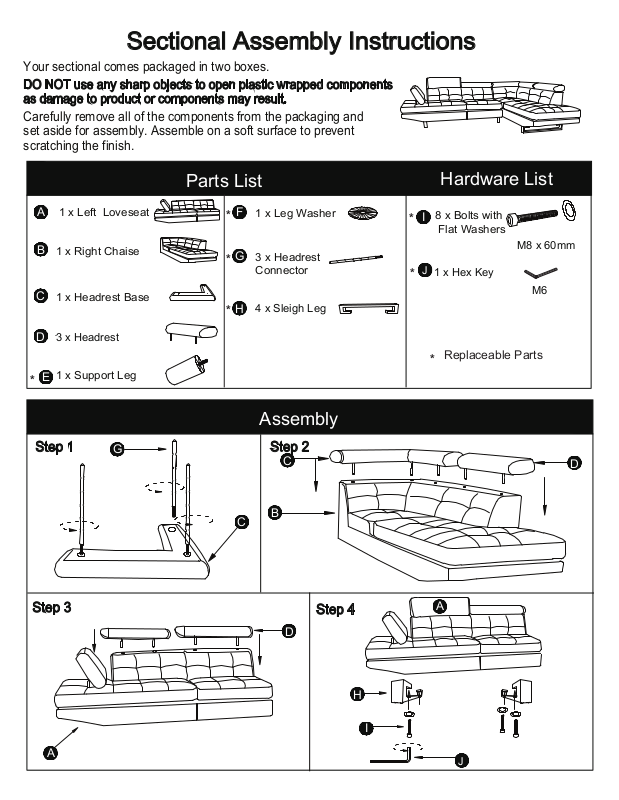

Page 1
Sectional
Your sectional comes packaged in two boxes.
Assembly Instructions
DO NOT use any sharp objects to open plastic wrapped components
as damage to product or components may result.
Carefully remove all of the components from the packaging and
set aside for assembly. Assemble on a soft surface to prevent
scratching the finish.
1 x Left Loveseat
A
B
1 x Right Chaise
C
1 x Headrest Base
3 x Headrest
D
1 x Support Leg
E
*
Step 1
G
Parts List
F
*
G
*
H
*
1 x Leg Washer
3 x Headrest
Connector
4 x Sleigh Leg
Assembly
Step 2
C
Hardware List
8 x Bolts with
I
*
Flat Washers
J
1 x Hex Key
*
*
M8 x 60mm
M6
Replaceable Parts
D
Step 3
A
C
B
Step 4
D
H
I
A
J
Page 2
Step 5
Assembly
H
Step 6
J
I
B
F
E
J
A
B
H
I
Step 7
Your sectional style may differ from images. Care for your furniture
by periodically tightening all bolts using the included hex key.
About your furniture piece:
.
Softening of foam is natural and will happen over time with use.
.
Fabric will fade or discolor in direct sunlight. Minimize exposure to
direct sunlight to extend the life of your furniture.
.
Wood grain, knots, streaks, and color variation occur naturally
in wood and are not considered defects.
Push then Pull
CAUTION:
before use. Failure to do so may result in
personal injury.
Tighten all components securely
