ASSEMBLY INSTRUCTIONS
BUFFET
ASSEMBLY
REQUIREMENTS
Thank you for purchasing our product!
Please refer and use this assembly instruction to assemble the product.
Contact our customer service department in case there are any missing or damage parts or hardware.
Replacement parts are normally shipped within 2 or 3 days.
1.5 HOUR
Assembly Time
(Approximate)
2 -Person Assembly
Tools Required (Not Provided):
Phillips Screwdriver
Flat Head Screwdriver
We appreciate your business!
ASSEMBLY PREPARATION
1. Remove all packaging materials, staples and packing straps from the carton.
2. Refer to Parts List and Hardware List , and ensure parts and hardware are complete before assembly.
Contact customer service for missing parts.
3. Place all wooden parts on a clean, flat and soft surface (e.g. carpet or rug) to prevent parts from getting scratched.
SAFETY PRECAUTION
1. KEEP ALL HARDWARE PARTS OUT OF REACH OF CHILDREN.
2. DISPOSE PLASTIC PACKAGING MATERIAL IMMEDIATELY TO AVOID ANY RISK OF SUFFOCATION TO
CHILDREN AND ANIMALS.
TIPS FOR ASSEMBLY
1. Allow ample room for assembly and in close proximity to where product will be placed.
2. Assemble the product on a surface that does not scratch or damage the exterior gloss and finish of the furniture.
3. Identify all of the parts, hardware and quantities required for each step.
4. During assembly, do not over-tighten any fittings as this may cause damage.
5. DO NOT USE POWER TOOLS TO ASSEMBLE THIS PRODUCT.
6. Always place the product on a flat , level surface.
7. Do not sit or stand on the partially assembled product; only use the product for which it is intended.
CARE AND MAINTENANCE
- Use a slightly damp cloth to clean the product. Do not use bleach or abrasive cleaning material.
- Check all the fittings periodically and re-tighten as necessary. Do not use the product if any of the parts is
damaged or broken.
- Never allow any kind of liquid to remain on your furniture. Absorption can cause wood to warp or delaminate.
- Do not place hot items (e.g. hot drinks) directly onto the wood surface.
- Do not drag and/or pull the furniture.
This product is for indoor and household use only - not for commercial use.
1/13
Made In China
ASSEMBLY INSTRUCTIONS
BUFFET
ITEM PART
A
B
C
D
E
F
G
H
DESCRIPTION DESCRIPTION
Cam-bolt
6*35mm
Cam-lock
15*10mm
Bolt
6*45mm
Wood Dowel
Shelf Pin
Screw
4*30mm
Handle
Handle Bolt
Hardware List
QTY
24 pcs
24 pcs
4 pcs
16 pcs
8 pcs
8 pcs
4 pcs
8 pcs
ITEM PART
I
J
K
L
M
N
Spring Washer
O
P
Allen Wrench
Hinge
Screw
Drawer Slide
Screw
Screw
Flat Washer
3.5*12mm
3*12mm
2.5*10mm
QTY
4 pcs
16 pcs
2 sets
20 pcs
18 pcs
4 pcs
4 pcs
1 pc
2/13
ASSEMBLY INSTRUCTIONS
BUFFET
Parts List
ITEM PART
1
DESCRIPTION
2
3
4
Top Panel
Bottom Base
Left Side
Panel
Right Side
Panel
QTY
1 pc
1 pc
1 pc
1 pc
ITEM PART
9
10
11
12
DESCRIPTION
Back Panel
Adjustable
Shelf
Drawer
Front Panel
Drawer Back
Panel
QTY
1 pc
2 pcs
2 pcs
2 pcs
5
6
7
8
Left Divide
Panel
Right Divide
Panel
Door
Leg
1 pc
1 pc
2 pcs
4 pcs
13
14
15
Drawer Left
Side Panel
Drawer Right
Side Panel
Drawer
Bottom Panel
2 pcs
2 pcs
2 pcs
3/13
ASSEMBLY INSTRUCTIONS
BUFFET

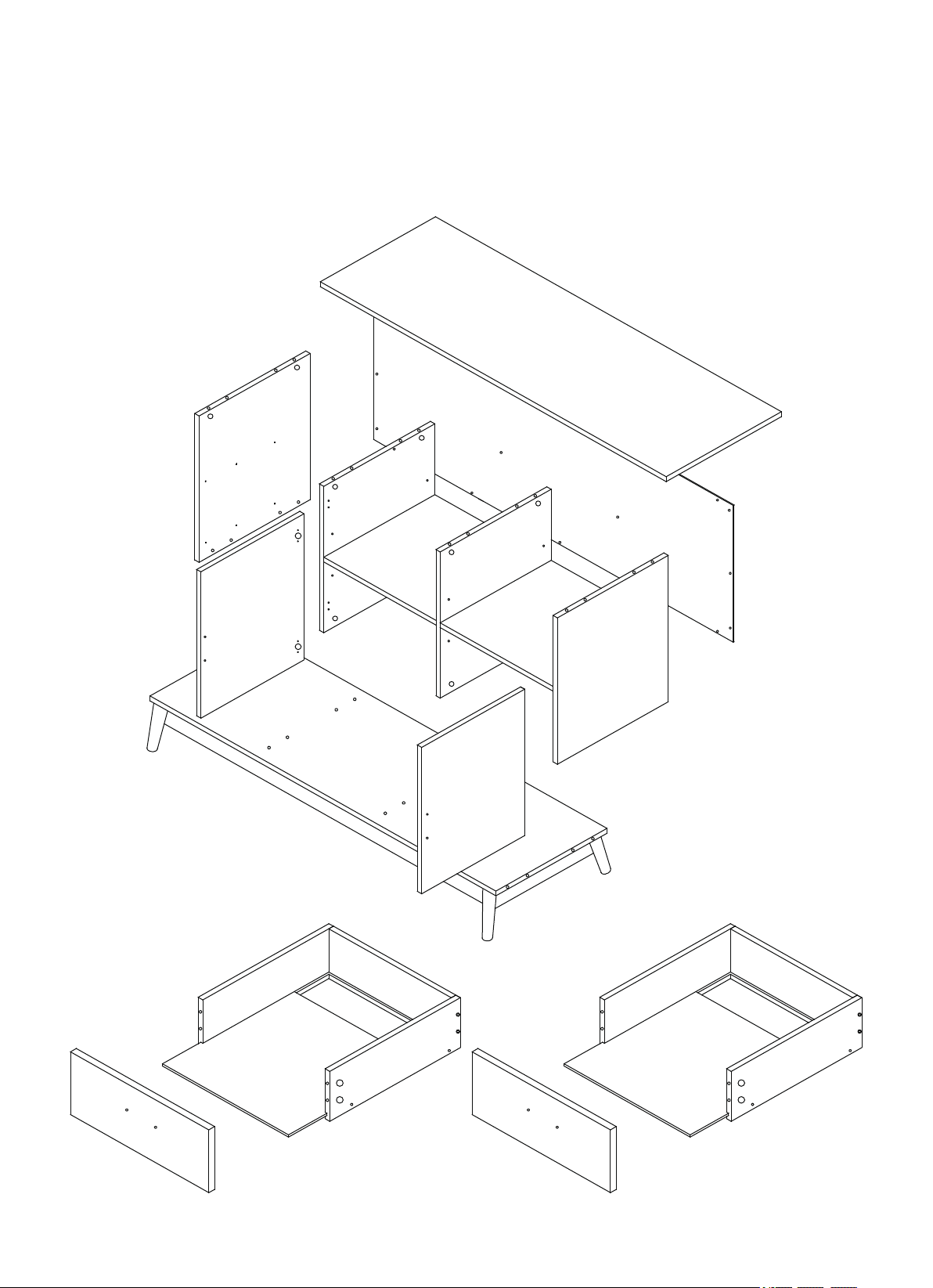

Parts Assembly Overview
1
3
8
7
2
5
10
9
6
10
4
7
8
11
13
15
12
14
4/13
8
11
13
15
12
14

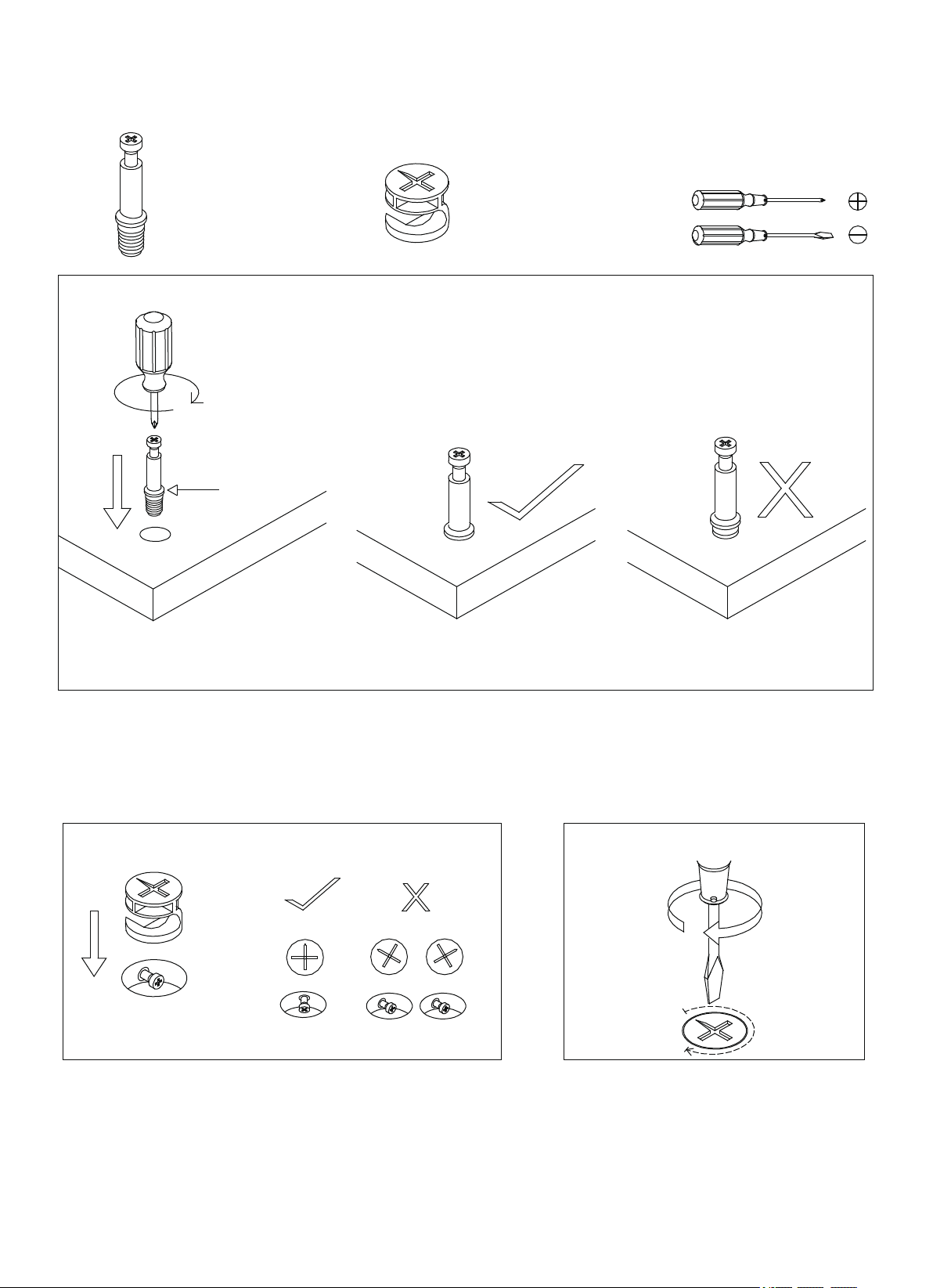

Instructions For Fastening
CAM-BOLT AND CAM-LOCK
CAM-BOLT CAM-LOCK
INSERTING AND TIGHTENING CAM-BOLT
SHOULDER
Tools Required
ANEL
P
Place Cam-bolt on pre-drilled
hole and screw in vertically.
Place Cam-bolt to the designated pre-drilled holes on the panel. Use a Phillips Screwdriver to
tighten Cam-bolt vertically until shoulder is flushed (on the same level) with panel. Do not
over-tighten or under-tighten.
Shoulder is flushed (on the
same level) with the panel.
INSERTING CAM-LOCK
Insert Cam-lock
with arrow align
to Cam-bolt head.
CORRECT
WRONG
PANEL
Shoulder is above the panel.
TIGHTENING CAM-LOCK
ANEL
P
Align the arrow on the Cam-lock to the Cam-bolt
head and insert the Cam-lock. Ensure Cam-lock
is fully inserted.
5/13
Use a Flat-head Screwdriver to turn
Cam-lock clockwise so it locks onto
the head of the Cam-bolt. Turn until
it is snug (about 3/4ths of a turn)
-- over-tightening could damage
Cam-lock or/and Cam-bolt.
STEP 1
24 pcsA
A
1
A
3
11
A
A
2
A
4
A
11
a) Lay Top Panel (1), Bottom Base (2), Left Side Panel (3), Right Side Panel (4) and Drawer Front
Panel (11) as shown on a material that does not scratch the surface of each part.
b) Screw in Cam-bolt (A) into the designated holes on each. Refer to Page 5 for instructions on
inserting and tightening Cam-bolt.
6/13
STEP 2
8 pcsF
F
13
12
F
14
X 2
a) Position Drawer Back Panel (12) between Drawer Left & Right Panels (13 & 14) as shown.
Note: the groove on each panel has to be aligned.
b) Use Screw (F) to fasten side panels to back panel . Do not tighten screws completely until both
screws are in each Side Panel.
STEP 3
C
G
11
13
H
15
14
B
B
X 2
8 pcs
2 pcsG
4 pcsH
a) Fit Drawer Bottom Panel (15) to Drawer Panels (13 & 14) via groove on respective drawer panels.
b) Attach Drawer Front Panel (11) to Side Panels (13 & 14) firmly via cam-bolts on (11). Check that
front edge of Bottom Panel (15) fits into the groove on the inside-face of Front Panel (11).
c) Insert Cam-lock (B) into the holes on (13 & 14) then turn clockwise to lock onto Cam-bolt on (11).
Refer to Page 5 for instructions on inserting and tightening cam-lock.
d) Use Handle Bolt (H) to fasten Handle (G) to (11).
7/13

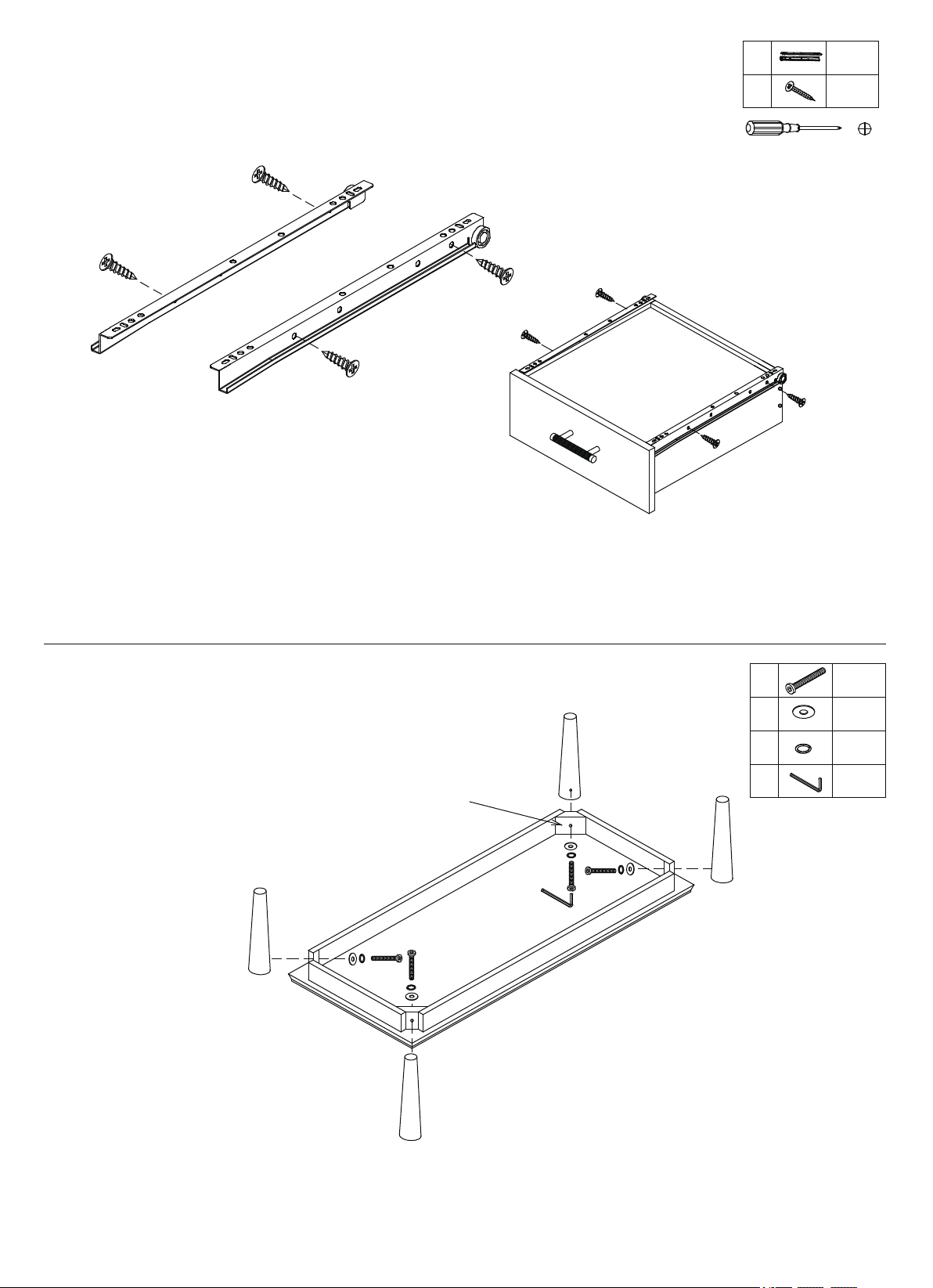

STEP 4
K2
2 sets
L
K2
RIGHT
K2
LEFT
L
L
RIGHT
K2
13
L
L
X 2
8 pcs
LEFT
K2
a) Position Drawer Slide Runner (K2) against the drawer side panels as shown and identify the
designated screw holes on (K2) - refer to enlarged drawings.
b) Use Screw (L) to fasten (K2) to Side Panels (13 & 14). Use a Phillips screwdriver to drive (L).
Do not tighten (G) completely until both screws are in place.
STEP 5
8
Corner
Block
N
O
C
8
P
2
8
C
N
O
P
4 pcs
4 pcs
4 pcs
1 pc
8
a) Position Leg (8) to each corner of Bottom Base (2) as shown. Insert Bolt (C) fitted with Spring
Washer (O) and Flat Washer (N) through the bolt holes on each corner block to screw into the bolt
hole on each leg.
b) Tighten Bolt (C) by using Allen Wrench (P).
8/13
STEP 6
3
L
K1
L
K1
L
K1
K1
L 12 pcs
2 sets
5
a) Place Drawer Slide Track (K1) to align the designated screw holes on (K1) to pilot holes on Left
Side Panel (3) and Left Divide Panel (5) - Refer to enlarged drawings.
b) Use Screw (L) to fasten (K1) to (3 & 5). Do not tighten (L) completely until all 3 screws are in place.
STEP 7
a) On Side Panel (3 & 4) insert Wood Dowel (D) into
each hole between the cam-bolts.
b) Attach (3 & 4) to Bottom Base (2) via Wood Dowel (D)
and Cam-bolts on (3 & 4).
c) Insert Cam-lock (B) into designated holes on (2) then
turn clockwise to lock onto Cam-bolt.
B
4
4 pcs
4 pcsD
3
B
C
9/13
STEP 8
3
5
B
6
B
4 pcs
4 pcsD
D
A
2
a) On Bottom Base (2), insert Wood Dowel (D)
into the each hole between the cam-bolts.
b) Attach Divide Panel (5 & 6) to (2) via Wood Dowel (D)
and Cam-bolts on (2).
b) Insert Cam-lock (B) into designated holes on (5 & 6) then
turn clockwise to lock onto Cam-bolt.
STEP 9
1
D
B
4
B
8 pcs
8 pcsD
B
a) Insert Wood Dowel (D)
into the inner 2 holes
on top edge of Side
Panel (3 & 4) and
Divide Panel (5 & 6)
as shown.
b) Attach Top Panel (1) to (3, 4, 5 & 6)
via Wood Dowel (D) and Cam-bolts on
each respective panels.
c) Insert Cam-lock (B) into designated
holes on (3, 4, 5 & 6) then turn clockwise
to lock onto Cam-bolt.
3
D
B
5
10/13
D
D
B
6
4

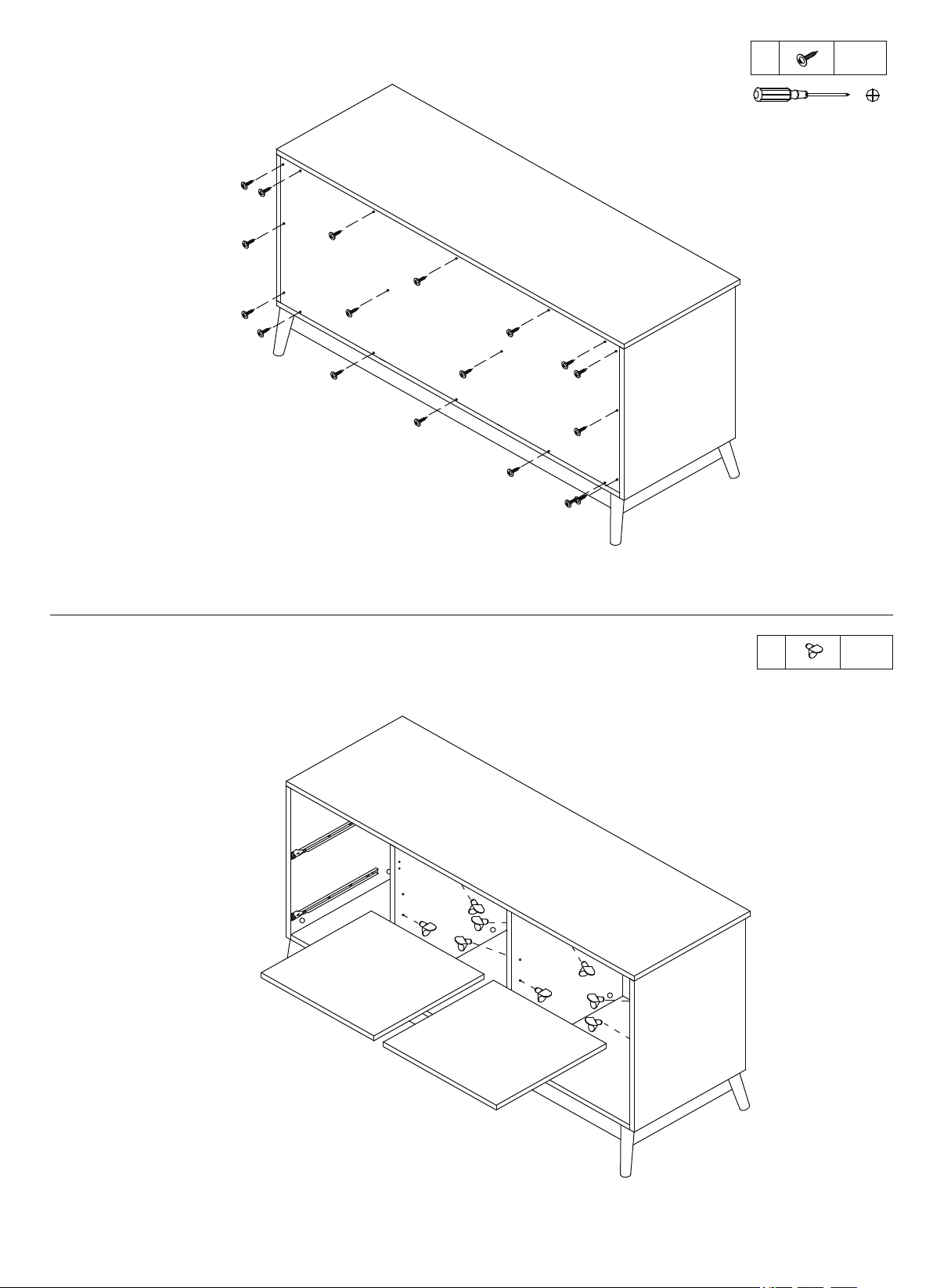

STEP 10
M
9
H
18 pcs
Attach Back Panel (9) by using Screw (M).
STEP 11
11
E
11
E
E
8 pcs
Insert Shelf Pin (E) and put Shelf (11) in place.
11/13
STEP 12A
2 pcsG
4 pcsH
J
I
J
I
7
Attach Hinge (I) to Door (7) by using Screw (J).
STEP 12B
X 2
I
J
4 pcs
16 pcs
J
J
7
G
Hold the
door with
both hand
a) Attach Door (7) to Side Panel by using Screw (J).
b) Attach Handle (G) to Door by using Handle Bolt (H).
c) Make door alignment adjustment if needed. Refer to
adjustment instructions below.
H
7
12/13
STEP 13
K2
K1
Insert Drawer as shown.
a) Align roller on Drawer Slide Runner (K2) on drawer to
be above the roller on Drawer Slide Track (K1) on Side &
Divide Panel, and slide roller on (K2) into track rail on (K1).
b) Push drawer squarely and gently to allow (K2) to slide into (K1).
The assembly of the buffet unit is complete.
13/13
