ASSEMBLY INSTRUCTIONS
3 Pack Tables
NOTE TO CUSTOMERS:
• For ease and speed of assembly we recommend that before you commence each step of the assembly
that you identify all the parts required to complete that step.
• We recommend that where possible you allow sufficient space to assemble the item as close as
possible to the place where it will be once assembled.
• For the protection of your furniture we recommend that the product is placed on protected
surfacesduring assembly to prevent any damage.
• During assembly do not over tighten, as this may damage the product.
• Please ensure you retain all the product packaging until the item completely assembled.
• Please periodically check all fittings and re-tighten as necessary.
• Never allow any liquids to remain on your furniture as absorption can cause the wood to warp or the
finish to de-lalminate.
• It is recommended that this item should be assembled by two adults.
-Page 1 of 5-
Part List
A1
Leg -Coffee Table
A5
Top frame-Coffee Table
Quantity
of 2
Quantity
of 1
A2
Leg-Coffee Table
A6
Shelf frame-Coffee Table
Quantity
of 2
Quantity
of 1
A3
Leg -End Table
A7
Top frame-End Table
Quantity
of 4
Quantity
of 2
A4
Leg -End Table
A8
Shelf frame-End Table
Quantity
of 4
Quantity
of 2
A9
Top panel-Coffee Table Shelf panel-Coffee Table
Quantity
of 1
Coffee Table X1
A10
Hardware List
B1
5/8"L
Quantity
of 36
B2
1-1/8"L
Quantity
of 1
A11
Top panel-End Table Shelf panel-End Table
Quantity
of 24
Dia:1/4"
Quantity
of 2
B3
A12
End Table X2
Quantity
of 2
Quantity
of 1
Bolt
Bolt
Allen Wrench
-Page 2 of 5-

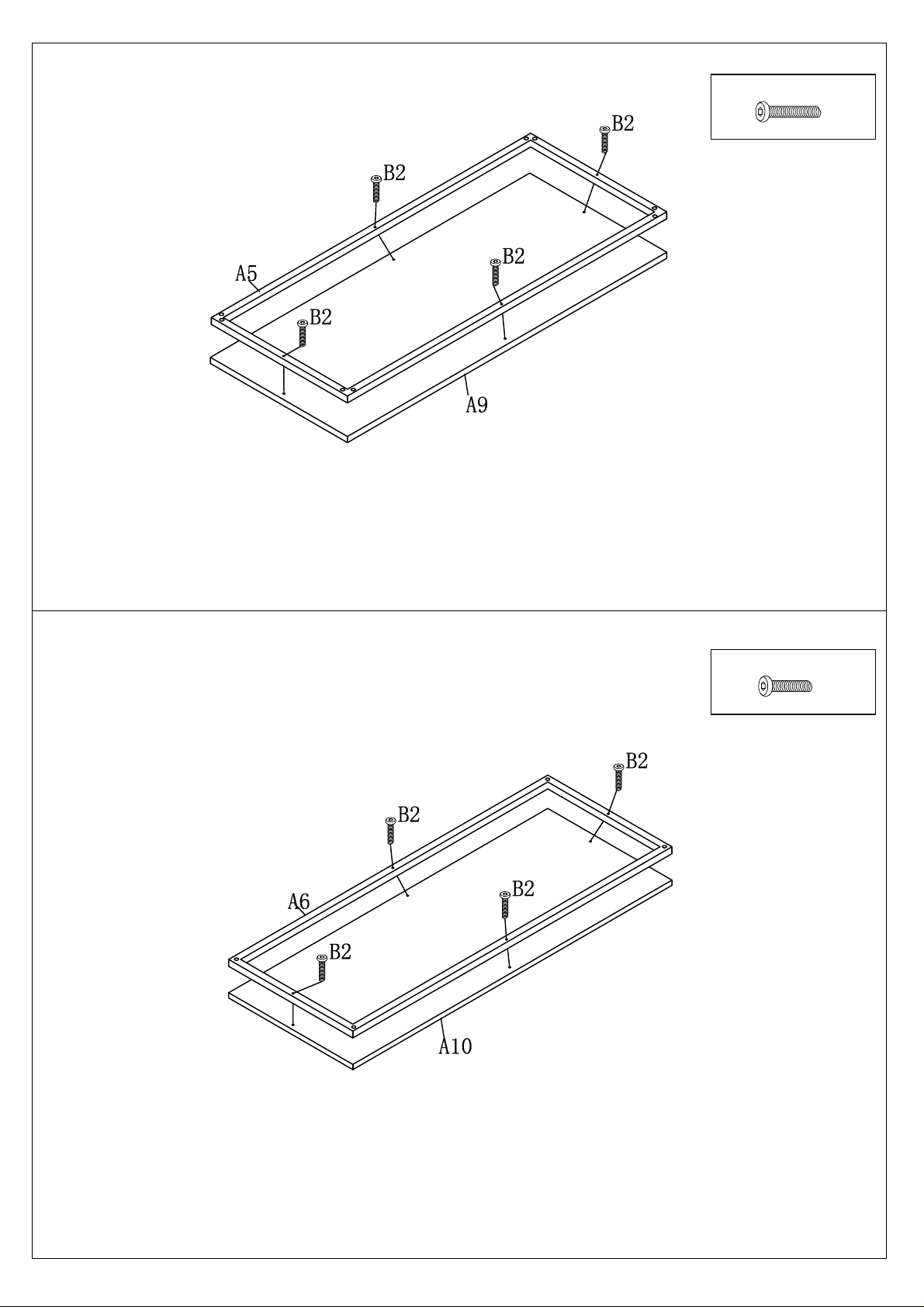

STEP 1:
B2 4pcs
Assemble Top Panel A9 to Top Frame A5 using Bolts B2 .
STEP 1:
B2
4pcs
Assemble Shelf Panel A10 to Shelf Frame A6 using Bolts B2 .
-Page 3 of 5-
STEP 3:
Assemble Legs A1&A2 to Top Frame A5 using Bolts B1. Then assemble Shelf Frame A6 to Legs
A1&A2 using Bolts B1 .
NOTE: Place the table on the floor to check if it is stable before tightening all bolts.
STEP 4:
B2 8pcs
Assemble Top Panel A11 to Top Frame A7 using Bolts B2 .
-Page 4 of 5-
STEP 5:
B2 8pcs
Assemble Shelf A12 to Shelf Frame A8 using Bolts B2 .
STEP 6:
Assemble Legs A3&4to Top Frame A7 using Bolts B1 . Then assemble Shelf Frame A8 to Legs A3&4
using Bolts B1 .
NOTE: Place the table on the floor to check if it is stable before tightening all bolts.
-Page 5 of 5-
