IMPORTANT : PLEASE READ INSTRUCTION BEFORE STARTING THE ASSEMBLY.
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 1 OF 25
VERSION 080921
https://youtu.be/ y2D7n6oDslI
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and hardware. Compare with the parts list to be sure all parts are present.
"DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED"
"DO NOT OVERTIGHT ANY HARDWARE"
TABLE OF CONTENTS
HARDWARES LIST
PARTS LIST
PARTS' LOCATION
ASSEMBLY STEPS
ASSEMBLY COMPLETED
ANTI-TIPPING INSTALLMENT
INSTRUCTIONS
PAY ATTENTION ITEMS
ASSEMBLY TOOLS REQUIRED
PAGE 2 - 3
PAGE 4 - 5
PAGE 6
PAGE 7 - 22
PAGE 23
PAGE 24
PAGE 25
1. Screwdriver (not provide)
Skip the power trip this time.
2. Hammer (not provide)
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 2 OF 25
MORE HARDWARES DETAIL IN NEXT PAGE...
ITEM
A
B
C
D
E
F
G
H
I
DESCRIPTION
MINIFIX CAM LOCK
MINIFIX CAM BOLT
WOOD DOWEL (M8 x 25MM)
WOOD DOWEL (M6 x 25MM)
JCBC SCREW M6 x 20MM
SPRING WASHER M6 x 13MM
FLAT WASHER M6 x 19MM
TRUSS M-SCREW (20MM)
6/8" NAIL
QTY
76 PCS
76 PCS
38 PCS
48 PCS
8 PCS
8 PCS
8 PCS
12 PCS
24 PCS
DRAWING
HARDWARES LIST
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 3 OF 25
HARDWARES LIST
ITEM
J
K
L
M
N
O
DESCRIPTION
HANDLE
M4 ALLEN KEY (65MM)
LEFT DRAWER SLIDE
RIGHT DRAWER SLIDE
CSK SCREW M3 x 10mm
PLASTIC STRIP (H SHAPE)
QTY
6 PCS
1 PC
6 PCS
6 PCS
48 PCS
1 PC
DRAWING
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 4 OF 25
ITEM
D1
D5
D6
D23
D12A
D12B
D13
DESCRIPTION
TOP PANEL
TOP SUPPORT RAIL
CENTRE SUPPORT RAIL
BOTTOM PANEL
UPPER BACK PANEL
LOWER BACK PANEL
DRAWER HEAD
QTY
1 PC
4 PCS
4 PCS
1 PC
1 PC
1 PC
6 PCS
DRAWING
PARTS LIST (BOX 1)
MORE PARTS DETAIL IN NEXT PAGE...
ITEM
21
DESCRIPTION
DRAWER BOTTOM SUPPORT RAIL
QTY
6 PCS
DRAWING
PARTS LIST (BOX 2)
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 5 OF 25
ITEM
D2
D3
D4
D14
D15
D24
22
19
20
DESCRIPTION
LEFT PANEL
RIGHT PANEL
CENTRE PANEL
DRAWER BACK PANEL
DRAWER BOTTOM PANEL
CENTRE SUPPORT LEG
METAL LEG
DRAWER LEFT PANEL
DRAWER RIGHT PANEL
QTY
1 PC
1 PC
1 PC
6 PCS
6 PCS
1 PC
4 PCS
6 PCS
6 PCS
DRAWING
PARTS LIST (BOX 2)
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PARTS ' LOCATION
DRESSER x 1 PC
DRAWER x 6 PCS
PAGE 6 OF 25
D13
19
20
D14
D15
21
D1
D3
D5
D6
D2
D4
D23
D24
D5
D6
22
22
D12A
D12B
VERSION 080921
STEP 1
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 7 OF 25
ASSEMBLY STEPS
Arrow need to face outside.
Arrow need to face outside.
C
B
A
D2
Assembled looks

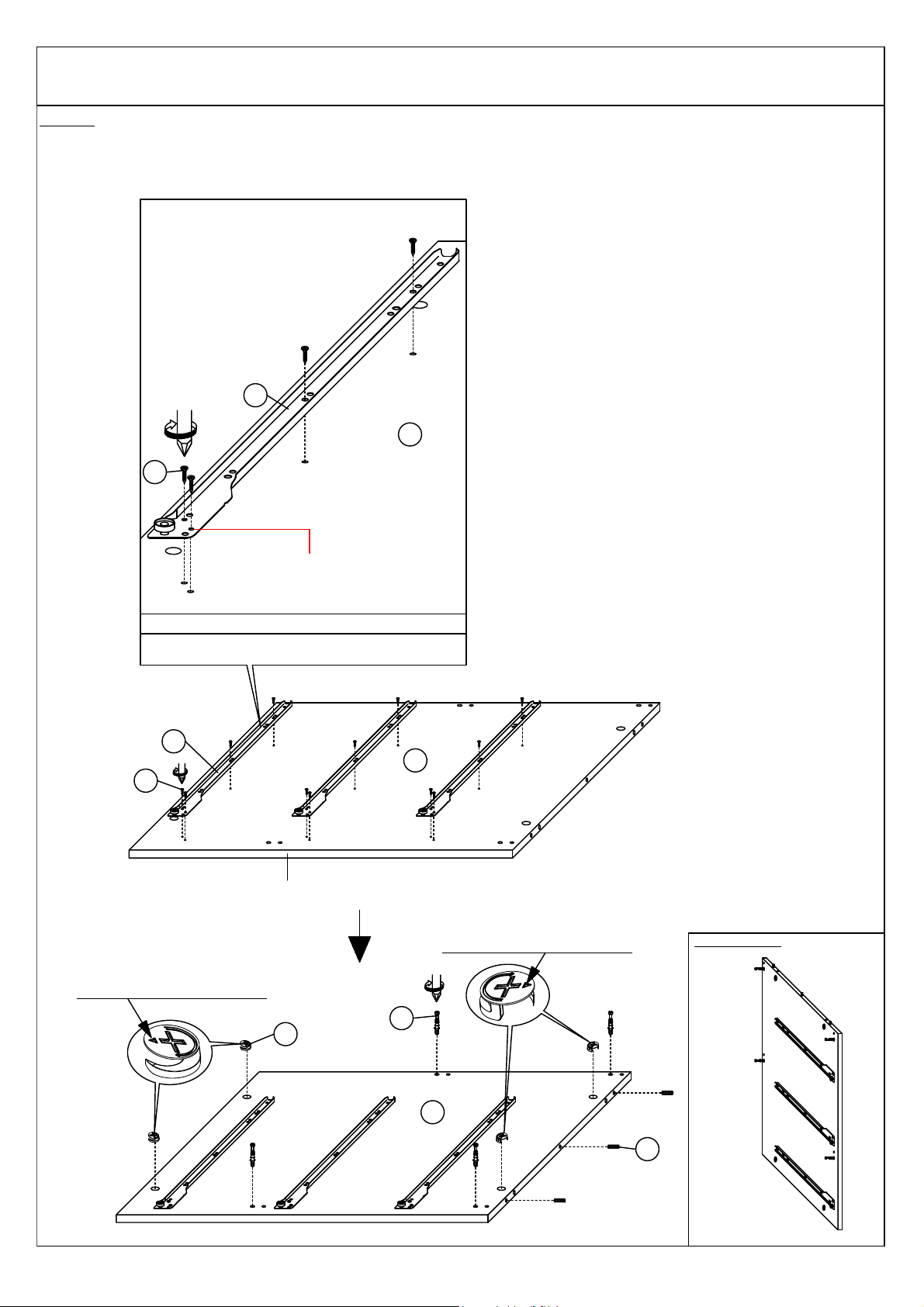

Fix 3 pieces (L) to the (D2) by using 12 pieces (N). Then insert 4 pieces (A),(B) and 3 pieces (C) as shown.
D2
N
L
Insert screw to tight
this hole first
N
L
D2
Finished edge
VERSION 080921
STEP 2
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 8 OF 25
Arrow need to face outside.
Arrow need to face outside.
C
B
A
D3
D3
N
M
Insert screw to tight
this hole first
D3
M
N
Finished edge
Assembled looks
Fix 3 pieces (M) to the (D3) by using 12 pieces (N). Then insert 4 pieces (A),(B) and 3 pieces (C) as shown.
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
STEP 3
PAGE 9 OF 25
B
C
D4
R
180 °
Fix the remaining 3 pieces (L) to the right side of (D4) by using 12 pieces (N). Then insert 3 pieces (C) and 4 pieces (B)
as shown.
R
Insert screw to tight
this hole first
N
L
D4
D4
N
L
Finished edge
R
VERSION 080921
B
A
Arrow need to face outside.
L
D4
Arrow need to face outside.
L
R
M
N
D4
Fix the remaining 3 pieces (M) to the left side of (D4) by using 12 pieces (N). Then insert 4 pieces (A),(B) as shown.
L
Finished edge
Without edge
N
M
D4
L
Insert screw to tight this hole first
Assembled looks
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
STEP 4
PAGE 10 OF 25
VERSION 080921
D6
C
Arrow need to face outside.
Arrow need to face outside.
C
Arrow need to face outside.
Arrow need to face outside.
Arrow need to face outside.
A
D5
A
Insert 5 pieces (A) and 2 pieces (C) to (D5) as shown.This step needs to be done four times.
Insert 2 pieces (A),(C) to (D6) as shown.This step needs to be done four times.
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
STEP 5
STEP 6
PAGE 11 OF 25
Assembled looks
Assembled looks
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
STEP 7
STEP 8
PAGE 12 OF 25
Insert 18 pieces (B) to the (D1) as shown.
D1
B
Insert 6 pieces (B) and 9 pieces (C) to the (D23) as shown.
B
C
D23
Assembled looks
Assembled looks
STEP 10
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 13 OF 25
STEP 9
D2
D5
D6
D6
D5
D4
R
Combine 2 pieces (D5) and (D6) to the (D2) then tighten the 4 pieces (A)-(pre insert in step 5 and 6) as shown.
Combine the (D4) to the (D5) and (D6) then tighten the another 4 pieces (A)-(pre insert in step 5 and 6) as shown.
INSIDE VIEW
D5
D6
D6
D6
D5
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
STEP 11
STEP 12
PAGE 14 OF 25
D4
R
D5
D6
D6
D3
D5
D6
Combine the remaining 2 pieces (D5) and (D6) to the (D4) then tighten the another 4 pieces (A)-(pre insert in step 5 and
6) as shown.
Combine the (D3) to the (D5) and (D6) then tighten the remaining 4 pieces (A)-(pre insert in step 5 and 6) as shown.
90 °
INSIDE VIEW
D5
D6
D6
D5
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
STEP 13
STEP 14
PAGE 15 OF 25
Combine the (D23) to the (D2),(D3) and (D4) then tighten the 6 pieces (A)-(pre insert in step 1,2 and 4) as shown.
Turn (D24) clockwise to combine it to the bottom of the (D23) . Then insert the 8 pieces (E),(F) and (G) to combine the
(22) to the (D23) as shown.
D4
D2
D3
INSIDE VIEW
D23
D4
D2
D3
D23
D24
22
D24
90 °
D23
22
D23
E
F
G
K
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
STEP 15
STEP 16
PAGE 16 OF 25
Combine the (D1) to the frame then tighten the remaining 18 pieces (A)-(pre insert in step 1,2,4,5 and 6) as shown.
D1
D3
D2
D4
D3
D2
D4
D5
D5
D5 D5
O
O
Put the (D12A) and (D12B) to the gap of (O) as shown.Direction of the side with colored paper must be the same.
This side closer to the hole needs to face inside
D12A
D12B
D12A
D12B
INSIDE VIEW
VERSION 080921
B
Insert 3 pieces (B) to the (D13) as shown.This step needs to be done six times.
D13
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
STEP 17
STEP 18
PAGE 17 OF 25
Insert the 24 pieces (I) to fix the (D12A) and (D12B) as shown. Colored paper face to outside.
To prevent blocking (D2) and (D3), make sure the (O) at the middle of (D12A) and (D12B) , do not over left or right.
D1
D2
D23
D12A
D12B
I
O
Assembled looks
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
STEP 19
PAGE 18 OF 25
STEP 20
B
D
A
Arrow need to face outside.
D
A
B
19
20
Insert 1 piece (A),(B) and 2 pieces (D) to (19) as shown.This step needs to be done six times.
Insert 1 piece (A),(B) and 2 pieces (D) to (20) as shown.This step needs to be done six times.
Arrow need to face outside.
Assembled looks
Assembled looks
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
STEP 21
PAGE 19 OF 25
STEP 22
A
D
D14
Arrow need to face outside.
Arrow need to face outside.
Insert 2 pieces (A), 1 piece (B) and 4 pieces (D) to (D14) as shown.This step needs to be done six times.
Insert 2 pieces (A) to (21) as shown. This step needs to be done six times.
B
21
Arrow need to face outside.
Arrow need to face outside.
A
Assembled looks
Assembled looks
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 20 OF 25
STEP 23
STEP 24
Combine (19) and (20) to (D14) then tighten the 2 pieces (A)-(pre-insert in step 21) as shown. This step needs to be done six times.
Put the (D15) into the gap of (19),(20) and (D14) as shown.This step needs to be done six times.
19
20
19
20
D14
D14
D14
D15
D15
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 21 OF 25
STEP 25
STEP 26
Combine the (21) to the (D14) then tighten the 1 piece (A)-(pre-insert in step 22) as shown.This step needs to be done six times.
Combine the (D13) to the drawer frame. Then tighten the 3 pieces (A)-(pre-insert in step 19,20 and 22) as shown.This step needs to be done six times.
D15
D14
21
19
20
20
21
90 °
INSIDE VIEW
D13
D15
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 22 OF 25
J
H
STEP 27
STEP 28
D13
20
19
Insert 2 pieces (H) fix the (J) as shown.This step needs to be done six times.
Align the position then push the 6 pieces drawer to inside exactly by your hand as shown.
D3
D1
D13
VERSION 080921
80078-011/012/021/022/031/032 DR ASSEMBLY INSTRUCTION
PAGE 23 OF 25
STEP 29
ASSEMBLY COMPLETED
VERSION 080921
PAGE 24 OF 25
VERSION 080921
Place the drawer which sticked a warning label in the top as shown.
PAGE 25 OF 25
This sticker was sticked at one of the DRAWER LEFT PANEL(19).
STICKER
VERSION 080921
