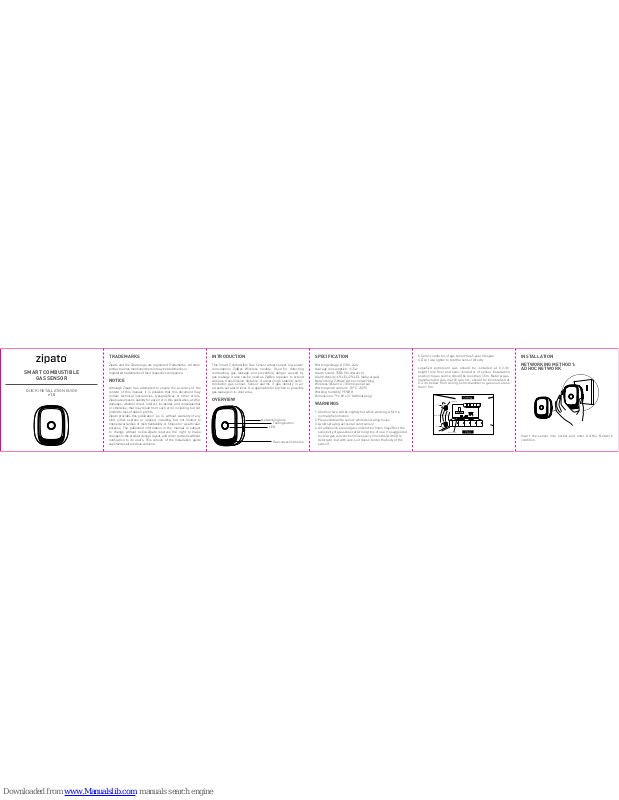

Page 1

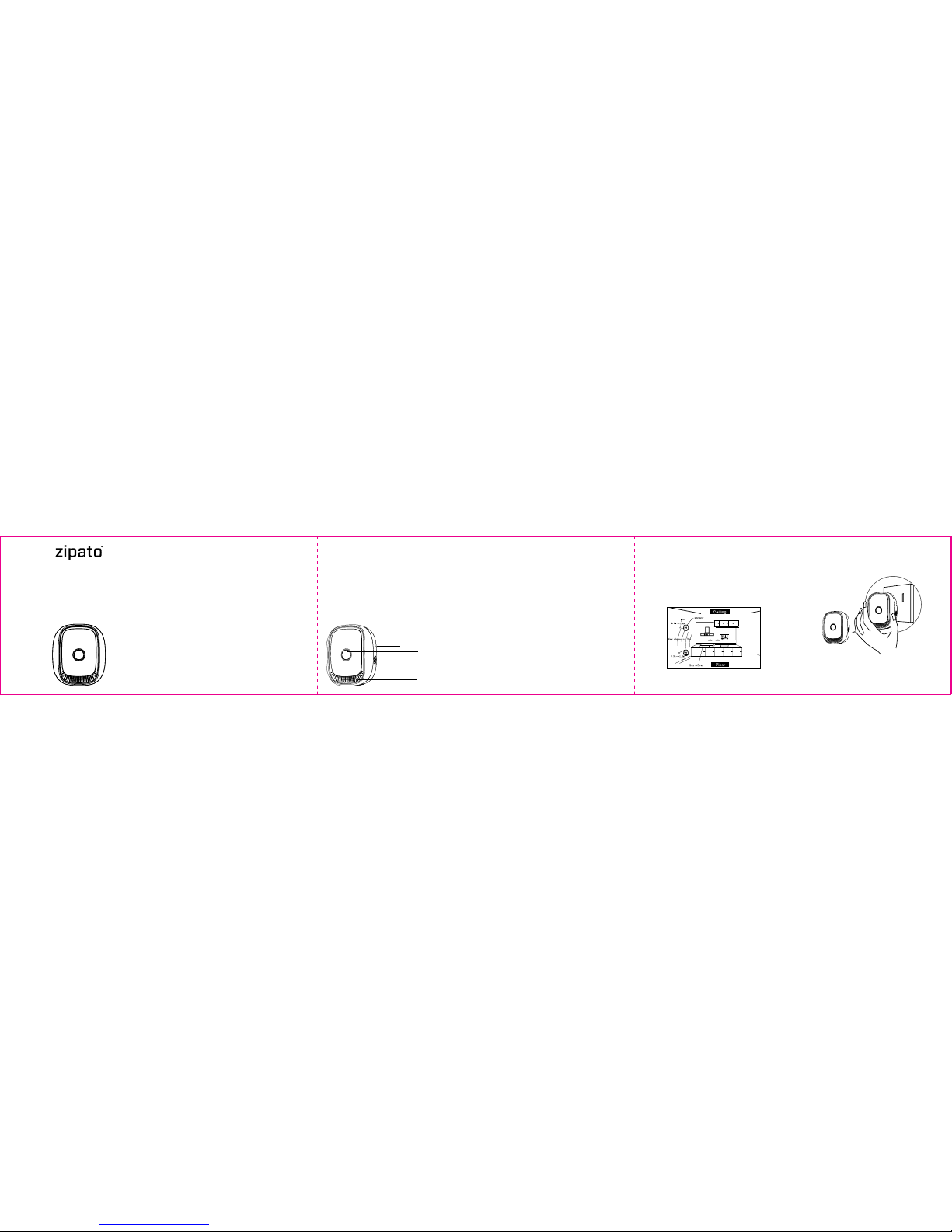

Networking hole
Gas convection holes
Testing button
LED
QUICK INSTALLATION GUIDE
v1.0
SMART COMBUSTIBLE
GAS SENSOR
5. Semi-c onductor o f gas sensor h as 5 year life span
6. Don’t use li ghter to test t he sensor di rectly
Liquefie d petroleu m gas should b e isntall ed at 0.3-1m
height fro m floor and semi-con ductor of sensor ins tallation
position t o gas source shou ld be less than 1.5 m. Natural gas ,
manufac tured gas, mars h gas, etc. should be b e installed at
0.3-1m bellow f rom ceiling, s emi-diame ter to gas source l ess
than 1.5m.
INSTALLATION
NETWORKING METHOD 1:
AD HOC NE TWORK
Insert t he sensor in to socket an d enter Ad-H oc Networ k
condition.
INTRODUCTION
This Smart Combustible Gas Sensor adopts super low power
consumption ZigBee Wireless module. Used for detecting
combusting gas leakage and preventing danger caused by
gas leakage it also can be used as ZigBee repealer to extend
wireless transmission distance. It adopts high stability semiconductor gas sensor. Sensor alarms if gas density in air
exceeds set alarm level. It is applicable for kitchen or possible
gas leakage in in-door area.
OVERVIEW
TRADEMARKS
Zipato and the Zipato logo are registered Trademarks. All other
product names mentioned herein may be trademarks or
registered trademarks of their respective companies.
NOTICE
Although Zipato has attempted to ensure the accuracy of the
content of this manual, it is possible that this document may
contain technical inaccuracies, typographical, or other errors.
Zipato assumes no liability for any error in this publication, and for
damages, whether direct, indirect, incidental, and consequential
or otherwise, that may result from such error, including, but not
limited to loss of data or profits.
Zipato provides this publication “as is” without warranty of any
kind, either express or implied, including, but not limited to
implied warranties of merchantability or fitness for a particular
purpose. The published information in the manual is subject
to change without notice.Zipato reserves the right to make
changes in the product design, layout, and driver revisions without
notification to its users. This version of the Installation guide
supersedes all previous versions.
SPECIFICATION
Working v oltage: AC10 0~240v
Avarage consumption: <1.5w
Alarm so und: 75Db (1m dist ance)
Alarm density: 6%LEL+3%LEL (natural gas)
Networking: Z-Wave Ad-hoc networking
Wireles s distance : <100m (open ar ea)
Working environment: -10°C~+50°C
Working humidity: 95%RH
Dimensions: 79 x 68 x 31 (without plug)
WARNIN GS
1. Shell sur face will b e slightly hot w hile work ing, which i s
normal phenomenon
2. Please d ismantle se nsor whil e decorati ng house
3. Avoid spr aying aer osol aroun d sensor
4. Oil adhen sion aroun d gas conven ction hole s may effec t the
senisti vity of g as sensor a fter lon g time of use . It’s sugge sted
to clear gas c onvencti on holes eve ry 3 months ( with litt le
detergen t, but with ca re so it does n’t enter the bod y of the
sensor).
Page 2
- Device Res et Locall y notificat ion is Transmi tted.
- Please us e this proce dure only wh en the netwo rk primar y
controller is missing or otherwise inoperable.
LIGHT STATE & PRODUCT TEST
STATE COLOR LIGHT ALARM SOUND
Power Green Normally on No
Alarm Red Flashing di”alarm
Malfunction Yellow Normally on Long buzz
Test button o f this senso r is used for t esting wh eater LED
indicato r and buzzer can wor k properly. Red LE D and yellow
LED flash a lternati vely with b uzzer alar m when the te st button
is presse d.
TROUBLESHOOTING
The senso r will keep alarmi ng while the natura l gas or LPG
density i n air exceeds t he alarm le vel:
1. Shut down th e tube valve r ight away
2. Extin guish all fir e sources
4. Avoid sw itching on v arious ele ctric equ ipments
5. Open the w indows to ma ke air flow
SYMPTOM REASON SOLUTON
Alaways
warming up
after powering
on (LED keeps
flashing)
1. Long time
without power
2. Tested gas
detector while
warming up
1. Power on detector for
24 hours
2. Don’t test gas detector
while warming up
Yellow LED keeps
on and buzzer
keeps beeping
Gas sensor
faulty
Contact dealer for repair
The green L ED lights up after po wer on the sensor, when a
“beep” sou nds once, th e sensor ent ers into wa rm-up st ate
then red and y ellow LED fl ash alterna tely. Eventua lly the flash
stops 3 minu tes later, whi ch indicat es that the se nsor has
entered int o normal workin g state. Don’t the sen or while it’s
in warm- up state.

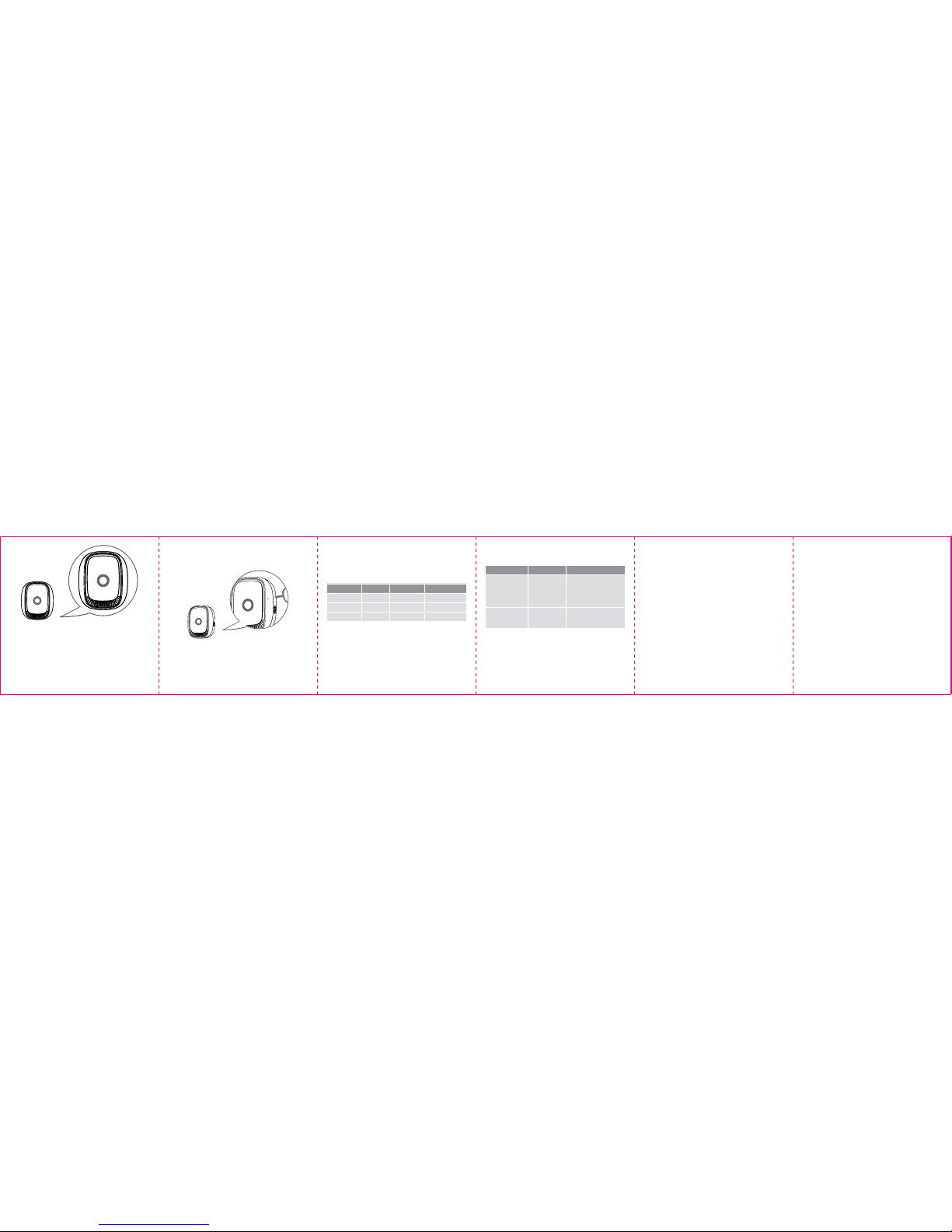

NETWORKING METHOD 2:
MANUAL NETWORK
In order to ch ange netwo rk, long pre ss the netwo rking butt on
for 5 second s, the green LED w ill flash slowl y for 3 seconds,
which indicates that disconnection was successful.
DEVICE FACTORY RESET
- Long pres s Net_Bu tton at leas t 10 seconds in t he device.
Page 3
LIMITED PRODUCT WARRANT
GENERAL TERMS
Nothing in this Limited Product Warranty affects your statutory
rights as a consumer.
The Limited Product Warranty set forth below is given by Tri
plus grupa d.o.o. (Europe) (herein referred to as “ZIPATO”). This
Limited Product Warranty is only effective upon presentation
of the proof of purchase. Upon further request by ZIPATO, this
warranty card has to be presented, too.
EXCEPT AS EXPRESSLY SET FORTH IN THIS LIMITED
WARRANTY, ZIPATO MAKES NO OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. ZIPATO EXPRESSLY DISCLAIMS ALL WARRANTIES
NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED
WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED
IN DURATION TO THE LIMITED WARRANTY PERIOD. TO
THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES
IN THIS WARRANTY STATEMENT ARE CUSTOMER’S SOLE
AND EXCLUSIVE REMEDIES AGAINST ZIPATO. THEY DO
NOT, HOWEVER, AFFECT OR RESTRICT THE RIGHTS YOU
HAVE AGAINST THE BUSINESS YOU BOUGHT A ZIPATO
PRODUCT FROM. IN NO EVENT WILL ZIPATO BE LIABLE FOR
LOSS OF DATA OR FOR INDIRECT, SPECIAL, INCIDENTAL,
CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR
OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT,
OR OTHERWISE. HOWEVER, NOTHING IN THIS AGREEMENT
LIMITS ZIPATO’S LIABILITY TO YOU (I) IN THE EVENT OF DEATH
OR PERSONAL INJURY TO THE EXTENT RESULTING FROM
ZIPATO’S NEGLIGENCE, OR (II) TO THE EXTENT RESULTING
FROM ANY FRAUDULENT MISREPRESENTATION ON THE
PART OF ZIPATO, OR (III) TO THE EXTENT ARISING UNDER
PART 1 OF THE CONSUMER PROTECTION ACT 1987 OF THE
UNITED KINGDOM. SOME STATES OR COUNTRIES DO NOT
ALLOW: (1) A DISCLAIMER OF IMPLIED WARRANTIES; (2) A
LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS
OR THE EXCLUSION; OR (3) LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS.
IN SUCH STATES OR COUNTRIES, SOME EXCLUSIONS OR
LIMITATIONS OF THIS LIMITED WARRANTY MAY NOT APPLY
TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT MAY VARY
FROM STATE TO STATE OR FROM COUNTRY TO COUNTRY. YOU
ARE ADVISED TO CONSULT APPLICABLE STATE OR COUNTRY
LAWS FOR A FULL DETERMINATION OF YOUR RIGHTS.
This Limited Product Warranty applies to ZIPATO branded
hardware products (collectively referred to as “ZIPATO Hardware
Products”) sold by ZIPATO (Europe), its European subsidiaries,
affiliates, authorized resellers, or country distributors (collectively
referred to as “ZIPATO Resellers”) with this Limited Product
Warranty.
The term “ZIPATO Hardware Product” is limited to the
hardware components and all its internal components
including firmware.
The term “ZIPATO Hardware Product” DOES NOT include any
software applications or programs.
GEOGRAPHICAL SCOPE OF THE LIMITED
PRODUCT WARRANTY
This Limited Product Warranty is applicable to Hardware
Products sold by Zipato Resellers in all countries listed at the
beginning of this document under the heading “Countries in
which this ZIPATO Limited Product Warranty applies”. The
Limited Product Warranty will be honored in any country where
ZIPATO or its authorized service providers offer warranty service
subject to the terms and conditions set forth in this Limited
Product Warranty. However, warranty service availability and
response times may vary from country to country and may also
be subject to registration requirements.
LIMITATION OF PRODUCT WARRANTY
ZIPATO warrants that the products described below under
normal use are free from material defects in materials and
workmanship during the Limited Product Warranty Period set
forth below (“Limited Product Warranty Period”), if the product
is used and serviced in accordance with the user manual and
other documentation provided to the purchaser at the time of
purchase (or as amended from time to time).
ZIPATO does not warrant that the products will operate
uninterrupted or error-free or that all deficiencies, errors,
defects or non-conformities will be corrected.
This warranty shall not apply to problems resulting from:
(a) unauthorized alterations or attachments; (b) negligence,
abuse or misuse, including failure to operate the product in
accordance with specifications or interface requirements; (c)
improper handling; (d) failure of goods or services not obtained
from ZIPATO or not subject to a then-effective ZIPATO warranty
or maintenance agreement; (e) improper use or storage; or
(f) fire, water, acts of God or other catastrophic events. This
warranty shall also not apply to any particular product if any
ZIPATO serial number has been removed or defaced in any way.
ZIPATO IS NOT RESPONSIBLE FOR DAMAGE THAT OCCURS AS
A RESULT OF YOUR FAILURE TO FOLLOW THE INSTRUCTIONS
FOR THE ZIPATO HARDWARE PRODUCT.
LIMIT ED PRODUC T WARRA NTY PER IOD
The Limited Product Warranty Period starts on the date of
purchase from ZIPATO. Your dated sales or delivery receipt,
showing the date of purchase of the product, is your proof
of the purchase date. You may be required to provide proof
of purchase as a condition of receiving warranty service. You
are entitled to warranty service according to the terms and
conditions of this document if a repair to your ZIPATO branded
hardware is required within the Limited Product Warranty
Period.
[Other than in respect of products for domestic use (in
particular those listed in the first and last boxes in the table
below), this Limited Product Warranty extends only to the
original end user purchaser of this ZIPATO Hardware Product
and is not transferable to anyone who obtains ownership of
the ZIPATO Hardware Product from the original end-user
purchaser.
PRODUC T WARRAN TY PERI OD TABLE
PRODUCT TYPE
Smart Combustible Gas
Sensor
PRODUCT WARRANTY PERIOD One (1) year
IMPORTANT
The content of “Product Type” listed above is subject to change;
please refer to the www.zipato.com for latest update.
PERFORM ANCE OF T HE LIMITE D PRODUC T
WARRANTY
If a product defect occurs, ZIPATO’s sole obligation shall be
to repair or replace any defective Zipato Hardware Product
free of charge provided it is returned to an Authorized ZIPATO
Service Centre during the Limited Warranty Period. Such repair
or replacement will be rendered by ZIPATO at an Authorized
Page 4
ZIPATO Service Centre. All component parts or hardware
products that are replaced under this Limited Product Warranty
become the property of ZIPATO. The replacement part or
product takes on the remaining Limited Warranty Period of the
replaced part or product. The replacement product need not be
new or of an identical make, model or part; ZIPATO may in its
discretion replace the defective product (or any part thereof)
with any reconditioned equivalent (or superior) product in all
material respects to the defective product.
WARRANTOR
Tri plus grupa d.o.o.
Banjavciceva 11
10 000 Zagreb
CROATIA
TEL +385 (0)1 4004 404
FAX +385 (0)1 4004 405
DECLARATION OF CONFORMITY
The manufacturer Tri plus grupa d.o.o declares under our sole
responsibility that the product:
Marketing model: Smart Combustible Gas Sensor
Regulatory model: hm-hs1cg-m
Trade/Brand name: Zipato
is in conformity with the Directive 2014/53/EU and carries the CE
marking accordingly.
ETSI EN 300 220-1 V2.4.1 (2012-05)
ETSI EN 300 220-2 V2.4.1 (2012-05)
ETSI EN 301 489-1 V1.9.2 (2011-09)
ETSI EN 301 489-3 V1.6.1 (2013-08)
EN 62479: 2010
EN 60950-1: 2006+A11:2009+A1:2010+A12:2011+A2:2013
Changes or modifications not expressly approved by Tri plus
grupa d.o.o. for compliance could void the user’s authority to
operate the equipment.
DISPOS ING AND REC YCLING YOU R
PRODUCT
When it rea ches end of life , dispose of the pr oduct accor ding
to your loca l envirome ntal laws , guideline s and regul ations.
This sym bol on the pro duct or pa ckaging me ans that acc ording
to local la ws and re gulatio ns need s to be dispo sed of sep arate ly
from hous ehold waste . Once this pro duct has rea ched the end
of its life , please take it to a co llection poi nt (recycle fa cilites)
designat ed by your loc al author ities, s ome will acc ept your
product f or free or simply dr op it off at your Zipa to re-seller
store. By r ecycli ng the produ ct and its p ackaging i n this
manner you h elp to conse rve the en vironme nt and prote ct
human heal th. At Zipato, we under stand and are commi tted
to reducin g any impact our o perations a nd product s may have
on the envir onment. To minimize this i mpact Zipato desig ns
and builds i ts products to be as e nvironmentally f riendly as
possible , by using re cyclab le, low toxic m aterial s in both
products and packaging.
COPYRIGHT
© 2017 Tri plus grupa d.o.o. All Rights Reserved.
No part of this manual may be reproduced or transmitted in any
form without the expressed, written permission of Tri plus grupa
d.o.o.
Loading...
