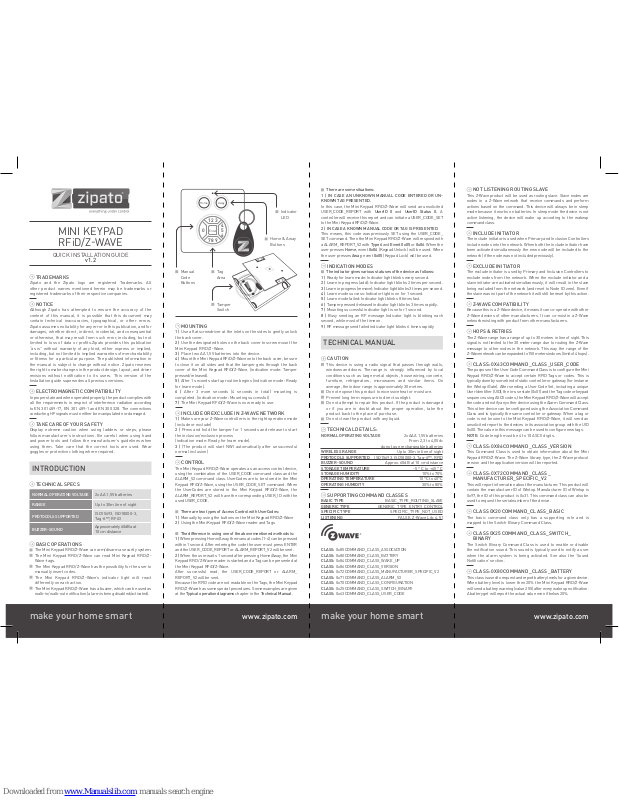

Zipato MINI KEYPAD RFiD/Z-WAVE Quick Installation Manual

make your home smart www.zipato.com make your home smart www.zipato.com

TRADEMARKS

Zipato and the Zipato logo are registered Trademarks. All
other product names mentioned herein may be trademarks or
registered trademarks of their respective companies.

NOTICE

Although Zipato has attempted to ensure the accuracy of the
content of this manual, it is possible that this document may
contain technical inaccuracies, typographical, or other errors.
Zipato assumes no liability for any error in this publication, and for
damages, whether direct, indirect, incidental, and consequential
or otherwise, that may result from such error, including, but not
limited to loss of data or profi ts.Zipato provides this publication
“as is” without warranty of any kind, either express or implied,
including, but not limited to implied warranties of merchantability
or fi tness for a particular purpose. The published information in
the manual is subject to change without notice. Zipato reserves
the right to make changes in the product design, layout, and driver
revisions without notifi cation to its users. This version of the
Installation guide supersedes all previous versions.

ELECTROMAGNETIC COMPATIBILITY

In proper state and when operated properly, the product complies with
all the requirements in respect of interference radiation according
to EN 301 489-17, EN 301 489-1 and EN 300 328. The connections
conducting HF signals must neither be manipulated nor damaged.

TAKE CA RE OF YOUR S AFET Y

Display extreme caution when using ladders or steps, please
follow manufacturer’s instructions. Be careful when using hand
and power tools and follow the manufacturer’s guidelines when
using them. Take care that the correct tools are used. Wear
goggles or protective clothing where required.

INTRODUCTION

TECHNICAL SPECS

NORMAL OPERATING VOLTAGE 2x AA 1,5V batteries

RANGE Up to 30m line of sight

PROTOCOLS SUPPORTED

ISO15693, ISO18000-3,
Tag-it™, RFiD

BUZZERSOUND

Approximately 60dBa at
10 cm distance

BASIC OPERATIONS

The Mini Keypad RFiD/Z-Wave can arm/disarm a security system.
The Mini Keypad RFiD/Z-Wave can read Mini Keypad RFiD/Z­Wave-tags.
The Mini Keypad RFiD/Z-Wave has the possibility for the user to
manually insert codes.
The Mini Keypad RFiD/Z-Wave’s indicator light will react
differently on each action.
The Mini Keypad RFiD/Z-Wave has a buzzer, which can be used as
walk-in/walk-out notifi cation (alarm is being disabled/activated).

MOUNTING

1 | Use a fl at screwdriver at the inlets on the sides to gently unlock

the back cover.
2 | Use the designated holes on the back cover to screw mount the
Mini Keypad RFiD/Z-Wave.

3 | Place two AA 1,5V batteries into the device.
4 | Mount the Mini Keypad RFiD/Z-Wave onto the back cover, be sure

to close it on all sides and that the tamper gets through the back
cover of the Mini Keypad RFiD/Z-Wave. (indication mode: Tamper
pressed/released).
5 | After 1 seconds startup routine begins (indication mode: Ready
for learn mode).
6 | After 3 more seconds (4 seconds in total) mounting is
completed. (indication mode: Mounting successful)

7 | The Mini Keypad RFiD/Z-Wave is now ready to use.

INCLU DE OR EXCL UDE IN ZWAVE NE TWORK

1 | Make sure your Z-Wave controller is in the right operation mode

(include or exclude)
2 | Press and hold the tamper for 1 seconds and release to start
the inclusion/exclusion process
(indication mode: Ready for learn mode).
3 | (The product will start NWI automatically after unsuccessful
normal inclusion)

CONTROL

The Mini Keypad RFiD/Z-Wave operates as an access control device,
using the combination of the USER_CODE command class and the
ALARM_V2 command class. UserCodes are to be stored in the Mini
Keypad RFiD/Z-Wave, using the USER_CODE_SET command. When
the UserCodes are stored in the Mini Keypad RFiD/Z-Wave, the
ALARM_REPORT_V2 will have the corresponding USER_ID with the
used USER_CODE.

There are two types of Access Control with UserCodes:

1 | Manually by using the buttons on the Mini Keypad RFiD/Z-Wave
2 | Using the Mini Keypad RFiD/Z-Wave reader and Tags

The difference in using one of the above mentioned methods is:

1 | When pressing Home/Away, the manual codes (1-4) can be pressed

within 1 second. After entering the code the user must press ENTER
and the USER_CODE_REPORT or ALARM_REPORT_V2 will be sent.
2 | When the user waits 1 second after pressing Home/Away, the Mini
Keypad RFiD/Z-Wave reader is started and a Tag can be presented at
the Mini Keypad RFiD/Z-Wave.
After successful read, the USER_CODE_REPORT or ALARM_
REPORT_V2 will be sent.
Because the RFID code are not readable on the Tags, the Mini Keypad
RFiD/Z-Wave has some special procedures. Some examples are given
at the Typical operation diagrams chapter in the Technical Manual.

There are some situations:

1 | IN CASE AN UNKNOWN MANUAL CODE ENTERED OR UN
KNOWN TAG PRESENTED.

In this case, the Mini Keypad RFiD/Z-Wave will send an unsolicited
USER_CODE_REPORT with UserID 0 and UserID Status 0. A
controller will receive this report and can initiate a USER_CODE_SET
to the Mini Keypad RFiD/Z-Wave.

2 | IN CASE A KNOWN MANUAL CODE OR TAG IS PRESENTED.

This means, this code was previously SET using the USER_CODE_
SET command. Then the Mini Keypad RFiD/Z-Wave will respond with
a ALARM_REPORT_V2 with Type 6 and Event 0x05 or 0x06. When the
user presses Home, event 0x06 (Keypad Unlock) will be used. When
the user presses Away, event 0x05 (Keypad Lock) will be used.

INDICATION MODES

The indicator gives various statuses of the device as follows:

1 | Ready for learn mode: Indicator light blinks every second.
2 | Learn in progress (add): Indicator light blinks 2 times per second.
3 | Learn in progress (remove): Indicator light blinks 3 times per second.
4 | Learn mode success: Indicator light is on for 1 second.
5 | Learn mode failed: Indicator light blinks 8 times fast.
6 | Tamper pressed/released indicator light blinks 3 times rapidly.
7 | Mounting successful indicator light is on for 1 second.
8 | Busy sending an RF message Indicator light is blinking each

second, while most of the time on.

9 | RF message send failed indicator light blinks 6 times rapidly

TECHNICAL MANUAL

CAUTION

This device is using a radio signal that passes through walls,

windows and doors. The range is strongly infl uenced by local
conditions such as large metal objects, house wiring, concrete,
furniture, refrigerators, microwaves and similar items. On
average, the indoor range is approximately 30 meters.
Do not expose this product to excessive heat or moisture.
Prevent long term exposure to direct sunlight.
Do not attempt to repair this product. If the product is damaged
or if you are in doubt about the proper operation, take the
product back to the place of purchase.
Do not clean the product with any liquid.

TECHNICAL DETAILS:

NORMAL OPERATING VOLTAGE 2x AAA 1,5V batteries

From 2,3 to 4,0Vdc

do not use rechargeable batteries

WIRELESS RANGE Up to 30m in line of sight
PROTOCOLS SUPPORTED ISO15693, ISO18000-3, Tag-it™, RFID
BUZZERSOUND Approx. 60dB at 10 cm distance
STORAGE TEMPERATURE -5 ° C to +65 ° C
STORAGE HUMIDITY 10% to 70%
OPERATING TEMPERATURE 10°C to 40°C
OPERATING HUMIDITY 30% to 80%

SUPPORTING COMMAND CLASSES

BASIC TYPE BASIC_TYPE_ROUTING_SLAVE
GENERIC TYPE GENERIC_TYPE_ENTRY_CONTROL
SPECIFIC TYPE SPECIFIC_TYPE_NOT_USED
LISTENING FALSE, Z-Wave Lib: 4.51

CLASS: 0x85 COMMAND_CLASS_ASSOCIATION
CLASS: 0x80 COMMAND_CLASS_BATTERY
CLASS: 0x84 COMMAND_CLASS_WAKE_UP
CLASS: 0x86 COMMAND_CLASS_VERSION
CLASS: 0x72 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
CLASS: 0x71 COMMAND_CLASS_ALARM_V2
CLASS: 0x70 COMMAND_CLASS_CONFIGURATION
CLASS: 0x25 COMMAND_CLASS_SWITCH_BINARY
CLASS: 0x63 COMMAND_CLASS_USER_CODE

NOT LI STENIN G ROUTING S LAVE

This Z-Wave product will be used as routing slave. Slave nodes are
nodes in a Z-Wave network that receive commands and perform
actions based on the command. This device will always be in sleep
mode because it works on batteries. In sleep mode the device is not
active listening, the device will wake up according to the wakeup
command class.

INCLUDE INITIATOR

The include initiator is used when Primary and Inclusion Controllers
include nodes into the network. When both the include initiator have
been activated simultaneously the new node will be included to the
network (if the node was not included previously).

EXCLUDE INITIATOR

The exclude initiator is used by Primary and Inclusion Controllers to
exclude nodes from the network. When the exclude initiator and a
slave initiator are activated simultaneously, it will result in the slave
being excluded from the network (and reset to Node ID zero). Even if
the slave was not part of the network it will still be reset by this action.

ZWAVE COMPATIBILITY

Because this is a Z-Wave device, it means it can co-operate with other
Z-Wave devices of other manufacturers. It can co-exist in a Z-Wave
network existing with product from other manufacturers.

HOPS & RETRIES

The Z-Wave range has a range of up to 30 meters in line of sight. This
signal is not limited to the 30 meter range due to routing the Z-Wave
message to other nodes in the network. This way the range of the
Z-Wave network can be expanded to 150 meters indoors (limit of 4 hops).

CLASS: 0X63 COMMAND_CLA SS_USER_CODE

The purpose of the User Code Command Class is to confi gure the Mini
Keypad RFiD/Z-Wave to accept certain RFID Tags or codes. This is
typically done by some kind of static controller or gateway (for instance
the Wintop iGate). After sending a User Code Set, including a unique
User Identifi er (UID), the in-use state (0x01) and the Tag code or keypad
sequence using ASCII codes, the Mini Keypad RFiD/Z-Wave will accept
the code and notify any other device using the Alarm Command Class.
This other device can be confi gured using the Association Command
Class and is typically the same controller or gateway. When a tag or
code is not known to the Mini Keypad RFiD/Z-Wave, it will send an
unsolicited report to the devices in its association group with the UID
0x00. The value in this message can be used to confi gure new tags.

NOTE: Code length must be 4 to 10 ASCII digits.

CLASS: 0X86 COMMAND_CLA SS_VERSION

This Command Class is used to obtain information about the Mini
Keypad RFiD/Z-Wave. The Z-Wave library type, the Z-Wave protocol
version and the application version will be reported.

CL ASS: 0X72 COMMAND_CLASS_

MANUFACTURER_SPECIFIC_V2

This will report information about the manufacturer. This product will
contain the manufacturer ID of Wintop. Manufacturer ID of Wintop is
0x97, the ID of this product is 0x31. This command class can also be
used to request the serialnumber of the device.

CL ASS 0X20 COMMAND_CLASS_B ASIC

The basic command class only has a supporting role and is
mapped to the Switch Binary Command Class.

CL ASS 0X25 COMMAND_CLASS_ SWITCH_

BINARY

The Switch Binary Command Class is used to enable or disable
the notifi cation sound. This sound is typically used to notify a user
when the alarm system is being activated. See also the ‘Sound
Notifi cation’ section.

CL ASS: 0X80 COMMAND_CLASS_BATTERY

This class is used to request and report battery levels for a given device.
When battery level is lower then 20% the Mini Keypad RFiD/Z-Wave
will send a battery warning (value 255) after every wake up notifi cation.
A battery get will report the actual value even if below 20%.

MINI KEYPAD
RFiD/ ZWAVE

QUICK INSTALLATION GUIDE

v1.2

Home Away

Enter

1 2 3

7 8 9

4
5
6

0

Tamper

Switch

Tag
Area

Manual
Code
Buttons

Indicator
LED

Home & Away
Buttons

make your home smart www.zipato.com make your home smart www.zipato.com

CL ASS: 0X85 COMMAND_CLASS_A SSOCIATION

The Association Command Class is used to associate the Mini
Keypad RFiD/Z-Wave to other devices. When a tag or code is read,
the Mini Keypad RFiD/Z-Wave will send a notifi cation to the Z-Wave
devices in its association group. It will also report the state of the
tamper alarm to the devices in this association group.

Number of groupings: 1
Maximum supported nodes per group: 5

CL ASS: 0X84 COMMAND_CLASS_WAKE_UP

The Wake Up Command Class is used at battery-operated devices.
This class allows the Mini Keypad RFiD/Z-Wave to wake up
occasionally to notify others devices, that the Mini Keypad RFiD/Z­Wave is ready to receive commands. After receiving the commands
the Mini Keypad RFiD/Z-Wave will go into sleep mode again. The wake
up interval can be set using the WAKE_UP_INTERVAL_SET command.

The default value is 0x1C20 = 7200 sec = 2 hour
The default node is 0xFF = 255 (broadcast)

It is possible to send a wake up notifi cation on user interaction.
Besides sending a Wake Up Notifi cation automatically every 2 hours
(or any other time that is confi gured using the Wake Up Interval Set
command), the Mini Keypad RFiD/Z-Wave also sends a Wake Up
Notifi cation when:

The tamper alarm state changes (Mini Keypad RFiD/Z-Wave is
mounted or removed from the wall)
A tag read
A code is entered using the keypad

When the wake up time is set to 0 a wake up notifi cation is never send
periodically, only on user interaction.

CLAS S: 0X70 COMMAND_CLA SS_

CONFIGURATION_V1

CONFIGURE PARAMETERS:

1 | Set to default

DESCRIPTION:
Set all confi guration values to default values (factory settings).
Read more in chapter Confi guration Reset.

SIZE: 1 byte*

PARAM1: if 0xFF then set to default

PARAM2,3,4: not used

2 | Feedback time

DESCRIPTION:
To confi gure the time the beep is automatically turned off in seconds.

DEFAULT: 0x0F

PARAM1: 0x00 means disabled, 0xFF is endless.

PARAM2,3,4: not used

SIZE: 1 byte*
3 | Feedback timeout

DESCRIPTION:

To confi gure the timeout to wait for a
WAKEUP_NO_MORE_INFORMATION before the error beep is
automatically sound.

The error beeps are fi xed 8 beeps shortly after each other.

DEFAULT: 0x00
PARAM1: 0x00 means disabled
PARAM2,3,4: not used
SIZE: 1 byte*

4 | Feedback beeps per second

DESCRIPTION:

To confi gure the number of beeps per second.
Every beep is fi xed about 10ms.

DEFAULT: 0x02
PARAM1: nr of beeps per second
PARAM2,3,4: not used
SIZE: 1 byte*

5 | The mode

DESCRIPTION:

To confi gure the operating mode.

DEFAULT: 0x01
SIZE: 1 byte*
PARAM1:
MODE 1: Normal operating mode.
MODE 3: Z-Wave chip is always on to request e.g. version or

manufacturer id. If any mode other then 3, that value will be reported
after a get but will be handled in SW as mode 1.

PARAM2,3: not used.

* if a size is other then given size the frame is ignored totally so

confi guration values are not changed

CLASS: 0X71 COMMAND_CLASS_ALARM_V2

In the Mini Keypad RFiD/Z-Wave, this Command Class has two
purposes:
1 | Identify the state of the tamper alarm. The device will send an

unsolicited report to the devices in its association group if tempering
is detected. The state of the tamper alarm can also be requested
by any other device.
2 | Report tags or codes that are entered. The Mini Keypad RFiD/Z­Wave will send an unsolicited report to the devices in its association
group with the UID that belongs to the code or tag and whether the
alarm system should be armed (Away) or disarmed (Home).

Every other alarm type that is requested will be ignored by
application.

CONFIGURATION RESET

The Mini Keypad RFiD/Z-Wave supports a confi guration reset function.

CONFIGURATION RESET MEANS

All confi guration values are defaulted.
Wake up interval is defaulted.

This function can be activated by sending a confi guration set frame:
CONFIGURATION_SET

PARAMETER: 0x01
SIZE: 0x01 (can’t be different from 1)
VALUE: 0xFF (can be any value except for 0x55)

When the value of confi guration value is requested 2 possible values
can be returned CONFIGURATION_REPORT

PARAMETER: 0x01

VALUE 0X55: Confi guration settings of the device are altered.
The device will report this even if the confi guration parameters are
changed back to the default value.

VALUE 0XAA: Confi guration of the device is untouched.
Note that this value will not change to 0x55 upon modifying the wake
up interval and that re-setting the value to 0xAA will always reset the
wake up interval.

ALWAYS AWAKE MODE

The always awake mode is used to request different values from the
device e.g. version and manufacturer specifi c.

NOTE: in always awake mode the batteries will be drain very fast,
we do not recommend to use this mode for a longer period. Always
awake mode should only be used in order to confi gure the device.
NOTE: it is not possible to use the buttons of the Mini Keypad RFiD/Z­Wave while it is operating in always awake mode.

The always awake mode can be activated by:
CONFIGURATION_SET

PARAMETER: 0x05
SIZE: 0x01 (can’t be different from 1)

VALUE: 0x03 (mode 3)
The LED of the device will toggle on and off every second to notify you
that it is functioning in always awake mode.

The always awake mode can be deactivated by:
CONFIGURATION_SET

PARAMETER: 0x05

SIZE: 0x01 (can’t be different from 1)

VALUE: Any value except 3
A second option to deactivate mode 3 is:

1 | Remove batteries.
2 | Wait ca 10 seconds
3 | Replace batteries

SOUND NOTIFICATION

The Mini Keypad RFiD/Z-Wave is capable of playing a notifi cation
sound. This feature is typically used to notify a user that an alarm
system is being activated. Since the Mini Keypad RFiD/Z-Wave is a
non-listening device, the feature can not be controlled at all times.

It requires the Mini Keypad RFiD/Z-Wave to wake up and send a Wake
Up Notifi cation. After sending a notifi cation that a tag/code is read
(either an unknown or already confi gured code), the Mini Keypad
RFiD/Z-Wave will send a Wake Up Notifi cation. The notifi cation sound
can be turned on/off upon receiving any Wake Up Notifi cation.

See the section about the Wake Up Command Class for information
on when a Wake Up Notifi cation is send.

NOTIFICATION SOUND AND ACKNOWLEDGEMENT

The Mini Keypad RFiD/Z-Wave supports 3 types of notifi cation sound
confi gurations:

1 | Notifi cation sound disabled (confi guration parameter 2 set to zero)
2 | Notifi cation sound enabled (default, confi guration parameter 2 set

to auto-stop time).
3 | Notifi cation sound and acknowledgement enabled (confi guration
parameter 3 set to acknowledgement timeout). In the fi rst mode, any
Basic or Switch Binary commands that are received are ignored.
The second mode, the default, can be used to inform a user that the
alarm system is armed or disarmed. To use this, you can send a Basic
or Switch Binary set on (0xFF) after receiving an Alarm Report and
the Wake Up Notifi cation following it.

The last mode can be used in situations where, for example, users
can only disarm the alarm system at certain times. In this case, the
user can be notifi ed whether or not its code or tag is accepted.

By confi guring confi guration parameter 3, you can set an
acknowledge timeout. Whenever a Lock/Unlock Alarm Report
containing an UID is send by the Mini Keypad RFiD/Z-Wave, the
acknowledgement timeout timer is started.

AFTER THIS THERE ARE TWO POSSIBILITIES:
1 | The Mini Keypad RFiD/Z-Wave does not receive anything (or receives

a Wake Up No More Information upon its Wake Up Notifi cation). It
starts the error sound to notify the user of the unaccepted code.
2 | The Mini Keypad RFiD/Z-Wave receives either a Basic (or Switch
Binary) on (to start the normal notifi cation sound) or off (to silently
acknowledge the code). The acknowledgement timer is stopped.

Note that it is actually possible to disable notifi cation sound, but
enable acknowledgement. In this case a silent acknowledgement can
be both a Basic/Switch Binary on (0xFF) or off (0x00).

TYPICAL OPERATION DIAGRAMS

The following diagrams show the user action that is required and
the messages which are being sent from/to the Mini Keypad RFiD/Z­Wave for several basic operations, including optional functionality as
the sound notifi cation and UID acknowledgement.

CO NFIGUR E A NEW TAG

(for confi guring new codes, you can skip directly to the WAKE_UP_
NOTIFICATION).

RFID Controller

Press HOME or

AWAY button

Hold tag in front of

the RFID

RFID does not
recognize tag

USER_CODE_

REPORT

(User ID 0, UID

Status 0, tag code

Controller searches

for empty UID

WAKE_UP_

NOTIFICATION

(possibly

interviewing RFID

for unused UID)

USER_CODE_SET
(new User ID, UID
Status 1, tag code

WAKE_UP_
NO_MORE_

NOTIFICATION

RFID Controller

Press AWAY button

Hold tag in front of

the RFID or enter

user code and
press ENTER

Controller enables
the alarm system

WAKE_UP_

NOTIFICATION

ALARM_

REPORT_v2

(ZW Alarm Event

0x05, User ID)

SWITCH_

BINARY_SET

(value 0xFF)

WAKE_UP_
NO_MORE_

NOTIFICATION

RFID recognizes

tag/code

OPTIONAL: START NOTIFICATION

RFID

starts notifi cation

sound

MINI KEYPAD
RFiD/ ZWAVE

QUICK INSTALLATION GUIDE

v1.2
