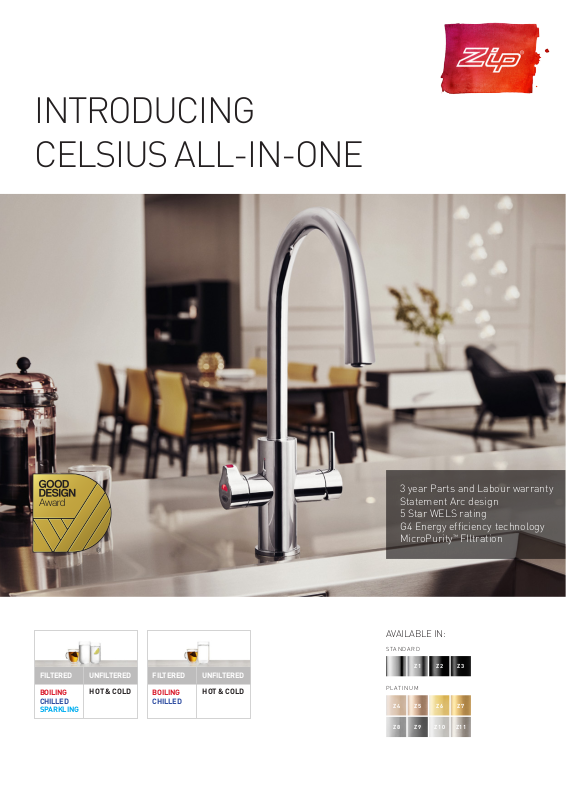

INTRODUCING
CELSIUS ALL-IN-ONE
FILTERED FILTERED
BOILING
CHILLED
SPARKLING
UNFILTERED UNFILTERED
HOT & COLD HOT & COLD
BOILING
CHILLED
3 year Parts and Labour warranty
Statement Arc design
5 Star WELS rating
G4 Energy efciency technology
MicroPurity™ FIltration
AVAILABLE IN:
STANDARD
Z1 Z2 Z3
PLATINUM
Z4 Z5 Z6 Z7
Z8 Z9 Z10 Z11
SPECS
R110
225.5
27
52
60
FILTERED
BOILING
CHILLED
SPARKLING
439.5
50
258
34
25 25
47.9
59.5
255
220mm (Hot & Cold Outlet)
42.9
Swing
Swing
The more
stars the more
water efficient
WATER
RATING
A joint government and industry program
Licence No.0086.
152.6
85
Water consumption
5.5
litres per minute
When tested at 150, 250 & 350 kPa in
accordance with Standards AS/NZS 6400
For more information and to compare
products,refer to:
www.waterrating.gov.au
MT2790
Water Pressure Min 250kPa - Max 700kPa
Water Connection 12.7mm BSP
Water Supply Requirements Hot & Cold
Water Valves Integrated 500kPa Pressure limiting valve and
535mm
CO2
470mm
438mm
Power Rating 1.7kW 220-240V 50/ 60Hz
Power Supply 1 x 10Amp GPO
Unit Dimensions H333mm x W338mm x D461mm
Dual Check Valve
Clearance Right 50mm x Left 50mm x Above 200mm
CO2 Cylinder Size High 400mm x Diameter 105mm
Product Approvals WaterMark, CE, RCM, ARC
FILTERED
BOILING
CHILLED
389mm
380mm
535mm
MT2792
Water Pressure Min 172kPa - Max 700kPa
Water Connection 12.7mm BSP
Water Supply Requirements Hot & Cold
Water Valves Integrated 500kPa Pressure limiting valve and
Dual Check Valve
Power Rating 1.55kW 220-240V 50Hz
Power Supply 1 x 10Amp GPO
Unit Dimensions H333mm x W280mm x D455mm
Clearance Right 50mm x Left 50mm x Above 200mm
Product Approvals WaterMark, CE, RCM, ARC
NOTE: The pink box represents the total space required for installation.
