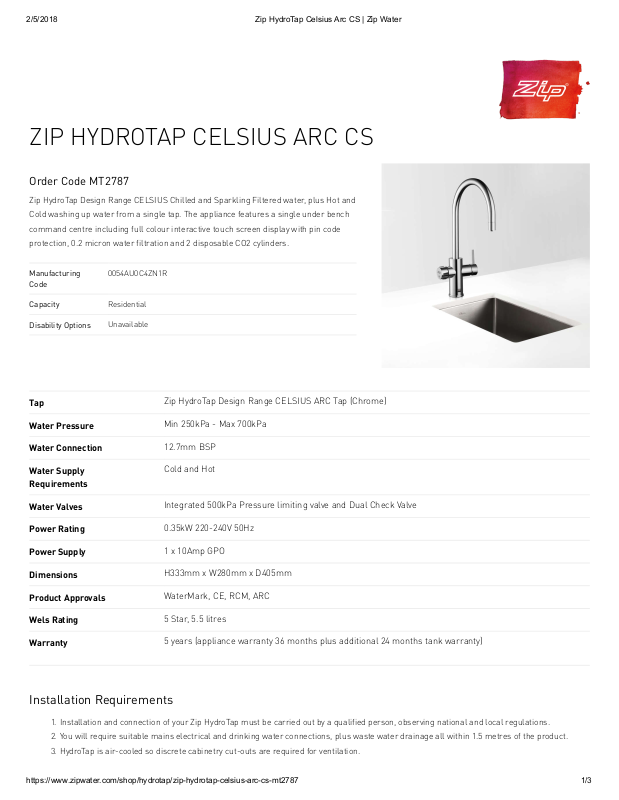

Zip MT2787Z2, MT2787Z1 Specifications Sheet

2/5/2018 Zip HydroTap Celsius Arc CS | Zip Water

ZIP HYDROTAP CELSIUS ARC CS

Manufacturing
Code

0054AU0C4ZN1R

Capacity

Residential

Disability Options

Unavailable

Order Code MT2787

Zip HydroTap Design Range CELSIUS Chilled and Sparkling Filtered water, plus Hot and

Cold washing up water from a single tap. The appliance features a single under bench

command centre including full colour interactive touch screen display with pin code

protection, 0.2 micron water filtration and 2 disposable CO2 cylinders.

Tap

Water Pressure

Water Connection

Water Supply
Requirements

Water Valves

Power Rating

Power Supply

Dimensions

Product Approvals

Wels Rating

Warranty

Zip HydroTap Design Range CELSIUS ARC Tap (Chrome)

Min 250kPa - Max 700kPa

12.7mm BSP

Cold and Hot
Integrated 500kPa Pressure limiting valve and Dual Check Valve

0.35kW 220-240V 50Hz

1 x 10Amp GPO

H333mm x W280mm x D405mm

WaterMark, CE, RCM, ARC

5 Star, 5.5 litres

5 years (appliance warranty 36 months plus additional 24 months tank warranty)

Installation Requirements

1. Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.

2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.

3. HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation.

https://www.zipwater.com/shop/hydrotap/zip-hydrotap-celsius-arc-cs-mt2787 1/3

2/5/2018 Zip HydroTap Celsius Arc CS | Zip Water

4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.

5. If you live in a hard water area, we recommend installation of a Zip scale filtration kit.

6. Installation by Zip Professional Service can be arranged with a phone call or through www.zipwater.com

Installation Detail


