802262 - Chilled HT User Guide - 7-15 - v2.00 Page 1 of 20
ZIP HydroTap G4
User Guide
®
•
Tap Operation...................(Pages 2-6)
•
LCD Screen & Menu .......(Pages 7-17)
•
Maintenance.................... (Page 17-19)
•
Menu Icons.......................(Page 19)
Date of Installation............./........./..........
Affix Model Number Label
Here
802262
Chilled
Residential
model
Page 2 of 20 802262 - Chilled HT User Guide - 7-15 - v2.00
3. Tap operation
Press or pull lever
To dispense chilled water:
HydroTap Classic:
Depressing the “Blue” lever allows
the dispensing of chilled water.
Pulling forward the Blue lever
allows the tap to operate in a “notouch” mode. Water will flow from
between 5 and 15 seconds (This is
user adjustable). To reset, return
the handle to the “Off” position and
repeat the step. The lever has to
be manually returned to the “Off”
position.
Elite Tap:
Touching any of the chilled buttons
allows the dispensing of chilled water.
HydroTap Arc/Cube:
Rotating the control , when the chilled
indicator light is BLUE, allows the
dispensing of chilled water.
Chilled buttons
Chilled water Light
Chilled water Light
Note:
The select and safety buttons on the
Chilled Hydrotap Arc/Cube are non
functional.
(Indicator only)
802262 - Chilled HT User Guide - 7-15 - v2.00 Page 3 of 20
Elite Tap:
The Elite tap uses touch sensitive controls, in lieu of levers, to dispense
Chilled water. Touching any of the chilled buttons allows the dispensing of
chilled water.
Chilled Button
Chilled Button
3. Tap functions
Page 4 of 20 802262 - Chilled HT User Guide - 7-15 - v2.00
3. Tap functions
Rotary control
Select Button
Safety Lock
ARC & CUBE Tap:
On powerup, wait 30secs. for
the unit to calibrate. The Arc/
Cube control may be rotated in
a forward or reverse direction
to dispense Chilled water.
The rotary control is spring
loaded in the anticlockwise
direction and when released,
will return to the OFF position.
When rotated clockwise the
tap operates in a “Pot fill”
mode. Water will flow from
between 5 and 15 seconds
(This is user adjustable). To
reset, return the handle to
the “Off” position and repeat
the step. The lever has to be
manually returned to the “Off”
position.
Note:
The select and safety buttons on the Chilled Hydrotap Arc/Cube are non
functional.
(Indicator only)
802262 - Chilled HT User Guide - 7-15 - v2.00 Page 5 of 20
Chilled water Lights
3. Tap Lights
Note:
The safety button on all the Chilled Hydrotaps is non functional
Chilled Water Light: (All)
On all the time:
This indicates that the temperature of the
chilled water is within the set temperature
range.
Flashing slowly:
This indicates that the chilled water is not within
the set temperature range. When the chilled
water is at the set temperature, the light will
stop flashing. This could take several minutes.
During heavy usage, the temperature can rise
out of this range.
Page 6 of 20 802262 - Chilled HT User Guide - 7-15 - v2.00
Filter light:
Filter Change Light Off:
This indicates the filter is operating within its
normal specified lifespan.
Filter Change light flashing slowly:
The light will flash slowly when the filter is due
for replacement and the LCD will show “Filter
Change”. Refer to “Replacing the filter” in
section ‘C’ of this document.
Filter Light
Filter light
3. Filter light
HydroTap Arc/Cube
Flashing filter lights:
All three tap lights (Safety; Select and
Indicator lights) will flash every 10 seconds,
indicating a Filter change is required.
Set filter light OFF: (All
models)
Refer to “Replacing the filter” in
section ‘C’ of this document.
802262 - Chilled HT User Guide - 7-15 - v2.00 Page 7 of 20
Note: When selecting Menu options, the screen will revert to the main menu,
if the screen remains inactive for a period, in excess of 10 seconds.
Zip HydroTap introduces a ‘TOUCH’ screen for easy setup and operation
adjustment. See page 19 for icon details.
Other possible messages in status window:
**Status Information Notes
System Fault Product has one or more system
faults
Refer to section B
Change Filter External/Internal filter needs to be
replaced
Refer to section C
3LCD Screen
Set chilled water temp. Filter usage
**Status window
Page 8 of 20 802262 - Chilled HT User Guide - 7-15 - v2.00
3LCD Screen Menu
Main Menu Sub Menu Sub Menu Options Section
Language
•
English
•
Deutsch
A
•
Product Info
•
System
Faults
•
Event Log
•
Product serial
no.
•
Lists
B
Information
Installation
•
Filter Flush
•
Filter Reset
•
Reset options
•
Calibration
options
C
Service Password protected
D
Security
•
Enable
Password
•
Set Password
•
Change
Password
E
Communication
•
Remote
Monitor
•
Remote
Control
•
Wifi / Bluetooth
Options
•
Wifi / Bluetooth
Options
F
Settings
•
Date/Time
•
Temperature
•
Filter
•
Dispense
Times
•
12hr/24hr
Mode
•
Cold Setpoint
•
Filter Life
(Litres)
•
Filter Life
(Months)
•
Cold
Dispensing
G
802262 - Chilled HT User Guide - 7-15 - v2.00 Page 9 of 20
A Set Language
B System Information
In this section, you can find your product serial number , check system fault
messages or view the event logs of your product.
LCD Screen operation - Section A
LCD Screen operation - Section B
1.
Press [Product Info] to view the
current product information.
2.
Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
1.
Press [System Faults] to check the
fault information;
2.
Press [<=] button for the previous
menu or press
[Home] button to return to the
home screen.
1.
Press [MENU] for main menu.
2.
Press [Language] button.
3.
Select the country to change the
language
4.
Press [<=] button for the previous
menu
1.
Press the [MENU] button for the
main menu.
2.
Press the [Info] button to view the
current product serial number and
other key information
1.
Press [Filters Log] to view the
system’s filter log.
2.
Press [<=] button for the previous
menu or press
[Home] button to return to the
home screen.
Page 10 of 20 802262 - Chilled HT User Guide - 7-15 - v2.00
C Install
Have a 10L bucket or similar container (not supplied) at the ready to hold
a quantity of water that will be ejected while the Filter Flush Mode is in
operation. Open the filter access door on the front of the HydroTap and the
filter cartridge will be exposed. Located to the rear RHS of the cartridge is a
flush line, approx 600mm long and the flush line stop cock. Place the valve
end of the flush line into the 10L bucket or container.
Once your Zip HydroTap G4 unit has been installed, Go to Install menu to
configure the system settings for your product.
1. - Filter Flush
Note:
Run at least 10 Ltrs of
water through to flush the filter
of any excess black carbon
particles (this is normal), before
pressing the Stop button.Once
the filter flush has finished,
press the Stop button to display
the main menu
Sub menu:
1 - Filter Flush
2 - Filter Reset
3 - Lux sensor calibration
LCD Screen operation - Section C
OPEN
Position
CLOSED
Position
ON
OFF
The Zip HydroTap allows the user to adjust the filter life and to edit the filter
usage. (See filter details on Pages 14).
1.
Press [MENU] button for main
menu.
2.
Press [Install] button. Turn the stop
cock ON.
3.
Press [Filter Flush] button.
4.
Press [Start] button to start filter
flush. Once the filter flush is
finished, Turn the stop cock OFF
first (to ensure the cock is properly
closed) then press [Stop] to end
filter flush mode.
5.
Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
6.
After initial installation, Turning
OFF the Filter Flush Mode puts the
HydroTap into calibration mode.
With subsequent filter changes, the
system reverts to the main menu.
802262 - Chilled HT User Guide - 7-15 - v2.00 Page 11 of 20
After replacing the filter, the
counters should be reset
D Service
LCD Screen operation - Section D
2. - Filter Reset
LCD Screen operation - Section C
Note: In Australia, call a licensed electrician, plumber or Zip office on
1800-638-633, for assistance, service, spare parts or enquiries
1.
Press the [MENU] button for main
menu.
2.
Press the [Install] button.
3.
Press the [Filter Reset] button.
4.
To set the filter life or edit filter
usage, refer to section G- Filter.
3 - Lux Sensor Calibration
NOTE: Conduct calibration under normal light conditions
1. Press [MENU] button for main menu.
2. Press [Install] button.
3. Press [Lux Sensor Calibration]
button.
4. The lights on the Tap head will flash
to confirm calibration.
5. Check for correct tap operation by
selecting ‘Lux Sensor-> OFF’. When the room is darkened (below the
calibrated light level), the tap lights will turn OFF after aprox 30 seconds.
This section is reserved for service technicians only
Page 12 of 20 802262 - Chilled HT User Guide - 7-15 - v2.00

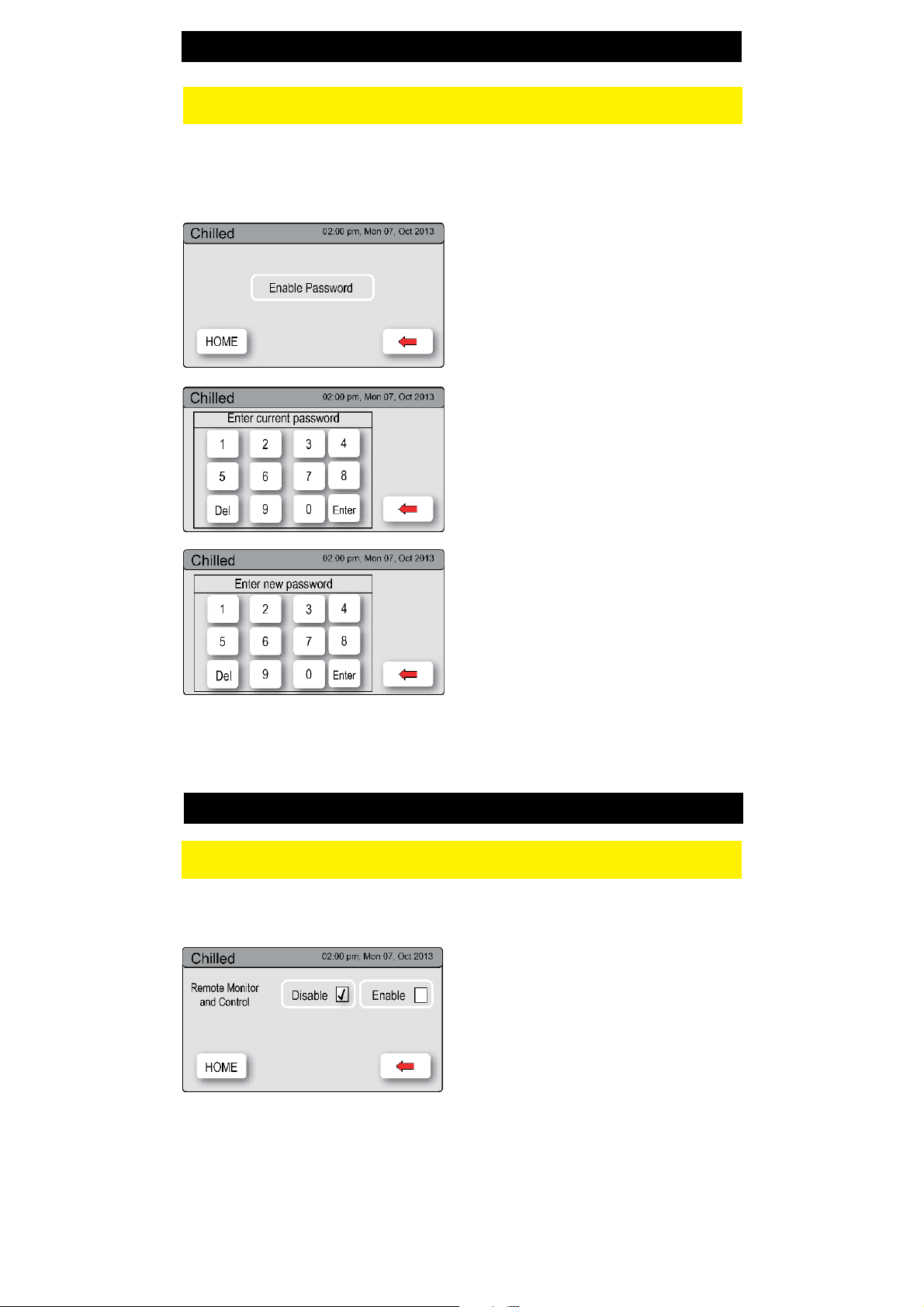

E Security
The Zip HydroTap G4 allows the appliance coordinator to set up a password
to protect against users changing the preferred system settings.
To set a password
1.
Press the [MENU] button for main
menu.
2.
Press the [Security] button.
3.
Press [Change Password}
4.
Enter a 4 digit password
To change a password
1.
Press the [MENU] button for main
menu.
2.
Press the [Security] button.
3.
Press [Change Password}
4.
Enter your old 4 digit password
5.
Then enter your new 4 digit
password. You will need to
enter your password to access
the settings screen. If you have
forgotten the password, please
disconnect the power and restart
your HydroTap unit.
LCD Screen operation - Section E
F Communication
(when available)
The Zip HydroTap G4 allows the user to use wifi or Bluetooth to operate the
product remotely.
Not yet available
LCD Screen operation - Section F
802262 - Chilled HT User Guide - 7-15 - v2.00 Page 13 of 20
G Settings
3. LCD Screen operation - Section G g Instructions
Set Date / Time
1. Press the [MENU] button for main
menu.
2. Press the [Settings] button.
3. Press [Enable Password].
4. Then enter your 4-digit password.
You will need to enter your
password to access the settings
screens. If you have forgotten the
password, please disconnect the
power and restart your HydroTap
unit.
1. Press [MENU] button for main
menu.
2. Press [Setting] button.
3. Press [Date/Time] button.
4. Select 12 hour mode or 24 hour
mode. The selected mode will be
displayed in dark grey colour with a
tick box on the right.
5. Press [NEXT] button to set time.
1.
Select individually the hour, minutes
and day and adjust using the up
and down arrows.
2.
Select individually the date, month
and year and adjust using the up
and down arrows.
3.
Press [HOME] to return to the
Home screen.
1. Press the [MENU] button for main
menu.
2. Press the [Temperature] button.
3. To adjust the temperature, press
the relevant temperature button and
then use the up and down arrows.
Set Temperature
Page 14 of 20 802262 - Chilled HT User Guide - 7-15 - v2.00
3. LCD Screen operation - Section G tions
Filter
Zip HydroTap G4 allows the user to adjust filter life and edit filter usage.
1.
Press [MENU] button for main
menu.
2.
Press [Setting] button.
3.
Press [Filter] button.
4.
Press [Filter Life] button, for
Internal or External filter.
5.
To change filter life, first select
filter life (Litres) or filter life
(Months), then djust using the up or
down arrows.
Note: The filter life may be set as a
function of Litres used, or in months
from the filter change. When the first of
these functions is reached (i.e. Litres or
months expired), the filter warning light
will be illuminated on the tap.
Either of these functions may be
disabled (See below).
Note:
Filter Life increases in 500 litre increments to a maximum of 10000 litres.
Factory set at 6000 litres.
To edit the filter life:
To edit the filter usage:
This function is to reset the Filter
Change display after a filter has reached
the end of its life (refer to “Replace
Filter Instructions” section of this
document).
1.
Press the [MENU] button for main
menu.
2.
Press the [Setting] button.
3.
Press the [Filter] button.
4.
Press the [Edit Filter] button for
Internal or External filter.
5.
To edit, select Edit Usage(Litres) or
Edit Usage (Months), then adjust
using the up or down arrows.
802262 - Chilled HT User Guide - 7-15 - v2.00 Page 15 of 20
This mode allows the HydroTap to Go into Energy Saving mode.
To activate the sleep mode:
1. Press [MENU] button for main
menu.
2. Press [Setting] button.
3. Press [Energy Modes] button.
4. Press [Sleep Modes] button then in
the next screen, use the up and down
arrows to select one of the 4 options, as
shown in the table below.
Energy Modes
In Sleep Mode the unit will Go to “Sleep” after a 2hr period of inactivity.
The Chilled water will be ON or OFF.
When the period of inactivity passes, the home screen status window will
show “Sleep Mode”.
Sleep Mode
Light
Level
Time
Delay
State Boiler Chiller
2 Hours-> OFF N/A 2 Hr OFF OFF OFF
Lux Sensor-> OFF Dark N/A OFF OFF OFF
Lux or 2 Hr-> OFF Dark 2 Hr OFF OFF OFF
Disable N/A N/A ON ON ON
Lux (Light) Sensor Calibration: (Not for Elite tap)
It is recommended to recalibrate the Lux (Light) Sensor after selecting any of
the 4 Lux sensor options from the sleep mode menu. Before commencing,
ensure there are ‘Normal to Dim’ (Not Dark) operating light conditions.
Note:
Any attempt, during OFF mode, to dispense water, will bring the unit
out of sleep mode. The unit will return to sleep mode after 2 hours of non
use. Please allow sufficient time for the water to reach the set temperature
after disabling the sleep mode.
3. LCD Screen operation - Section G tions
Page 16 of 20 802262 - Chilled HT User Guide - 7-15 - v2.00
LCD Screen operation - Section G
1.
Press Group 1 or Group 2 option
2.
Press button to enable / disable
group set. When the enable box is
ticked, this allows each individual
day to have an “On/Off” time.
3.
Press [ON/OFF Modes] button, to
set up ON/OFF time.
4.
When in Group 2 Press [NEXT] to
select Sat-Sun options
This screen allows you to select the
individual days for programming.
Only one ON /OFF period is allowed
for each day.
Individual days set screen
Group set screen
A
A
Note:
Any attempt, during OFF mode, to dispense water, will bring the unit
out of energy mode. The system will revert to the energy mode setting after
30 minutes of non use.
1.
Press the [MENU] button for main
menu.
2.
Press the [Setting] button.
3.
If required, Enter your 4 digit
password
4.
Press the [Energy Modes] button.
5.
Select ‘Individual set’ if you wish
to allocate a specific time for each
day.
6.
Select ‘group set 1’ if you wish to
allocate the same time to all 7 days
7.
Select ‘Group set 2’ if you wish
to allocate the same time to the
5 working days (Mon-Fri) and
additional times for (Sat-Sun).
In ON / OFF Mode the user may turn the unit ON or OFF at specific times
for individual days or alternatively by weekly and/or weekend settings.
To activate ON/OFF mode:
802262 - Chilled HT User Guide - 7-15 - v2.00 Page 17 of 20
3. LCD Screen operation - Section G
Dispense Times
The ability to change the maximum
dispensing time for the chilled water has
been introduced. The default settings
for the maximum dispensing times is
15 seconds. Here, the operator may
change the dispensing time to between
5 and 15 seconds, in increments of 1
second. To edit the dispensing times:
1.
Press the [MENU] button for main
menu.
2.
Press the [Setting] button.
3.
Press the [Dispense Time] button.
4.
Select the option to change and
scroll using the up and down arrow
Keys
Air Inlet Filter
The Zip HydroTap air filter is conveniently located on the outside of the
condenser. The filter screen is a sliding fit in the plastic housing on the side
of the under sink unit. The screen may be removed for cleaning, by sliding it
forward. This needs to be inspected at least quarterly, cleaned and replaced
if damaged.
Note
:
For best performance the unit should only be operated with a clean
air filter screen, correctly fitted in place. Maintain, at least, a 50mm air gap
in front of the screen at all times. Take care not to allow cloths or other soft
materials to accidentally block the air inlet.
Filter Maintenance
Air
Filter
Slide to remove
Page 18 of 20 802262 - Chilled HT User Guide - 7-15 - v2.00
The Zip HydroTap notifies when filter replacement is due. If you notice one of
the following, you will need to change the filter:
•
The Change Filter light will flash white once a second and remain so until
reset. A filter status light is located below the Chilled Blue Lights on the tap
head assembly.
•
The filter percentage will change to 0% on the screen.
Note:
Depending on local water quality conditions and usage, the filter
may require changing anywhere from 500 Ltrs to 10000 Ltrs. You may also
need to replace the filter if you notice unpleasant odours or tastes.
Some water may drip from the filter
head (socket) during replacement. Keep
a towel handy to dry up any drips.
Water Filter
Filter Maintenance
Warning: If the Zip HydroTap is switched off for a long period of time
(e.g. More than a weekend), run water through the chilled water outlet for at
least 5 minutes before consumption.
To change the Filter: (See also Section C)
1.
Open the door of the under sink unit.
2.
Relieve system pressure via the filter flush stop cock, a quick open and
close will do. Use the bucket to catch the discharge.
3.
Grasp filter cartridge, depress the red lever at the top right of the filter and
rotate the cartridge a quarter turn to the left, then gently pull down.
4. Caution:
a small amount of water will drip as the cartridge is removed.
5.
Do not tilt the cartridge as water may spill from it if tilted.
6.
Unpack replacement cartridge and remove sanitary cap, write today’s
date where shown on the label.
7.
Avoid touching the filter O-rings and filter opening as this may cause
bacterial contamination of the cartridge.
8.
Moisten the O-rings with water, align the front cartridge label to the left (as
shown in the “insert filter” diagram for filter cartridge replacement), and
push the new cartridge into the filter head.
9.
Turn the cartridge a quarter turn to the right until the cartridge comes
to complete stop and is locked into position, with the front label facing
forward.
10.
Initiate the filter flush programme by scrolling through the menu screen
(See section C).
11.
When completed, wipe up any spills and dispose of spent filter cartridge
and packaging thoughtfully.
12.
Close the door to secure the appliance.
13.
Adjust the filter settings in Section G - filter - Litres and Days used.
802262 - Chilled HT User Guide - 7-15 - v2.00 Page 19 of 20
Home Menu Icons
Filter use.
This icon displays the filter usage remaining from
100% (New filter) to 0% (end of life). When it
reaches 0% the filter warning light on the tap head
will flash slowly.
The filter life can be adjusted by litres and by days
used. (See page 14)
50%
Chilled water temperature.
This icon indicates the set temperature of the chilled
water inside the undersink unit.
CHILLED
6-10°C
Cleaning
General cleaning
Do not use strong, corrosive, spray or abrasive cleaners. Clean with a soft
damp cloth and mild soap.
Under sink units must never be located near, or cleaned with water jets.
Avoid using air bourne pesticides near the undersink unit.
Filter Maintenance
Page 20 of 20 802262 - Chilled HT User Guide - 7-15 - v2.00
The terms “Zip” and “HydroTap” are
registered trade marks of Zip Heaters (Aust)
Pty Ltd.
Zip products described in this publication
are manufactured under one or more of the
following patents: AU675601, AU637412,
AU635979, GB0422305, GB2065848,
US4354049, US5103859, US5099825 and
SA2006/08043. Other patents are in force
and patent applications are pending.
Head Office
Zip Heaters (Aust) Pty. Ltd.
ABN: 46 000 578 727
67 Allingham Street
Condell Park NSW 2200
Postal: Locked Bag 80
Bankstown 1885 Australia
Website: www.zipwater.com
Facsimile: (02) 9796 3858
Telephone: (02) 9796 3100
Free Call: 1 800 638 633
As Zip policy is one of continuous product improvement, changes to
specifications may be made without prior notice. Images in this booklet have
been modified and may not be true representations of the finished goods.
WMKA00099
AS 3498
Contact Details
Loading...
