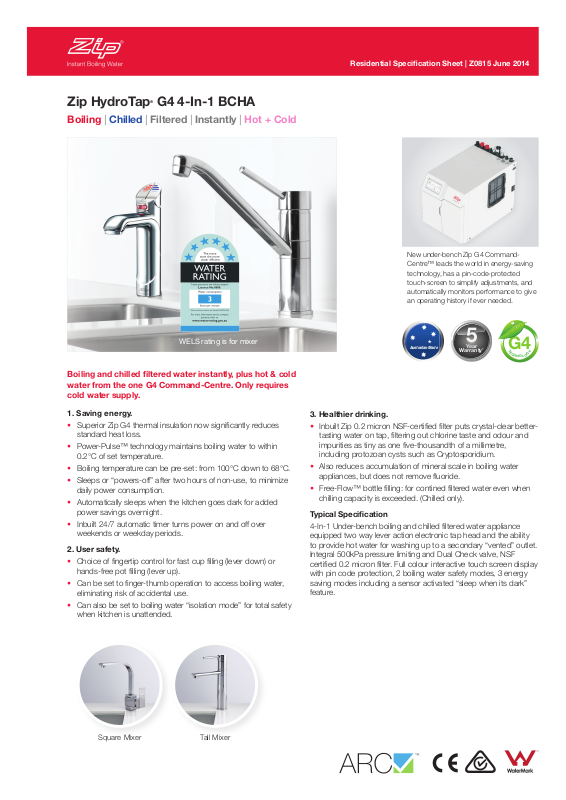

Zip HT1795 Specifications Sheet
Zip HydroTap® G4 4-In-1 BCHA
G4
TECHNOLOGY
G4
TECHNOLOGY
G4
TECHNOLOGY
G
Y
Boiling | Chilled | Filtered | Instantly | Hot + Cold
Residential Specification Sheet | Z0815 June 2014
New under-bench Zip G4 CommandCentre™ leads the world in energy-saving
technology, has a pin-code-protected
touch-screen to simplify adjustments, and
automatically monitors performance to give
an operating history if ever needed.
WELS rating is for mixer
Boiling and chilled filtered water instantly, plus hot & cold
water from the one G4 Command-Centre. Only requires
cold water supply.
1. Saving energy.
• Superior Zip G4 thermal insulation now significantly reduces
standard heat loss.
• Power-Pulse™ technology maintains boiling water to within
0.2°C of set temperature.
• Boiling temperature can be pre-set: from 100°C down to 68°C.
• Sleeps or “powers-off” after two hours of non-use, to minimize
daily power consumption.
• Automatically sleeps when the kitchen goes dark for added
power savings overnight.
• Inbuilt 24/7 automatic timer turns power on and off over
weekends or weekday periods.
2. User safety.
• Choice of fingertip control for fast cup filling (lever down) or
hands-free pot filling (lever up).
• Can be set to finger-thumb operation to access boiling water,
eliminating risk of accidental use.
• Can also be set to boiling water “isolation mode” for total safety
when kitchen is unattended.
Square Mixer Tall Mixer
Australian Made
Year
Warranty
G4
T
*
E
Y
C
G
H
O
N
L
O
5
3. Healthier drinking.
• Inbuilt Zip 0.2 micron NSF-certified filter puts crystal-clear better-
tasting water on tap, filtering out chlorine taste and odour and
impurities as tiny as one five-thousandth of a millimetre,
including protozoan cysts such as Cryptosporidium.
• Also reduces accumulation of mineral scale in boiling water
appliances, but does not remove fluoride.
• Free-Flow™ bottle filling: for contined filtered water even when
chilling capacity is exceeded. (Chilled only).
Typical Specification
4-In-1 Under-bench boiling and chilled filtered water appliance
equipped two way lever action electronic tap head and the ability
to provide hot water for washing up to a secondary “vented” outlet.
Integral 500kPa pressure limiting and Dual Check valve, NSF
certified 0.2 micron filter. Full colour interactive touch screen display
with pin code protection, 2 boiling water safety modes, 3 energy
saving modes including a sensor activated “sleep when its dark”
feature.
Residential Specification Sheet | Z0815 June 2014
Booster
50 min.
280
50 min.
Inlet Vent
Mains cold water
isolation valve
(not supplied)
Restrictaflow
Clearance
Envelope
Zip HydroTap® G4 4-In-1 BCHA
Boiling | Chilled | Filtered | Instantly | Hot + Cold
Order Code Zip Model Style Rating (kW) @ 230V Cabinet Dimensions W x D x H (mm)
HT1795 Zip HydroTap G4 4-In-1 BCHA Classic 1.55 + 2.2 280 x 455 x 333
HT1796 Zip HydroTap G4 4-In-1 BCHA Tall 1.55 + 2.2 280 x 455 x 333
HT1797 Zip HydroTap G4 4-In-1 BCHA Square 1.55 + 2.2 280 x 455 x 333
* This model is installed with an external 2.2 kW booster. The G4 Command-Centre and booster each require a 10 amp power point.
A. Location
Tap must be positioned so that it drains into a
suitable sink. Tap should be situated as closely
as possible to directly above the under-sink G4
Command-Centre. Maximum distance from the
base of the tap to the G4 Command-Centre is
one metre (may be extended when required).
G4 Command-Centre must have clearances as
shown on the drawings. Please see installation
instructions for ventilation options.
B. Plumbing
Must be installed in accordance with
AS/NZS3500 plumbing regulations. Designed for
direct connection to a potable (drinkable) cold
water supply with minimum pressure of 172 kPa.
A 500 kPa pressure limiting valve and double
non return is fitted internally to comply with
AS/NZ3500. An isolating valve should be fixed
between the water supply and the under-bench
G4 Command-Centre.
C. Electrical
Designed to be connected to 2 x 10 amp GPO,
240-230 volt AC power supply in accordance
with AS/NZS3000 wiring regulations.
Caution
In some hard water areas where mineral
scale accumulation can become a problem,
consideration should be given to the
maintenance required. All Zip G4 CommandCentre units come with an internal bypass to
simplify the connection of an added high capacity
filtration or water softening system. See website
for details.
Warranty
Five year warranty.
Appliance warranty 36 months
plus additional 24 months tank
warranty. See website for details.
Accessories
91290 – Zip 0.2 micron replacement filter
90915 – Zip Font installation kit
Standard tap finish: bright chrome.
Brushed chrome or black also available.
Call Zip for details and a quotation.
Accessibility
To order any model to be supplied with
extension levers and Braille pads, add D
to the end of the order code. Also includes
extended lever on the classic mixer.
Technical Assistance
Zip Heaters (Aust) Pty Ltd
67-77 Allingham Street
Condell Park NSW 2200
Free Call 1800 638 622
www.zipindustries.com
As Zip policy is one of continuous product
improvement, changes to specifications may
be made without prior notice. The terms ‘Zip’,
‘HydroTap’, ‘Power-Pulse’, ‘Free-Flow’ and ‘G4
Command-Centre’ are trade marks.
Note: Zip HydroTap Four-In-One models
are designed to be connected to only a
cold incoming water supply. For alternative
models connected to both hot, cold
incoming water supplies, to provide a larger
volume of hot water for dish washing, refer
to All-In-One “mains” models.
