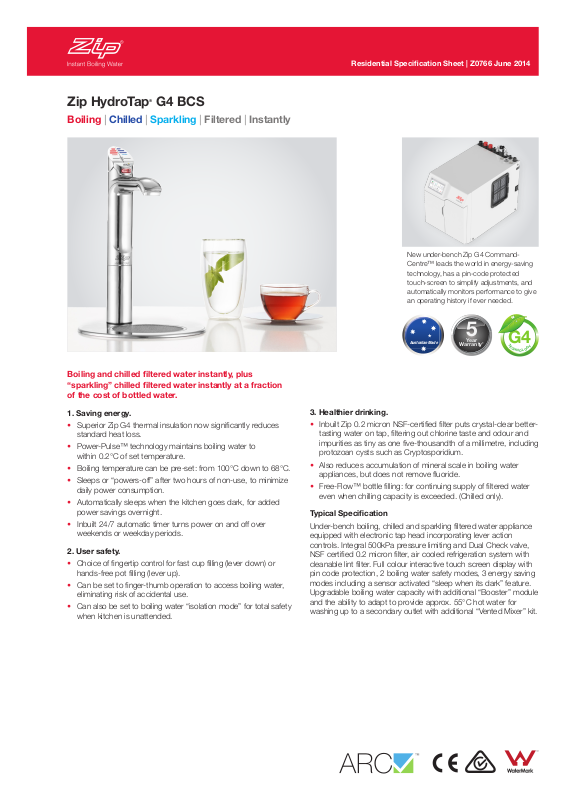

Zip HydroTap® G4 BCS

G4

TECHNOLOGY

G4

TECHNOLOGY

G4

TECHNOLOGY

G

Y

Boiling | Chilled | Sparkling | Filtered | Instantly

Residential Specification Sheet | Z0766 June 2014

New under-bench Zip G4 Command­Centre™ leads the world in energy-saving
technology, has a pin-code protected
touch-screen to simplify adjustments, and
automatically monitors performance to give
an operating history if ever needed.

5

Australian Made

Year

Warranty

G4

T

*

E

C

H

N

L

O

Y

G

O

Boiling and chilled filtered water instantly, plus
“sparkling” chilled filtered water instantly at a fraction
of the cost of bottled water.

1. Saving energy.

• Superior Zip G4 thermal insulation now significantly reduces

standard heat loss.

• Power-Pulse™ technology maintains boiling water to

within 0.2°C of set temperature.

• Boiling temperature can be pre-set: from 100°C down to 68°C.

• Sleeps or “powers-off” after two hours of non-use, to minimize

daily power consumption.

• Automatically sleeps when the kitchen goes dark, for added

power savings overnight.

• Inbuilt 24/7 automatic timer turns power on and off over

weekends or weekday periods.

2. User safety.

• Choice of fingertip control for fast cup filling (lever down) or

hands-free pot filling (lever up).

• Can be set to finger-thumb operation to access boiling water,

eliminating risk of accidental use.

• Can also be set to boiling water “isolation mode” for total safety

when kitchen is unattended.

3. Healthier drinking.

• Inbuilt Zip 0.2 micron NSF-certified filter puts crystal-clear better-

tasting water on tap, filtering out chlorine taste and odour and
impurities as tiny as one five-thousandth of a millimetre, including
protozoan cysts such as Cryptosporidium.

• Also reduces accumulation of mineral scale in boiling water

appliances, but does not remove fluoride.

• Free-Flow™ bottle filling: for continuing supply of filtered water

even when chilling capacity is exceeded. (Chilled only).

Typical Specification

Under-bench boiling, chilled and sparkling filtered water appliance
equipped with electronic tap head incorporating lever action
controls. Integral 500kPa pressure limiting and Dual Check valve,
NSF certified 0.2 micron filter, air cooled refrigeration system with
cleanable lint filter. Full colour interactive touch screen display with
pin code protection, 2 boiling water safety modes, 3 energy saving
modes including a sensor activated “sleep when its dark” feature.
Upgradable boiling water capacity with additional “Booster” module
and the ability to adapt to provide approx. 55°C hot water for
washing up to a secondary outlet with additional “Vented Mixer” kit.

100

ø

35 mm hole required if the G4 Tap is fitted to sink

50 min.

280

50 min.

Inlet Vent

ø

CO2 Cylinder

1.0 Kg
104

399

Mains cold water
isolation valve
(not supplied)

Clearance
Envelope

Residential Specification Sheet | Z0766 June 2014

Zip HydroTap® G4 BCS

Boiling | Chilled | Sparkling | Filtered | Instantly

Order Code Zip Model Rating (kW) @ 230 V Cabinet Dimensions W x D x H (mm)

HT1783 Zip HydroTap G4 BCS 1.7 280 x 455 x 333

Order code shown here is for the model installed at a sink. To install on a “font” also specify a font kit: order code 90915.

A. Location

Tap must be positioned so that it drains into a
suitable sink, or be installed on the optional tap
“font kit” which is plumbed to waste. Tap should
be situated as closely as possible to directly above
the under-sink G4 Command-Centre. Maximum
distance from the base of the tap to the G4
Command-Centre is one metre (may be extended
if required). G4 Command-Centre must have
clearances as shown on the drawings. Ventilation
accessories (supplied) must be installed as per
instructions.

B. Plumbing

Must be installed in accordance with
AS/NZS3500 plumbing regulations. Designed
for direct connection to a potable (drinkable)
cold water supply with minimum pressure of 172
kPa. A 500 kPa pressure limiting valve and dual
check valve are fitted internally to comply with
AS/NZS3500. An isolating valve should be fixed
between the water supply and the under-bench
G4 Command-Centre.

C. Electrical

Designed to be connected to a 10 amp GPO,
240-230 volt AC power supply in accordance
with AS/NZS3000 wiring regulations.

D. Carbon Dioxide

The CO2 gas cylinder (supplied) must be secured
in a suitable location using the strap provided.
The gas regulator (supplied) must be fitted.
Each cylinder contains 1 kg of CO2 and should
be installed in a well ventilated area or a room of
not less than 38 cubic metres. See website for
gas cylinder MSDS sheet giving a complete list of
CO2 warnings.

Caution

In some hard water areas where mineral
scale accumulation can become a problem,
consideration should be given to the
maintenance required. All G4 Command-Centre
units come with an internal bypass to simplify the
connection of an added high capacity filtration or
water softening system. See website for details.

Warranty

Five year warranty.
Appliance warranty 36 months
plus additional 24 months tank
warranty. See website for details.

Accessories

90915 – Zip font installation kit
91290 – Zip 0.2 micron replacement filter
91295 – Zip CO2 cylinder twin pack

Standard tap finish: bright chrome.

Brushed chrome or black also available.

Call Zip for details and a quotation.

Kits for increasing boiling water capacity of

this installed G4 model or its conversion to
All-In-One or Four-In-One can be supplied.

Accessibility

To order any model to be supplied with extension
levers and Braille pads, add D to the end of the
order code.

Technical Assistance

Zip Heaters (Aust) Pty Ltd
67-77 Allingham Street
Condell Park NSW 2200
Free Call 1800 638 622

www.zipindustries.com

As Zip policy is one of continuous product
improvement, changes to specifications may
be made without prior notice. The terms ‘Zip’,
‘HydroTap’, ‘Power-Pulse’, ‘Free-Flow’ and ‘G4
Command-Centre’ are trade marks.
