Electronically controlled instantaneous water heater
DSX: : 27941 - 60 °C models
Instructions for the user
1. Overview
When ordering spare parts, please always specify the appliance model and serial number.
9
8
7
6
5
3
4
10
11
4
12
13
14
3
2
1
Pos. Part.-No. Description
1 801097 Hot water connection
2 Outlet pipe
3 801098
DSX / DEX thermal sensor set 2.1
4 801099 Servomotor with electronic 2.1
5 801099
6 801101
Flow sensor
Non-return valve
7 DSX hood
8 Bottom part
9 Wall bracket
10 DSX connecting pipe
11 801102 PCB cover 2.1
12 Control panel support
13 Connecting terminal
15
16
17
18
19
2021
MADE IN GERMANY
22
Pos. Part.-No. Description
14 801103 DSX control panel
15 Inlet pipe
16 Frame
17 801104
Fine filter
18 801105 Cold water connection
19 Water splash protection sleeve
20 Grommet
21 Screw-in nipples 1/2”
22 Faceplate
not shown:
23 Set of small spare parts
Parts in Bold Type are available as Spare Parts.
Other parts are available on request.
2
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
Contents
1. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. Environment and recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4. Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5. Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
6. Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
7. Description of appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Temperature setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Programme buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Info menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Performance monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reset to factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Operating with solar systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
10. Fault finding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2. Environment and recycling
This symbol on the products and / or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take
these products to designated collection points. Alternatively, in some countries you may be able to return your
products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly
will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappro priate waste handling. Please contact your local authority for further details of your nearest designated collection
point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. If you are a business user
and you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. This symbol is
only valid in the European Union.
3
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
3. Safety instructions
Installation, initial operation and maintenance of this appliance must only be conducted by an authorised professional, who will then be
responsible for adherence to applicable standards and installation regulations. We assume no liability for any damages caused by failure
to observe these instructions.
• Do not use the appliance until it has been correctly installed and unless it is in perfect working order.
• The appliance is suitable but not limited to domestic use and similar applications inside closed, frost-free rooms, and must only be
used to heat potable water from mains supply.
• The appliance must never be exposed to frost.
• The appliance must be earthed at all times.
• The minimal specific water resistance must not fall below the value stated on the label.
• The maximum water pressure must not exceed the value on the label.
• Before commissioning for the first time and each time the appliance is emptied (e.g. due to work on the plumbing system, if there is a
risk of freezing or in case of maintenance), the appliance must be vented correctly in accordance with the instructions in this manual.
• Do not remove the front cover under any circumstances before switching off the mains electrical supply to the unit.
• Never make technical modifications, either to the appliance itself or the electrical leads and water pipes.
• Pay attention to the fact that water temperatures in excess of approx. 43 °C are perceived as hot, especially by children, and may
cause a feeling of burning. Please note that the fittings and taps may be very hot when the appliance has been in use for some time.
• Water inlet temperature must not exceed 70 °C.
• In case of malfunction, disconnect the fuses immediately. In case of leaks, cut off the cold water supply instantly. Repairs must only be
carried out by the customer service department or an authorised professional.
• This appliance must not be used by any person (including children) with limited physical, sensorial or mental abilities or failing experience and/or knowledge unless they are supervised by a person responsible for their safety or received instructions about how to use
the appliance. Children should be supervised in order to make sure that they do not play with the appliance.
4
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
4. Technical specifications
Model DSX ELECTRONIC MPS
®
Part no. 27941 - 60 °C models
Rated capacity / rated current
18 kW..27 kW (26 A..39 A)
Chosen capacity / current 18 kW (26 A) 21 kW (30 A) 24 kW (35 A) 27 kW (39 A)
Electrical connection 3/PE 380..415 V AC 3/PE 400 V AC
Min. required cable size See note 1)
Hot water (l/min)
max. at Δt = 28 K 9,2 10,7 12,3 13,8
max. at Δt = 38 K 6,8 7,9 9,0 10,2
Rated volume 0,4 l
Type Pressure type 1 MPa (10 bar)
Heating system Bare wire heating system IES
®
Required spec. water
resistance @ 15 °C ≥ 1100 Ωcm
Spec. electrical conductivity ≤ 90 mS/m
Inlet temperature ≤ 70 °C
Flow rate to switch on 2,5 l/min
Pressure loss 20kPa at 2,5 l/min 130kPa at 9,0 l/min
Temperature choice 20 °C – 60 °C
Water connection G ½“
Weight (when filled with
water)
4,2 kg
VDE class of protection I
Noise level test certificate PA-IX 6822/I
Type of protection / safety
1) The cross sectional area of the connection cable must be in accordance with the power rating of the appliance and the specific
requirements of AS/NZS 3000.
IP25
WMKA30016
AS 3498
5. Dimensions
466
170
Dimensions in mm
363
97
97
56
100
231
231
5
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
6. Typical installations
6
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
6. Typical installations
Example of installation with two tap connections.
363
466
56
Alternativer
Kabeleingang
alternative
rear cable entry
231
170
depth of
the unit:
rear
cable
entry
97
G1/2“
100
Oberkante Duschkabine ca. 1950
upper edge of the shower cabin approx. 1950
550
upper edge of the wash basin approx. 850
Waschbeckenoberkante ca. 850
shut-off valve
dimensions in mm
Maßangaben in mm
Unterkante Gerät ca. 1200
lower edge of the appliance min. 10 (recommended approx. 1200)
7
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
7. Description of applicance
The instantaneous water heater DSX is a microprocessor-controlled, pressure-resistant water heater for a decentralised water supply to
one or more tap connections.
Its electronic control regulates the power consumption depending on the selected outlet temperature, the respective inlet temperature
and the flow rate, thus reaching the set temperature exactly to the degree and keeping it constant in case of pressure fluctuations. The
required outlet temperature can be entered between 20 °C and 60 °C and is indicated on the digital display.
This appliance may be able to be used with a Thermostatic Mixing valve or where serving a fixture that does not require temperature limitation such as a commercial Kitchen sink or Cleaners sink. Refer to AS/NZS 3500.4.
8. Operation
As soon as you open the hot water tap, the instantaneous water
heater switches on auto ma ti cally. When the tap is closed, the appliance automatically switches off.
Temperature setting
The required hot water temperature can be increased or decreased
in increments of 1°C by briefl y pressing the up arrow and down
arrow function keys.
Depressing the function key for a longer time changes the temperature continuously.
The temperature can be adjusted between 20°C and 60°C.
Note. Reducing the temperature below 20°C displays ‘- -’ and the
heating function will not operate.
Note:
If temperature is set below 20 °C with arrow key
the display
shows “--“ and the appliance switches off the heating function.
Programme buttons
Set temperature
1
–1 °C
Select preset temperature
A1 A2
B1 B2
+1 °C
The four programme keys allows you to quickly select the preset
temperature.
The factory settings are:
• “hand wash”
• “shower”
• “bath tub”
• “kitchen”
35 °C,
is 38 °C,
it is 42 °C,
it is 48 °C.
You can assign your own settings using the programme keys:
Select the desired temperature via the arrow keys
and .
Prolonged pressing (at least 3 seconds) of one of the four programme keys stores the previously selected temperature. The display confirms by “-- ok--” and an acoustic signal will resound.
The stored temperature is now avai lable to you each time you press
the corresponding programme key.
C1 C2
D1 D2
Store temperature
1
2
Press ≥ 3 Secs.
3
8
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
8. Operation
Info menu
The Info menu offers a variety of display values, that provide information on various parameters.
Info menu
1
2
3
Press the
confirms by “
Using the arrow keys
Press the
info key for at least 3 seconds to call up the Info menu, the display
Info”.
and to select the available display information.
info key to return to the standard display.
Individual display values as follows:
Power limit
Informs about the current maximum power rating (kW) of the appliance.
Temperature protection
Information, if temperature protection is activated or deactivated.
Working time
Indication of total operating time of the heating given in seconds / minutes / days
/ years.
Press
≥ 3 Secs
5
Menu item order of “Info menu“:
POWER LIMIT
TEMPERATURE PROTECTION
4
Standby time
Indication of the operating time since latest connection of the appliance to the
supply voltage given in seconds / minutes / days / years.
Lifetime counter
Indication of the total operating time of the appliance given in seconds / minutes
/ days / years.
Flow
Indication of current flow rate given in l/min.
Temp in
Indication of inlet temperature (°C).
Temp out
Indication of outlet temperature (°C).
Power
WORKING TIME
STANDBY TIME
LIFETIME COUNTER
FLOW
TEMP IN
TEMP OUT
POWER
Indication of current power consumption (kW).
CONTROL VALUE
DIAGNOSTICS
SIGNAL
SOFTWARE VERSION
9
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
Control value
Indication of calibration value of the control system.
8. Operation
Diagnostics
Indication of the last ten diagnostic messages.
Signal
Indication of the current I2- connection quality in %.
Software version
Information about installed software version.
Note: Values of the
Info menu cannot be modified or entered. Above mentioned
values are only given for your information!
Note: The values are for information only and are not suitable for billing purposes.

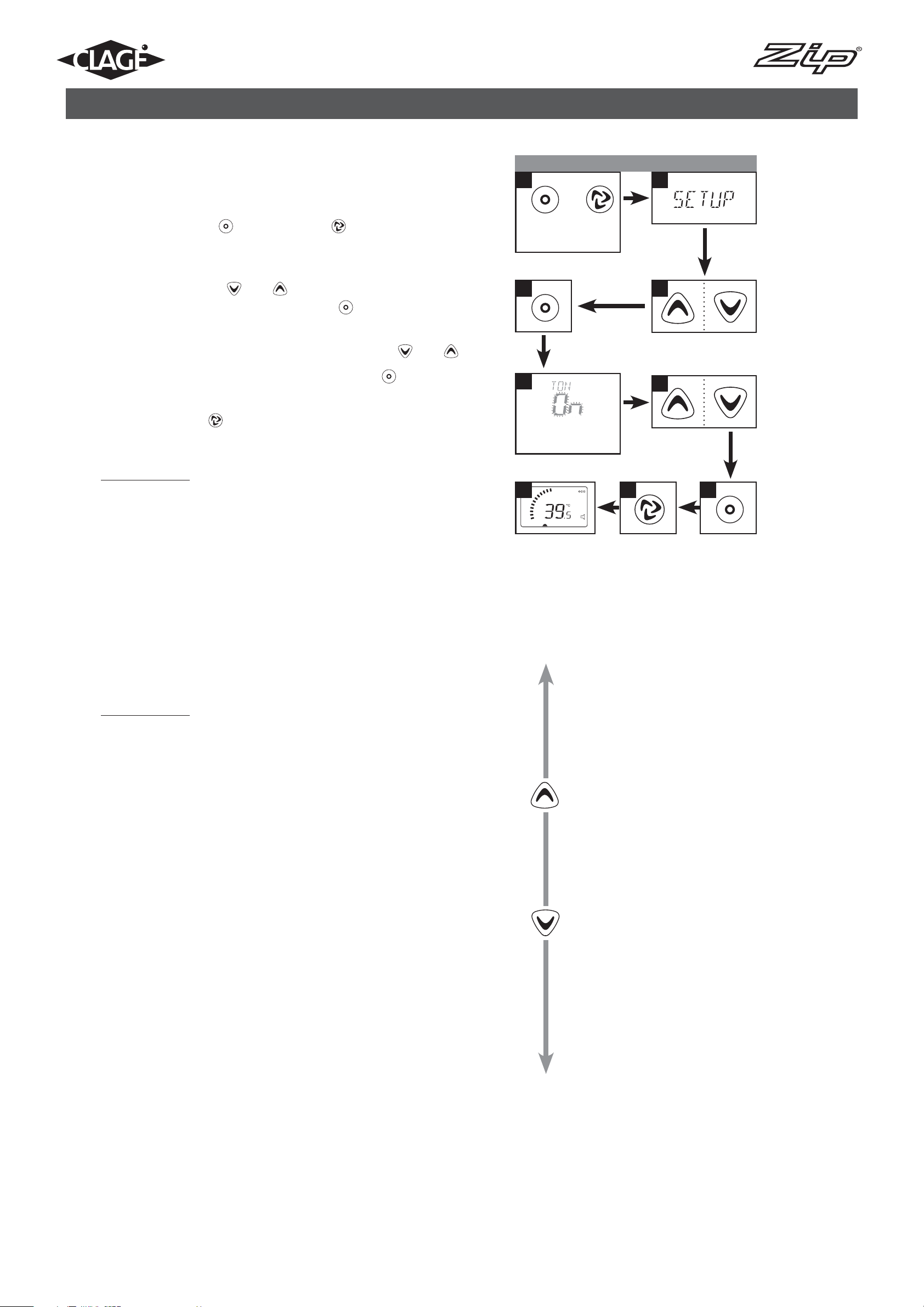

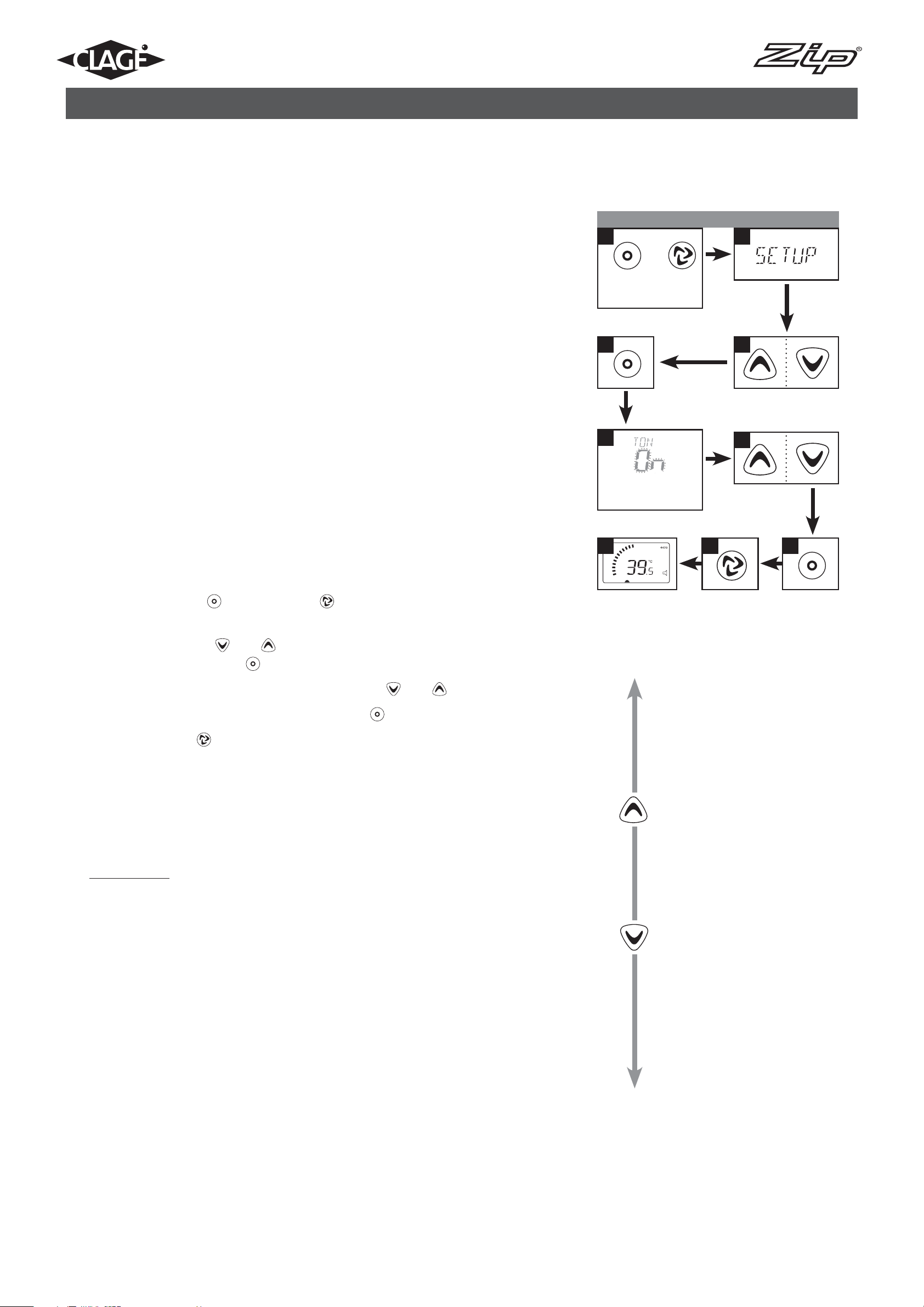

Setup menu
The setup menu allows the performance and display of the appliance to be
adjusted.
1
+
Press
≥ 3 secs
4
5
Display flashes
9
Setup menu
8
2
3
6
7
Press the setup key
and the info key simultaneously for at least 3 sec-
onds to call up the setup menu, the display confirms by “setup”.
Using the arrow keys
mode, press the setup key
New settings can be selected using the arrow keys
The new settings are stored when the setup key
Press the
info key to return to the standard display.
and to select the available modes. To enter each
and the display will flash.
and .
is pressed again.
Individual parameter as follows:
Language
Operating language can be selected.
Setting options:
“1“ German
“0“ English
Menu item order of “Setup menu“:
LANGUAGE
TONE
BACKGROUND LIGHT
AUX DISPLAY
CLOCK
10
LOCK LEVEL
FLOW LIMIT
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
Tone
Activation and deactivation of key tone.
8. Operation
Setting options:
“on“ key tone activated
“--“ key tone deactivated
Background light
Activation and deactivation of display background light
Setting options:
“on“ background light constantly on
“At“ background light switches on automatically e.g. when keys are
pressed, and switches off automatically after some time
“--“ background light off
Clock
Time settings can be done
Setting options:
“h“ hours
“min“ minutes
“s“ seconds
1
+
Press
≥ 3 secs
4
5
Display flashes
9
Setup menu
8
2
3
6
7
The
info key selects the clock parameter to be changed (“h”,”min” or
“s”).
The arrow keys
Pressing the setup key
With
info key you will get back to the standard display.
and changes the set value shown.
stores the new value.
Note:
The arrow key
resets the display to zero when mode “s” is chosen.
The arrow key
deactivates the display of the clock.
Load decrease
Setting of load shedding parameters
Setting options:
“0“ standard operation, factory setting
“1“ operation with standard load shedding relay
“2“ operation with sensitive load shedding relay
Menu item order of “Setup menu“:
LANGUAGE
TONE
BACKGROUND LIGHT
AUX DISPLAY
CLOCK
11
LOCK LEVEL
FLOW LIMIT
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
8. Operation
Lock level
To enter “Lock level” mode, you will need to access the Setup
menu.
Press the setup key
and the info key simultaneously for
at least 3 seconds to call up the setup menu, the display confirms by “setup”.
Using the arrow keys
To enter each mode, press the setup key
and to select the available modes.
and the display
will flash.
New settings can be selected using the arrow keys
The new settings are stored when the setup key
and .
is pressed
again.
Press the
info key to return to the standard display.
Setting options:
“0“ no restriction (factory setting)
“1“ factory reset via key (countdown) not possible, param-
eters can be seen but not be modified in setup menu
“2“ same as “1”, additionally the setup menu cannot be
opened
“3“ same as “2”, additionally nominal value memory (hand-
wash, shower, bathtub, kitchen) not changeable
“4“ same as “3”, additionally nominal value not changeable
Setup menu
1
2
+
Press
≥ 3 secs
4
5
Display flashes
9
Menu item order of “Setup menu“:
3
6
8
7
Flow limit
Setting of flow rate limitation.
Setting options:
“--“ no flow rate limitation
“At“ automatic adjustment, i.e. flow rate is limited in
a way so that the selected outlet temperature is
reached
“Eco“ flow rate limitation to max. 8.0 l/min
e.g. “9.0“ limitation to the selected value
Note:
“Eco” is displayed when operating mode “Eco” is selected
and the set temperature is below 43 °C.
LANGUAGE
TONE
BACKGROUND LIGHT
AUX DISPLAY
CLOCK
LOCK LEVEL
FLOW LIMIT
12
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
8. Operation
Performance monitoring
In the top row of the display, various information can be displayed
permanently.
If you press the info button
once, the name of the currently selected monitor is displayed as scrolling text. To continue to the next
monitor, press the info button
a second time while the scrolling
text is visible. The name of the monitor will appear as scrolling text.
After the scrolling text, the value of the currently selected parameter
will be displayed permanently in the top row of the display.
Individual parameter as follows:
CLAGE (or Clock, if enabled)
This is the normal display mode without an activated Energy and
Status Monitor. If the clock was enabled in the Setup menu, it is only
shown in normal display mode.
Note:
The menu items “Power“, “Flow“, “Temp In“, “Temp Out“ and “Costs
per hour“ are explained in the chapter “Info Menu“.
Menu item order of
“Energy Efficiency Monitor“:
CLOCK
POWER
FLOW
Energy consumption since last use (Energy last tapping)
Energy consumption since last use in Wh or kWh.
Water consumption since last use (Water volume last tapping)
Display the amount of water used since last use in litres.
Total energy
Display of the total accumulated energy consumption in kWh.
Total water consumtion
Indication of the total water consumption in litres.
Note: The values are for information only and are not
suitable for billing purposes.
TEMP IN
TEMP OUT
ENERGY LAST TAPPING
WATER VOLUME LAST
TAPPING
TOTAL ENERGY
TOTAL WATER VOLUME
13
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
8. Operation
Reset to factory setting
To return to factory settings:
• Press and hold the setup key
, the display now counts backwards
from “10” to “00” in second intervals.
• The appliance is reset at value “00”
Note:
To cancel the reset process, release the setup key
before the count-
down reaches “00”.
Energy saving
Set the required hot water temperature on the appliance.
If the water is too hot reduce the temperature on the appliance instead of
mixing with cold water.
1
Press + hold!
Factory reset
2
3
Reset completed
Adding cold water wastes valuable energy that has been used producing
excessively hot water.
Also, any cold water added is not controlled by the electronic circuitry
meaning that precise temperature control can no longer be guaranteed
when supplying more than one outlet.
Power limit
If the maximum power available from the appliance is insuffi cient to heat
the volume of hot water being drawn off to the required temperature, the
control valve automatically reduces the fl ow rate so that the set temperature is reached.
Operating with solar systems
When operating with solar systems, the appliance should be used with
a thermostatic mixing vavle or a tempering valve to ensure that the inlet
temperature does not exceed 70 °C.
If the inlet temperature exceeds 70 °C, the display screen will show
“INLET TEMP TOO HIGH”.
14
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
9. Maintenance
N.B. Maintenance work must only be carried out by a qualifi ed tradesperson familiar with instantaneous water heaters.
Plastic surfaces and sanitary fi ttings should only be wiped with a damp cloth.
Never use abrasive or chloric cleaning agents or solvents.
Outlet fi ttings (tap nozzles and shower heads) should be unscrewed and cleaned at regular intervals.
The electrical and plumbing components should be inspected regularly by a competent person to ensure proper functioning and opera-
tional safety. Water quality should be considered when determining the frequency of inspection.
Each time the appliance is emptied (e.g. due to work on the plumbing system, if there is a risk of freezing or in case of maintenance), the
appliance must be vented by opening and closing the hot water tap until all air has been eliminated from the water heater and no more
air emerges before re-connecting to the electrical supply.
10. Fault finding
Repairs should only be carried out by qualifi ed tradespersons familiar with electric instantaneous water heaters.
All service work should be performed by an authorized Zip service technician – for details of the full range of services available call Zip
Service on 1800 460 222.
When calling for service, please always specify the appliance model and serial number.
The following table will be helpful in determining the causes of some common problems and their solutions.
Problem Cause Solution
Water stays cold
Digital display does not light up
Display fl ashes error
symbol ‘screwdriver’
Poor hot water fl ow rate
Circuit breaker tripped Reset circuit breaker
STCO tripped Contact Zip Service to reset STCO
Switch power supply off and on. If the symbol
Control system has switched off
‘screwdriver’ still fl ashes contact Zip Service
Outlet fi tting dirty or
Clean shower head or tap nozzle
calcifi ed
Fine fi lter dirty or calcifi ed Contact Zip Service to clean fi ne fi lter
Excessive water fl ow rate Reduce water fl ow rate at the outlet
Selected temperature not achieved
Cold water has been added
temperature and tap hot water only
Screen displays “Inlet temp too
Inlet temperature exceeding set point Reduce inlet temperature
high”
No response to key press Appliance cover not fi tted correctly Contact Zip Service
Set for required
15
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00

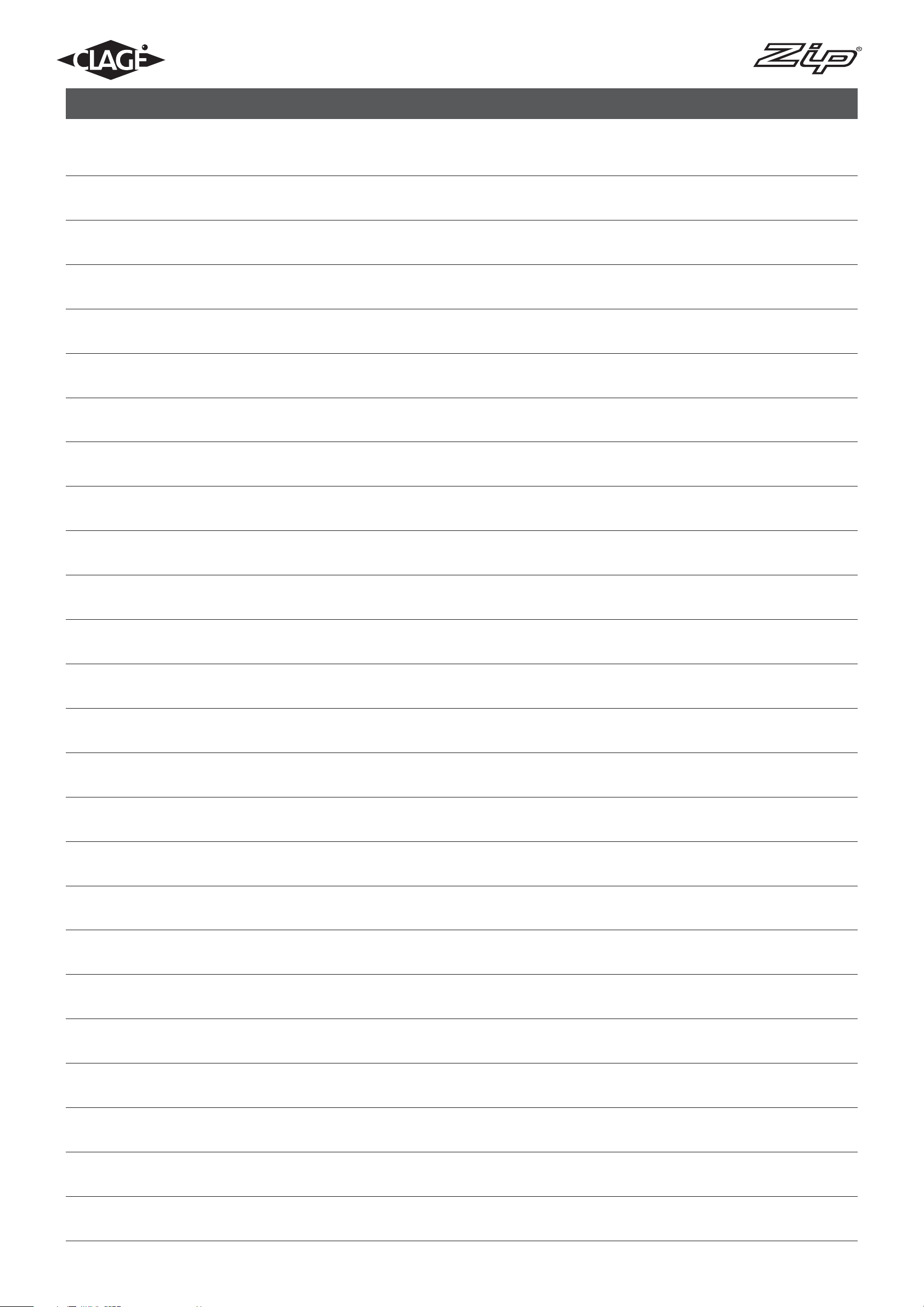

11. Notes
16
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
11. Notes
17
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
Head Office
Zip Heaters (Aust) Pty. Ltd.
ABN: 46 000 578 727
67 Allingham Street
Condell Park NSW 2200
Postal: Locked Bag 80
Bankstown 1885 Australia
Website: www.zipheaters.com
Facsimile: (02) 9796 3858
Telephone: (02) 9796 3100
Free Call: 1 800 638 633
As Zip policy is one of continuous
product improvement, changes
to specifications may be made
without prior notice. Images in this
booklet have been modified and
may not be true representations of
the finished goods.
Quick reference guide
Setup button
Info button
Arrow key up
Arrow key down
Programme buttons
Set temperature
1
–1 °C
35,0..42,0 °C Convenience zone
1
–0,5 °C
+1 °C
+0,5 °C
1
Press
≥ 3 Secs.
Info menu
2
Reset
3
1
Press + hold!
2
3
Select preset temperature
A1 A2
B1 B2
C1 C2
D1 D2
Store temperature
1
2
5
1
4
5
4
Reset completed
Setup menu
2
+
Press
≥ 3 secs
3
6
Press ≥ 3 Secs.
3
Display flashes
9
8
7
Instructions for user - 9120-34316 - DSX - 801050 - November 2012 v1.00
Loading...
