HYDROTAP® CUBE FOR HOME
BRUSHED NICKEL
01038398

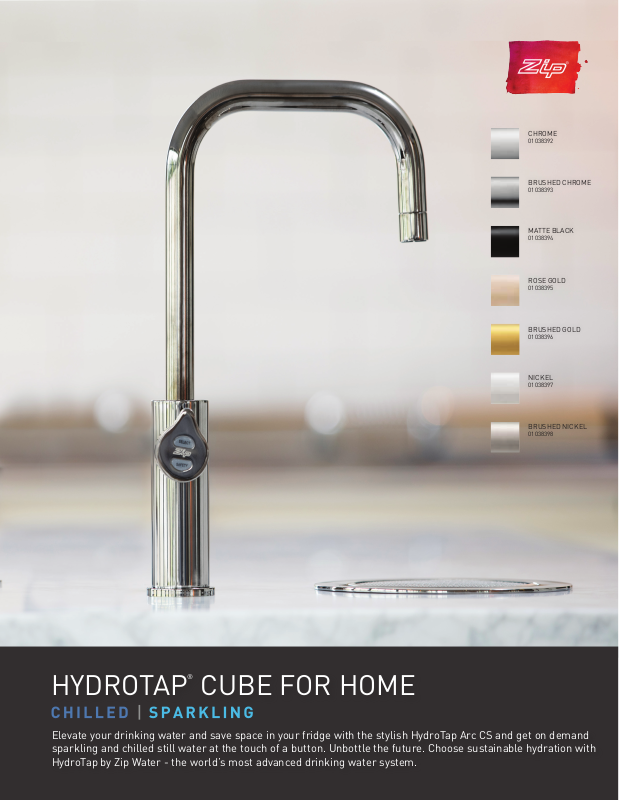

Elevate your drinking water and save space in your fridge with the stylish HydroTap Arc CS and get on demand
sparkling and chilled still water at the touch of a button. Unbottle the future. Choose sustainable hydration with
HydroTap by Zip Water - the world’s most advanced drinking water system.
HYDROTAP® CUBE FOR HOME
3
°
TOP VIEW
1
2
0
°
1
2
0
°
hole for bowl
3-off 10 ( ") holes @ 155mm (6 ") PCD equispaced
hole for Arc or
Cube tap
Cutting Detail: Arc/Cube & Stand-Alone Font
183
8
(199mm)
13
16
7 "
3 "
7
8
6 "
(174mm)
(35mm)
3
8
1 "
(176mm)
(140mm)
1
2
5 "
6 "
(162mm)
3
8
7
8
6
"
7
8
3
4
7
8
13 "
6 "
1
2
5 "
(140mm)
(174mm)
(176mm)
(223mm)
(225mm)
15
16
16 "
8 "
8 "
FRONT VIEW
RHS VIEW
FONT VIEW
8
1
4 "
7
8
3
8
6 "
(353mm)
(225mm)
(115mm)
(162mm)
"
13
16
1 "
9
16
1 "
5
16
7
8
1 "
(40mm)
(33mm)
(47mm)
(20mm)
TAP SPECS
Style
Hole Size
Available Finishes
Installation
Flow rate
Sparkling Water Flow Rate
HydroTap Cube-includes child safety lock
1 3/8”
Chrome, Brushed Chrome, Matte Black, Rose Gold, Brushed Gold, Nickel & Brushed Nickel
Over Sink or On Drip Tray (Optional Font - see accessories)
Max 1.8gpm
0.36 gpm
ORDER CODES FOR PRODUCTS
01038392
01038393
01038394
01038395
01038396
01038397
01038398
CS75 - Cube (Chrome)
CS75 - Cube (Brushed Chrome)
CS75 - Cube (Matte Black)
CS75 - Cube (Rose Gold)
CS75 - Cube (Brushed Gold)
CS75 - Cube (Nickel)
CS75 - Cube (Brushed Nickel)
ORDER CODES FOR REPLACEMENT FILTERS
01034276
01034278
Filter, Zip, 0.2 Micron, 1 Size - 93701
Filter, Zip, 3 Micron, 1.5 Size - 93703
ORDER CODES FOR OPTIONAL FONTS
01034269
01034270
01034271
01034272
01034273
01034274
01034275
Drip Tray, Design Range Font (Chrome)
Drip Tray, Design Range Font (Brushed Chrome)
Drip Tray, Design Range Font (Matte Black)
Drip Tray, Design Range Font (Rose Gold)
Drip Tray, Design Range Font (Brushed Gold)
Drip Tray, Design Range Font (Nickel)
Drip Tray, Design Range Font (Brushed Nickel)
ORDER CODES FOR REPLACEMENT CO2
01034347
01034349
Zip 2 x 1.5lb CO
2 Regulator
Zip CO
2 rellable/recyclable cylinders
HYDROTAP® CUBE FOR HOME
A
A
.
1
8
SECTION A-A
3mm ( )
buffer pad
air space
(406mm)
16"
Position the Tap to dispense into the sink
bowl with ample clearance for a cup or a carafe.
Alternatively, the Tap may be mounted away from
the sink using a Zip Font, available as an accessory.
1 "
Sink shown only
3
8
Sample
Tap
IEC Flex & Plug
110-120V, 60Hz
power outlet
CO gas
cylinder
2
(82mm)
3.2"
Mains cold water
isolation valve
(not supplied)
Clearance
Envelope
(333
mm
)
13.1"
min
7.9"
min
(200
mm
)
11.5"
(292
mm
)
DETAIL B: CABINET FLOOR CUT-OUT
VENTILATION DETAIL
See Detail B
11
1
" max
15
16
12
"
(326mm)
3
16
"
mm
)
8
"
(207
mm
)
(35mm)
(43
mm
)
2.0"
min
(50mm)
2.0"
min
(50mm)
11"
min
(280mm)
COMMAND CENTER SPECS
Water Pressure
Water Connection
Integral Water Values
Water Supply Requirements
Total Dissolved Solids (TDS)
Integral Water Filter
Power Rating
Power Supply Requirements
Dimensions (WxDxH)
Minimum Air Gap
Dry Weight
Product Approvals
Warranty
2 Cylinder
CO
2 Operating Pressure
CO
2 Cylinder
CO
Min 30psi – Max 75psi with a minimum ow rate of 1 gpm
½” BSP - isolation valve is required within 3’ of the installation
HydroTaps are tted with a Dual Check Valve and a 50psi Pressure Limiting Valve
Potable drinking water supply
TDS Min 50ppm – Max 120ppm
0.2 micron, 1 size - Replace every 1,500 gallons or 12 months
110-120V, 60 Hz, 0.235kW
110-120V, 60Hz 15 amp power supply with a NEMA 5-15 outlet
11” x 16” x 13.1”
Clearances are required - 2” Left side , 2” Right side , 8”Above
85lbs
WQA - NSF/ANSI 372, 42 & 53, cUL, CEC
2 years (1 year Limited Warranty plus additional 1 year Warranty is available on product registration)
2 x 1.5lb Beverage Grade Carbon Dioxide Cylinder
Approximately 950 8oz cups
Min 39psi - Max 43psi
hole
Installation and connection of your HydroTap must be carried out by a qualied person, observing all local, state, & federal regulations. You will require suitable 110 -120V 60Hz 15 amp power supply with a NEMA 5-15
electrical outlet within 3’ of the product. The HydroTap is an air-cooled system, so discrete cabinetry cut-outs are required for ventilation. Installation on most counter tops is straightforward, however some stone
counter tops may require a specialized cutting service. If using a drip tray (font) accessory, suitable drainage to a trapped waste is required within 3’ of the installation. If you live in an area with hard water (more than
120ppm), we recommend installation of a scale ltration kit. Sufcient space and clearance to install the HydroTap as detailed in the product installation guidelines is required. Installation by Zip Professional Service
can be arranged with a phone call to 1-833-233-2358 or through www.us.zipwater.com
