Zioncom WL0148 User Manual

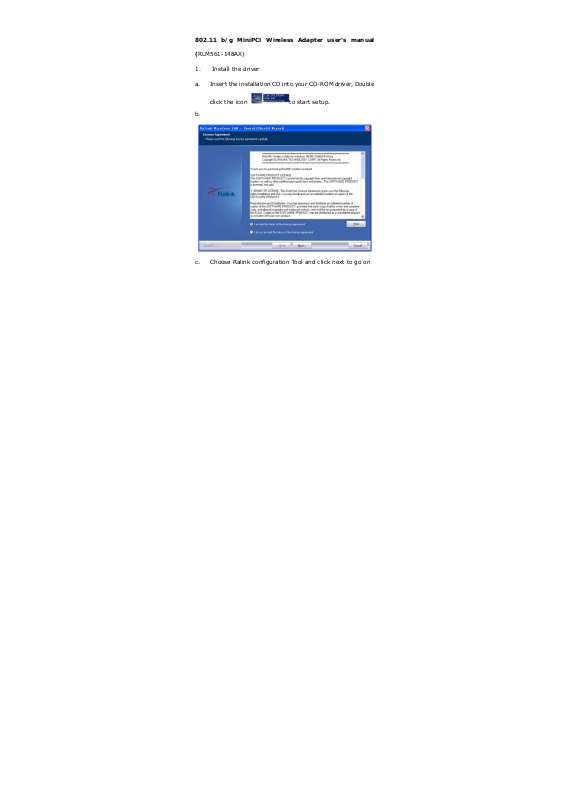

802.11 b/g MiniPCI Wireless Adapter user’s manual

(RLM561-148AX)

1. Install the driver

a. Insert the installation CD into your CD-ROM driver, Double

click the icon to start setup.

b.

c. Choose Ralink configuration Tool and click next to go on

d. Choose optimize for wifi mode and click next to go on

e. Choose Click Install to begin the installation and click

Install to go on

f. Click Finish to end the setup

2. Plug in your MiniPCI Type Wireless Adapter it will be

recognized and auto installed. Just confirmed it like below:

3. Make infrastructure connection

Double click the icon in red circle

You will see:

You can click the button Rescan to find which AP is in range, the

will show on the window, choice one you want to connect, and

click the button connect.

An infrastructure connection is accomplished.

Note, please choose correct channel setting up to your law, for

example, ch13 is permitted in your country, and you set your

router at ch13, while you choose ch1-ch11(default setting),you

will never find the AP, and you will have to choose ch1-ch13

setting in Advanced page as below.

4. Some help information in Ralink Wireless utility

● How to find out your IP address:
