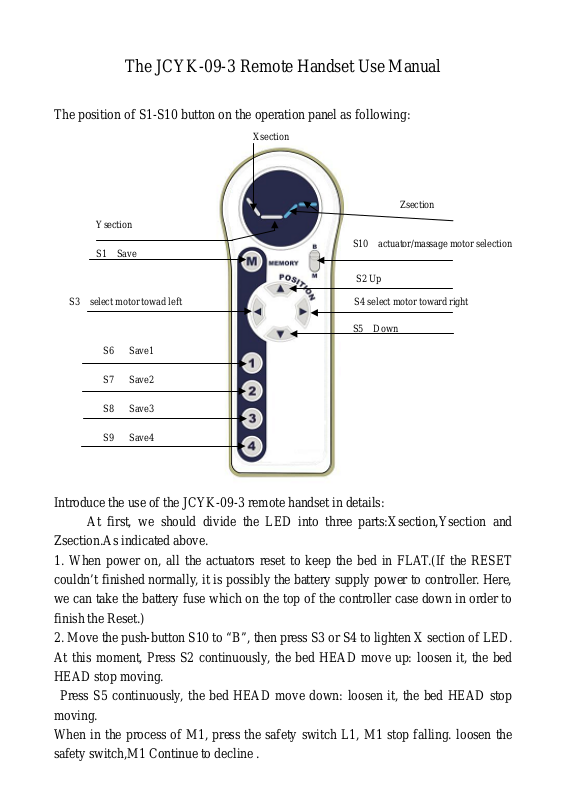

The JCYK-09-3 Remote Handset Use Manual

The position of S1-S10 button on the operation panel as following:

Xsection

Zsection

Ysection

S10 actuator/massage motor selection

S1 Save

S2 Up

S3 select motor towad left

S6 Save1

S7 Save2

S8 Save3

S9 Save4

S4 select motor toward right

S5 Down

Introduce the use of the JCYK-09-3 remote handset in details:

At first, we should divide the LED into three parts:Xsection,Ysection and

Zsection.As indicated above.

1. When power on, all the actuators reset to keep the bed in FLAT.(If the RESET
couldn’t finished normally, it is possibly the battery supply power to controller. Here,
we can take the battery fuse which on the top of the controller case down in order to
finish the Reset.)

2. Move the push-button S10 to “B”, then press S3 or S4 to lighten X section of LED.
At this moment, Press S2 continuously, the bed HEAD move up: loosen it, the bed
HEAD stop moving.
Press S5 continuously, the bed HEAD move down: loosen it, the bed HEAD stop
moving.
When in the process of M1, press the safety switch L1, M1 stop falling. loosen the
safety switch,M1 Continue to decline .

3. Move the push-button S10 to “B”, then press S3 or S4 to lighten Y section of LED.
At this moment,Press S2 continuously, the bed BUTT move up, loosen it, the bed
BUTT stop moving.

Press S5 continuously，the bed BUTT move down: loosen it, the bed BUTT stop
moving.
When in the process of M2, press the safety switch L2, M2 stop falling. loosen the
safety switch,M2 keep on stopping .

4. Move the push-button S10 to “B”, then press S3 or S4 to lighten Z section of LED.
At this moment,Press S2 continuously, the FEET part move up after flated then
drive KNEE up in bend state, loosen S2, the bed stop moving.

Press S5 continuously, the KNEE move down to flat bed, then move down bed FEET.
loosen S5, bed stop moving. During this course the foreside of bed should keep a
certain distance with the ground in order to make sure the bed can work safely and
credibility.

5. Move the actuator, when it move to a certain state, press S1,then press S6, the
position will be memorized. Wherever the motor move, press S6, the motor move
to the position kept just. Press S1 and then press S6 when the motor move to
another place,the position of S6 will be changed.

When restart ,memory position is

the new location. The usage of S7，S8，S9 is same with S6.

6. Move the key-press S10 to “M”,then press S3 or S4 to lighten X section of LED.

At this moment,Press S2,the massage motor 1 start vibration,press again, the intensity
of motor boost up.Press S5 the intensity of motor weaken. The motor have 5 different
intensity.
