Zigen HVX-100 User Manual
Function
Transmitter
Receiver
HDMI In
Connector
HDMI A-Type Female
x 1
None
HDMI Out
Connector
None
HDMI A-Type Female
x 1
RJ-45 Connector
1
IR Terminal
Block
1
IR OUT
3.5ψ Stereo Jack x 1
3.5ψ Stereo Jack x 1
IR IN
3.5ψ Stereo Jack x 1
On-board x1
3.5ψ Stereo Jack x 1
Max. Resolution
1080P 60Hz 4K x 2K
Cable Distance
70/100 m (Max.)
Power Adapter
(Min.)
DC 12V with lock
Housing
Metal
Weight
296g
303g
Dimensions
(LxWxH)
150x74x24 mm

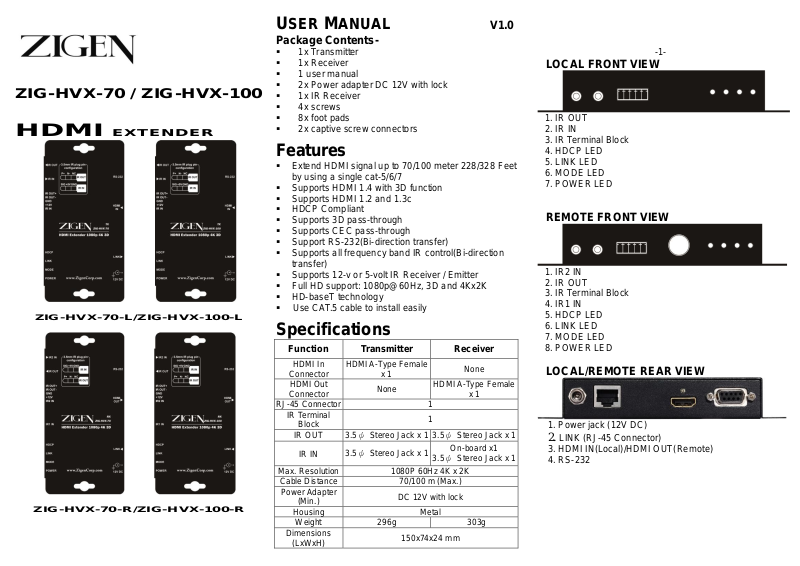

ZIG-HVX-70 / ZIG-HVX-100
HDMI EXTENDER
ZIG-HVX-70-L/ZIG-HVX-100-L
USER MANUAL V1.0
Package Contents-
1x Transmitter
1x Receiver
1 user manual
2x Power adapter DC 12V with lock
1x IR Receiver
4x screws
8x foot pads
2x captive screw connectors
Features
Extend HDMI signal up to 70/100 meter 228/328 Feet
by using a single cat-5/6/7
Supports HDMI 1.4 with 3D function
Supports HDMI 1.2 and 1.3c
HDCP Compliant
Supports 3D pass-through
Supports CEC pass-through
Support RS-232(Bi-direction transfer)
Supports all frequency band IR control(Bi-direction
transfer)
Supports 12-v or 5-volt IR Receiver / Emitter
Full HD support: 1080p@60Hz, 3D and 4Kx2K
HD-baseT technology
Use CAT.5 cable to install easily
Specifications
-1-
LOCAL FRONT VIEW
1. IR OUT
2. IR IN
3. IR Terminal Block
4. HDCP LED
5. LINK LED
6. MODE LED
7. POWER LED
REMOTE FRONT VIEW
1. IR2 IN
2. IR OUT
3. IR Terminal Block
4. IR1 IN
5. HDCP LED
6. LINK LED
7. MODE LED
8. POWER LED
LOCAL/REMOTE REAR VIEW
ZIG-HVX-70-R/ZIG-HVX-100-R
1. Power jack (12V DC)
2. LINK (RJ-45 Connector)
3. HDMI IN(Local)/HDMI OUT(Remote)
4. RS-232
GND
+V
Sig
Pin #
Signal
Pin #
Signal
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2 Shield
12
TMDS Clock -
3
TMDS Data 2-
13
CEC
4
TMDS Data 1+
14
Reserved
(N.C. on device)
5
TMDS Data 1 Shield
15
SCL
6
TMDS Data 1-
16
SDA
7
TMDS Data 0+
17
DDC/CEC Ground
8
TMDS Data 0 Shield
18
+5 Power
9
TMDS Data 0-
19
Hot Plug Detect
10
TMDS Clock+
Conductor
Identification
RJ45 Pin
Assignment
Color Code for
Conductor
Pair 1
5
White-Blue
4
Blue
Pair 2
1
White-Orange
2
Orange
Pair 3
3
White-Green
6
Green
Pair 4
7
White-Brown
8
Brown
Trademarks:
All the companies, brand names, and product names
referred to this manual are the trademarks or registered
trademarks belonging to their respective companies.
-2-
Installation
1. Be sure to turn OFF your HD source and HDTV.
2. Connect the HDMI extension cable between HD source
and the “HDMI IN” port of Transmitter.
3. Connect the HDMI extension cable between the HDTV
and the “HDMI OUT” port of Receiver.
4. Connect CAT.5 cables between the Transmitter “LINK”
port and the Receiver “LINK” port of extender.
5. Connect the power cord and power up the extender.
6. Turn on your HD source and HDTV.
IR Receiver Cable Directions:
Plug the IR Receiver into the ZIG-HVX-70-R/
ZIG-HVX-100-R “IR2 IN” port and place the IR Receiver
Cable, so that you can point to it easily with your IR remote
controller.
IR Emitter Directions:
Plug any brand IR emitter into ZIG-HVX-70-L/
ZIG-HVX-100-L “IR OUT” port, and place the IR censor
directly on the device ( IR in window located on the front
panel ) which you intend to control.
Additional Options
Select any additional options you may require.
1. IR Receiver Cable
DO NOT PLUG MONO TIPE IR EMITTER INTO “IR-IN”
IR-in is design to be used with IR receivers.
-3-
Technical Specifications Output Signal
-4-
Wiring Information & Coding
-5
