Zigen CX-100 User Manual

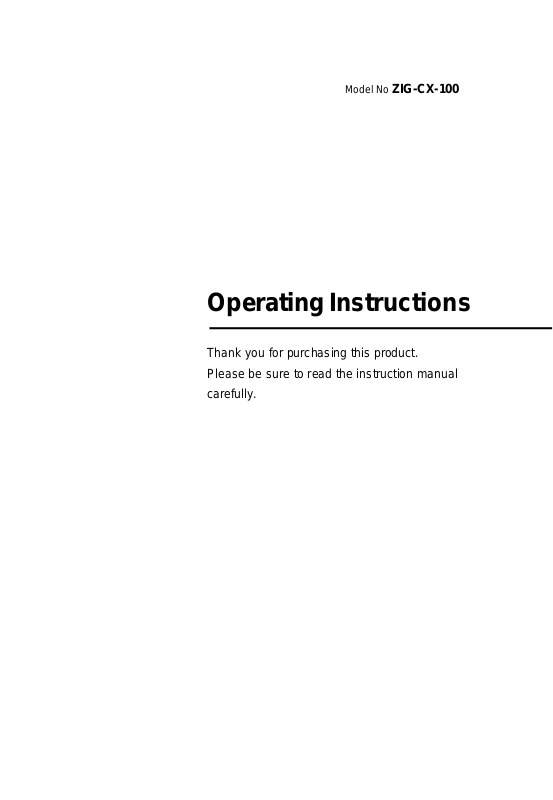

Model No ZIG-CX-100

Operating Instructions

Thank you for purchasing this product.
Please be sure to read the instruction manual
carefully.

Introduction

The ZIGEN ZIG-CX-100 is a transmitter / receiver extender kit for long distance
transmission of HDMI video and embedded audio plus bi-directional control signals
over a single Coaxial cable. The ZIG-CX-100 can be used as a point-to-point
solution or integrated with Matrix switching equipment to extend inputs or outputs
to remote locations. The transmitter and receiver sets support simultaneous
transmission of bi-directional RS-232 and IR signals from a control system,
providing remote control to source equipment or displays.

ZIG-CX-100 is Compliant with HDMI 1.4, 3D, HDCP, DVI – D standards.

Contents

HDMI Extender ................................................................................................ 1

Product Overview ............................................................................................. 1

Features ........................................................................................................... 1

Package Contents ............................................................................................ 3

Connections and Operations ............................................................................ 3

Specifications ................................................................................................... 6

Panel Descriptions ................................ ........................................................... 7

Typical Application ........................................................................................... 9

Maintenance .................................................................................................... 9

Product Service ................................................................................................ 9

● Provided Service ........................................................................................... 9

● Mail-In Service ........................................................................................... 10

● Warranty .................................................................................................... 10

● Warranty Limits And Exclusions ................................................................. 11

Page 1

HDMI Extender (By single coax cable)

■ Product Overview ( Model Number: ZIG-CX-100 )

■ Features

•

Extend HDMI signal by using a single RG-6QUAD coaxial
cable. 1080p/24Hz with 3D up to 330-ft/100 meters or
1080p/60Hz up to 330-ft / 100-meters.

•

Extend HDMI signal by using a single RG-59 coaxial
cable. 1080p/24Hz with 3D up to 165-ft/50 meters.

•

Auto-adjustment of feedback.

•

HDMI V1.4 supported.

•

HDCP compliant.

•

Full HD support: 1080p@24/50/60Hz.

•

LED indicators show power and status signal.

•

ESD protection inside.

•

USB Port for firmware upgrade

•

Bi-directional RS232 control signal transmission.

•

Bi-directional Infrared control signal transmission.
