ZIEHL TR1200 Operating Instructions

ZIEHL industrie – elektronik GmbH + Co KG

Daimlerstraße 13, D – 74523 Schwäbisch Hall

+ 49 791 504-0, [email protected], www.ziehl.de

Temperature Relays and MINIKA®, Mains Monitoring, Digital Panelmeters MINIPAN®, Switching Relays and Controls

Operating Instructions TR1200

updated: 130215 Ba/Fz

from Firmware: -02

TR1200 12320-0702-03 Page 1 / 20 www.ziehl.de

- Pt 100 thermostat with 12 sensor ports and Interface RS485

--- Archive document---

TR1200 12320-0702-03 Seite 2 / 20 www.ziehl.de

Table of contents

1 Application and brief description .......................................................................................................... 3

2 Overview of functions ............................................................................................................................ 3

3 Display and controls .............................................................................................................................. 4

4 Description of terminals ......................................................................................................................... 5

5 Important Notes ...................................................................................................................................... 5

6 Installation .............................................................................................................................................. 6

7 Connection diagram ............................................................................................................................... 7

8 Commissioning....................................................................................................................................... 7

8.1 Control chart .................................................................................................................................. 7

8.2 Description of the parameters ........................................................................................................ 8

8.3 Display mode (last decimal point off) ............................................................................................. 8

8.4 Menu mode (last decimal point on) ................................................................................................ 8

8.5 Configuration mode (last decimal point flashes) ............................................................................. 9

8.6 2-wire technique line resistance compensation .............................................................................. 9

8.7 Configuring sensors ....................................................................................................................... 9

8.8 Configuring the relay .................................................................................................................... 10

8.9 Configuring the RS485 interface .................................................................................................. 10

8.10 Simulation .................................................................................................................................... 11

8.11 Code lock .................................................................................................................................... 11

8.12 Possible indications in display...................................................................................................... 12

9 Factory settings and software version ............................................................................................... 13

10 Maintenance and repair ........................................................................................................................ 13

11 Trouble shooting .................................................................................................................................. 14

12 Technical Data ...................................................................................................................................... 15

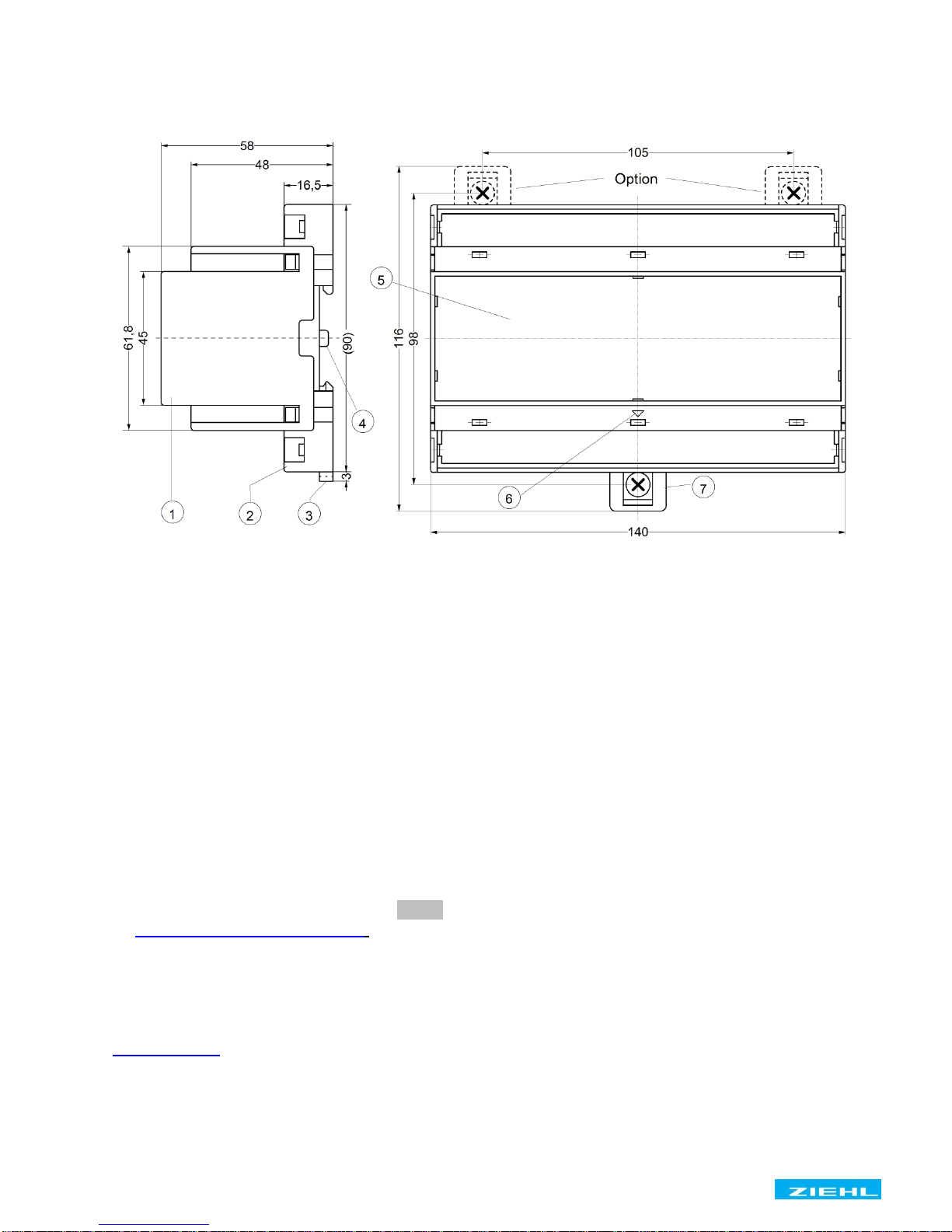

13 Housing design V8 ............................................................................................................................... 17

14 RS485 interface - Protocols ................................................................................................................. 17

14.1 Modbus protocol .......................................................................................................................... 17

14.2 RS485 Protocol ........................................................................................................................... 18

15 Appendix SIPROTEC configuration .................................................................................................... 20

TR1200 12320-0702-03 Seite 3 / 20 www.ziehl.de

1 Application and brief description

The Pt 100 thermostat TR1200 is especially suitable for temperature monitoring wherever up to 12 different
measuring points must be monitored simultaneously:

 Motors and generators,
 Simultaneous monitoring of bearings and coolant
 Transformers with additional monitoring of the core temperature
 power machines and plants

The Pt 100 thermostat TR1200 measure the temperature of up to 12 Pt 100 thermometers. With the RS485
Interface measured temperature values can be issued i.e. for remote control or further evaluation.
One error relay monitors sensor failures und signals general malfunctions.

2 Overview of functions

 3-digit temperature display
 12 inputs for temperature sensors, 1…12 sensors can be connected
 Pt 100 thermostats with 2- or 3- wire connection
 1 Error relay (potential-free change-over contact)
 RS485 Interface (ZIEHL standard protocol and Modbus RTU protocol)
 LED signal the measuring channel, Error state, relay function and RS485 activity
 Code lock prevents parameter manipulation
 TR600 compatible (to replace one TR600 with 6 sensors connected)
 Universal power-supply AC/DC 24-240 V
 Snap mounting on 35 mm standard rail EN 60715

TR1200 12320-0702-03 Seite 4 / 20 www.ziehl.de

3 Display and controls

1

LED relay state (yellow)

OFF

The relay is released

Illuminated

The relay is picked up

2

LED sensors (yellow)

Illuminated

Displays the sensor value belonging to the LED in the digital
display

flashes, 8Er18or8Er28

Sensor error in the corresponding sensor circuit

All illuminated

Displays the value of the warmest sensor in the digital display

3

Digital display 3 digits (red)

Display of sensor value

Display of error codes e.g. 8Er98

4

Hindmost decimal point (red)

OFF

Display mode

Illuminated

Menu mode

flashes

Parameter mode

5

LED error (red)

OFF

normal operation

Illuminated with 8Er18 , 8Er28 ,

8Er88 or 8Er98

Sensor error, malfunction, invalid parameter

6

Button Up / Down (display mode, normal operation)

Press briefly

Change into the menu mode (see Operating instructions Point 8.4)

Press for > 2s

Displays the stored MAX value (Up) / MIN value(Down) – press also
button Set for ≥ 2s to erase the stored value

7

Button Set / Reset (display mode, normal operation)

Press briefly

Displays the value of next sensor (sensor LED illuminates)

Press for > 2s

Reset, back to display mode

Press for > 10s

Displays the software version (e.g. 000)

8

LED RS485 Interface (yellow)

Rx flashes briefly

Unit is receiving data via the RS485 interface

Tx flashes briefly

Unit is transmitting data via the RS485 interface

TR1200 12320-0702-03 Seite 5 / 20 www.ziehl.de

4 Description of terminals

Terminal

Function

A1 and A2

Supply Voltage Us, see Operating Instructions Point 12

11, 12, 14

Error relay change-over contacts

1T1…12T3

Sensor connection (xT2 = Sense line of three wire technique)

A

RS485 receiving wire

A´

RS485 load resistor, jumper to terminal A required

B

RS485 transmitting wire

B´

RS485 load resistor, jumper to terminal B required

 (Gnd)

Ground wire of RS485 interface,
potential equalisation between multiple units

5 Important Notes

DANGER!
Hazardous voltage!
Will cause death or serious injury. Turn off and lock out all power
supplying this device before working on this device.

To use the equipment flawless and safe, transport and store properly, install and start professionally and
operate as directed.
Only let persons work with the equipment who are familiar with installation, start and use and who have
appropriate qualification corresponding to their function. They must observe the contents of the instructions
manual, the information which are written on the equipment and the relevant security instructions for the
setting up and the use of electrical units.
The equipments are built according to DIN / EN and checked and leave the plant according to security in

perfect condition. To keep this condition, observe the security instructions with the headline „Attention“ written

in the instructions manual. Ignoring of the security instructions may lead to death, physical injury or damage of
the equipment itself and of other apparatus and equipment.
If, in any case the information in the instructions manual is not sufficient, please contact our company or the
responsible representative.
Instead of the industrial norms and regulations written in this instructions manual valid for Europe, you must
observe out of their geographical scope the valid and relevant regulations of the corresponding country.

TR1200 12320-0702-03 Seite 6 / 20 www.ziehl.de

ATTENTION!
When all relays are programmed in operation current mode (= pick up at alarm), a
loss of the supply voltage or an instrument failure can remain unidentified. When the
relay is applied as control instrument, the operator must ensure, that this error is
recognized by regular examinations. We recommend to program and accordingly
evaluate at least one relay in the closed-circuit current mode.

Caution! Temperature sensor terminals

The pin connections of Sensors 1…6 (below) are not compatible with Sensors 7…12 (above). If a 3-wire­technique sensor connected below is to be connected above, both external connections must be swapped.
Temperature sensors must be connected to the plug-in terminals T11, T12, T13 etc. To ensure proper
operation this plug-in terminals have gold-plated contacts. Do not use these plugs for other terminals.

Caution!

The sensor inputs and the RS485 interface are applied to the same electrical potential but are galvanically
isolated (2kV) for the auxiliary voltage. Take this into consideration during configuration.

RS485 connection:

Use RS485 Interface only with shielded wires.
Large cable lengths may shift the potential ground and the transmission can be disturbed.
Corrective measures can be galvanic separation or an additional ground wire.
Max. allowed cable length is 1000m.

6 Installation

The device can be mounted:

 Distribution board or switchgear cabinet on 35 mm rails according to EN 60715

Observe the maximum temperature permissible when installing in switching cabinet. Make sure
sufficient space to other equipment or heat sources. If the cooling becomes more difficult e.g.
through close proximity of apparatus with elevated surface temperature or hindrance of the cooling
air, the tolerable environmental temperature is diminishing.

Attention! Universal power supply
The unit is equipped with a universal power supply that is suitable for DC- and AC­ voltages. Before connecting the unit to the current, make sure that the allowed scope
of voltage of the control voltage Us, written on the lateral type plate, corresponds to
the supply voltage of the unit.

A circuit-breaker or switch must be situated within easy reach of the
unit and fused. Installation excess current protection should be ≤ 10 A.

!

!

!

TR1200 12320-0702-03 Seite 7 / 20 www.ziehl.de

Cod.

pin

000

...999

pin

000

...999

3X on/off3X err

Sensor

1

Sensor

12

Sensor

1-12
Max

Display mode

Parameter mode

Menu mode

Si .

...

...

= Reset

= Down

= max
= Up

= min

>2s

>2s

>2s

= Set

Sen.

S 1

0...99.9

3-L

nc

[°C]

-199

...850

Si

Sensor

S 1

… S12

. . .

S12

0...99.9

3-L

nc

. . .

Cod

On/

off

rel.

rel

r

… A

Adr

bus.

0

...96

bdr

[baud]

48/

96/

192

par

Eve/
Odd/

no

Adr

1

...247

Prt

Mod

-------­ 485

7 Connection diagram

8 Commissioning

8.1 Control chart

[ ] = unit
Up/Down together

resets values to Zero.
Code-Reset = press 2 s Set when

switching on supply voltage.
(Pin = 504)

Error Code:

-EE = under range
EEE = over range
Er1 = short circuit sensor
Er2 = interruption sensor
Er8 = Internal device error
Er9 = invalide parameter

alternating
Display

TR1200 12320-0702-03 Seite 8 / 20 www.ziehl.de

8.2 Description of the parameters

Parameters

Display

Explanation

Adjustment range

Sensors

8Sen.8

Menu item for sensor configuration

8S 18 … 8S128

Sensor

8S 18
8S 28

...

Sensor configuration (line compensation)
S1…S12

80.008 , 83-L8 ,
8 nc8

Relay function

8rel8

Zero signal current / operating current

8 r8 , 8 A8

Bus

8bus.8

Menu item for configuring the
RS485 interface

84858 , 8Mod8

Protocol

8Prt8

Set ZIEHL / Modbus protocol

8 08 … 8 968
8 18 … 82478

Address

8Adr8

Set the device address

8 08 … 8 968
8 18 … 82478

Baud rate

8bdr8

Set the baud rate

8 488 = 4800
8 968 = 9600
81928 = 19200

Parity

8par8

Set the parity bit

8eve8 = even
8odd8 = odd
8 no8 = none

8.3 Display mode (last decimal point off)

In the display mode, the TR1200 is in its normal state; here the temperature of the selected sensor is
displayed. In addition, the error codes (e.g. 8er18) are also displayed.

Function key
Set / Reset

Press briefly: Switches the sensor over

Press for > 10 s: Displays the software version (e.g. 80008

Function key
Up / Down
Press briefly: Changes into the menu mode

Press for ≥2 s: Displays MAX and MIN measurements,
additionally pressing the Set key for
≥ 2s deletes the saved values

8.4 Menu mode (last decimal point on)

The menu mode is used to select the menu items. If no key is pressed for 30s, one automatically returns to
the display mode.

Function key
Set / Reset

Press briefly: Changes into the configuration mode

Press for ≥2 s: Returns to the display mode (the most recently set
values are then taken over)

Function key
Up / Down

Press briefly: Select menu item; switches to the
display mode

TR1200 12320-0702-03 Seite 9 / 20 www.ziehl.de

8.5 Configuration mode (last decimal point flashes)

The value of a parameter can be set in the configuration mode. The display continually alternates between
the parameter name and the currently set value until the Up/Down key is pressed, which changes the value of
the parameter. If no key is pressed for 2s, the display starts alternating.
If no key is pressed for 30s (simulation mode 15min), one automatically returns to the display mode (the most
recently set value is taken over)

Function key
Set / Reset

Press briefly: The settings are taken over; continue to
next parameter. After the last
parameter, change into menu mode

Press for ≥2 s: Returns to display mode (except
simulation mode), the most recently set
values are taken over during this

Function key
Up / Down

Press short/long: Changes the parameter value
(fast/slow)

Hint: Pressing the Up and Down keys simultaneously sets the adjustable value to zero. If you keep the Up or

Down key pressed while setting a value, the speed of the change in the display is accelerated.

8.6 2-wire technique line resistance compensation

Connect the sensor at terminals xT1 and xT3, xT2 has to be open.
To compensate the line resistance short-circuit the wires nearby the sensor and measure the line resistance.
We recommend using 2 or bettering 3 wires for each sensor. With 2-wire connection and a common line for
all signals, all sensor measuring currents will be added on the common line. Thus the value of the
compensation line resistance RK must be calculated as follows: RK = (n+1) x RL/2 (RL = line resistance of
two wires, n = number of sensors)

8.7 Configuring sensors

Adjustment process:

 Select the menu item with the Up/Down key until …

 Display 8SEN.8

 Press the Set key

 Display 8S 1 8 / 83-L8 (Sensor 1 / Connection type) flash alternately

 Use the Up and Down keys to set the connection type or line resistance.

Sensor not connected: Select 8 nc8
3-conductor connection: Select 83-L8
2-conductor connection: 80.008 Perform a line compensation and adjust the line
resistance

 Press the Set key

 Display 8S 2 8 / 83-L8 (Sensor 2 / Connection type) flash alternately

 Configure all 12 sensors in this manner.

TR1200 12320-0702-03 Seite 10 / 20 www.ziehl.de

8.8 Configuring the relay

Adjustment process:

 Select the menu item with the Up/Down key until …

 Display 8rel.8 (Relay function)

 Press the Set key

 Display 8rel8 / 8 r8 (Relay function / Zero signal current) flash alternately

 Use the Up and Down keys to select the relay function

 Press the Set key (exits the configuration mode)

 Display 8rel.8 (Relay function)

8.9 Configuring the RS485 interface

Adjustment process:

 Select the menu item with the Up/Down key until …

 Display 8bus.8 (Bus)

 Press the Set key

 Display 8prt8 / 84858 (Protocol / 485) flash alternately

 Set the desired protocol using the Up and Down keys

 Press the Set key

 Display 8adr8 / 8 08 (Device address / Value) flash alternately

 Set the desired device address using the Up and Down keys

 Press the Set key

 Display 8bdr8 / 8 968 (Baud rate / Value) flash alternately

 Set the desired baud rate using the Up and Down keys

 Press the Set key

 Display 8par8 / 8eve8 (Parity / Value) flash alternately

 Set the desired parity bit using the Up and Down keys

 Press the Set key (exits the configuration mode)

 Display 8bus.8 (Bus)

Note: The set device address always applies for the transmission of Sensors 1…6.

If at least one of the sensors 7…12 as is configured as 2- or 3-conductor
(not „nc“), they will be transmitted with the set device address+1.

More information about Modbus configuration and programming can be found in
Appendix 1 (Download from www.ziehl.com)

TR1200 12320-0702-03 Seite 11 / 20 www.ziehl.de

8.10 Simulation

A sensor can be selected and a temperature simulated here. All device functions operate as if this value is
actually being measured. Error messages are only indicated by LED and not in the display.
The set values are simulated until the menu item 8si .8 is left with the Up or Down button.
If no key has been pressed for 15 minutes, the device automatically switches back to the display mode.

Adjustment process:

 Select the menu item with the Up/Down key until …

 Display 8si .8 (Simulation)

 Press the Set key

 Display 8si 8 / 8S 18 (Simulation / Sensor) flash alternately

 Use the Up and Down keys to select the sensor function

 Press the Set key

 Display 8 08 (Temperature)

 Simulate the desired temperature using the Up and Down keys

 Press the Set key

 Display 8si .8 (Simulation)

By pressing the Set button repeatedly all sensors can be selected in succession. The simulated
values are retained until the menu item 8si .8 is left by pressing Up or Down.

8.11 Code lock

Here, the set parameters can be protected by activating a code lock. The device acknowledges an incorrect
entry with 8err8 (flashes three times).

Adjustment process:

 Select the menu item with the Up/Down key until …

 Display 8Cod.8 (Code lock)

 Press the Set key

 Display 8Pin8 / 8 08 (Pin / Pin code) flash alternately

 Use the Up and Down keys to set the saved pin code (factory setting is 85048 )
 Press the Set key

 Set the desired code block using the Up and Down keys:

o 8off.8 off, all parameters can be changed
o 8 On8 on, no parameters can be changed

 Press the Set key

 Display 8Pin8 / 8 5048 (Pin / Pin code) flash alternately

 Set the desired new pin code with the Up and Down keys

(caution: write down the pin code)

 Press the Set key (exits code locking)

 Code lock on, display 8 on8 flashes three times
 Code lock off, display 8off 8 flashes three times

 Display 8Cod.8 (Code lock)

TR1200 12320-0702-03 Seite 12 / 20 www.ziehl.de

8.12 Possible indications in display

Display mode

8Er18 … 8er98

Error messages (see 11. Error messages and measures)

Menu mode / Configuration mode

8Sen.8

Menu item sensor configuration

8S 18 … 8S128

Sensors 1…12

83-L8

3-conductor connection

8 nc8

No sensor connected

8rel8

Relay function

8bus.8

Menu item for configuring the RS485 interface

8Prt.8

Protocol RS485 interface

84858

RS485 protocol

8Mod8

Modbus protocol

8adr8

Device address RS485 interface

8bdr8

Baud rate RS485 interface

8par8

Parity bit RS485 interface

8Si 8

Simulation

8Cod8

Code lock

8Pin8

Pin code (factory setting 504)

TR1200 12320-0702-03 Seite 13 / 20 www.ziehl.de

9 Factory settings and software version

Press button "SET" for 10 s when switching on supply voltage for factory settings.

Menu
mode

Parameter

Factory settings

My

configurations

Sen.

8S 18 (Sensor 1)

83-L8

8S 28 (Sensor 2)

83-L8

8S 38 (Sensor 3)

83-L8

8S 48 (Sensor 4)

83-L8

8S 58 (Sensor 5)

83-L8

8S 68 (Sensor 6)

83-L8

8S 78 (Sensor 7)

8 nc8

8S 88 (Sensor 8)

8 nc8

8S 98 (Sensor 9)

8 nc8

8S108 (Sensor 10)

8 nc8

8S118 (Sensor 11)

8 nc8

8S128 (Sensor 12)

8 nc8

rel.

8rel8 (Relay function)

8 r8

Bus.

8prt8 (Protocol)

84858

8adr8 (Unit address)

8 08

8bdr8 (Baud rate)

8 968

8par8 (Parity bit)

8eve8

Si

8S 18 (Sensor 1)

88508

…

8S128 (Sensor 12)

88508

Code

8 On8 / 8off8

8off8

8pin8 (PIN code)

85048

Display of Software-Version: Press "SET" for 10 s in display mode.

10 Maintenance and repair

The devices are maintenance-free. Only the manufacturer may accomplish repairs. We recommend an
examination within the regular maintenance periods of the plant, in which the equipment is installed.

TR1200 12320-0702-03 Seite 14 / 20 www.ziehl.de

11 Trouble shooting

Error code

Cause

Remedy

8-EE8

Under range
15 Ω < R < 18,39 Ω

check sensor and line resistance
compensation

8EEE8

Over range
390,26 Ω < R < 400 Ω

check sensor and line resistance
compensation

8Er18

Sensor or line short circuit
LED error illuminates, LED of the
corresponding sensor flashes

check sensors/wires/terminals

8Er28

Sensor or line interruption LED
error illuminates, LED of the
corresponding sensor flashes

check sensors/wires/terminals

8Er88

Internal device error Malfunction
of the device

Switch unit off and back on. If the error
continues to appear, the unit must be returned
to the factory for repair.

8Er98

Invalid parameter

Press button "SET" for 10 s when switching on
supply voltage for factory settings.

Wrong
temperature
values

Sensors with 3-wire technique
interchanged

Check sensors with 3-wire technique.

Terminals of sensor 1…6 are not compatible to

terminals sensor 7…12

Parameter
configuration not
allowed

Code lock active

The Code-lock can be activated as a protection
against manipulation of the settings. The user
can change the PIN-Code.

You have forgotten the PIN? -> Make a
code-reset:

 press button "SET" for 2 s when switching

on supply voltage

 display changes

88888 – 8Cod8 – 8off8 – 88888
 Release button „SET“
Code = OFF, PIN = 504

TR1200 12320-0702-03 Seite 15 / 20 www.ziehl.de

12 Technical Data

Rated supply voltage Us: AC/DC 24 – 240 V, 0/50/60 Hz

Tolerance DC 20, 4 - 297 V AC 20 - 264 V

Power consumption < 3 W < 10 VA

Relay output: 1 Wechsler (CO)
Switching voltage max. AC 415 V
Switching current max. 5 A
Switching capacity max. 1250 VA (ohmic load)
max. 120 W at DC 24 V
UL electrical ratings: 250 V ac, 5 A, resistive
E214025 240 V ac, 1/2 hp
120 V ac, ¼ hp
B 300 – pilot duty, UL 508

Nominal operational current Ie:
AC15

Ie = 3 A Ue = 250 V

DC13 Ie = 2 A Ue = 24 V
Ie = 0,2 A Ue = 125 V
Ie = 0,1 A Ue = 250 V
Recommended fuses for contact T 3,15 A (gL)
Expected contact life mechanical 1 x 107 operations
Expected contact life electrical 1 x 105 operations at AC 250 V / 6 A

Temperature measurement:
Measuring time sensor resistance 0,25…3s (depending on number of sensors)
Measuring time line resistance 0,25…30s (each cycle of a sensor)

Measuring range -199°…850°C

Resolution 1°C
Sensor connection: 12 x Pt 100 according EN 60751

temperature

range °C

Short circuit

(Ohm)

Interruption

(Ohm)

Pt 100 + RL (Ohm)

Sensor

min

max < >

max

Pt 100

-199

860

15

400

500

Measuring accuracy ±0,5 % of measuring value ±1 K
Sensor current ≤0,8 mA
Temperature drift <0,04°C/K

RS485 interface
Address of unit 0…96
Baud rate 4800, 9600, 19200 Baud

Parity N, O, E (no, uneven, even)
Cable length 1000m with 19200 Baud
Time end request – start answer 6…10ms (ZIEHL RS485 protocol)

Test conditions EN 61010-1
Rated impulse voltage 4000 V

Overvoltage category III
Contamination level 2
Rated insulation voltage Ui 300 V
On-time 100 %
Galvanic isolation between auxiliary voltages – Sensor ports DC 3820 V
No galvanic isolation between RS485 interface – Sensor ports

TR1200 12320-0702-03 Seite 16 / 20 www.ziehl.de

EMC-tests EN 61326-1
Emitted interference EN 61000-6-3
Burst EN 61000-4-4 +/-4 kV
Pulse 5/50 ns, f = 5 kHz, t = 15 ms, T = 300 ms
SURGE IEC 61000-4-5 +/-4 kV
Impulse 1,2/50 µs (8/20 µs)
Discharge of static electricity IEC 61000-4-2 +/-4 kV contact,
+/- 8kV air

Environmental conditions
Ambient temperature range -20 °C ... +65 °C
Storage temperature range -20 °C … +70 °C
Altitude Up to 2000 m
Climatic conditions 5 – 85 % rel. humidity, no condensation
External wiring temperature range -5 °C … +70 °C
Vibration resistance EN 60068-2-6 2…25 Hz ±1,6 mm
25 ... 150 Hz 5 g

Housing Design V8, distribution cabinet mounting
Dimensions (W x H x D) 140 x 90 x 58 mm
Mounting height/width 55 mm / 8 TE
Wire connection, single wire each 1 x 1.5 mm2
Stranded wire with insulated ferrules each 1 x 1,0 mm2
Torque of screw 0,5 Nm (3,6 lb.in)
Protection class housing / terminals IP 30 / IP 20
Fitting position any
Installation Snap mounting on mounting rail 35 mm according
to EN 60715 or with screws M 4 (additional bar in
scope of delivery)
Weight app. 350 g

Subject to technical changes

TR1200 12320-0702-03 Seite 17 / 20 www.ziehl.de

13 Housing design V8

Dimensions in mm

1 Oberteil / cover
2 Unterteil / base
3 Riegel / bar for snap mounting
4 Plombenlasche / latch for sealing
5 Frontplatteneinsatz / front panel
6 Kennzeichen für unten / position downward
7 Riegel bei Wandbefestigung mit Schrauben. Riegelbohrung Ø 4,2 mm /
for fixing to wall with screws, Ø 4,2 mm.

14 RS485 interface - Protocols

The TR1200 optionally supports the Modbus or the ZIEHL RS485 protocol.
Device data and measurements can be read out with both protocols; in addition,
the TR1200 can be configured using the Modbus protocol.

The protocol is selected in the menu item 8bus.8.
(see 8.9 Configuring RS485 interface)

14.1 Modbus protocol

You can find documentation on the Modbus protocol in the Internet at

www.ziehl.com TR1200 – Modbus Appendix

TR1200 12320-0702-03 Seite 18 / 20 www.ziehl.de

14.2 RS485 Protocol

Depending on the configured data mode the TR1200 transmits data with ZIEHL TR600 protocol in data mode
0 or with TR1200 protocol in data mode 4.

Transmission format:

ASCII

Compatibility:

TR600 RS485 (Modus 0)

Baud rate:

9600 (default), 4800, 19200

Data bits:

8

Stop bit:

1 Parity:

even (default), odd, no

Separated by:

";" (ASCII)

Master requests data from TR1200:

Master sends <start><address of unit><read-command><data mode><BCC><CR><LF

Start of message:

s (ASCII) or S (ASCII) or STX (0x02)

1 Byte

Address of unit

0…99 (ASCII)

2 Byte

Read command:

r (ASCII) or R (ASCII)

1 Byte

Data mode:

0…9 (ASCII)

1 Byte

Block check (BCC):

EXOR of all transmitted bytes

3

Byte

Carriage Return (CR):

0x0D

1 Byte

Line Feed (LF):

0x0A

1 Byte

10

Byte

TR1200 sends the requested data:

TR sends: <start><type of unit><address of unit><mode><data>

<BCC><CR><LF>

Start of message:

s (ASCII) or S (ASCII) or STX (0x02)

1 Byte

(same as request)

Type of unit:

TR600 (ASCII) or TR120 (ASCII)

5 Byte

+

";" Address of unit::

0…99 (ASCII)

2 Byte

+

";" Data mode:

0…9 (ASCII)

1 Byte

+

";" Value sensor 1 (7):

-199…+850 (ASCII)

*

4 Byte

+

";" Value sensor 2 (8):

-199…+850 (ASCII)

*

4 Byte

+

";" Value sensor 3 (9):

-199…+850 (ASCII)

*

4 Byte

+

";" Value sensor 4 (10):

-199…+850 (ASCII)

*

4 Byte

+

";" Value sensor 5 (11):

-199…+850 (ASCII)

*

4 Byte

+

";" Value sensor 6 (12):

-199…+850 (ASCII)

*

4 Byte

+

";"

Alarm 1:

0 (ASCII)

1

Byte

+

";"

Alarm 2:

0 (ASCII)

1

Byte

+

";" Alarm 3:

0 (ASCII)

1

Byte

+

";" Alarm 4:

0 (ASCII)

1

Byte

+

";" Alarm 5:

0 (ASCII)

1

Byte

+

";" Alarm 6:

0 (ASCII)

1

Byte

+

";" Alarm 7:

0..1 (ASCII)

1

Byte

+

";" Internal error:

0…99 (ASCII)

*²

2 Byte

+

";" Block check (BCC):

EXOR of all transmitted bytes

3

Byte

Carriage Return (CR):

0x0D

1 Byte

Line Feed (LF):

0x0A

1 Byte

64

Byte

* Sensor not connected, data "+980"

Sensor short circuit, data "-999"

Sensor interruption, data "+999"

*² 01=EEprom error, 02=parameter error, 03=ADC error

TR1200 12320-0702-03 Seite 19 / 20 www.ziehl.de

*when unit address 94 is configured, data of sensor 1…6 will be send in 3s under unit address 94 and
3s later data of sensor 7…12 will be send under unit address 95 (independent of sensor configuration „nc“).

Hints:

The configured unit address is permanent for transmitting data of sensor 1...6.
If one of the sensors 7…12 is configured, data of these sensors will be transmitted with configured unit address+1.
In the case of unit address 0, 94 und 96 no request must be send.
Type of unit TR600 = 64 Byte, Type of unitTR120 = 82 Byte

Example:

Request:

s01r0048\r\n

Master sends data request

<End of message>

<CR> <LF>

<Block check>

EXOR of all transmitted bytes

<data mode>

0 (Modus 0)

<Read command>

r (read)

<Address of unit>

01…99 (ASCII)

<start of message>

s, S or <STX>

Block sum: s(115) EXOR 0(48) EXOR 1(49) EXOR r(114) EXOR 0(48) = 048

The values in brackets correspond with the ASCII-code of the sign.

Answer:

sTR600;01;0;+154;-055;+268;+999;+980;-999;1;0;0;1;0;0;1;02;119\r\n

<Data mode>

<Address of unit>

< Type of unit >

< Start of message >

<Temp. Sensors>

<Alarm 1…7>

< Internal error >

< Block sum >

<End of message>

Para

meter

Answer of TR unit

Address of unit

Data mode

Request/Transmission

Start of message

Type of unit

Unit number

Data mode

Sensor 1

Sensor 2

Sensor 3

Sensor 4

Sensor 5

Sensor 6

Sensor 7

Sensor 8

Sensor 9

Sensor 10

Sensor 11

Sensor 12

Alarm 1

Alarm 2

Alarm 3

Alarm 4

Alarm 5

Alarm 6

Alarm 7

Internal error

Block check

CR

LF

0 0 3s x TR600

x x x x x x x x 0 0 0 0 0 0 x x x x x 1 0 x x

TR600

x x x x x x x x 0 0 0 0 0 0 x x x x x 4 x x TR120

x x x x x x x x x x x x x x x x x x x 2 0 x x

TR600

x x x x x x x x 0 0 0 0 0 0 x x x x x 4 x x TR120

x x x x x x x x x x x x x x x x x x x 3 0 x x

TR600

x x x x x x x x 0 0 0 0 0 0 x x x x x 4 x x TR120

x x x x x x x x x x x x x x x x x x x . . .

94 x 3s x TR600

x x x x x x x x 0 0 0 0 0 0 x x x x x

95* x 3s x TR600

x x x x x x x x 0 0 0 0 0 0 x x x x x

96 x 3s x TR120

x x x x x x x x x x x x x x x x x x x

TR1200 12320-0702-03 Seite 20 / 20 www.ziehl.de

15 Appendix SIPROTEC configuration

The sensor connections and the configuration of the TR1200 for evaluation on a Siemens SIPROTEC
protection device are described below. While doing so, the Thermo box operation mode is differentiated.

6 RTD Simplex operation mode (1x TR1200 works like 1x TR600) = Factory setting

 Connect Sensors 1…6
 Configure Sensors 1...6 in menu item 8SEN.8 depending on the connection

(configure sensors that are not connected as "nc")

 Configure Sensors 7…12 in menu item 8SEN.8 as "nc"
 Set device address in menu item 8bus.8  8adr8 to 0

The TR1200 transmits the data from Sensors 1...6 cyclically every 3s.

6 RTD half duplex operation mode(1x TR1200 works like 1x TR600)

 Connect Sensors 1…6
 Configure Sensors 1...6 in menu item 8SEN.8 depending on the connection

(configure sensors that are not connected as "nc")

 Configure Sensors 7…12 in menu item 8SEN.8 as "nc"
 Set device address in menu item 8bus.8  8adr8 to 1

The TR1200 transmits the data from Sensor 1…6 on request with address 1.

12 RTD half duplex operation mode (1x TR1200 works like 2x TR600)

 Connect Sensors 1…12
 Configure Sensors 1...12 in menu item 8SEN.8 depending on the connection

(configure sensors that are not connected as "nc")

 Set device address in menu item 8bus.8  8adr8 to 1

The TR1200 transmits the data from Sensors 1...6 on request with address 1,
and from Sensors 7...12 on request with address 2.
