SMOOTH-Q2
User Guide
ZHIYUN-EN-v1.00
Contents
■
Packing List
Packing List ····················································································1
■
Get to Know SMOOTH-Q2
Get to Know SMOOTH-Q2 ·····························································2
■
Battery Charging Instruction
Battery Charging Instruction ····························································3
■
Mounting and Balancing Mobile Phone
Mounting Phone Holder ··································································4
Mounting Mobile Phone ··································································4
Balancing Mobile Phone ·································································4
■
How to Use
Indicator Lights and Buttons Description ··········································5

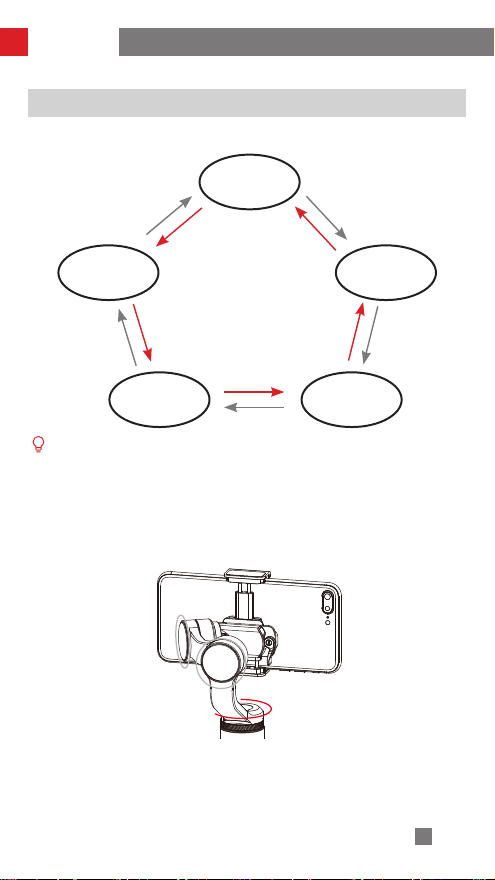

Stabilizer Mode Description ·····························································6
Quick Switch to Standby Mode ·······················································8
Manual Angle Lock ·········································································9
Mobile Phone Charging ··································································9
■
APP Operations
Download ZY Play ··········································································10
How to Connect Stabilizer to Phone ················································10
ZY Play Main Function Overview ······················································10
■
Calibration and Firmware Upgrade
When to Calibrate the Stabilizer ·······················································11
Initialization Method ·········································································11
Six-Side Calibration ········································································11
Motor Fine-Tuning ···········································································13
Firmware Upgrade ··········································································13
■
Product Specifications
■
Disclaimer and Warning
Reading Tip ····················································································15
Warning ·························································································15
Safe Operation Guidelines ······························································16
■
Warranty Terms
Warranty Period ··············································································18
This warranty does not apply to the followings ··································18
Warranty Claim Procedure ·······························································18
■
Contact Card
Scan the QR code to watch tutorials
Packing List
Packing List
The product package comes with the following items. In case any item is found missing,
please contact ZHIYUN or your local selling agent.
manual
SMOOTH-Q2 x 1 Phone Holder x 1 Quick Start Guide
USB Type-C Cable Wrist Strap
1
Get to Know SMOOTH-Q2
Get to Know SMOOTH-Q2
2
4
5
7
9
1. Phone Holder
2. Roll Axis Motor
3. Tilt Axis Motor
4. Phone Holder Latch
5. Pan Axis Motor
6. Indicator Lights
1
3
11
6
8
10
7. Joystick
8. Photo/Video Button
9. Power Button
10. Battery Cover
11. Micro USB Power Port
12. USB Type-C Charging/Firmware
Update Port
12
2
Battery Charging Instruction
Battery Charging Instruction
SMOOTH-Q2 is equipped with 21700 Li-ion battery in a standard package. When using
SMOOTH-Q2 for the first time, please fully charge the batteries to activate them and to
ensure the proper function of the stabilizer.
Charging method: Please charge the stabilizer by connecting the power adapter (not
included in the package, 5V2A rated power adapter recommended) with the stabilizer
handle port via the applied USB Type-C cable. The four indicator lights on the stabilizer
stay on when charging is completed (in the power-off state).
3
Mounting and Balancing Mobile Phone
1 2
Mounting Phone Holder
Take out the phone holder from the packing box and mount it on the stabilizer according
to the following steps:
❶ Loosen the latch;
❷ Put the phoneholder
close to the base plate;
1 2 3 4
❸ Insert the phone holder
into the slot and adjust it
to the middle part;
❹ Tighten the
latch.
Mounting Mobile Phone
Extend the phone holder and put the phone into the phone holder
Do not turn on the stabilizer before the mobile phone is mounted.
Balancing Mobile Phone
Put the phone lens face up, then move the phone left or right until the phone is steady
and is almost level with the ground.
① After the balancing, if need to take out
the phone for other use, please take out
it along with the phone holder and insert
the phone holder into the slot to resume
use.
② Press down the horizontal arm to fold
up the stabilizer for storage after poweroff.
The balancing state of the mobile phone
has a great impact on stabilizer runtime.
The stabilizer can work even in the
unbalanced state but it will consume
more energy of the battery and reduce
stabilizer torque.
4
