Zhejiang Feishen Vehicle IDC1281H User Manual

An instruction manual

FCC ID: A6E-IDC1281H

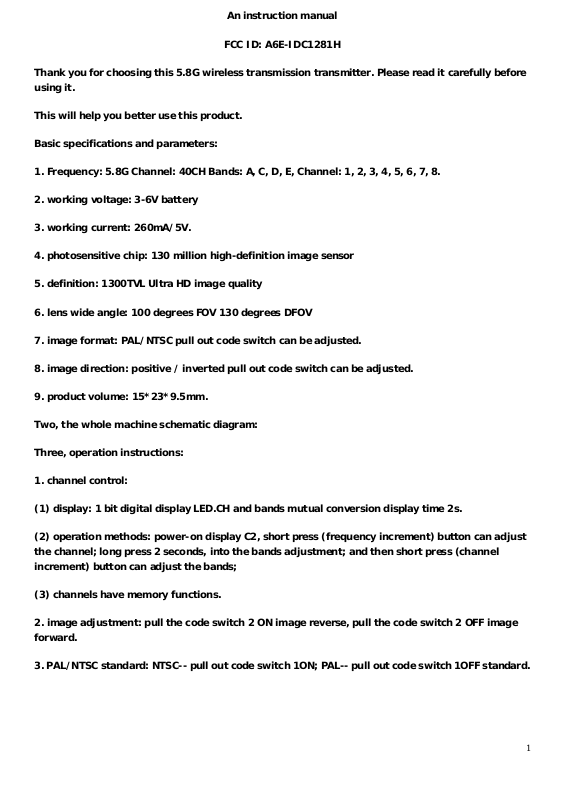

Thank you for choosing this 5.8G wireless transmission transmitter. Please read it carefully before
using it.

This will help you better use this product.

Basic specifications and parameters:

1. Frequency: 5.8G Channel: 40CH Bands: A, C, D, E, Channel: 1, 2, 3, 4, 5, 6, 7, 8.

2. working voltage: 3-6V battery

3. working current: 260mA/5V.

4. photosensitive chip: 130 million high-definition image sensor

5. definition: 1300TVL Ultra HD image quality

6. lens wide angle: 100 degrees FOV 130 degrees DFOV

7. image format: PAL/NTSC pull out code switch can be adjusted.

8. image direction: positive / inverted pull out code switch can be adjusted.

9. product volume: 15*23*9.5mm.

Two, the whole machine schematic diagram:

Three, operation instructions:

1. channel control:

(1) display: 1 bit digital display LED.CH and bands mutual conversion display time 2s.

(2) operation methods: power-on display C2, short press (frequency increment) button can adjust
the channel; long press 2 seconds, into the bands adjustment; and then short press (channel
increment) button can adjust the bands;

(3) channels have memory functions.

2. image adjustment: pull the code switch 2 ON image reverse, pull the code switch 2 OFF image
forward.

3. PAL/NTSC standard: NTSC-- pull out code switch 1ON; PAL-- pull out code switch 1OFF standard.
