OPERATOR´S MANUAL
UTILIX HT
1/2018
45
Tractor is Zetor. Since 1946.
55
1
ZETOR
This Operator’s Manual for the Zetor tractors, which we are presenting to you will help you to
become familiar with the operation and maintenance of your new tractor.
Although many of you have rich experience with the operation of other tractors, please, read the
information contained in this Operator’s Manual very carefully.
In the Manual you will find a lot of new information and get a perfect overview of how to use the
tractor with maximum efficiency during various kinds of work.
If you observe the rules of tractor operation and maintenance and driving safety, your new tractor will
become your reliable and long-term friend.
The manufacturer of the tractor wishes you thousands of hours of satisfactory work.
ZETOR
The technical specifications and information about the design, equipment, material and appearance are valid at the time
of print. The manufacturer reserves the right to implement changes.
The instructions for use are a part of the machine.
Brno
2
Tractor identification ........................................................................................................................................ 7
CONTENTS
3
Warranty of the product ................................................................................................................................. 7
Parts .............................................................................................................................................................. 7
About this manual ............................................................................................................................................ 9
Introduction & Description ............................................................................................................................ 11
Tractor an introduction ................................................................................................................................. 11
Description ................................................................................................................................................... 12
ROPS (Roll over protection structures) ....................................................................................................... 13
Roll over protective structures (ROPS) ....................................................................................................... 13
Danger ......................................................................................................................................................... 13
Use of the tractor with the ROPS lowered can cause fatal injuries ............................................................. 13
Damage of the ROPS .................................................................................................................................. 13
Do not weld, drill or straighten the ROPS .................................................................................................... 13
How to adjust the Seat ................................................................................................................................ 14
For sliding seat ............................................................................................................................................ 14
Seat suspension adjustment knob .............................................................................................................. 14
Cushion Strength Adjustment ...................................................................................................................... 14
Safety instructions, Do's & Don'ts ................................................................................................................ 15
Recognize safety information ..................................................................................................................... 15
Signal words ................................................................................................................................................ 15
Read safety instruction ................................................................................................................................ 15
Protection children ....................................................................................................................................... 15
Use of rops and seat belt ............................................................................................................................ 16
Precaution to avoid tipping .......................................................................................................................... 16
Park tractor safely ........................................................................................................................................ 16
Keep riders off tractor .................................................................................................................................. 16
Handle fuel safely-avoid fires ...................................................................................................................... 17
Stay clear of rotating shafts ......................................................................................................................... 17
Always use safety lights and devices .......................................................................................................... 17
Practice safe maintenance .......................................................................................................................... 17
Avoid high-pressure fluids ........................................................................................................................... 18
Prevent battery explosions .......................................................................................................................... 18
Prevent acid burns ....................................................................................................................................... 18
Service tractor safely ................................................................................................................................... 19
Work in ventilated area ................................................................................................................................ 19
Tractor runaway ........................................................................................................................................... 19
Safety starter switch .................................................................................................................................... 19
Emergency Exits .......................................................................................................................................... 20
Safety Precautions When Using the Loader ............................................................................................... 20
Towing Safely .............................................................................................................................................. 22
Operator Protective Structure (OPS) ........................................................................................................... 22
Operator Protective Structure (OPS) ........................................................................................................... 22
Use of Hazardous Substances .................................................................................................................... 23
Use of Hazardous Substances .................................................................................................................... 24
Safe operation of your tractor ...................................................................................................................... 25
Safety tips during maintenance ................................................................................................................... 25
Mounting and demounting implements ....................................................................................................... 26
The following precautions are suggested to help prevent accidents .......................................................... 26
Do's and don't's ........................................................................................................................................... 30
Do's-For Better performance ....................................................................................................................... 30
Don'ts-For safe operation ........................................................................................................................... 31
Safety signs ..................................................................................................................................................... 33
General safety information .......................................................................................................................... 33
Decals on the dash cover ............................................................................................................................ 33
Decals on the chassis .................................................................................................................................. 34
Decals on the cabin ..................................................................................................................................... 35
Universal symbols .......................................................................................................................................... 37
Controls, Instruments & Operations ............................................................................................................. 39
Description of tractor controls ...................................................................................................................... 39

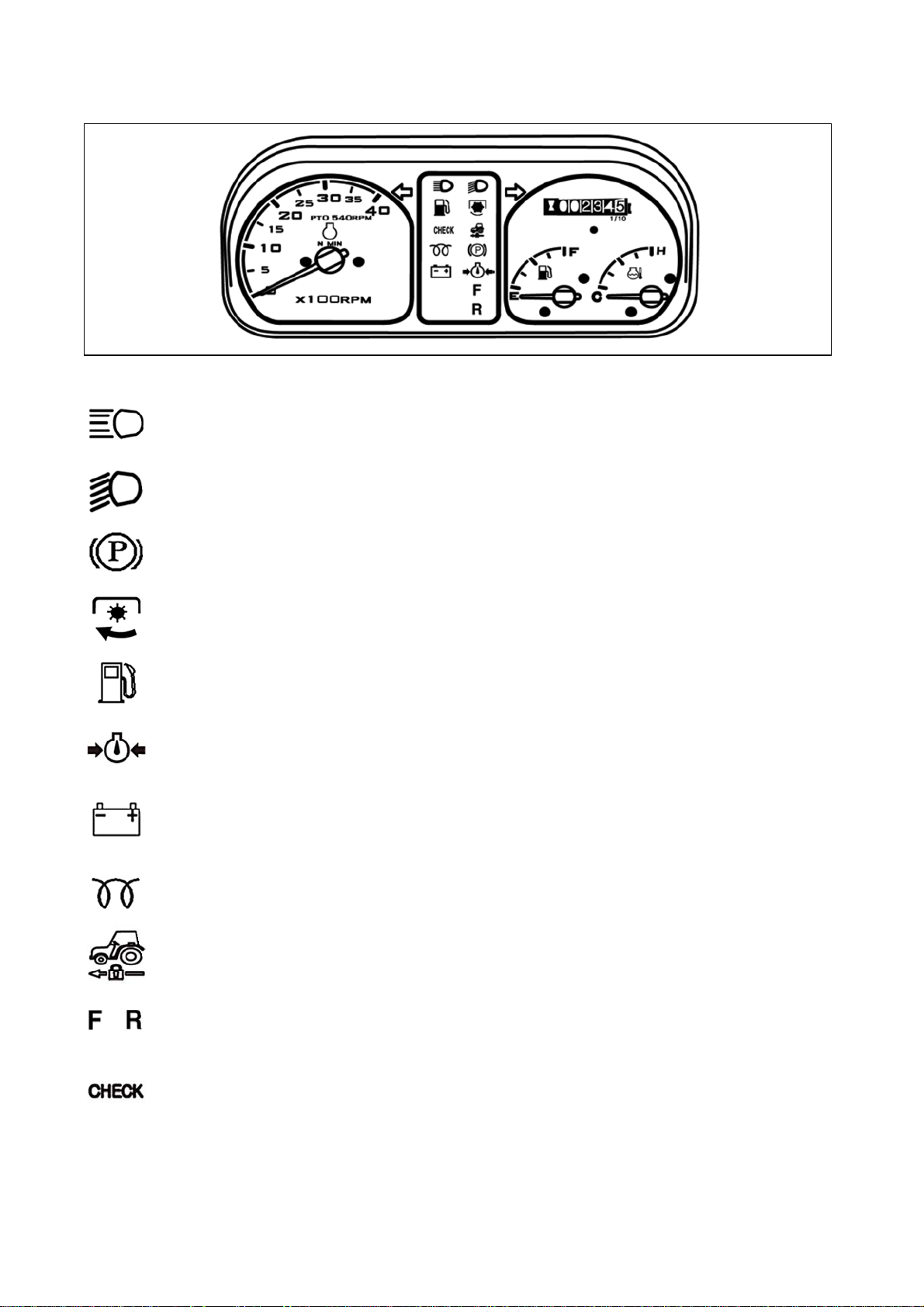

Instrument and switches .............................................................................................................................. 39
Main switch (key switch) .............................................................................................................................. 40
Head lamp, turn signal switch and horn ..................................................................................................... 40
Hour meter ................................................................................................................................................... 41
Tachometer.................................................................................................................................................. 41
CONTENTS
4
Fuel gauge and water temperature gauge ................................................................................................. 41
Hazard warning signal switch ...................................................................................................................... 41
Cruise control button ................................................................................................................................... 45
Cruise speed control switch ......................................................................................................................... 45
Load sensing button .................................................................................................................................... 45
Mode (sensitivity) switch .............................................................................................................................. 46
Tractor controls ............................................................................................................................................ 47
Throttle Lever (Hand Throttle) ..................................................................................................................... 48
Speed control pedal ..................................................................................................................................... 48
Brake pedal.................................................................................................................................................. 48
Parking brake lever ...................................................................................................................................... 48
To avoid personal unjury: ............................................................................................................................ 49
Sub gear lever (range shift lever) ................................................................................................................ 49
Diff-lock pedal .............................................................................................................................................. 50
Front wheel drive lever (4WD) ..................................................................................................................... 50
Driver's Seat ................................................................................................................................................ 50
Tilt lever ....................................................................................................................................................... 51
PTO Gear .................................................................................................................................................... 51
Mid PTO (Optional) ...................................................................................................................................... 51
Operating the hydraulics .............................................................................................................................. 52
Position control ............................................................................................................................................ 52
Draft control lever ........................................................................................................................................ 52
Lowering speed control knob for the 3 point hitch ....................................................................................... 53
Remote hydraulic valve lever ...................................................................................................................... 53
Remote hydraulic control valve coupler connecting and disconnecting ...................................................... 54
Joy stick lever .............................................................................................................................................. 54
Safety implement for joystick lever .............................................................................................................. 55
Operating the 3 point linkage (TPL) ............................................................................................................ 56
Check chain (telescopic stabilizers) adjustment .......................................................................................... 56
Adjustment of the top link ............................................................................................................................ 57
Adjustment of lower link ............................................................................................................................... 57
Lower (if equipped extendable type) ........................................................................................................... 57
Adjustment of the lift link on the lower link .................................................................................................. 58
Mounting implement .................................................................................................................................... 58
Towing Devices ........................................................................................................................................... 59
Driving the tractor ........................................................................................................................................ 61
Starting the engine ...................................................................................................................................... 61
Stopping the engine ..................................................................................................................................... 61
Warming up ................................................................................................................................................. 61
Warming up in cold weather ........................................................................................................................ 61
Running-in Period ........................................................................................................................................ 62
Tight turns in the field .................................................................................................................................. 62
Normal braking and parking ........................................................................................................................ 62
Driving downhill ........................................................................................................................................... 63
Operation of the diff lock .............................................................................................................................. 63
Fuel gauge ................................................................................................................................................... 63
Check during driving .................................................................................................................................... 63
Engine cooling water ................................................................................................................................... 63
Trailer socket (Seven Terminal Electrical Socket type) ............................................................................... 63
Track adjustment ......................................................................................................................................... 64
Connecting and Disconnecting Implement .................................................................................................. 65
Connection................................................................................................................................................... 65
Disconnection .............................................................................................................................................. 65
Mounting Implement .................................................................................................................................... 66
Fixtion Points of Loader ............................................................................................................................... 67
Lubrication & maintenance............................................................................................................................ 69
Check and service ....................................................................................................................................... 69
Service inspections ...................................................................................................................................... 69
Pre-start checks ........................................................................................................................................... 69
Engine coolant ............................................................................................................................................. 69
Engine oil ..................................................................................................................................................... 70
Transmission oil ........................................................................................................................................... 71
Fuel .............................................................................................................................................................. 71
CONTENTS
5
Tyre pressure............................................................................................................................................... 72
Steering ....................................................................................................................................................... 72
Brake ........................................................................................................................................................... 72
Electrical ...................................................................................................................................................... 72
Installing loader ........................................................................................................................................... 73
Detaching the loader (loader connecting port) ............................................................................................ 73
Maintenance and adjustment Schedule ...................................................................................................... 74
Periodical check and service table .............................................................................................................. 74
Filling diagram & Capacity table .................................................................................................................. 77

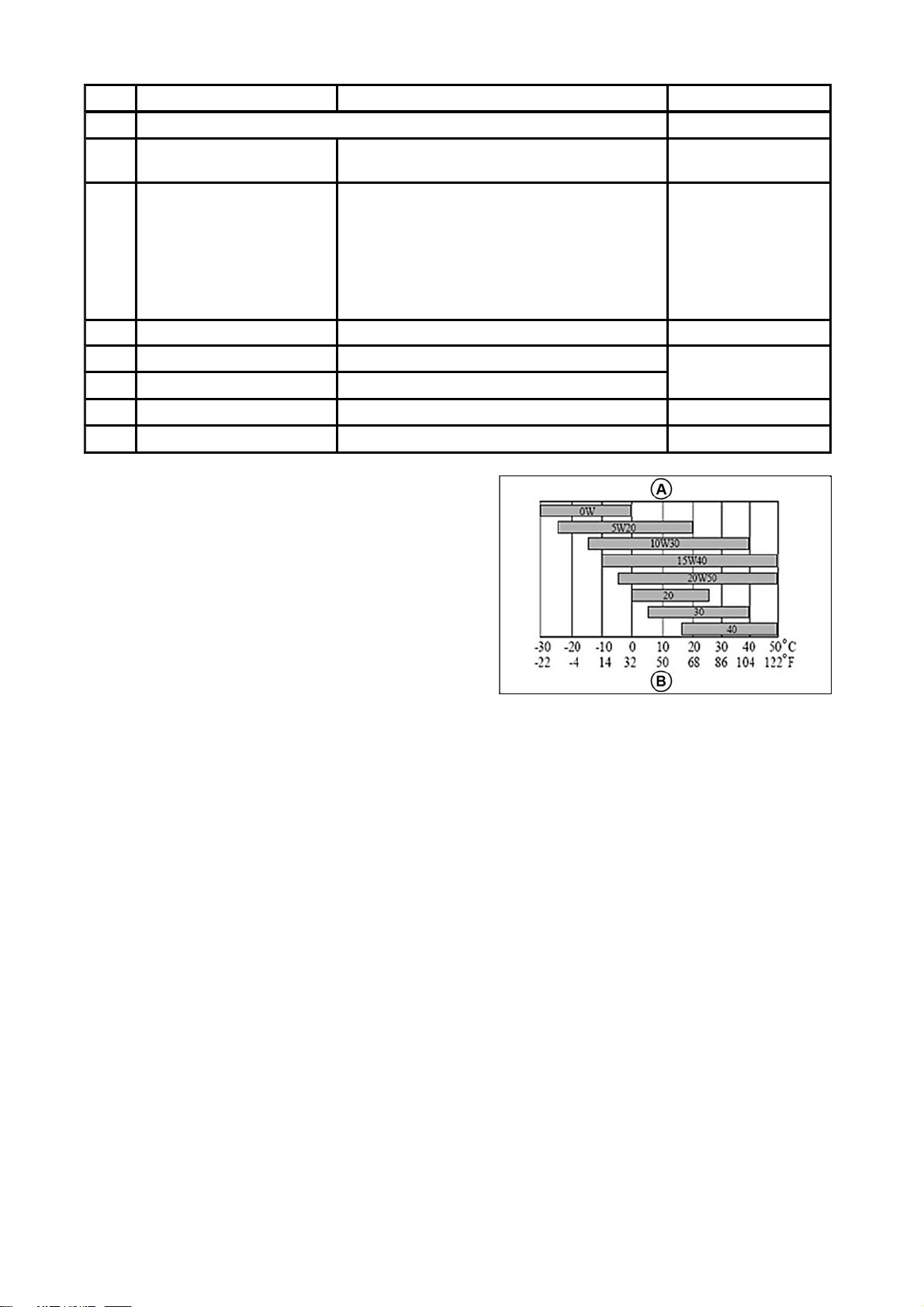

Recommended transmission oil .................................................................................................................. 78
Opening method of each cover ................................................................................................................... 79
Opening method of Hood ............................................................................................................................ 79
Opening the Side cover ............................................................................................................................... 79
Fuel .............................................................................................................................................................. 80

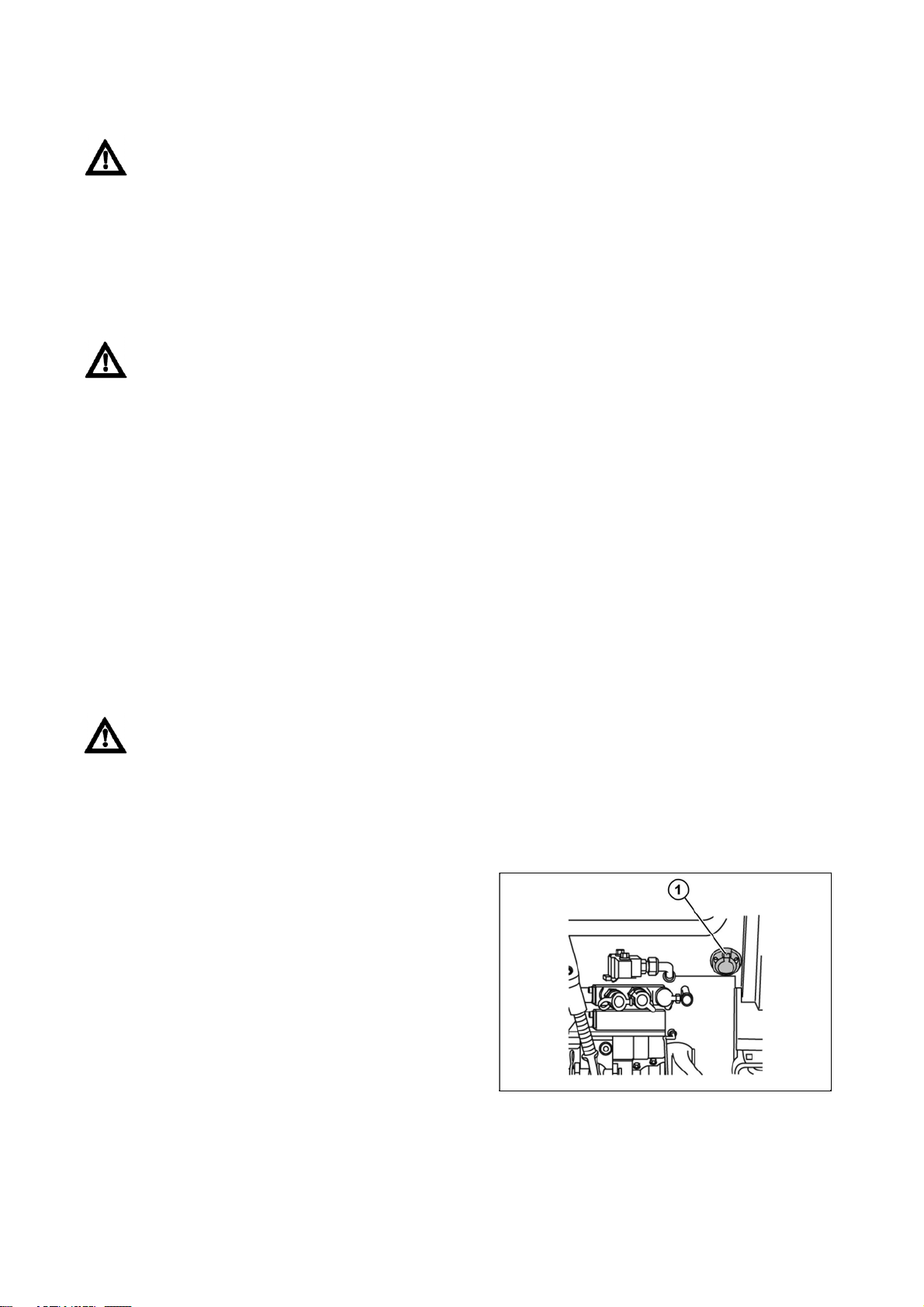

Bleeding the fuel system ............................................................................................................................. 80
Changing the oils in the tractor .................................................................................................................... 81
Changing engine oil ..................................................................................................................................... 81
Changing the transmission oil ..................................................................................................................... 82
Changing oil in the front axle ....................................................................................................................... 83
Cleaning and changing filters ...................................................................................................................... 84

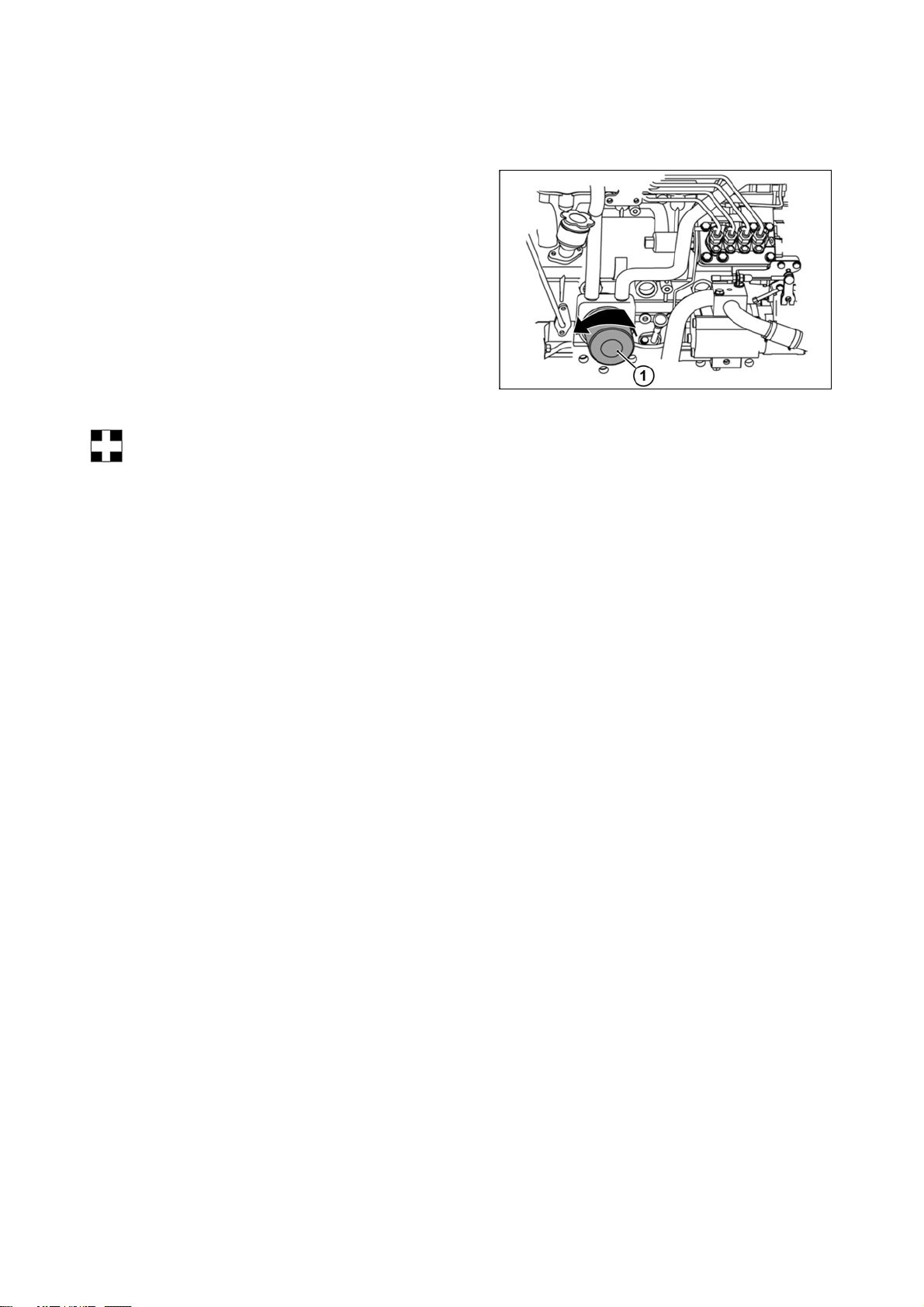

Engine oil filter ............................................................................................................................................. 84
Fuel filter ...................................................................................................................................................... 84
Hydraulic oil filter and engine oil filter cartridge ........................................................................................... 85
Changing the coolant ................................................................................................................................... 86
Anti freeze .................................................................................................................................................... 86
Cleaning the radiator ................................................................................................................................... 87
Greasing the tractor ..................................................................................................................................... 88
Gap adjustment ........................................................................................................................................... 89
Adjusting the brake ...................................................................................................................................... 89
Adjusting method ......................................................................................................................................... 89
Adjusting the throttle lever ........................................................................................................................... 89
Adjusting toe-in ............................................................................................................................................ 89
Checking the battery .................................................................................................................................... 90
Battery maintenance .................................................................................................................................... 90
Battery charging .......................................................................................................................................... 91
Battery Disconnect ...................................................................................................................................... 91
Fan belt adjustment ..................................................................................................................................... 92
Alternator Inspect ........................................................................................................................................ 92
Alternator and Fan Belts Inspect/Adjust/Replace ........................................................................................ 93
Air conditioner compressor belt adjustment ................................................................................................ 93
Servicing the air cleaner .............................................................................................................................. 94
Checking hoses and lines ............................................................................................................................ 94
Checking the wiring harness and fuses ....................................................................................................... 94
Replacing fuses ........................................................................................................................................... 95
Main fuses ................................................................................................................................................... 95
Re-use after long term storage .................................................................................................................... 96
Maintenance ................................................................................................................................................ 96
For daily or short term storage .................................................................................................................... 97
Long-term storage ....................................................................................................................................... 97
Fuel Saving Tips .......................................................................................................................................... 97
Air Cleaning System .................................................................................................................................... 97
Engine .......................................................................................................................................................... 97
Fuel System ................................................................................................................................................. 98
Oil System ................................................................................................................................................... 98
Cooling System ........................................................................................................................................... 98
How to use of jacks ..................................................................................................................................... 99
Cabin .............................................................................................................................................................. 101
Instrument and related parts...................................................................................................................... 102
Doors ......................................................................................................................................................... 102
Rear Window ............................................................................................................................................. 102
Side Window .............................................................................................................................................. 102
Working lamps (front and rear) .................................................................................................................. 103
Rearview mirrors ....................................................................................................................................... 103
CONTENTS
6
Cab ceiling ................................................................................................................................................. 103
How to Controls Cabin ............................................................................................................................... 103
Ventilation .................................................................................................................................................. 104
Re-circulation inlets fully closed ................................................................................................................ 104
Working lamp switch .................................................................................................................................. 104
Wiper control switch .................................................................................................................................. 104
Windscreen Washer tank .......................................................................................................................... 104
Interior Lamp.............................................................................................................................................. 105
Blower control switch ................................................................................................................................. 105
Temperature control .................................................................................................................................. 105
Air conditioner switch ................................................................................................................................. 105
Circulation diffuser ..................................................................................................................................... 106
Heating System ......................................................................................................................................... 106
System configuration ................................................................................................................................. 106
Compressor belt adjustment ...................................................................................................................... 107
Air conditioning system .............................................................................................................................. 107
Roof hatch (if equipped) ............................................................................................................................ 107
Circulation diffuser ..................................................................................................................................... 108
Cab Air intake filter .................................................................................................................................... 108
Radio, CD player ( If equipped) (optional) ................................................................................................. 109
Ash tray ...................................................................................................................................................... 109
Cigarette Lighter ........................................................................................................................................ 109
Specifications ............................................................................................................................................... 113
Mass and Tyre ........................................................................................................................................... 114
Traveling Speed ........................................................................................................................................ 115
UTILIX HT45 .............................................................................................................................................. 115
UTILIX HT55 .............................................................................................................................................. 115
Noise Levels .............................................................................................................................................. 115
Vibration Referred to the Operator Position .............................................................................................. 116
Fault tracing .................................................................................................................................................. 117
Towing the tractor ........................................................................................................................................ 121
Wiring Diagram ............................................................................................................................................. 123
UTILIX 45 / UTILIX 55 Electric system diagram (1) .................................................................................. 123
UTILIX 45 / UTILIX 55 Electric system diagram (2) .................................................................................. 124
UTILIX 45 / UTILIX 55 Cabin wiring diagram (1) ....................................................................................... 125
UTILIX 45 / UTILIX 55 Cabin wiring diagram (2) ....................................................................................... 127
UTILIX 45 / UTILIX 55 Cabin wiring diagram (3) ....................................................................................... 128
Power train .................................................................................................................................................... 131
Index............................................................................................................................................................... 133
The engine number is stamped on the left hand side of the engine block.
TRACTOR IDENTIFICATION
78
The ch
assis number is shown on the left hand side of the tractor as shown in the drawing.
1 - Stamped position of the Engine type or Number
2 - Stamped position of the chassis number
U18N001
Warranty of the product
The manufacturer warrants this product and full details of the warranty are provided on a separate warranty
schedule.
Parts
To obtain spare parts please contact your nearest dealer and give him the details listed below.
Tractor model.
Tractor serial number.
Tractor engine number.
Part number and description.
Quantity required.
This manual has been prepared to assist you in following / adopting the correct procedure for running-in
ABOUT THIS MANUAL
910
operat
ion and maintenance of your new ZETOR Tractor.
Your Tractor has been designed and built to, The tractor was carefully inspected, both at the factory and by
your ZETOR Dealer / Distributor, to ensure give maximum performance, with good fuel economy and ease of
operation under a wide variety of operating conditions. Prior to delivery that it reaches you in optimum
conditions. To maintain this condition and ensure trouble free performance. It is important that the routine
services, as specified in this manual, are carried out at the recommended intervals.
Read this Manual carefully and keep it in a convenient place for future reference.
If at any time you require advice concerning your Tractor, do not hesitate to contact your Authorized ZETOR
dealer / Distributor. He has trained personnel, genuine parts and necessary equipments to undertake all your
service requirements.
All data given in this book is subject to production variations. Dimensions & weight are approximate only and
the illustrations do not necessarily show Tractors in standard condition.
For exact information about any particular Tractor, please consult your ZETOR dealer / Distributor.
Tractor an introduction
1
- Left turn (counter clock wise)
INTRODUCTION & DESCRIPTION
11
2 - Righ
t
3 - Front
4 - Left
5 - Rear
6 - Right turn (clock wise)
U18N002
The word, 'Tractor' has been derived from 'Traction' which means pulling.
A Trac
tor is required to pull or haul an equipment, implement or trolley which are coupled to the Tractor body
through suitable linkage.
A Tractor can also be used as a prime mover as it has a power outlet source which is also called Power
Take or PTO shaft.
In this book the operating, maintenance and storage instructions for all models of ZETOR Diesel Tractors
has been complied.
This material has been prepared in detail to help you in the better understanding of maintenance and
efficient operation of the machine.
If you need any information not given in this manual, or require the services of a trained mechanic, please
get in touch with the
ZETOR Dealer/Distributor in your locality. Dealer / Distributors are kept informed of the latest methods of
servicing Tractors.
They stock genuine spare parts and are backed by the Company's full support.
Through this manual.
The use of the terms LEFT, RIGHT, FRONT and REAR must be understood, to avoid any confusion when
following the introductions. The LEFT and RIGHT means left and right sides of the Tractor when facing
forward in the driver's seat, Reference to the FRONT indicates the radiator end of the Tractor, while the
REAR, indicates the drawbar end (Fig. U18N002).
When spare parts are required, always specify the Tractor and engine serial number when ordering these
parts. (See Fig. U18N001).This will facilitate faster delivery and help ensure that the correct parts for your
particular Tractor is received. The tractor serial number is punched on a plate attached to the left hand side
of the engine body (See Fig. U18N001), For easy reference, we suggest you to write the number in the
space provided in the owner's personal data.
Description
General construction
INTRODUCTION & DESCRIPTION
12
The t
ransmission case, Engine and Front Axle Support are bolted together to form a rigid unit.
Front Axle & Wheels
The 4WD front axle is a center-pivot, reverse Eliot type. The front wheel drive mechanism is incorporated as
a part of the axle.
The front wheel drive power is taken off the rear transmission and transmitted to the differential in the front
axle where the power is divided into right and left and to the respective final cases.
In the final cases, the transmitted revolution is reduced by the level gears to drive the front wheel. The 4WD
mechanism with level gears provides wider steering and greater durability.
Engine
The tractors are fitted with fuel efficient engine with 4 cylinders manufactured by Perkins.
Hydrostatic Transmission
The Tractor is fitted with servo controlled HST with three ranges and can be selected range by lever. The
tractor has two pedals for speed and forward/reverse control. Tractor with Independent Power Take Off is
fitted with electro - hydraulic clutch Assy.
Brakes
ZETOR tractors are provided with independent disc brakes operated by two road travel. A foot brake lever is
fitted for parking.
Rear axle & Wheels
This is mounted on ball bearings and is enclosed in removable housing which are bolted to the transmission
case. The rim & Disc fitted with Rear tires are bolted to the outer flange of Rear Axle.
Hydraulic system & Linkages
ZETOR Tractors are fitted with Live independent, very touch of hydraulic System.
Three point Linkages can be used for Category 1 type of implements.
Steering
It consists of Hydrostatic Power steering system, which has a hydraulic cylinder and tandem type hydraulic
pump.
Electrical System
A 12 Volt Lead Acid Propylene Battery is used to activate the Engine through the Starter Motor and the
Electrical system comprising Horn, Head Lamp. Side indicator Lamps, Plough Lamp, Brake Light, Gauge
lamp, Hazard Lamp. Generator or Alternator, Fuse box also from part of the Electrical system.
Warning: When operating the tractor at High speed, Do not attempt to make sharp turns by
using the brakes. This may result in overturning of the Tractor causing serious injury or DEATH.
Roll over protective structures (ROPS)
ZETOR Tractors are equipped with a frame for the protection of operators.
with a new unit. Such a unit must meet all of the test criteria of the original unit. Fitment of an inferior item or
If the tractor has rolled over or the ROPS has damaged
ROPS (ROLL OVER PROTECTION STRUCTURES)
13
In the
case of cab tractors the frame is incorporated in the cab structure.
The objective of the frame or cab structure is to protect the operator in the event of a roll over and they are
designed to support the entire weight of the tractor in that event.
Each ZETOR ROPS frame or cab structure is designed and has been tested to meet industry and or
Government standards.
Included in these tests were all mounting bases and bolts or other fasteners.
DANGER
For ROPS frames to be effective and protect the operator, the seat belt provided must be worn in
order to keep operators within the ROPS protected area in the event of a roll over. Failure to use the
seat belt can still cause serious injury or death.
On some models the ROPS frame has a fold down feature, which can be used to enter low buildings etc.
Take care when lowering the upper section of the ROPS frame and take extreme care while driving the
tractor with the ROPS frame lowered.
Do not wear the seat belt with the ROPS lowered and please remember that the fold down facility is for
special circumstances only and must not be lowered for general use.
Use of the tractor with the ROPS lowered can cause fatal injuries
As the ROPS frame or cab together with the seat belt was designed to meet certain standards, they must be
maintained in good order and condition. To achieve this objective, both the structure and the seat belt should
be inspected on a regular basis (every time the tractor is serviced).
In the event that the seat belt is damaged or frayed, it should be replaced and in the event that the ROPS
frame or any part of the mounting structure is damaged or cracked, the faulty component must be replaced
items affects the certification of the entire ROPS structure and the effectiveness of the structure in the event
of an
accident. Drilling or welding of the ROPS structure is forbidden.
Damage of the ROPS
Cabin type
(such as striking an overhead object during transport), it
must b
e replaced to provide the original protection. After
an accident, check for damages to the 1.ROPS.2.Seat
3.seat belt & seat mountings. Before you operate
a Tractor, replace all damaged parts.
U18N003
Do not weld, drill or straighten the ROPS
Warning: Never attach chains, ropes to the ROPS for pulling purposes; this will cause the
Tractor to tip backwards. Always pull from the Tractor drawbar. Be careful when driving through
door opening or under low overhead objects. Make sure there is sufficient overhead clearance for the
ROPS fatal injuries.
Warning: If the ROPS is removed or replaced, make certain that the proper hardware is used to
replace the ROPS and the recommended torque values are applied to the attaching bolts.
Warning: Always wear your seat belt if the tractor is equipped with ROPS.
How to adjust the Seat
turning the lever clockwise to the 130 kg position makes the cushion heavier.
1
- Seat Belt
ROPS (ROLL OVER PROTECTION STRUCTURES)
14
2 - For
ward / Backward adjustment lever
3 - Knob for weight adjustment
U18N005
NOTE: Do not use solvents to clean the seat. Use warm water with a little detergent added.
Befo
re operating a Tractor it is important to adjust the seat to the most comfortable position & check whether
it is properly locked in its position. Figure 1 identifies the seat fitted to your Tractor.
For sliding seat
To select Seat position, move Adjusting lever and slide
Seat
closer to or away from Dash panel and controls.
3
Caution: Do not put a hand between the seat and the slides when adjusting the seat position.
You can get injured unexpectedly.
Seat suspension adjustment knob
To adjust the seat correctly, turn Weight adjustment knob clockwise or counterclockwise, while seated in the
driving position.
Danger: Check whether the seat properly locked in its position before driving the tractor.
Danger: Always use the seat belt when the ROPS is installed. Do not use the seat belt if
a foldable ROPS is down or there is no ROPS. Check the seat belt regularly and replace if frayed or
damaged.
Cushion Strength Adjustment
The seat cushion can be adjusted According to the weight of the driver.
Turning the cushion adjustment lever Counterclockwise to the 50 kg position Makes the cushion lighter, and
Recognize safety information
This symbol means ATTEN
SAFETY INSTRUCTIONS, DO'S & DON'TS
15
TION! YOUR SAFETY IS INVOLVED. The message that follows the
symbol contains important information about safety. Carefully read the message.
Signal words
Danger
Warning
Caution
A signal word - DANGER, WARNING OR CAUTION - is used with safety alert symbol. DANGER identifies
the most serious hazards. Safety signs with signal Word - DANGER OR WARNING - are typically near
specific hazards. General precautions are listed on CAUTION safety signs.
Read safety instruction
Carefully read all safety instructions given in this manual
for yo
ur safety. Tempering with any of the safety devices
can cause serious injuries or death. Keep all safety signs
in good condition.
Replace missing or damaged safety sings.
Keep your tractor in proper condition and do not allow any
unauthorized modifications to be carried out on the
Tractor, which may impair the function/safety and affect
Tractor life.
Protection children
Keep children and others away from the Tractor while
operat
ing
Before you reverse
- Look behind Tractor for children.
- Do not let children to ride on Tractor or any implement.
U18N134
U18N135
Use of rops and seat belt
The Roll Over Protective Structure (ROPS) has been
wear or cracks. In the event of damage or alternation, the
when the machine is equipped with a certified ROPS.
operator in the event of a roll over.
Do not allow riders on the Tractor.
SAFETY INSTRUCTIONS, DO'S & DON'TS
16
certified to industry and/or government standards. Any
damage or alternation to the ROPS, mounting hard-ware,
or seat belt voids the certification and will reduce or
eliminate protection for the operator in the event of a rollover. The ROPS, mounting hardware, and seat belt
should be checked after the first 100 hours of Tractor and
every 500 hours thereafter for any evidence of damage,
ROPS must be replaced prior to further operation of the
Tract
or.
The seat belt must be worn during machine operation
Failure to do so will reduce or eliminate protection for the
Precaution to avoid tipping
Do not drive where the Tractor could slip or tip.
Stay
alert for holes and rocks in the terrain, and other
hidden hazards.
Slow down before you make a sharp turn.
Driving forward out of a ditch or mired condition could
cause Tractor to tip over backward. Back out of these
situations if possible.
Park
tractor safely
Before working on the Tractor;
Lower
all equipment to the ground.
Stop the engine and remove the key.
U18N136
U18N137
Keep riders off tractor
Riders on Tractor are subject to injury such as being stuck
by fo
reign objects and being thrown off of the Tractor.
U18N138
U18N139
Handle fuel safely
-
avoid fires
Handle fuel with care; it is highly flammable. Do not refuel
Understand service procedure before doing work.
adjustments on electrical systems or welding on Tractor.
SAFETY INSTRUCTIONS, DO'S & DON'TS
17
the Tractor while smoking or near open flame or sparks.
Always stop engine before refueling Tractors.
Always keep your tractor clean of accumulated grease,
and debris. Always clean up spilled fuel.
Stay clear of rotating shafts
Entanglement in rotating shaft can cause serious injury or
death
.
Keep PTO shield in place at all times.
Wear close fitting clothing. Stop the engine and be sure
PTO drive is stopped before making adjustments,
connections, or cleaning out PTO driven equipment.
U18N140
Alway
s use safety lights and devices
Use of hazard warning lights and turn signals are
recom
mended when towing equipment on public roads
unless prohibited by state or local regulations.
Use slow moving vehicle (SMV) sign when driving on
public road during both day & night time, unless prohibited
by low.
Practice safe maintenance
Keep the surrounding area of the Tractor clean and dry.
Do no
t attempt to service Tractor when it is in motion.
Keep body and clothing away from rotating shafts.
Always lower equipment to the ground. Stop the engine.
Remove the key. Allow Tractor to cool before any work
repair is caused on it.
Securely support any Tractor elements that must be
raised for service work.
Keep all parts in good condition and properly installed.
Replace worn or broken parts. Replace damage/missing
decals.
Remove any buildup of grease or oil from the Tractor.
Disconnect battery ground cable (-) before making
U18N141
U18N142
U18N143
Avoid high
-
pressure fluids
Escaping fluid under pressure can penetrate the skin
SAFETY INSTRUCTIONS, DO'S & DON'TS
18
causing serious injury. Keep hands and body away from
pinholes and nozzles, which eject fluids under high
pressure. If ANY fluid is injected into the skin. Consult
your doctor immediately.
Prevent battery explosions
Keep sparks, lighted matches, and open flame away from
the t
op of battery. Battery gas can explode. Never check
battery charge by placing a metal object across the poles.
U18N144
Preve
nt acid burns
Sulfuric acid in battery electrolyte is poisonous. It is strong
enoug
h to burn skin, cause holes in clothing and cause
blindness if found entry into eyes.
For adequate safety always;
1. Fill batteries in a well-ventilated area.
2. Wear eye protection and acid proof hand gloves.
3. Avoid breathing direct fumes when electrolyte is
added.
4. Do not add water to electrolyte as it may splash off
causing severe burns.
If you spill acid on yourself;
1. Flush your skin with water.
2. Flush your eyes with water for 10-15 minutes. Get
medical attention immediately.
U18N145
U18N146
Service tractor safely
earlier.
work near moving parts. If these items were to get caught,
doors & windows are open for proper ventilation, as tractor
SAFETY INSTRUCTIONS, DO'S & DON'TS
19
Do not wear a necktie, scarf or loose clothing when you
severe injury could result.
Remov
e rings and other jeweler to prevent electrical
shorts and entanglement in moving parts.
Work
in ventilated area
Do not start the Tractor in an enclosed building unless the
fumes can cause sickness or death. If it is necessary to
run a
n engine in an enclosed area remove the exhaust
fumes by connecting exhaust pipe extension.
U18N147
U18N148
Tractor runaway
1. The tractor can start even if the transmission is engaged position causing Tractor to runaway and
serious injury to the people standing nearby the tractor.
2. For additional safety keep the pull to stop knob (fuel shut off control) in fully pulled out position.
Transmission in neutral position, Foot brake engaged and PTO lever in disengaged position while
attending to Safety Starter Switch or any other work on Tractor.
Safety starter switch
1. Brake operated safety switch is provided on all Tractors which allow the starting system to become
operational only when the Brake pedal is fully pressed.
2. Do not By-pass this safety starter switch or work on it. Only Authorized Dealers are recommended to
work on safety starter switch.
3. On some models Safety Starter switch is provided on transmission High-low shifter lever and in PTO
shifter lever. The tractor can be started only if High-low shifter lever is in neutral position.
Caution: Safety Starter Switch is to be replaced after every 2000 hours / 4 years, whichever is
Emergency Exits
If exit from the cab side doors is blocked (following an accident or vehicle overturn) the alternative safety
The possible safety exits are:
When attaching or detaching the loader, fix all parts which
SAFETY INSTRUCTIONS, DO'S & DON'TS
20
exits
are indicated by decals.
Rear window hatch (All tractors)
Fron
t window (for versions with openable front
window).
U18N005_1
Safety Precautions When Using the Loader
Never let anyone get in the loader and use the loader as
a wor
kbench. Otherwise, it may lead to a fatal injury or
even death.
Do not stand under the lifted loader or get close to it. Also,
lower
the loader arm onto the ground before leaving the
tractor. Otherwise, it may lead to a fatal injury or even
death.
are Connected to the bucket and boom. The bucket or
boom
can be accidentally dropped down, leading to an
injury or even death.
U18N005_2
U18N005_3
U18N005_4
Do not allow loader arms or attachment to contact
SAFETY INSTRUCTIONS, DO'S & DON'TS
21
elect
rical power lines.
Electrocution will cause serious injury or death.
Never carry a big object with the loader unless a proper
imple
ment is attached. Keep a carried object low during
driving. Otherwise, it may lead to an injury or even death.
U18N005_6
When attaching or detaching the loader, fix all parts which
are c
onnected to the bucket and boom. The bucket or
boom can be accidentally dropped down, leading to an
injury or even death.
U18N005_7
U18N005_8
Towing Safely
For the maximum towable loads, refer to the paragraph '' Maximum towable loads in the Technical Data
with chains. Before transporting the tractor on a low loader or on a railway wagon, make sure that the engine
ROPS (Roll Over Protective Structure), sun canopy or
SAFETY INSTRUCTIONS, DO'S & DON'TS
22
Secti
on.
- Maintain a suitable speed taking into account the weight of the trailed load and the gradient, remembering
that braking distances will be greater than with just the tractor. Trailed loads with or without brakes that are
too heavy for the tractor or that towed at too high speed may cause the operator to loose of control of the
tractor.
- Always take into consideration the total weight of the implements and their loads.
- When trailers are hitched to the tractor, before you leave the operator seat remember to put all the controls
in neutral, apply the handbrake, switch off the engine, engage first gear (with mechanical transmissions) and
remove the ignition key. ALWAYS chock both the tractor and the trailer wheels. The best way to transport
a tractor that has broken down is to transport it on a low loader. Always secure the tractor to the loader bed
hood, doors, open able roof (if present) and windows are all closed and securely fastened. Never tow the
tract
or at speeds in excess of 10 kph. An operator must stay in the operator position to steer and brake the
tractor.
Caution: When a trailers is hitched to the tractor, before you leave the driving seat remember
to put all the controls in neutral, apply the handbrake, switch off the engine, engage first gear (if the
tractor has a mechanical transmission) and remove the key from the starter switch. If the tractor is
not parked on level ground, ALWAYS place chocks under the wheels of both the tractor and the
trailer For further information on safe working procedures, refer to the chapter 'Parking the tractor' in
the safe section of this manual.
cabin are not a FOPS (Falling Object Protective
Struc
ture).
It never can protect the riders against falling objects.
Avoid driving the vehicle into a dangerous area such as
falling rocks zone.
U18N005_5
Operator Protective Structure (OPS)
The term F.O.P.S refers to structure installed on the tractor intended to reduce the risk to the operator of
injury from falling objects during normal use of the vehicle.
Important:
This tractor is equipped with a FOPS.
The energy level of drop test is 1365J.
Operator Protective Structure (OPS)
The term OPS refers to a protective structure installed on a tractor in order to minimize risk of operator injury
caused by objects penetrating into the operator position area.
Use of Hazardous Substances
European standard EN 15695-1 is applicable to the cabs of agricultural or forestry tractors and self-propelled
which can be dispersed during the application of plant protection products and liquid fertilisers, which may
SAFETY INSTRUCTIONS, DO'S & DON'TS
23
spray
ers. The purpose of the standard is to limit the exposure of the operator (driver) to hazardous
substances when applying plant protection products and liquid fertilisers.
In accordance with the stipulations of EN 15695-1 regarding cab classification, measurement of the
internal positive pressure differential must be carried out in conformance with ISO 14269-5:
1. The engine operating at nominal speed;
2. The maximum quantity of air drawn from outside the cab (recirculation closed);
3. Fan set to maximum speed. Use all the personal protective equipment suitable for the tasks in hand
and relative substances, in compliance with the requirements of statutory legislation in your country.
The following terms and definitions are applied:
- Hazardous substances: substances such as dust, vapours and aerosols, with the exception of fumigants
have a harmful effect on the operator.
- Dust
general term identifying solid air-borne particles, finely divided and sedimented
- Aerosol: suspension of solid, liquid or solid and liquid particulate in agaseous medium with a negligible fall
rate (gener-ally less than 0.25 ms-1) Vapour: gaseous phase of a substance whose liquid or solid state is
stable at 20° Cand 1 bar (absolute). This cab, even when closed, does not protect against the inhalation of
hazardous substances. If the manufacturer's instructions for using these substances recommend personal
protective equipment, wear the equipment even in the cab.
Cabs are classified as follows:
Category 1: the cab does not provide protection against hazardous substances.
Category 2: the cab provides protection exclusively from dust.
Category 3: the cab provides protection from dust and aerosol.
Category 4: the cab provides protection from dust, aerosol and chemical vapours.
Danger: Use all the personal protective equipment suitable for the tasks in hand and relative
substances, in compliance with the requirements of statutory legislation in your country.
Use of Hazardous Substances
The classification category, as stipulated by ISO 14269-5, of the cab installed on this range of
with the machine and aware of all it's control and safety features.
SAFETY INSTRUCTIONS, DO'S & DON'TS
24
tract
ors is given below:
- the engine operating at nominal speed
- the maximum quantity of air drawn from outside the cab (recirculation closed)
- with fan at maximum speed
The manufacturer of your tractor has made every effort to make it as safe as is humanly possible.
Beyond this point it is the responsibility of the operator to avoid accidents and we ask that you read and
implement our suggestions for your safety.
Ensure that only trained and competent operators use this tractor and ensure that they are fully conversant
Operators should not operate the tractor or associated machinery while tired or untrained. To avoid accidents
pleas
e ensure that the operator wears clothing which will not get entangled in the moving parts of the tractor
or machine and protect him or her from the elements.
When spraying or using chemicals, please ensure that clothing and protective equipment is worn which
prevents respiratory or skin problems.
For full details consult the manufacturer of the chemicals.
To avoid lengthy exposure to noise ensure that ear protection is worn.
If adjustment to the tractor or machinery need to be made ensure the tractor or machine are turned off
beforehand.
Use of certified Roll Over Protection Structure (ROPS) is a must while operating a tractor.
Use of seat belt is a must while operating a tractor.
In summary, ensure at all times that the safety of the operator and any other worker is paramount.
Ensure no one is between the tractor and a towed vehicle (trailer or implement).
Technical data
CAB/ ROPS
Hazar
dous substances protection category CAB
Category 1
Safe operation of your tractor
The manufacturer of your tractor has made every effort to make it as safe as is humanly possible.
SAFETY INSTRUCTIONS, DO'S & DON'TS
25
Beyon
d this point it is the responsibility of the operator to avoid accidents and we ask that you read and
implement our suggestions for your safety.
Ensure that only trained and competent operators use this tractor and ensure that they are fully
conversant with the machine and aware of all it's control and safety features.
Operators should not operate the tractor or associated machinery while tired or untrained.
To avoid accidents please ensure that the operator wears clothing which will not get entangled in the moving
parts of the tractor or machine and protect him or her from the elements.
When spraying or using chemicals, please ensure that clothing and protective equipment is worn which
prevents respiratory or skin problems.
For full details consult the manufacturer of the chemicals.
To avoid lengthy exposure to noise ensure that ear protection is worn.
If adjustment to the tractor or machinery need to be made ensure the tractor or machine are turned off
beforehand.
Use of certified Roll Over Protection Structure (ROPS) is a must while operating a tractor.
Use of seat belt is a must while operating a tractor.
In summary, ensure at all times that the safety of the operator and any other worker is paramount.
Safety tips during maintenance
1. At least on a daily basis check all oil levels. Water level in the radiator and electrolyte level in the
battery and perform services according to the service schedule.
2. Ensure tire pressure are even and the correct pressure for the job being done is maintained.
3. Check to ensure that the all controls and preventative mechanisms of the Tractor and implement work
correctly and effectively.
4. Ensure that an adequate set of the correct tools is available for maintenance and minor repairs.
5. Ensure that all service work and repairs are carried out on a flat area with a concrete or similar floor.
Do not carry out service work on a tractor until it is switched off, and the parking brake applied and
wheels choked. Where a tractor is started in a confined area, ensure that the area is well ventilated as
exhaust gases are very harmful, and can cause death.
6. Do not work under raised implements.
7. When changing wheels or tires ensure that a suitable wheel stand is placed under the axle prior to
removing the wheel and the wheels are chocked.
8. Where guards or shields need to be removed to perform a service or repair, ensure that the guard or
shield is correctly reinstalled before starting the Tractor.
9. Never refuel near an open flame or with an overheated engine. Ensure to turn off Engine before
refueling.
10. The cooling system operates under pressure, take care when removing the Radiator cap on a hot
engine to prevent being scalded by steam or hot water. Do not add water in the radiator when the
engine is hot. Add water to the radiator only after the engine cools down completely.
11. To prevent fires keep the tractor including the engine clean and free from inflammable material and
well away from fuels and other inflammable material.
Mounting and demounting implements
1. Ensure that all mounting and removal of implements is done on safe flat ground. Ensure no one is
SAFETY INSTRUCTIONS, DO'S & DON'TS
26
betwe
en the Tractor and implement and do not get under the implement to avoid accidental injuries.
2. After mounting the implement, ensure that all sway chains are correctly adjusted and, where PTO
shafts are used that the shaft is fitted and secured correctly.
3. Where heavy implements are used, ensure that the combination is well balanced or use proper ballast
to achieve balance.
4. Before leaving the tractor at any time, lower the implement, stop the PTO shaft where applicable, set
the parking brake and switch off the engine.
5. While operating the implements with the PTO keep all bystanders away from any moving parts and do
not attempt to make adjustments while the machine is running.
6. Only the driver should ride on the Tractor with the ROPS frame fitted and with the seat belt properly
fastened.
7. Where young children are present, particular care should be taken and the tractor should not be
moved until the whereabouts of all children is known.
8. Only trained operators should operate the Tractor and so taking care to ensure that other workers are
not injured. In particular they should take care during dusty operations, which will reduce visibility
substantially.
9. Never start the tractor unless the transmission is out of gear, the operator is in the seat and all round
safety has been checked.
10. Only operate the tractor seated in the drivers seat and never turn or brake suddenly at high speed as
this can cause a roll-over and serious injury or death.
11. When traveling on a public road ensure that the tractor and driver both meet all laws relating to safety
and licensing. When traveling with wide implements use red flags on the extremities and observe all
legal including escort requirements.
12. When operating under adverse conditions, hilly terrain or on bad ground adjust the speed of the
tractor to suit the conditions, safety comes first. Never drive down hill at high speed or with the
transmission in neutral. Use of the braking capacity of the engine as well as the service brakes. Do
not try to change gear going up or down a steep slope, select the correct gear before starting.
13. Take care when traveling uphill with a heavy implement to ensure that it does not overbalance and tip
up the front end.
14. Never remove or modify the seat belt.
15. Never remove, modify or repair the ROPS frame.
PLEASE REMEMBER THAT A LITTLE BIT OF EXTRA CARE CAN PREVENT SERIOUS INJURY OR
TEATH AND AVOID DAMAGE TO YOUR TRACTOR.
The following precautions are suggested to help prevent accidents
A careful operator is the best operator. Most accidents can be avoided by observing certain precautions.
Read and take the following precautions before operating the Tractor to prevent accidents. Tractor should be
operated only by those who are responsible and properly trained to do so.
The Tractor
1. Read the operator's manual carefully before using the tractor. Lack of operating knowledge can lead
components or any tractor functions.
SAFETY INSTRUCTIONS, DO'S & DON'TS
27
to ac
cidents.
2. Use an approved rollover bar and seat belt for safe operation. Overturning of a tractor without
a rollover bar can result in death or injury.
3. Do not remove ROPS (Roll Over Protective Structure). Always use the seat belt.
4. Fiberglass canopy does not give any protection.
5. To prevent falls, keep steps and platform clear of mud and oil.
6. Do not permit anyone but the operator to ride on the Tractor. There is no safety place for extra riders.
7. Replace all missing, illegible or damaged safety signs.
8. Keep safety signs clean of dirt and grease.
Servicing the Tractor
1. Keep the tractor in good operating condition for your safety. An improperly maintained Tractor can be
hazardous.
2. Stop the engine before performing any service on the tractor.
3. The cooling system operates under pressure, which is controlled by the radiator cap. It is dangerous
to remove the cap while the system is hot. First turn the cap slowly to stop and allow the pressure
to escape before removing the cap entirely.
4. Do not smoke while the refueling the tractor. Keep away any type of open flame.
5. The fuel in the injection system is under high pressure and can penetrate the skin. Unqualified
persons should not remove or attempt to adjust a pump, injector, nozzle or any part of the fuel
injection system. Failure to follow these instructions can result in serious injury.
6. Keep open flame away from battery or cold weather starting aids to prevent fire or explosions.
7. Do not modify or alter or permit anyone else to modify or alter this tractor or any of its
Operating the tractor
1. Before starting the tractor apply the parking brake, place the PTO (Power Take Off) lever in the ''OFF''
SAFETY INSTRUCTIONS, DO'S & DON'TS
28
posit
ion, the hydraulic control levers in the downward position, the remote control valve levers in the
neutral position( if fitted) and the transmission in neutral.
2. Do not start the engine or controls while standing besides the tractor. Always sit on the tractor seat
when the engine or operating controls.
3. Safety starter switch.
In order to prevent the accidental starting of the tractor, a safety switch has been provided. The
starting system of the tractor is connected through this switch, which becomes operative only when
the brake pedal is depressed. All models HST pedal and PTO button should also be in neutral position
for completing the starting circuit. Do not bypass the safety starter switch. Consult your ZETOR
Tractor Dealer / Distributor if safety-starting switch malfunctions.
4. Avoid accidental contact with the gear shifter lever while the engine is running. Unexpected Tractor
movement can result from such contact.
5. Do not get off or climb the tractor while it is in motion.
6. Shut off the engine, remove the key and apply the parking brake before getting off the tractor.
7. Do not operate the tractor in an enclosed building without adequate ventilation. Exhaust fumes can
cause death.
8. Do not park the tractor on a steep slope.
9. If power steering or Engine seizes to operate, stop the tractor immediately.
10. Pull only from the swinging draw bar or the lower link drawbar in the down position. Use only
a drawbar pin that locks in place. Pulling from the tractor rear axle carriers or any point above the rear
axle may cause the Tractor's front end to lift.
11. If the front end of the tractor tends to rise when heavy implements are attached to the three-point
linkage, install front end or front wheel weights. Do not operate the tractor with a light front end.
12. Always use hydraulic position control lever when attaching equipments/implement and when
transporting equipment. Be sure that the hydraulic couplers are properly mounted and will disconnect
safely in case of accidental detachment of implement.
13. Do not leave equipment/implement in the raised position.
14. Use the flasher/ Turn signal lights and Slow Moving Vehicle (SMV) signs when driving on public roads
during both day and night time, unless prohibited by law.
15. Dim tractor lights when meeting a vehicle at night. Be sure the lights are adjusted to prevent the
blinding on the eyes of coming vehicle operator.
16. Emergency stopping instruction; If tractor fails to stop even after application of brakes, Pull the knob of
fuel shut off control rod.
Driving the tractor
1. Watch where you are going especially at row ends, on roads, around trees and low hanging
obstacles.
2. To avoid upsets, drive the tractor with care and at speeds compatible with safety, especially when
operating over rough ground, crossing ditches or slopes, and when turning at corners.
3. Lock the tractor brake pedals together when transporting on roads to provide proper wheel braking.
4. Keep the tractor in the same gear when going downhill as used when going uphill. Do not coast or
free wheel down hills.
5. Any towed vehicle and/or trailer whose total weight exceeds that of the towing Tractor, must be
equipped with its own brakes for safe operation.
6. When the tractor is stuck or tires are frozen to the ground, back out to prevent upset.
7. Always check overhead clearance, especially when transporting the tractor.
Operating the PTO (Power Take Off)
1. When operating PTO driven equipment, shut off the engine and wait until the PTO stops before
SAFETY INSTRUCTIONS, DO'S & DON'TS
29
getti
ng off the tractor and disconnecting the equipment.
2. Do not wear loose clothing when operating the power take-off or near rotating equipment.
3. When operating stationery PTO driven equipment, always apply the tractor parking brake and block
the rear wheels from front and rear side.
4. To avoid injury, always move down flip part of PTO. Do not clean, adjust or service PTO driven
equipment when the tractor engine is running.
5. Make sure the PTO master shield is installed at all times and always replace the PTO shield cap
When the PTO is not in use.
Diesel fuel
1. Keep the equipment clean and properly maintained.
2. Under no circumstances should gasoline, alcohol or blended fuels be added to diesel fire or explosive
hazard. Such blends are more explosive than pure gasoline. In a closed container, such as a fuel
tank. DO NOT USE THESE BLENDS.
3. Never remove the fuel cap or refuel the tractor with the engine running.
4. Do not smoke while refueling or when standing near fuel.
5. Maintain control of the fuel filler pipe when filling the tank.
6. Do not fill the fuel tank to capacity. Allow room for expansion.
7. Wipe up spilled fuel immediately.
8. Always tighten the fuel cap securely.
9. If the original fuel tank cap is lost, replace it with genuine cap. A none approved cap may not be safe.
10. Do not drive equipment near open fire.
11. Never use fuel for cleaning purpose.
12. Arrange fuel purchases so that winter grade fuel are not held over and used in the spring.
N.B: It is suggested that after repairs if any of the Safety Decal/sign is peeled/defaced, the same may
be replaced immediately in interest of your safety.
DO'S AND DON'T'S
DO'S-For Better performance
DO-Keep draft control lever fully down when not in use.
DO
SAFETY INSTRUCTIONS, DO'S & DON'TS
30
-Ensure that safety shields are in place and in good condition.
DO-Rea
Tractor.
DO-Carry out all maintenance tasks without fail.
DO-Keep the air cleaner clean.
DO-Ensure that the correct grade of lubricating oils is used and
that they are replenished and changed at the recommended
intervals.
DO-Fit
DO-Watch the oil pressure gauge or warning light and investigate any abnormality immediately.
DO-Keep the radiator filled with clean water and in cold weather use anti-freeze mixture. Drain the system
only in an emergency and fill before starting the engine.
DO-Ensure that the transmission is in neutral before starting the engine.
DO-Keep all fuel in clean storage and use a filter when filling the tank.
DO-Attend to minor adjustments and repairs as soon as necessity is apparent.
d all operating instructions before commencing to operate
new sealing rings when the filter elements are changed.
DO-Allow the engine to cool before removing the radiator filler cap and adding water, remove the radiator
cap slowly.
DO-Shift into low gear when driving down steeps hills.
DO-Latch the brake pedals together when driving on a highway.
Don'ts
-
For safe operation
DON'T-Run the engine with the air cleaner disconnected.
DON'T
-
Move the hydraulic levers rearward.
SAFETY INSTRUCTIONS, DO'S & DON'TS
3132
DON'
T-Start the tractor in an enclosed building unless the doors and windows are open for proper
ventilation.
DON'T-Operate the tractor or engine while lubricating or cleaning.
DON'T-Allow the tractor to run out of diesel fuel otherwise it will be necessary to vent the system.
DON'T-Temper the fuel injection pump, If seal is broken the warranty becomes void.
DON'T-Allow the engine to run idle for a long period.
DON'T-Run the engine if it is not firing on all cylinders.
DON'T-Use the independent brakes for making turns on the highway or at high speeds.
DON'T-Refuel the tractor with the engine running.
DON'T-Mount or dismount from the right side of the tractor.
DON'T-Temper the hydraulic control levers' upper limit stops.
DON'T-Use draft control lever for lifting of implements.
DON'T-Start the engine with the PTO engaged.
DON'T-Use the governor Control Lever (Hand throttle) while driving on roads.
General safety information
(Replace all missing, damaged or illegible signs)
Failure to do so can cause accidents and damages.
SAFETY SIGNS
33
IMPORT
ANT: This ''General safety Information'' should be kept with the machine at all times as reference
data.
This symbol means ATTENTION! YOUR SAFETY IS INVOLVED. The message that follows the
symbol contains important information about safety. Follow recommended precautions and safe
operation practice.
Decals on the dash cover
U18N006
1 - Warning:
Start engine only from operator's seat. If safety start switch is by passed engine can start with
transmission in gear.
Do not connect or short across terminal on starter solenoid.
Attach booster cables as shown on battery decal and operators manual.
Starting in gear causing runaway can result in serious injury.
2 - Warning:
Brake pedals must always be locked together when travelling on the highway. This will ensure uniform
braking and provide maximum stopping ability sharp turns must only be made at slow speeds.
3 - Warning:
Do not adjust the tilt handle when traveling.
4 - Warning:
Do not use the accelerator lever except working on the field.
5 - Warning:
Always apply the park brake when parking.
Decals on the chassis
U18N007
SAFETY SIGNS
34
1 - Ope
rator's manual
2 - Warning:
Push the button to lock position with joystick lever is neutral whenever the implement is not operation.
3 - Warning:
Never use the diff-lock at high speed or on the road as this can cause rollover and injury.
4 - Warning:
Always set the knob to lock when
1. Travelling on the road.
2. Replacing blades on an implement.
3. Making adjustment to an implement. Sudden dropping of an implement can cause serious
injury or death.
5 - Warning:
Always fasten your seat belt.
6 - Danger:
Periodic ventilation should be made to avoid suffocation while heating an air conditioning is used. Sleeping in
the cab is prohibited.
7 - Warning:
Work in ventilated Area.
Decals on the cabin
U18N008
SAFETY SIGNS
35
1 - Wa
rning:
Do not remove radiator cap while engine is hot. Hot steam will injure you.
2 - Caution:
Do not touch while the system is hot. It cause serious burns.
3 - Warning:
Do not refuel the tractor while smoking or near naked flame or sparks. Always stop engine before refueling
tractors.
4 - Danger:
Do not ride except operator.
5 - Warning:
Do not use the sub shift lever at ''H'' position when driving backward.
6 - Inner / Outer air Ventilation:
When grills of rear and both sides are opened, inner air will ventilate in.
For effective use, open it when operate heater or air conditioner and close when ventilate fresh air.
7 - Caution:
Keeps hands and clothing away from rotating fan and belts to prevent serious injury.
U18N009
SAFETY SIGNS
36
1 - Wa
rning:
Attach implements and trailers to the tractor only using the prescribed drawbar or hitch.
2 - Danger:
Rotating driveline contact can cause death.
KEEP AWAY!
Keep all drive line. Tractor and equipment shields in place during operation.
3 - Warning:
Stay clear of raised Boom and bucket.
Some of the universal symbols have been shown below with an indication of their meaning.
UNIVERSAL SYMBOLS
3738
speed
temper
Engine
rev/minX100
Hours, recorded Continuous variable
Engine coolant
ature
Fuel level Hazard warning
Engine Stop control Neutral Turn signal
Lights Fan
Pressured-open slowly Corrosive substance
''Tortoise'' Slow or
Warning
minimu
settin
pressu
temper
m Setting
''Hare'' fast or maximum
g
Transmission oil
re
Transmission oil
ature
Horn Power take off engaged Parking brake
Engine oil pressure
Air filter Lift arm/raise Differential lock
Battery charge Lift arm/lower See operator's manual
diseng
Power take off
aged
Work lamps
The following pages in this section detail the location and function of various instruments, switches and
CONTROLS, INSTRUMENTS & OPERATIONS
39
contro
ls on your Tractor. Even if you operate other Tractors, you should read through this section of the
manual and ensure that you are thoroughly familiar with the location and function of all the features of your
New Tractor.
Do not start the engine or attempt to drive or operate the Tractor until you are fully accustomed to all the
controls. It is too late to learn once the Tractor is moving.
If in doubt about any aspect of the operation of the tractor consult your ZETOR Tractor Dealer / Distributor.
Particular attention should be paid to the recommendations for running-in to ensure that your tractor will give
long life and dependable service for which it was intended.
Description of tractor controls
Instrument and switches
1 - Left turn signal lamp
2 - Tachometer
3 - Load sensing button
4 - Hazard warning signal S/W
5 - Cruise control button
6 - Horn S/W
7 - Turn signal S/W
8 - Head lamp S/W
9 - Mode (Sensitivity S/W)
10 - Tilt lever
11 - Cruise speed control S/W
12 - Parking brake lever
13 - PTO Mode S/W
14 - Key S/W
15 - PTO ON / OFF S/W
16 - Throttle lever
17 - Temp gauge
18 - Fuel gauge
19 - Right turn signal lamp
U18N010
Main switch (key switch)
[OFF]- The key can be inserted or removed.
1
-
Turn Signal Switch
CONTROLS, INSTRUMENTS & OPERATIONS
40
[ON]-
The electric circuit is on & preheat function.
[START]- The starter motor is engaged.
When the key is released it will return to the ON position.
[GLOW] - Glow plugs preheat the combustion chamber.
1 - Glow
2 - Off
3 - On
4 - Start
Head lamp, turn signal switch and horn
Head lamp switch
High and low beam are operated on the main switch
Position 4 - Low beam
Position 3 - High beam.
U18N011
Turn signal switch
Pull the turn signal lever down to signal a left turn.
Push the turn signal lever up to signal a right turn.
Horn
Push the Red button.
2 - Head Lamp Switch
3 - Hi
gh beam
4 - Low beam
5 - Horn
U18N012
Hour meter
The hour meter consists of digits with the last digit
CONTROLS, INSTRUMENTS & OPERATIONS
41
indicating 1/10th of an hour. It shows hours the tractor has
been used.
The lamp at bottom of hour meter should twinkle during
Operation.
Tachometer
This meter shows the revolutions of the engine and the
PTO s
hafts as well as the travel speed in top gear.
U18N013
Fuel
gauge and water temperature gauge
Fuel gauge
Shows
the amount of fuel in the tank when the ignition
switch is ON.
Water temperature gauge
Shows the water temperature with the ignition switch ON.
C is low to normal temperature.
H is high temperature.
If the pointer is in the red H segment the engine is
overheating.
Refer this book to rectify the problem.
Hazard warning signal switch
Push the hazard warning signal once to operate the
hazar
d warning light. (Left and right turn indicators flash).
Push the hazard warning light switch again to switch off
the hazard warning lights.
1 - Hazard Warning Signal S/W
U18N014
U18N015
U18N016
Warning lights
U18N017
CONTROLS, INSTRUMENTS & OPERATIONS
42
High beam lamp is o
Low beam lamp is o
Parking brake lamp is o
perated on the combination switch.
perated on the combination switch.
perated on when the ignition key is turned onto ''ON'' with the hand brake
engaged. These lamp will blink. If you do not operate the parking brake if the seat away from the
lamp blinks with buzzer sound.
PTO monitor Lamp This
Fuel Level indicator lamp. If i
Engine oil pressure lamp will
comes on while the PTO shaft is rotating.
t comes on while the engine is running, fill the tank with fuel.
go out as soon as the engine starts if the oil pressure is correct. If it
comes on while the engine is running, stop the engine and get expert advice.
Charge lamp
This
light will go off as soon as the engine starts to run to indicate that the alternator is changing.
(Please note, as broken fan belt can cause the light to come on, please stop the engine as
overheating can occur if not rectified immediately)
Glow signal Lamp is o
perated on when the ignition key is turned onto ''GLOW'' or ''ON'' for
preheating.
Cruise Control Lamp
Will
turn on when cruise control is engaged.
Forward indicator lamp is o
perated when F/R Lever indicated forward, Reverse indicator lamp
is operated when F/R Lever indicated reverse.
Check Lamp
Will
turn on when the key switch is set to ON position and safety start conditions are not satisfied.
Safety start conditions: 1 Brake pedal is depressed 2 PTO ON/OFF switch is OFF.
If it comes on when safety start conditions are satisfied, some electric part is in trouble.
THE PTO MONITOR LAMP on the dash panel indicates the state of the PTO shaft.
1
-
PTO On
-
Off S/W
CONTROLS, INSTRUMENTS & OPERATIONS
43
1. If the monitor glows: The PTO is rotating.
2. If the monitor is off: The PTO is off.
3. If the monitor blinks: The PTO is currently stopped.
If the driver is standing on the seat or out of the driver's seat when the PTO is in operation, the PTO lamp
flash
es with a beep and stops operating.
Two switches operate the independent PTO.
1. PTO ON/OFF SWITCH: PTO ON/OFF switch is located on the LHS. On the steering column and can be
identified easily with its built in red colored indicator.
When the switch is pushed down to start the PTO indicator glows to indicate that the switch and the PTO are
in ON position, if the switch is pushed down again the indicator goes off signaling that the PTO is OFF.
2. PTO CONTROL SWITCH: This switch is located near the starting key location on the dash panel. There
are three positions marked for this switch.
OFF at the center
MANUAL at the left
AUTO AT THE RIGHT.
2 - PTO Mode S/W
U18N
019
The PTO shaft will not rotate if either of the two switches is in OFF position.
The following table explains how the PTO operates at the two different (Manual & Auto) positions of the PTO
injuries to persons around.
CONTROLS, INSTRUMENTS & OPERATIONS
44
contr
ol switch with the PTO ON/OFF switch in the on position.
PTO
ON/OFF
S
witch
PTO
Contr
Switch
Hydraulic Position
ol
Contr
ol Lever.
PTO Monitor
Lamp
on the dash panel
PTO SHAFT
Manual
On
Either raised or lowered Glows Rotates
Mode
On
On
On
Auto
Mode
Auto
Mode
Auto
Mode
From the table above we learn about the safety features of the PTO.
Either raised or lowered Blinks Stationary
Raised Blinks Stationary
Lowered Glows Rotates
If the monitor on the dash panel is blinking, the PTO will notify the driver that the PTO will not rotate
temporarily because the driver is off the seat, even if it is in the ON position. When the operator is
seated again in the driver's seat or the implement is lowered to the ground with the PTO lamp
flashing, the PTO can start to rotate momentarily.
The operator must use this blinking signal to clear the area around the tractor off
bystanders/onlookers as the rotating blades of certain implements can accidentally cause injuries to
the persons standing near the tractor.
The stopping of the PTO when the implement is lifted off the ground with the position control prevents
the damage to the implement or the PTO shaft.
Warning:
1. Working on hard soils, pavements with a rotary implement the PTO ON/OFF switch must be
put to the OFF position to stop the PTO from rotating, If this is not done the rotating blades of
the implement will push on the hard ground below and in turn push the tractor toward causing
accident which can lead to serious injuries or death.
2. Extra precaution must be taken to clear the area of bystanders/onlookers when using PTO
driven implements. The rotating blades of the implements can cause serious injuries on
contact. The PTO monitor flashes or the warning lamp sounds as follows. If the driver is
seated on the seat again or the implement is lowered, PTO will start to rotate immediately.
3. On no case the specified rotating speeds indicated by the implement manufacturer be crossed
as the same can lead to serious damage to the tractor/equipment and can lead to serious
Cruise control button
Engaging Cruise Control
Load sensing function is used to prevent engine from
CONTROLS, INSTRUMENTS & OPERATIONS
45
- Depress the forward speed control pedal until the
requi
red speed is achieved.
- Press the cruise control button to engage cruise
control.
- Release the forward speed control pedal.
- The cruise control is only operational when the
machine is traveling forward.
Disengaging Cruise Control
To disengage the cruise control you can either
press the cruise control button or depress the brake
pedal.
Cruise speed control switch
Cruise speed can be increased or decreased while cruise
contr
ol is engaged.
Press and release top of cruise speed control switch (+) to
increase cruise speed by increment ratio. Press and
release again to increase cruise speed more by increment
ratio.
Press and release bottom of cruise speed control switch () to increase by increment ratio. Press and release again
to decrease cruise speed more by increment ratio.
Adjusted setting is erased when cruise control is
disengaged.
Load
sensing button
stalling during heavy load application.
Press
load sensing button to activate load sensing
function.
If the engine speed drops more than the set range, the
controller reduce HST speed to help the engine to
recover. The heavier load on the engine, the tractor speed
is more and more reduced.
Press again the switch off the load sensing function.
U18N020
U18N021
U18N022
Mode (sensitivity) switch
The tractor allows the user to choose a response
CONTROLS, INSTRUMENTS & OPERATIONS
46
sensi
tivity among three different modes.
Mode 1
Fully depress top of mode switch to activate mode
1. This mode gives the higher response sensitivity
to drive pedal movement.
It will provide more quick changes in speed or
direction. The tractor would be more jerky.
Mode 2
Depress top or bottom of mode switch to activate
mode 2. This mode gives the medium response
sensitivity to drive pedal movement which is typical
to most normal operating conditions.
Mode 3
Fully depress bottom of mode switch to activate
mode 3. This mode gives the slow response
sensitivity to drive pedal movement.
1 - Mode 1
2 - Mo
de 2
3 - Mode 3
U18N023
U18N024
Tractor controls
1 - Bra
13
CONTROLS, INSTRUMENTS & OPERATIONS
47
ke Pedal
2 - PTO Shift Lever
3 - Sub Shift Lever
4 - 4WD Shift Lever
5 - Throttle Lever
6 - Parking Brake Lever
7 - Tilt lever
8 - Forward / Reverse speed control pedal
9 - Diff-Lock Pedal
10 - Joy Stick Lever
11 - Draft Control Lever
12 - Position Lever
- Auxiliary Valve Lever
U18N025
Throttle Lever (Hand Throttle)
Pulling the hand throttle towards the driver increase
1
-
Parking brake lever
CONTROLS, INSTRUMENTS & OPERATIONS
48
engine speed.
Pushing it away from the driver decreases engine speed.
Speed control pedal
The Speed Control Pedal is located in RHS of the
Opera
tor floor.
Depress the forward speed control pedal to move forward.
Depress the reverse speed control pedal to move
backward.
The speed control pedal will return in neutral position and
the tractor will stop when the speed control pedal is
released.
U18N026
U18N027
Brake
pedal
Right and left brake pedals are provided to assist in turning the tractor in the field.
Caution: A connecting latch is provided to connect the right and left brake pedals for high
speed or road use. In the interest of safety always use it on the road or at high speed as using one
side only can cause rollovers. When servicing the tractor ensure that the adjustment on both sides in
the same.
Parking brake lever
Connect the brake pedals, push them down while pulling
the p
ark brake lever up to engage.
Push the Brake pedal to release.
U18N028
Important: Traveling with the parking brake on will damage the brakes.
To avoid personal unjury:
When you leave the tractor, be sure to apply the parking brake and stop the engine.
3.
Never rest a foot on the brake pedal while machine is in motion.
CONTROLS, INSTRUMENTS & OPERATIONS
49
In a
pplying the brakes:
- The torque of wheel axle is extremely high while creep speed is being used. Be sure to step down on
the brake pedal completely before applying the brakes, or they will not work.
- When starting to operate the tractor, be sure to release the parking brakes. Misuse of the brakes
may cause damage to the transmission and is therefore not acceptable to ZETOR for coverage under
the warranty.
Sub gear lever (range shift lever)
The driving direction can be selected between forward direction and reverse direction using the shuttle
shift lever and range shift lever.
Use the throttle lever to increase / decrease the tractor speed.
1 - Sub gear lever
U18N
029
Important:
Avoid damage! To prevent transmission damage:
1. Depress brake pedal and stop machine motion completely before shifting the main shift &
reverse lever (changing direction forward and reverse).
2. While operating machine, always depress brake pedal and stop machine motion before
changing travel gears.
Diff-lock pedal
1
- Diff-Lock pedal
1
In the ON position the front wheels are engaged and in the
wheels in the straight position and at low Engine RPM.
CONTROLS, INSTRUMENTS & OPERATIONS
50
In ca
se of wheel slippage use the diff-lock by pushing
down on the diff lock pedal.
To release it remove the foot from the pedal.
U18N030
Danger: Tractor will be difficult to turn if the Diff-lock is engaged, ensure the lock is
dise
ngaged before turning the steering wheel.
Important: Do not use high engine RPM when engaging Diff lock. If the diff lock does not
release after removing the foot from the diff lock pedal alternatively brake with the left and right
brake until it gets released.
Caution: Never use the diff lock at high speed or on the road as this can cause roll over and
injury.
Front wheel drive lever (4WD)
- 4WD Lever
OFF position they are disengaged.
Engag
e & disengage the front wheel drive with the front
U18N031
Important: Do not use front wheel drive at high speed or on the road as premature wear of
components will result.
Use of front wheel drive improves traction performance.
Driver's Seat
1 - Seat Belt
2 - Fo
rward / Backward adjustment lever
3 - Knob for weight adjustment
To adjust the seat backwards and forwards push left side
the lever at the front of the seat and set it to the desired
position.
U18N032
Tilt lever
CONTROLS, INSTRUMENTS & OPERATIONS
51
To ad
just the inclination of the steering wheel with a 3 stages and set it to the desired position.
Danger: Ensure that the tilt lever has locked before moving the tractor.
PTO Gear
Your tractor is equipped with 2 Speed rear PTO to suit range of applications and conditions.
Use the PTO switch to engage or disengage rear PTO.
1 - PTO Shift Lever
U18N
032A
MODEL SPEED (rpm)
UTILIX HT45 / HT55 540 / 1000
Mid PTO (Optional)
Mid PTO can be provided for variable utility and can be engaged simultaneously with rear PTO.
Engage/disengage the mid PTO using lever when PTO switch is Off.
1. Decrease engine speed to near idle.
2. Make sure that PTO switch is OFF.
3. Pull upward the PTO lever to engage mid PTO.
4. Turn on the PTO switch.
Rear PTO and mid PTO are engaged simultaneously.
5. Increase engine speed to desired speed.
Important: Let the PTO driven implement come to a complete stop before changing.
Caution: Do not operate any implement at a high speed than is specified for it. When making
adjustments to the implement stop the engine to avoid serious injury. When leaving the tractor stop
the engine, and remove the key. Set the parking brake.
Operating the hydraulics
The hydraulics are powered with an engine driven hydraulic pump and controlled with a position control lever
1
1
-
Draft control Lever
CONTROLS, INSTRUMENTS & OPERATIONS
52
mount
ed beside the driver.
Caution: When working with the 3-point linkage, keep well clear of the operating radius of the
lift arms and any attached implement. This is to avoid the risk of injury in the case of incorrect
maneuvers.
Position control
- Position control Lever
Imple
ments can be raised and lowered with the hydraulic
position control lever and can be stopped at any position
by stopping the lever.
To ensure a consistent working depth the adjustable stop
can be set to ensure that the implement returns to the
same depth every time.
U18N033
To raise the implement: Pull the lever back
To lower the implement: Push the lever forward.
Warning: After finishing the work, always lower the implement to the ground and switch off the
engine, set the parking brake to avoid injuries and accidents.
Draft control lever
2 - Free Floating
3 - Sc
ope of Draft control
4 - Ascent
Soil engaging implements can be set for precision work by
using draft control. By mounting the lever forward, the
depth increase. By moving the lever backward, the depth
decreases.
U18N034
Lowering speed control knob for the 3 point hitch
1
- Adjusting Knob of Hydraulic decent Speed
CONTROLS, INSTRUMENTS & OPERATIONS
53
This
knob controls the downward speed of the hydraulics
three point linkage and positioned at the front of the
driver's seat.
To slow the downward speed - Turn the knob clockwise.
To increase the downward speed, turn the knob
anticlockwise.
To lock the knob clockwise.
Do not over tighten the knob.
U18N035
Caution: Alway
s set the knob to lock when
1. Traveling on the road
2. Replacing tires or blades on an implement.
3. Making adjustments to an implement. Sudden dropping of an implement due to hydraulic
problems can cause serious injury or death.
Remote hydraulic valve lever
Move the lever up or down and hold. This will raise or
lower
the implement (rotavator or hydraulic plow). Remote
control valve is detent type (double-acting with Detent).
U18N036
Important:
Do not hold the lever in the ''pull'' or ''Push'' position once the remote cylinder has reached the end of the
stroke. As this will cause oil to flow through the relief valve. Forcing oil through the relief valve for extended
periods will overheat the oil.
When using the tractor hydraulic system to power front loader, do not operate the boom and bucket cylinders
simultaneously.
Remote hydraulic control valve coupler connecting and disconnecting
Connecting
1. Clean both couplers.
This simple joystick lever can control the use of a front
-
1
CONTROLS, INSTRUMENTS & OPERATIONS
54
2. Rem
ove dust plugs.
3. Insert the implement coupler to the tractor hydraulic
coupler.
4. Pull the implement coupler slightly to make sure
couplers are firmly connected.
Disconnecting
U18N037
1. Low
er the implement first to the ground to release hydraulic pressure in the hoses.
2. Clean the couplers.
3. Relieve pressure by moving hydraulic control levers with engine shut off. Pull the hose straight from
the hydraulic coupler to release it.
4. Clean oil and dust from the coupler, then replace the dust plugs.
Joy stick lever
end loader.
And l
ift-retract, dump-rollback smoothly and act as one
handle lever.
To raise the front end loader: pull the lever to lift position.
To lower the front end loader: push the lever to retract
position.
To rollback the bucket: pull the stick to rollback position.
To dump the bucket: push the stick to dump position.
U18N038
- To float the Boom.
2 - To
lower the Boon Front end loader.
3 - To rollback the bucket.
4 - To dump the bucket.
5 - To quick dump the bucket.
6 - To raise the Boon of Front end loader.
NOTE: The Joystick control and valve can also be used for other applications if a front end loader is not
fitted.
U18N039
Safety implement for joystick lever
1
- Lock
CONTROLS, INSTRUMENTS & OPERATIONS
55
2 - Unl
ock
This simple Safety locking system can lock the joystick by
pushing the Button and unlocked by pulling.
U18N040
Warning:
Hydra
ulic fluid escaping under pressure can have enough force to penetrate the skin.
Hydraulic fluid may also infect a minor cut or opening in the skin.
If injured by escaping fluid. See a doctor at once.
Serious infection or reaction can result if medical treatment is not given immediately. Make sure all
connections are tight and that hoses and lines are in good condition before applying pressure to the
system.
Release all pressure before disconnecting the lines or performing other work on the hydraulic
system.
To find a leak under pressure use a small piece of cardboard or wood. Never use hands.
Operating the 3 point linkage (TPL)
U18N041
working with ploughs, harrows, ditchers, cultivators and
CONTROLS, INSTRUMENTS & OPERATIONS
56
1 - Top
Link
2 - Link Bracket
3 - Check Link
4 - Extendable Type
5 - Swing Draw Bar
6 - Lower Link
7 - Adjusting Handle
8 - Lift Rod
Check chain (telescopic stabilizers) adjustment
The stabilizers are intended for limiting or preventing
imple
ment side movement.
There should be no clearance (Position 1) during
implement transport and when working with grades, rollers
mowers, seeders, drills and similar implements.
However, a slight play is necessary (Position 2) when
the like: That is when working with ''draft control''.
The l
ength of stabilizers is adjusted by removing the pin
and rotating the turn buckle barrel by which the threaded
ends are interconnected.
U18N042
Adjustment of the top link
1
- Top link
1
wind it counterclockwise.
CONTROLS, INSTRUMENTS & OPERATIONS
57
2 - Loc
k nut
Lengthening or shortening the top link will change the
angle of the implement.
The locating hole of the top link varies with the type of
implement used.
The most common locations are the 1st and 2nd hole from
the top.
- Position of Top Link
1) Fo
r general implement: Use the Pin to Position 3 point.
2) For Draft control: Use the Pin to Position 2 point.
U18N043
U18N044
Adjustment of lower link
1 - Lift Rod
The
adjustment is done with the adjusting handle on the
Right hand Lift rod.
To shorten it wind the handle clockwise and to lengthen it
When adjusted correctly hold the turn buckle with the
stopp
er provided.
U18N045
Lower
(if equipped extendable type)
Push the point area and pull the end of the lower link to adjust the length of lower link.
Danger: Only use drawbar to tow and keep the 3 point linkage in raised position when toeing
with the drawbar. Position can create unbalance causing the Tractor to roll-over & Result the death
or serious injury.
Adjustment of the lift link on the lower link
1
- Lift Arm
1
1
CONTROLS, INSTRUMENTS & OPERATIONS
58
2 - Low
er Link
3 - For Stabilizer
4 - Extendable type
5 - Position A
6 - Lift Link
For different applications change the position of the lift rod
on the lower links as shown and insert the pin in the
direction of the arrow.
Mounting implement
Caut
ion: Do not attach a PTO shaft while the engine is running and ensure all safety shields
are in place.
- Position A
2 - Pos
ition B
3 - PTO shaft
If the PTO is used, remove the safety cover off the PTO
shaft.
Adjust the yoke rod on the lower links to suit the
implement in use.
Attach the left lower link, then attach the right lower link
using the adjusting handle on the leveling box if required.
Attach the top link.
Attach the PTO shaft to the tractor if used, making sure
that it is locked in place.
Adjust the check chains to suit the implement and tighten
the locknuts.
To remove an implement reverses the procedure.
U18N046
U18N047
- PTO shaft cover
U18N0
48
Caution: Do not attach a PTO shaft while the engine is running and ensure all safety shields
are in place.
Towing Devices
prevent the hitch pin coming out the hitch. The lock pin must always be secured to the hitch.
permissible hitch height for road. Use and the maximum trailed load are indicated in the tractor
Danger: Only use trailer hitch to tow and keep
CONTROLS, INSTRUMENTS & OPERATIONS
59
the 3 point linkage in raised position when towing
with the drawbar. Position can create unbalance
causing the Tractor to roll-over & Result the death or
serious injury.
U18N049
Warning: All t
he implements mounted on the tractor must be secured firmly and in accordance
with the manufacturer's instructions; see attachment holes diagram. Use permitted devices only.
Warning: The front towing hitch should be used for emergency trailer towing or for towing the
tractor in the yard or in an authorised service centre.
Caution: Never tow semi-mounted implements, trailers or agricultural machines by attaching
them to the top link of the three-point linkage. This could cause the tractor to rear up or overturn
backwards.
Warning: When towing, always secure the hitch pin with a suitable lock pin with safety clip to
Warning: The m
aximum permissible hitch load (horizontal and vertical), the maximum
registration document.
Caut
ion: Do not allow anyone to ride on the drawbar or the lower links when the tractor is in
motion.
1 - Lock pin
2 - Pi
n
U18N050
Implement hitching and unhitching
To hitch an implement to the drawbar, proceed as follows
CONTROLS, INSTRUMENTS & OPERATIONS
60
- Rem
ove lock pin 1
- Remove pin 2
- Reverse the tractor slowly up to the implement
- Insert pin 2
- Insert lock pin 1
Drawbar Type Maximum Horizontal load Maximum Vertical load Rear Tyre
13.6-26, 8PR(R1)
T-CD1 6000kg 500daN
Technically permissible towable masses
Unbraked towable mass 1,600 kg
Independently braked towable mass 3,000 kg
Inertia-braked towable mass 6,000 kg
Towable mass when fitted with hydraulic or pneumatic braking N/A
17.5L
-24, 8PR(R3)
17.5L-24, 8PR(R4)
Tractor identification plate
The tractor serial number is stamped on aluminum plate locates on the LH side of the axle frame.
Driving the tractor
Starting the engine
Before starting the engine carry out the pre
-
operational
CONTROLS, INSTRUMENTS & OPERATIONS
61
checks as set out in chapter 'Safe operation of your
tract
or'.
(1) Sit on the driver seat.
(2) Apply the footbrake.
(3) Put the hydraulic lever in the down position.
(4) Put the main gear lever in neutral.
(5) Insert the ignition key and turn it on.
(6) Ensure that the warning lights are working.
(7) Operator need to turn key to the ''ON'' position. The
glow circuit automatically activates.
Operator need to wait for glow light to turn off. As the lamp
goes off turn the key to the start position to start the
U18N049
engine.
(8) Ensure that all the warning lights are off with the
engine running.
Impor
tant:
Never turn the key to the start position while the engine is running as this can cause serious damage
to the starter and engine flywheel.
Only engage the starter for a period of not more than 10 seconds.
If Engine does not start, rest the starter for about 20 seconds and try again for a maximum of 10
seconds.
If the engine does not start after repeated attempts, refer to the fault tracing guide.
Important: Especially in cold weather, always allow the tractor to idle for a while to warm up &
build up sufficient oil pressure to ensure normal operating temperature for longer engine life.
Stopping the engine
- After light work let the engine idle for a while and turn the key off.
Important: After long or heavy work allow the engine to idle for 5- 10 minutes and turn the key
off.
Warming up
When starting the engine allow it to warm up to operating temperature by allowing it to idle 5-10 minutes to
ensure full lubrication and operating temperature. Failure to do so can shorten engine life substantially.
Warming up in cold weather
Cold weather will change the viscosity of the oil, resulting in a reduced oil pumping capacity, which can
cause damage to the engine if it is not warmed up correctly. It also causes problems with the hydraulic
system and the synchromesh in the transmission.
Correct times for warming up are:
Temperature Time for warming up
Above 50°F 5~10 min.
50°F ~ 32°F 10~20 min.
32°F ~ 14°F 20~30 min.
14°F ~ -4°F 30~40 min.
Below - 4°F Over 40 min.
Running
-
in Period
Make sure to keep the following instructions for the initial 50-hour use.
Disconnect the latch connecting left and right brake pedals
CONTROLS, INSTRUMENTS & OPERATIONS
62
(1) A
void abrupt starting and abrupt stopping.
(2) Do not use excessive speed or load.
(3) Drive the tractor only when the engine is sufficiently warm.
(4) Do not idle the engine at the maximum speed.
(5) Check each part and change oil and fluid after 50-hour use.
(6) Refer to the section Maintenance for adding and changing engine oil.
Tight turns in the field
to allow the use of individual pedals.
To ma
ke a tight turn use both the steering wheel and the
brake pedal at the same time.
For a left turns use the left pedal and a right turn the right
pedal.
U18N050
Caution:
Perform tight turns only at a slow safe speed.
Doing so at a high speed can cause rollovers and very serious injury or death.
Normal braking and parking
Let the engine come back to idle and at the same time
push
in the brake and brake simultaneously.
When the tractor has come to a halt, lower any implement
to the ground, and put the main gear in neutral. Apply the
park brake, stop the engine, and remove the key.
U18N053
Caution:
Always apply the park brake when parking.
Failure to do so can cause accidents and damage.
As an extra precaution when parking on a slope, chock the rear wheels.
Driving downhill
Use the engine's ability to brake when traveling downhill.
pedals in turn to release it.
1
CONTROLS, INSTRUMENTS & OPERATIONS
63
Never
rely on the brakes only and never travel downhill with the gears in neutral.
Caution:
When operating in hilly terrain the risk of the rollover is increased substantially, please drive with
extra care.
When towing trailers in hilly terrain ensure that they are equipped with brakes, use a lower gear to
get maximum engine braking and do not change gears on a down hill run.
Operation of the diff lock
While the diff lock is a very useful feature, care should be taken in its use as misuse can lead to dangerous
situations.
The diff lock would only be used in situations where traction is lost on one of the rear wheels.
Warning:
Use low engine revolutions when using the diff lock.
If the diff lock does not release after removing the foot from the pedal use the left and right brake
Do not try to engage or use the diff lock on tight turns as serious damage can result.
Fuel
gauge
Check during driving
Constantly monitor the warning lights on the dash and if any comes on stop the tractor to determine the
cause. If the oil pressure light comes on check the oil level first of all. If the oil level is OK ask a qualified
dealer to check the reason for the light coming on.
If the alternator warning light comes on check all connections and ensure that the fan belt is not broken.
If all connections and the fan belt are intact consult your dealer to determine the cause of the problem.
To avoid excessive condensation in the fuel tank refill at the end of each day's work and ensure during the
day that it does not drop to a low level where the fuel system will require bleeding to expel air in the system
after refilling the tank.
Engine cooling water
If the gauge indicates that the engine is running hot, stop the tractor and check the coolant in the radiator.
Danger: Allow the engine to cool down before opening radiator cap as serious burns may
result due to hot steam & boiling water.
Also check to ensure that the fins in the radiator core are not clogged or that the tractor has a broken or
stretched fan belt.
Trailer socket (Seven Terminal Electrical Socket type)
- Trailer socket
To op
erate the Electrical systems of implements, trailer
lighting, warning lamp etc.
U18N054
Track adjustment
As UTILIX HT45/ HT55 models of ZETOR are front wheel assist the front track can be set in 2 positions.
Unit: mm (in)
CONTROLS, INSTRUMENTS & OPERATIONS
64
The r
ear track can be set in 4 positions as illustrated.
(*) Marking is STANDARD
MODEL UTILIX HT45/ HT55
DIVISION FRONT REAR
TYRE 9.5-16-4PR 13.6-26-6PR
AIR
PRESS
URE
2.2 2.0
(kgf/cm2)
TRACK
ADJUS
TMENT
1,270 mm 1,246 mm
U18N055
Connecting and Disconnecting Implement
Connection
with a plastic bag to prevent contamination.
CONTROLS, INSTRUMENTS & OPERATIONS
65
1) Ma
ke sure to stop the engine before connecting it.
2) Move the double acting valve lever forward and backward for 4 to 5 times to release the pressure in the
hydraulic line of the tractor. Otherwise, it is hard to connect the couplers, and hydraulic fluid can be sprayed
from the line and get in to your eyes while connecting them.
3) Remove any foreign material around the male and female couplers. If foreign material enters the hydraulic
components, it can lead to malfunction of the system.
4) Open the dust-proof cover of the female coupler of the tractor and insert the male coupler of the
implement. A clicking sound is heard when the couplers are engaged.
5) Pull the hydraulic hose of the implement to check that the couplers are properly connected.
6) Start the engine and check the operating status and leakage.
Disconnection
1) Make sure to stop the engine before disconnecting it.
2) Release any residual pressure in the hydraulic hoses of the implement and tractor by operating the double
acting valve lever 4 to 5 times.
3) Remove any foreign material around the couplers.
4) Keep the implement balanced by removing any load applied (lowering it onto the ground, for example). If
disconnecting the hose while outer load is applied to the implement, it is hard to connect the implement in the
future.
5) Remove the male coupler by pushing the female coupler boss of the tractor backward.
6) Close the dust-proof cover of the female coupler of the tractor. Wrap the male coupler of the implement
Warning:
- Nev
er connect or disconnect the implement hydraulic hose while the pressure in it is not released
or the engine is running. It is hard to connect and disconnect the hose and hydraulic fluid can be
sprayed from the hose, and get into your eyes or skin.
- Stop the engine and wear protective glasses and gloves before work.
Mounting Implement
If the PTO is used, remove the safety cover off the PTO shaft.
place.
1
CONTROLS, INSTRUMENTS & OPERATIONS
66
Adjus
t the yoke rod on the lower links to suit the implement in use.
Attach the left lower link, then attach the right lower link using the adjusting handle on the leveling box if
required.
Attach the top link.
Attach the PTO shaft to the tractor if used, making sure that it is locked in place.
Adjust the check chains to suit the implement and tighten the locknuts.
To remove an implement reverses the procedure.
- PTO shield cover
U18N0
55A
Caution:
When traveling on public or farm roads connect both brake pedals and allow for the weight of any
mounted implement to ensure that the unit is not unbalanced.
Also allow for the width when passing other road users. Where fitted use the hazard lights provided.
Strictly follow the local traffic regulations.
Caution: Do not attach a PTO shaft with the engine running and ensure all safety shields are in
Caution: When
operating near others with an
implement attached take particular care to allow for
the width of the implement and avoid accidents.
U18N055B
Fixtion Points of Loader
* For more information, please refer to the manual loader.
1
- Screw size: M14xP2.0, Number:4(both sided),
CONTROLS, INSTRUMENTS & OPERATIONS
6768
Stren
gth: 9T
2 - Screw size: M16xP2.0, Number:8(both sided),
Strength: 9T
U18N055C
Check and service
This section gives full details of the service procedures necessary to maintain your Tractor at peak efficiency
while the lubrication and maintenance chart provides a ready reference to these requirements.
1
LUBRICATION & MAINTENANCE
69
Service inspections
Servic
e inspections are performed as follows:
The first service inspection at the state of the engine hour counter of 50 EH maximum, but not later than
6 months after commissioning of the tractor. The second service inspection after covering another 200 EH
(at the state of the engine hour counter of 250 EH maximum) but not later than 12 months after the first
service inspection. Next service inspections always after covering another 250 EH but not later than 12
months after the previous service inspection. The service inspections are a part of tractor maintenance. The
services authorized by Zetor will provide professional performance of service inspections according to the
manufacturer's instructions.
Pre-start checks
To avoid problems it is recommended that a range of checks be carried out daily before starting the tractor.
For full details of the items and frequency please refer to the following tables - Periodical check and service
tables.
Engine coolant
- Drain Cock
Remove
the radiator cap and ensure that the coolant is up
to the filler neck and that it is clean with the correct antifreeze or anti corrosion inhibitor in it.
If the coolant is a rusty color, drain the system completely
and refill with the correct mixture of water and anti-freeze
or corrosion inhibitor.
1 - Radiator Cap
2 - Res
ervoir Tank
U18N056
U18N057
Engine oil
1
- Lower level
that oil level is between the upper and lower mark near the
1
1
-
Engine oil drain plug
LUBRICATION & MAINTENANCE
70
2 - Upp
er level
Pull out the stick, wipe it and dip in the oil sump. Ensure
upper mark. If too low add oil, but never excess 100hrs of
servi
ce interval.
- Engine Oil Filter
2 - Lev
el Gauge
U18N058
Important: Do no
U18N059
U18N060
t overfill the crankcase with oil.
Transmission oil
Check the level with the dipstick on top of the transmission in rear of the seat.
1
1
LUBRICATION & MAINTENANCE
71
If th
e level is low add oil through the filler hole.
Caution: Always ensure that you use the correct oil for topping up or oil changes.
1 - Upper level
2 - Lo
wer level
- Oil Level Gauge
2 - Oil
Port
U18N061
- Transmission oil drain plug
Fuel
1 - Fuel Tank Cab The fuel Filler is located on the left side
of t
ransmission.
Use the fuel gauge to check the fuel level and top up if too
low.
It is a good practice to refill the tank immediately after use
to avoid condensation.
U18N062
U18N0
63
U18N064
Tyre pressure
performance.
1
-
Excess
LUBRICATION & MAINTENANCE
72
The a
ir pressure used in the tires has a direct bearing on the life of the tire and its performance in the field.
Ensure that the tire pressures are correct and in accordance with the table in chapter Track adjustment.
To make a visual judgment see the drawing on the right.
2 - Standard
3 - La
ck
U18N065
Important: It is strongly recommended that tire pressures are checked with a proper gauge
only & visual inspections are relied upon.
Danger: Excess tire pressure can cause accidents!
Steering
Ensure that the steering wheel does not have excessive free play.
Brake
Ensure that the left and right brakes are adjusted correctly so they operate simultaneously. The correct free
play on the brake is 1.18-1.57 in (30~40 mm).
Caution: Incorrect brake adjustment can cause excessive wear and reduced tractor
Electrical
Check
the operation of all gauge, switches, horn, lights and indicators.
Installing loader
1. Connect P port of loader control valve to the line on the tractor marked P (from the PTO valve).
1
-
Loader Valve
LUBRICATION & MAINTENANCE
73
2. Con
nect the T port on the loader control valve to the line on the tractor marked T.
3. Connect the remaining line from the control valve to the line on the tractor marked P1 (to the
transmission housing).
Detaching the loader (loader connecting port)
1. Detach the hydraulic hoses of loader.
2. Assemble the cap (PF3/8) with pipe comp (PF3/8).
2 - Transmission oil Filter
U18N
066
Maintenance and adjustment Schedule
Periodical check and service table
LUBRICATION & MAINTENANCE
74
O Ch
eck, Top-up or Adjust,
X Replace,
XX First Replacement
Service interval(hour meter,mark)
Division Item Daily
Engine oil
& Car
tridge
O xx x x
5
0
1
0
0
1
5
0
2
0
0
2
5
0
3
0
0
3
5
0
4
0
0
4
5
0
5
Frequency Comment
0
0
Every 250 hours
or 12
months
after first 50
hours
Air cleaner O O x O O x
Engine
Division Item Daily
Engine
Radiator
coola
nt
Radiator O
Fuel O Fill tank
Fuel filter O xx O O O O x
Fan belt O Check daily
Battery O O O O O Check daily
Loose nuts
and b
olts
Radiator
hose
clamp
O
O Check daily Tighten
O Check daily
Clean every 100
hours
Check daily top
up if
required
Check daily for
damag
leakage
Service interval(hour meter,mark) Frequency Comment
1
1
2
2
3
3
4
4
5
0
0
0
5
0
0
0
5
0
0
0
5
0
0
0
5
0
5
0
0
es
Tighten if
requi
red
Caution: These intervals are for operation under normal conditions and need to be reviewed
under severe conditions to a greater frequency.
Division Item Daily
LUBRICATION & MAINTENANCE
75
Trans
missi
on oil
O xx x
Service interval(hour meter,mark)
1
1
2
2
3
3
5
0
0
0
5
0
0
0
5
0
0
0
5
0
4
0
0
4
5
0
5
Frequency Comment
0
0
Every 500
hours
or
12months
after first 50
hours
Chassis
Free play of
brake
pedal
State of
both
brake
pedals
Operation
of ea
ch
lever
Free play of
steer
ing
wheel
Toe-in O O
Grease in
front
wheel
hub
Check the
steer
ing
wheel joint
O Check daily (20~30 mm)
O Check daily
O Check daily
O Check daily
O O
O O
Check every
250 h
ours
Grease every
250 h
ours
Adjust so that
both
operate
simultaneously
and brake at the
same time
Smooth
opera
tion
About 50mm
(1.97
in) of
wheel
circumference
(2~6 mm)
Division Item Daily
LUBRICATION & MAINTENANCE
76
Wheel nut
faste
ning
torque
Operation of
the
in
strument
Adjustment
of th
e
throttle
pedal
Grease each
nippl
e
O Check daily
O Check daily
Service interval(hour
meter
,mark)
1
1
2
2
3
3
4
5
0
5
0
5
0
0
0
0
0
0
O O
O O O O O O O O O O
5
0
0
0
0
4
5
0
Frequency Comment
5
0
0
Check every
250 h
ours
Replenish every
50 ho
urs
(everyday in
dusty
conditions)
Tighten if loose
Front
:35-59 (mkg)
Rear82-128
(m-kg)
Chassis
Loose bolts
and n
uts
Hydraulic oil
filte
r
HST oil
Filte
r
Oil of the
4WD f
ront
axle
Check the
elect
ric
wiring
Adjustment
of th
e
throttle
pedal
O Check daily
Change every
500 h
xx x
xx x
xx O O O O x
O O
O O
ours or
12months after
first 50hours
Change every
500 h
ours or
12months after
first 50 hours
Check every
100 h
ours.
Change every
500 hours or
12months after
first 50 hours
Check every
year
Check every
250 h
ours
Tighten to
prope
r torque.
Replace if
leaki
ng.
Without loose or
broke
n
terminals,
damaged or
missing wiring.
Correctly
clamped.
Hydraulic
hoses
&
pipes
O
Check every
250 h
ours
Filling diagram & Capacity table
1 - Oil
13- Transmission filler
LUBRICATION & MAINTENANCE
77
filler hole
2 - Greasing point
3 - Drains
4 - Window
5 - Grease fitting
6 - Engine filler
7 - Front axle drain
8 - Front Axle Greasing Point
9 - Front axle oil filler
10 - Radiator
11 - Engine Drain
12 - Transmission Drain
U18N067
No. Filling point Fillings Quantity Liter (gal.)
A
-
Viscosity
LUBRICATION & MAINTENANCE
78
MODEL UTILIX HT45/ HT55
1 RADIATOR
50/50 : Ethylene Glycol/Water (L.L.C)
ASTM
D4985 / D6210
8.5 l (2.24 US gal)
API : CH4 grades
2 ENGINE
Recom
mended SAE viscosity grades
8.2 l (2.16 gal)
A: Viscosity
B: Temperature
3 TRANSMISSION CASE (API GL-4 Grades)Gear oil #80 or #90 35 l (9.24 US gal)
4 FRONT AXLE (API GL-4 Grades)Gear oil #80 or #90
10 l (2.64 US gal)
5 FINAL DRIVE CASE(B) (API GL-4 Grades) Gear oil #80 or #90
6 BALL JOINT Grease As required
7 FUEL TANK Diesel fuel 60 l (15.85 US gal)
B - Temperature
Recommended transmission oil
1 - RPM
Tractor Hydraulic Fluid or Textron TDH Premium (CALTEX)
2 - TDH Oil or TDH Oil special (TEXACO)
3 - Chevron 1000THF (CHEVRON)
U18N
068
Opening method of each cover
Opening method of Hood
1
-
Bonnet Open
wiring harness. Hood can be open by itself.
LUBRICATION & MAINTENANCE
79
With the hood up the Hook release lever can be removed
by pu
lling rearwards, having first detached the hood lamp
U18N069
Openi
ng the Side cover
1 - Support pin (1)
To o
pen, grasp the side cover, Pull the forward panel
upward to separate from guide support pin (1). And pull
the side panel forward again,
U18N070
U18N071
Fuel
Use clean diesel fuel only.
1
LUBRICATION & MAINTENANCE
80
Impor
tant: As diesel fuel equipment is susceptible to contamination by dust or water, Ensure
that all dust and water is kept well away from the fuel tank.
Bleeding the fuel system
U18N072
1 - Fuel filter (B)
2 - Fuel return line
3 - Engine
4 - Injection pump
5 - Air breather screw
6 - Fuel supply line
7 - Fuel supply pump
8 - Fuel filter (A)
9 - Fuel tank
1) Fill the tank with fuel and turn the ignition key to on.
2) Loosen the air breather screw of the fuel filter two or three turns.
3) When fuel free from air flows (bubbles) from the Air breather screw, tighten the Air breath screw.
4) The bleeding of the system is now finished.
- Fuel Filter
2 - Fuel
Supply Pump
U18N073
Changing the oils in the tractor
Always use quality oils as engine or transmission oil (refer to the chapter: Recommended transmission oil)
with oil.
LUBRICATION & MAINTENANCE
81
Refer
to the tables 'Periodical check and service table' for the change frequency.
Changing engine oil
1 - Engine Oil filter
Park tractor on level surface, shut-off engine.
Remove sump plug & drain oil.
Replace and check the sump plug and refill the engine
to the correct level on the dipstick (approx. 1.85 gal).
The g
rade of oil to be used will depend on the ambient
temperature.
The tractor is shipped from the factory with 15W/40.
For summer use over 77 °F use SAE 30.
For temperatures from 32 °F - 77 °F use SAE20 or
15W/40.
For temperatures below 32 °F use SAE 10W.
U18N074
Important:
When changing the oil always change the filter.
Always use the same oil, as using different oils or specifications can cause damage.
Dispose off the old oil as per local regulations.
Changing the transmission oil
1
- Upper level
1
1
-
Oil Level Gauge
with new oil : Qty 35 l (9.24 US gal).
LUBRICATION & MAINTENANCE
82
2 - Low
er level
Remove the drain plug from bottom of the transmission
and drain the oil.
Replace and check the drain plug.
- Transmission oil drain Plug
U18N075
2 - Oil Port
Refi
ll the transmission to the correct level on the dipstick
Important: Alway
s use the same grade and specified oil as Replacements. Dispose off the old
oil as per local regulations.
U18N0
76
U18N077
Changing oil in the front axle
1. Drain the oil from the center diff plug and the drain plug in each drive.
1
LUBRICATION & MAINTENANCE
83
2. Rep
lace and tighten all drain plugs.
3. Remove the top plug (Vent plug) from each final drive to vent air from final drives.
4. Remove the dip stick from the filter hole and fill with 2.64 US gal (10 liters) and allow time for the oil to
drain into the final drives.
5. Check the oil level with the dipstick and replace the vent plugs on both final drives and tighten.
1 - Upper Level
2 - Lower Level
U18N078
- Level gauge & Oil Filler
2 - Fro
nt axle Oil Drain Plug
U18N079
Important: Some operators have found that when they fill with the correct amount of oil and dip
it, the oil level on the dipstick is too high due to the fact that it takes a while for the oil to run into the
final drives. Opening the Vent plugs helps to speed this up.
Cleaning and changing filters
Engine oil filter
wrench or a filter strap could damage the locking ring.
with oil to ensure, turn it clockwise until the seal contacts
1
LUBRICATION & MAINTENANCE
84
1 - Engine Oil filter
Using a filter wrench turn the filter anti clockwise to
remove it. Lightly smear the rubber seal on the new filter
the base and then turn it another 2/3 turn to tighten it.
U18N0
80
Fuel
filter
The fuel filter/water separator (if equipped) is not usually supplied by Perkins.
The following test describes a typical fuel filter/water separator.
Refer to the OEM information for further information in the fuel filter/water separator.
Turn the fuel supply valve (if equipped) to the OFF position before performing this maintenance. Place a tray
under the fuel filter in order to catch any fuel that might spill.
Clean up any spilled fuel immediately.
- Fuel Filter
2 - Fue
l Supply Pump
U18N081
1. Close the fuel supply valve (if equipped).
2. Clean the outside of the fuel filter assembly.
Note: If the fuel filter element is mot equipped with a drain, remove cap. Remove the nylon insert in order to
reduce the lever of fuel in the fuel filter element. A reduction in the level of fuel in the fuel filter element will
help prevent fuel from being spilled when the element is removed.
Notice: Do not use a tool in order to remove the fuel filter. Attempting to remove the fuel filter with a filter
3. Hold fuel filter and rotate quick release collar counterclockwise. Removed and discarded.
Note:
If the element is equipped with a sediment bowl, remove the sediment bowl from the element.
Thoroughly clean the sediment bowl. Inspect the O-ring seals. Install new O-ring seals, if necessary. Install
the sediment bowl to the new element. Hand tighten the sediment bowl. Hand tighten the sediment bowl.
Hand tightening is the only method that should be used.
Notice: Do not fill fuel filters with fuel before installing them. Contaminated fuel will cause accelerated wear
to fuel system parts.
4. Ensure that the fuel filter base is clean. Push a new fuel filter fully into the fuel filler base.
primary fuel filter. After replacing the filter always bleed the system.
1
-
Transmission oil Filter
1
LUBRICATION & MAINTENANCE
85
5. Hol
d the fuel filter in place. Fit locking ring into position. Rotate the locking ring clockwise in order to
fasten the fuel filter to the fuel filter base.
6. Open the fuel supply valve (If equipped).
Important: Never use petrol (gasoline) thinner or similar inflammable material to wash the
Hydraulic oil filter and engine oil filter cartridge
Remove the filter with a filter wrench. To replace, apply oil
or gr
ease on the seal, fit by hand until seal contacts bare,
then turn it 2/3rd turn further to tighten it check for leaks.
U18N082
- Engine Oil filter
U18N0
83
Changing the coolant
(1) Open the tap in front of the gear pump to drain the coolant.
pressure in the radiator.
LUBRICATION & MAINTENANCE
86
(2) O
pen the radiator cap at the same time.
(3) To give a thorough clean run a hose into the radiator and flush it out.
(4) Close the tap and refill the radiator with a coolant mixture of water and corrosion inhibitor or anti freeze.
(5) Start the engine and allow it to run for approx 5 minutes, check the water level again and top up if
required.
1 - Radiator cap
U18N084
1 - Drain Cock
U18N
085
Caution:
Do not remove the radiator cap on a hot engine.
Allow the engine to cool down and then turn the cap slowly to ensure, that there is no excessive
Caution:
Serio
us burns, can result from the contents of pressurized, hot radiators.
Allow the engine to cool down completely before opening radiator cap.
Anti freeze
Frozen cooling water can damage the engine.
Before replacing the anti freeze solution flush the radiator.
Mix the anti freeze solution in accordance with the instructions applicable to the brand of anti freeze and the
locals climate.
Replace the solution in the radiator.
In case of loss of solution due to evaporation or overflow, replace with the original mixture ratio.
Cleaning the radiator
Insects, grass straw and dust can all block the radiator, condenser and reduce its efficiency.
LUBRICATION & MAINTENANCE
87
Remov
e the radiator cover to clean it and the radiator.
Release the bolt and pull to remove the cover.
Then clean the radiator between the fins and tube by using clean water.
1 - Radiator Cap
2 - Reservoir Tank
U18N086
Important: Water or air under high pressure can distort the cooling fins on the radiator and
reduce its efficiency.
Greasing the tractor
Grease the tractor according to the service schedule (Tables: Periodical check and service table)
Brake area / Clutch area
-
Grease Nipple
Front axle
-
Grease Nipple
LUBRICATION & MAINTENANCE
88
Ensur
e that grease nipples are cleaned well before any attempt is made to grease them.
U18N087
Pivot metal - Grease Nipple
Lift Rod - Grease Nipple
U18N0
U18N0
88
89
U18N090
Gap adjustment
Adjusting the brake
1
-
Free play
LUBRICATION & MAINTENANCE
89
Using the brake over a period of time will increase the free
play.
T
he correct free play of the pedal is 0.78~1.18 in To
adjust, loosen the locknut on the turnbuckle and adjust.
Check the adjustment and tighten the locknut if the free
play is correct.
U18N091
Adjust
ing method
Loosen the locknuts to adjust the brake.
Turni
ng counterclockwise to increases the free play, or
turning clockwise to decreases.
Tighten the locknut and confirm to fix the Nuts.
Check that the free play is correct and the same on both
pedals to ensure even braking.
U18N092
Caution: Uneven adjustment of the left and right pedal will result in one sided braking when
the pedals are connected and can cause serious accidents, especially at high speeds.
Double check to ensure free play is the same on both pedals.
Adjusting the throttle lever
If this lever is either loose or difficult to move please consult your dealer for rectification of the problem.
Adjusting toe-in
If the toe-in adjustment is incorrect it can cause severe shaking of both the steering wheel and the entire
tractor.
The correct toe in is 0.08~0.24in. We recommend that this adjustment is made by the dealer.
Checking the battery
1
- Indicator condition
1
LUBRICATION & MAINTENANCE
90
Check
the Indicator condition
Green color - Good condition
Black color - Charging necessary
White color - Replace battery
U18N093
Important: Low e
lectrolyte levels can cause premature battery failure and corrosion.
Caution: Electrolyte contains acid and can cause serious burns.
Any spillage on skin should be washed off by running water immediately.
Battery maintenance
Low temperatures will affect the performance of batteries so take particular care of it in winter.
For long-term storage of the tractor remove the battery and keep it in a cool dry room.
If it is on the tractor while stored, disconnect the negative terminal.
Batteries will self discharge if left for a period of without use time.
To keep them in good condition charge them once a month in summer and every second month In winter.
When replacing the original battery, ensure that the replacement battery is the same size.
Failure to do so can cause problems with the electrical circuit.
- (-) Terminal
2 - (+)
Terminal
U18N094
Battery charging
positive terminal first when fitting the battery.
- A boost charge is only for emergencies. It will partially
1
LUBRICATION & MAINTENANCE
91
charge the battery at a high rate and in a short time.
- When using a boost-charged battery, It is necessary to
recharge the battery as early as possible.
Failure to do this will shorten the battery's service life.
U18N095
Caution:
Alway
s disconnect the negative terminal first when removing the battery and always connect the
When connecting the battery leads make sure not to reverse the polarity.
Quick
charging will reduce battery life.
Disconnect the terminals prior to charging the battery to avoid damage to the circuit and electrical
instruments.
Battery Disconnect
The function of the battery disconnect switch is to disconnect the power supply to the electrical
system by interrupting the connection to the battery. This has benefits for tractor safety and
operation, in particaular:
1. Protects the electrical system against short circuit;
2. Reduced battery self-discharge when the tractor left idle for prolonged periods;
3. Allows maintenance and repairs to be carried out in conditions of safety.
- Disconnect knob
Turn
the knob to ''OFF'' to disconnect the battery and back
to ''ON'' to resume normal operation. The battery
disconnect knob 1 is located on a bracket to the right of
the battery. Putting the battery disconnect in safety
condition The battery disconnect knob may be removed
for safety purposes in the manner described below.
U18N095A
Removal of the knob
1. Turn the knob to the ''off'' position; the knob cannot be removed in this position.
with a low charge will freeze more easily than a battery with a full charge.
1
-
7~9 mm
LUBRICATION & MAINTENANCE
92
2. Pre
ss the knob in and continue to turn it counter-clockwise as far as it will go.
3. Remove the knob.
Refitting the knob
1. Refit the knob
2. Press and turn the knob clockwise, positioning it at 45˚
Fan belt adjustment
1. Loosen the alternator pivot bolt.
2. Move the alternator in order to increase or decrease the belt tension.
Tighten the alternator pivot bolt and the link bolt to 22 N.m(16 lb ft)(1)
U18N096
Alternator Inspect
Perkins recommends a scheduled inspection of the alternator. Inspect the alternator for loose connections
and proper battery charging. Inspect the ammeter(If equipped) during engine operation in order to ensure
proper battery performance and/or proper performance of the electrical system .Make repairs, as required.
Check the alternator and the battery charger for proper operation.If the batteries are properly charged ,the
ammeter reading should be very near Zero. All batteries should be kept warm because temperature affects
the cranking power. If the battery is too colt,the battery will not crank the engine.When the engine is not run
for long periods of time or if the engine is run for short periods.The batteries may not fully charge. A battery
Alternator and Fan Belts Inspect/Adjust/Replace
For applications that require multiple drive belts, Replace the belts in matched sets. Replacing only one belt
1
LUBRICATION & MAINTENANCE
93
of a
matched set will cause the new belt to carry more load because the older belt is stretched. The
additional load on the new belt could cause the new belt to break. If the belts are too loose.Vibration causes
unnecessary wear on the belts and pulleys. Loose belt may slip enough to cause overheating. To accurately
check the belt tension ,a suitable gauge should be used.
Fit the gauge(1) at the center of the longest free length and check the tension.The correct tension is 535
N (120 lb). If the tension of the belt is below 250 N (56 lb) adjust the belt to 535 N (120 lb).
If twin belts are installed,check and adjust the tension on the both belts.
- Gauge
U18N0
97
Air conditioner compressor belt adjustment
1 - Tension Adjusting Bolt
Chec
k the compressor belt tension regularly and adjust.
If required. The correct tension is if the center of the belt is
Pushed With a finger it moves in approx. 10 mm (0.39 in)
as shown in the picture.
To adjust the belt, loosen the top bolt on the alternator,
move the alternator to the desired position and tighten the
bolt.
Also ensure that the bottom alternator bolts are tighten.
U18N098
Servicing the air cleaner
1
- Air Cleaner Body
LUBRICATION & MAINTENANCE
94
2 - Ele
ment
3 - Cover
U18N099
To remove the dust from the evacuator valve squeeze it between thumb and fingers to let excess dust out
and w
ipe around the valve to keep it clean from outside.
To clean the main element, remove the right fan cover.
Remove dust by blowing it out of the element with Compressed air.
Check the element to ensure it is not damaged. Reassemble the element.
Important:
Never beat the element on a stone or concrete floor/wall to clean it.
Check all connections and hoses especially on the clean side of the air cleaner to ensure no dusty
air can enter the engine. Check the element for flaws by putting a light inside the element.
When reassembling make sure all surfaces seal correctly to keep dust out.
When working in dusty conditions increase the service frequency.
- Replace the element after cleaning it 5 times or it is damaged.
Checking hoses and lines
The fuel lines, radiator hoses, hydraulic and rubber hoses are consumables, which deteriorate by age and
use.
Check them regularly and replace if faulty.
Caution:
Damaged fuel lines leak and cause fires.
Damaged radiator hoses can cause hot water burns and in severe cases seize the engine.
Checking the wiring harness and fuses
Loose wires make inferior connections and damaged wires can cause short circuits, fires burnt wiring or
reduce efficiency of components. Replace or repair any faulty wiring or insulation.
If a fuse burns out again after it has been replaced, do not replace it with wire or a high capacity fuse, find
the cause and rectify it or get an auto electrician to do so.
Where insulation is chafed or peeled off, recover the area with a good quality insulation tape. Where wiring
comes out of it's fitting replace it correctly with the standard fitting.
Important:
Incorrect wiring or fuses can cause fires to both the tractor and surrounding area so get the dealer to
check it annually. Likewise fuel pipes and wiring age with use.
Ask your dealer to check it at least once every 2 years and replace as required.
Replacing fuses
The circuit has 8 blade type fuses in its wiring circuit (See UTILIX 45 / UTILIX 55 Cabin wiring diagram)
1
-
Fuse case
LUBRICATION & MAINTENANCE
95
When
a fuse has blown replace it with one of the same value.
Using a large capacity fuse or wire burn out the wiring system.
Use fuse tongs to replace fuses.
1 - Normal
2 - Blown Out
U18N100
Main fuses
The wiring harness is equipped with 3 main fuses who's
funct
ion is to preserve the wiring. However when a main
fuse blows the entire circuit is dead.
Always check the reason & rectify before replacing the
fuse of the same value.
To indicate that the fuse is blown it will be discolored.
U18N101
Important: Always check the reason for a blown fuse otherwise the new fuse is also likely to
blow.
NEVER EVER USE WIRE in place of correct grade fuse.
Service prior to daily and short terms storage
.
LUBRICATION & MAINTENANCE
96
Wash
the tractor and keep it clean.
Fill the tank to avoid condensation and rust.
Lower any attached implement to the ground before parking the tractor.
For long-term storage consult your dealer.
Re-use after long term storage
Carry out a full check of all oils and coolant.
Refit the battery and run the engine at idle for 30 min. to ensure optimum engine life.
Maintenance
U18N102
U18N103
U18N104
For daily or short term storage
Clean the tractor and remove all dirt from field work.
LUBRICATION & MAINTENANCE
97
Fill
the fuel tank to avoid condensation and rust.
Lower the implement to the ground..
Keep it in a machinery shed or, if not available cover the unit if left outside.
In very cold conditions it is advisable to remove the battery and keep it inside in a warm environment.
This will ensure effective starting when the tractor is required.
When the outside temperature is below 32 °F, replace the Antifreeze completely or drain the coolant to
protect the engine from damage from frozen coolant.
Important: When washing the tractor ensure that the water does not get near electrical
components or the oil filter points.
To prevent short circuits remove the ignition key.
Do not wash the tractor when the engine is running.
Long-term storage
When the tractor will not be used for a long time carry out the cleaning as for short term storage.
Drain the oil and replace with new oil. Run the engine for approx. 5 min. to ensure that it has new oil
throughout the engine.
Drain the coolant from the radiator and remove the ignition key.
Attach a tag both the key and the steering wheel saying ''No coolant''. Lubricate all grease and oil points on
the tractor.
Check the pressures and add a small amount of extra pressure. Lower any implement to the ground or store
in a shady dry place.
Place a piece of wood under each tire to preserve the tire.
Important: After refilling the engine with the coolant run the engine for approx. 5-10 min. at
1500-2000 rpm every month as a corrosion prevention measure. Either removes the battery or the
negative terminal as mouse damage to wiring can cause short circuits and fires. Remove the ignition
key and store in a safe place.
Fuel Saving Tips
To save fuel & oil in your tractor, following things should always be kept in mind.
Air Cleaning System
1. Clean the air cleaner regularly so that dust does not settle down.
2. For every 50 hours & everyday in sandy/dusty conditions.
- Clean the air cleaner filter element with compressed air.
- If the rubber ring is cut or expanded then change it with an appropriate one. Fix the rubber at the
proper location & check for leakages if any.
- If air is leaking through the hose connection, check & rectify other leakages, too.
Note: If air cleaning system is not properly maintained, it will lead to early wear of piston rings &
sleeves. This will lead to problems like loss of engine power, excessive oil consumption fuel
consumption.
Engine
1. Put the engine oil on load after the engine is heated & the water temperature gauge indicates the
needle to be in the green zone.
2. If excessive black smoke is visible, then the paper element of air cleaner, Fuel injection pump or
nozzles should be checked.
3. Do not run the engine without load for more than 2 minutes. It is better to stop the engine rather than
run it idle. This will help in saving of fuel.
Fuel System
1. Always use filtered diesel for the fuel system.
LUBRICATION & MAINTENANCE
98
2. At
the end of the day's working, it is preferable to fill the diesel tank so that it may prevent
condensation.
3. Change the filter, if the system gets choked. Do not change both the filters at the same time. If the
above directives are not adhered to, the fuel injection pump & injection nozzle will lose its life early.
Also, it will lead to excessive black smoke & excessive diesel consumption
Oil System
1. Always use recommended grade of oil.
2. Everyday before starting the engine, check the oil level with a dipstick & refill between the minimum &
maximum level.
3. Charge the engine oil. Replace filter & ''O'' ring, as & when required.
Cooling System
1. Check the fan belt tension regularly. Adjust, If required.
2. Check the coolant level in the radiator fins always clean.
3. Replace the radiator cap with a genuine cap only, if required.
4. Do not remove the thermostat but replace with a new one, if required.
5. Do not change the radiator water often.
Note:
1) Always stop any fuel or oil leakages.
2) Carry out the regular maintenance failure to do so might increase the fuel consumption by 25%.
3) Carry out the torque of cylinder head bolt & adjustment of valve clearance regularly. Consult your
dealer for this.?
4) Check the tire pressure & inflate, as recommended.
Note:
1) Always buy genuine spares from the authorized Dealer / Distributor.
2) Always carry out the service of the tractor by your authorized Dealer / Distributor.
* For any other information, contact your nearest Authorized Dealer / Distributor.
How to use of jacks
Front Axle
LUBRICATION & MAINTENANCE
99100
Rear Axle
U18N114
U18N1
15
- If the tractor must be lifted for servicing, take it to a suitably equipped workshop.
- Car
ry out the following operations before any operation about the tractor. Engage the four-wheel drive, the
first gear and the parking brake and put chocks to the wheels touching the ground.
- Before lifting the tractor, avoid its swinging by means of wooden wedges applied to the front axle
- Use jack lifts of suitable capacity and apply them at the centre of the front and rear axles and paying due
attention to weight distribution.
- No decals for the lifting point are applied on the tractor, as they would be, too difficult to apply in the
available spaces and would be all too easlly removed or effaced during normal operation of the tractor.
Note: Apply the jack lift to the lifting points according to the type of operation and following the
safety procedures given before.
