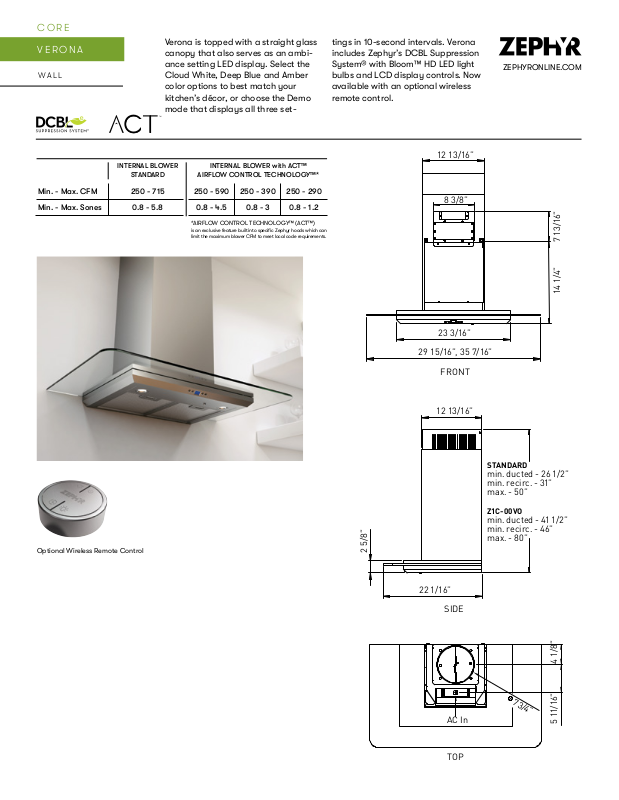

Zephyr ZVOM90AG, ZVOE30AG Specifications
TM
C
12 13/16”
CORE
VERONA
WALL
Verona is topped with a straight glass
canopy that also serves as an ambiance setting LED display. Select the
Cloud White, Deep Blue and Amber
color options to best match your
kitchen’s décor, or choose the Demo
mode that displays all three set-
tings in 10-second intervals. Verona
includes Zephyr’s DCBL Suppression
System® with Bloom™ HD LED light
bulbs and LCD display controls. Now
available with an optional wireless
remote control.
ZEPHYRONLINE.COM
Min. - Max. CFM
Min. - Max. Sones
INTERNAL BLOWER
STANDARD
250 - 715
0.8 - 5.8
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
250 - 590
0.8 - 4.5
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specic Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
250 - 390
0.8 - 3
250 - 290
0.8 - 1.2
8 3/8”
7 13/16”14 1/4”
23 3/16”
29 15/16”, 35 7/16”
FRONT
12 13/16”
Optional Wireless Remote Control
STANDARD
min. ducted - 26 1/2”
min. recirc. - 31”
max. - 50”
Z1C- 00VO
min. ducted - 41 1/2”
min. recirc. - 46”
max. - 80”
2 5/8”
22 1/16”
SIDE
4 1/8”5 11/16”
7 3/4”
AC In
TOP
TM
C
CORE
VERONA
WALL
MODEL
Stainless Steel w/ Glass canopy
Size
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
ACT 590 CFM (Min. - Max.)
ACT 590 Sones (Min. - Max.)
ACT 390 CFM (Min. - Max.)
ACT 390 Sones (Min. - Max.)
ACT 290 CFM (Min. - Max.)
ACT 290 Sones (Min. - Max.)
FEATURES
DCBL Suppression System®
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
LED Illuminated Glass
Filters
Recirculating Option
Extension Duct Cover Option
ADA Compliant
ZVO-E30AG
30”
250 - 715
0.8 - 5.8
250 - 590
0.8 - 4.5
250 - 390
0.8 - 3
250 - 290
0.8 - 1.2
Yes
Yes
Electronic LCD
5 + Burst
Yes
Bloom™ HD LED, 6W x2
Yes
Yes; Cloud White, Deep Blue
& Amber
Aluminum Mesh x2
Yes
Yes, Up to 12’ Ceiling
Yes (with remote accessory)
ZEPHYRONLINE.COM
ZVO-M90AG
36”
250 - 715
0.8 - 5.8
250 - 590
0.8 - 4.5
250 - 390
0.8 - 3
250 - 290
0.8 - 1.2
Yes
Yes
Electronic LCD
5 + Burst
Yes
Bloom™ HD LED, 6W x2
Yes
Yes; Cloud White, Deep Blue
& Amber
Aluminum Mesh x2
Yes
Yes, Up to 12’ Ceiling
Yes (with remote accessory)
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
8” Round
NA
120V, 60Hz at Max. 4A
OPTIONAL ACCESSORIES
Wireless Remote Control
Recirculating Kit
Extension Duct Cover
Make-Up Air Kit
MOUNTING HEIGHT RANGE*
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
EXTENSION
DUCT COVER
*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Specications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
NOV18.0201
Ducted Mounting Height*
Recirc Mounting Height*
Ducted Mounting Height*
Recirc Mounting Height*
DCBL Suppression System® oers up to 77% less noise, up to
30% more CFM, and up to 77% more energy eciency for the
most advanced range hood technology.
RC-0001
ZRC-00VO
Z1C-00VO
MUA008A
26” - 34”
3 years parts, 1 year labor
8’
26” - 33.5”
26” - 29”
NA
NA
8” Round
NA
120V, 60Hz at Max. 4A
RC-0001
ZRC-00VO
Z1C-00VO
MUA008A
26” - 34”
3 years parts, 1 year labor
8.5’
26” - 34”
26” - 34”
NA
NA
9’
26” - 34”
26” - 34”
26” - 30.5”
26” - 26”
9.5 ’
28” - 34”
28” - 34”
26” - 34”
26” - 32”
AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specic Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
10’
34” - 34”
34” - 34”
26” - 34”
26” - 34”
10.5’
NA
NA
26” - 34”
26” - 34”
11’
NA
NA
26” - 34”
26” - 34”
12’
NA
NA
28” - 34”
28” - 34”
