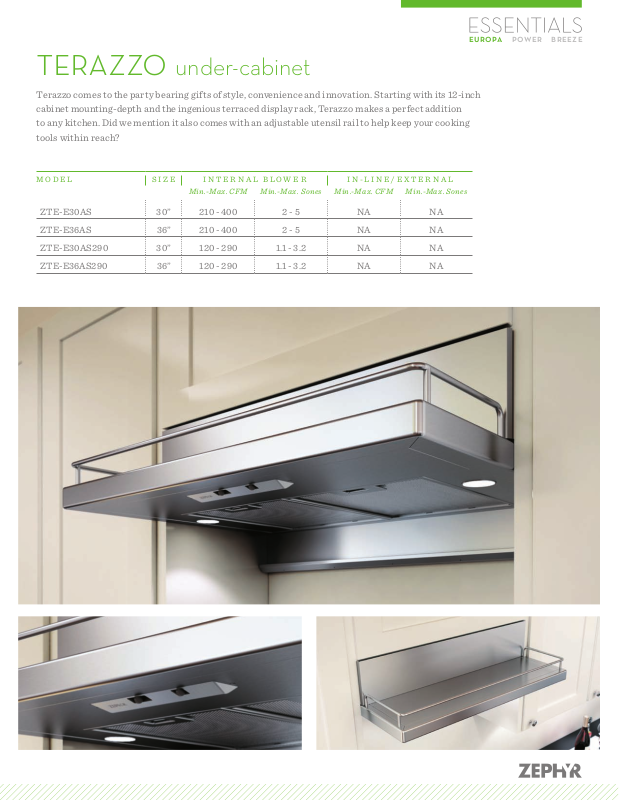

Zephyr ZTEE30AS, ZTEE36AS290, ZTEE36AS, ZTEE30AS290 Specification Sheet
eu ro pa power breeze
terazzo under-cabinet
Terazzo comes to the party bearing gifts of style, convenience and innovation. Starting with its 12-inch
cabinet mounting-depth and the ingenious terraced display rack, Terazzo makes a perfect addition
to any kitchen. Did we mention it also comes with an adjustable utensil rail to help keep your cooking
tools within reach?
MODEL SIZE INTERNAL BLOWER IN-LINE/EXTERNAL
Min.-Max. CFM Min.-Max. Sones Min.-Max. CFM Min.-Max. Sones
ZTE-E30AS 30” 210 - 400 2 - 5 NA NA
ZTE-E36AS 36” 210 - 400 2 - 5 NA NA
ZTE-E30AS290 30” 120 - 290 1.1 - 3.2 NA NA
ZTE-E36AS290 36” 120 - 290 1.1 - 3.2 NA NA
terazzo under-cabinet | europa classics
eu ro pa power breeze
z Te - e30As / z Te - e30As 290
size
z Te -e 36As / zT e -e 36As290
P eR FORMANCe
INTE RNAL, M IN.-MAX . BLOWER CFM
z Te - e30As / z Te - e36As
zT e-e 30As290 / zT e-e 36As290
INTERNAL, MIN.-MAX . SO NES
z Te - e30As / z Te - e36As
zT e-e 30As290 / zT e-e 36As290
COl OR
STA INLE SS STEEL SS
F eAT uR es
C ONTRO LS Mechanical Slide
S PEED LEV ELS 3
AUTO DE LAY-OFF No
LIGHTING Halogen, 50W x2
D UAL LE VEL LIGHTING Ye s
FI LTER S Aluminum Mesh
RE CIRCU LATI NG OPTION Yes
EXTENSION DUCT COVER OPTION NA
30”
36”
210 - 400
120 - 290
2 - 5
1.1 - 3.2
25 3/16” or 31 3/16”
9 15/16”
3 1/4”
6 15/16”
TOP
8 3/16”
1 13/16”
1 9/16”
21”
2”
6 5/16” or 9 5/16”
12”
2”
AC in
8”
8 1/4” - 10 1/4”
Adjustable
Utensil Bar
Heights
duCT sP eC iF i CATi ONs
V ERTICA L - INTERNA L 7” or 3 1/4” x 10”
HORIZONTAL - INTERNAL 3 1/4” x 10”
AC iNPu T 120V - 60Hz
z Te - e30As / z Te - e36As
zT e-e 30As290 / zT e-e 36As290
OPTi ONAl ACCessORies
RE CIRCU LATI NG KIT ZRC-0200
MOu NTiN g heighT * 24” - 32”
AC POweR
Max. 207W a t 1.7A
Max. 186W at 1.55A
1 1/4”
9 5/16”
SIDE
9 15/16”
AC In
29 15/16” or 35 15/16”
BACK
3 1/4”
7 3/8”
*Mounti ng height refer s to distance b etween top of co oking surfa ce and bottom o f hood.
MAY11 .0101
