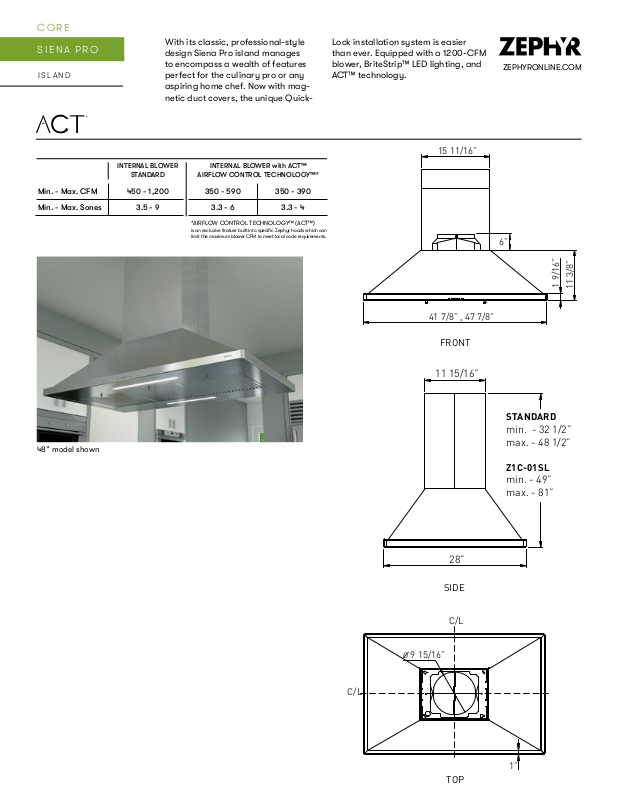

Zephyr ZSLE42BS, ZSLE48BS Specifications

CORE

TOP

SIENA PRO

ISLAND

Min. - Max. CFM

Min. - Max. Sones

With its classic, professional-style design Siena Pro island manages to encompass a wealth of features perfect for the culinary pro or any aspiring home chef. Now with magnetic duct covers, the unique Quick-

INTERNAL BLOWER

STANDARD

450 - 1,200

3.5 - 9

INTERNAL BLOWER with ACT™

AIRFLOW CONTROL TECHNOLOGY™*

350 - 590

3.3 - 6

*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)

is an exclusive feature built into specic Zephyr hoods which can

limit the maximum blower CFM to meet local code requirements.

350 - 390

3.3 - 4

Lock installation system is easier than ever. Equipped with a 1200-CFM blower, BriteStrip™ LED lighting, and ACT™ technology.

15 11/16”

41 7/8” , 47 7/8”

ZEPHYRONLINE.COM

6”

1 9/16”

11 3/8”

48” model shown

FRONT

11 15/16”

STANDARD

min. - 32 1/2” max. - 48 1/2”

Z1C-01SL

min. - 49” max. - 81”

28”

SIDE

C/L

9 15/16”

C/L

1”

CORE

SIENA PRO

ISLAND

MODEL

Stainless Steel

Size Blower CFM (Min. - Max.) Sones (Min. - Max.) ACT 590 CFM (Min. - Max.) ACT 590 Sones (Min. - Max.)ACT 390 CFM (Min. - Max.) ACT 390 Sones (Min. - Max.)

FEATURES ACT™ Technology Controls Speed Levels

Auto Delay-O

Lighting Dual-Level Lighting Filters Recirculating Option Quick-Lock Installation System Magnetic Duct Covers Extension Duct Cover Option

ZSL-E42BS

42” 450 - 1,200

3.5 - 9 350 - 590

3.3 - 6 350 - 390

3.3 - 4

Yes ICON Touch® 5* Yes BriteStrip™ LED x2 Yes

Hybrid Baes x2

No Yes Yes Yes, Up to 12’ Ceiling

ZEPHYRONLINE.COM

ZSL-E48BS

48” 450 - 1,200

3.5 - 9 350 - 590

3.3 - 6 350 - 390

3.3 - 4

Yes ICON Touch® 5* Yes BriteStrip™ LED x2 Yes

Hybrid Baes x3

No Yes Yes Yes, Up to 12’ Ceiling

DUCT SPECIFICATIONS Vertical Internal Blower Horizontal Internal Blower AC POWER

10” Round NA

120V, 60Hz at Max. 9A

10” Round NA

120V, 60Hz at Max. 9A

OPTIONAL ACCESSORIES Extension Duct Cover Make-Up Air Kit

MOUNTING HEIGHT RANGE**

WARRANTY

CEILING HEIGHT

STANDARD DUCT COVER

EXTENSION DUCT COVER

*When ACT™ is enabled the maximum speed levels will change. ACT 590 CFM = 3 speeds and ACT 390 CFM = 2 speeds. **Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.

Ducted Mounting Height*

Z1C-01SL MUA010A

26” - 34”

3 years parts, 1 year labor

26” - 27.5”NA26” - 33.5”NA26” - 34”NA29.5” - 34”

Z1C-01SL MUA010A

26” - 34”

3 years parts, 1 year labor

8.5’8’

9’ 9.5 ’ 10’ 10.5’ 11’ 12’

26” - 33”NA26” - 34”NA26” - 34”NA26” - 34”NA27” - 34”

Specications subject to change, check zephyronline.com for up-to-date information.

Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT

JUL18.0101
