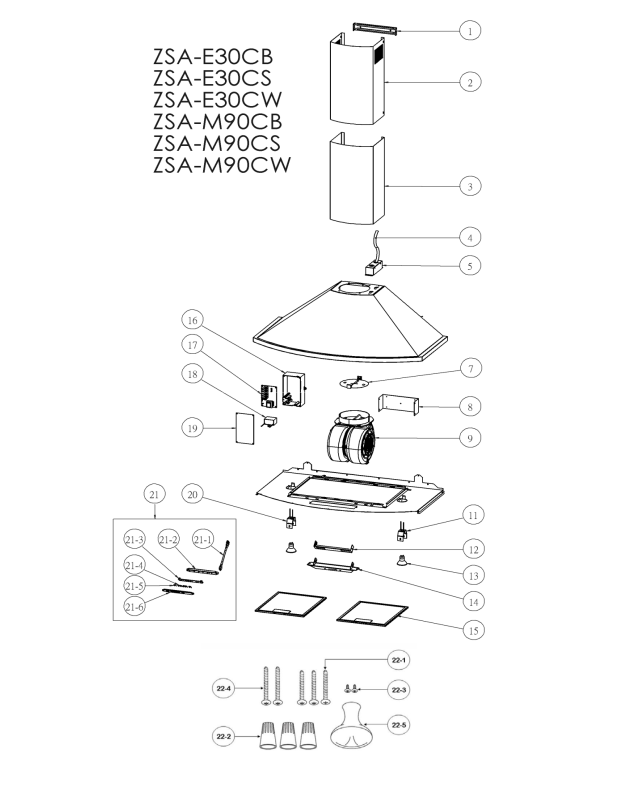

Zephyr ZSAE30CW, ZSAM90CS, ZSAM90CB, ZSAM90CW, ZSAE30CS Exploded View Diagram

Savona

14

56200087

Housing, Switch, White

1

ZSA-E30C(B,S,W), ZSA-M90C(B,S,W)

Ref # Part # Description Qty.

1 54110051 Bracket, Duct Cover 1
2 50050059 Upper Duct Cover, SS 1
2 50050060 Upper Duct Cover, Black 1
2 50050151 Uppwer Duct Cover, White 1
3 50050061 Lower Duct Cover, SS 1
3 50050062 Lower Duct Cover, Black 1
3 50050152 Lower Duct Cover, White 1
4 11030015 Wires, Electrical 1
5 56200081 Electrical Box 1
7 54060007 Damper, 6" Round 1
8 54140065 Bracket, Motor 1
9 12120043 Motor, 685 CFM 1
11 50500137 Light Socket Assembly, Right 1
12 50100027 Panel, Switch 1
13 Z0B-0020 Bulb, Halogen, GU-10, 50W 2
14 56200083 Housing, Switch, SS 1
14 56200084 Housing, Switch, Black 1

15 50200011 Filter, Aluminum Mesh 2
16 54200020 Component Box 1
17 11010059 Control Board 1
18 12050021 Capacitor 1
19 56210067 Cover, Component Box 1
20 50500138 Light Socket Assembly, Left 1
21 11000083 Switch Assembly, SS 1
21 11000084 Switch Assembly, Blk/Wht 1
21-1 11030080 Cable, Switch 1
21-2 56200082 Housing, Switch 1
21-3 11010062 Switch Board 1
21-4 56240020 Switch Spacer, Small 2
21-5 56240021 Switch Spacer, Large 2
21-6 52170060 Cover, Switch 1
22 05000060 Hardware Packet 1
22-1 01090001 Screw, M6 x 1" 3
22-2 15000002 Wire Nuts 3
22-3 01070006 Screw, M4 x 8mm 2
22-4 01070015 Screw, M4 x 1 1/2" 2
22-5 15000004 Suction Cup 1

MAY14.0201
