Zephyr ZRME42CS Specifications

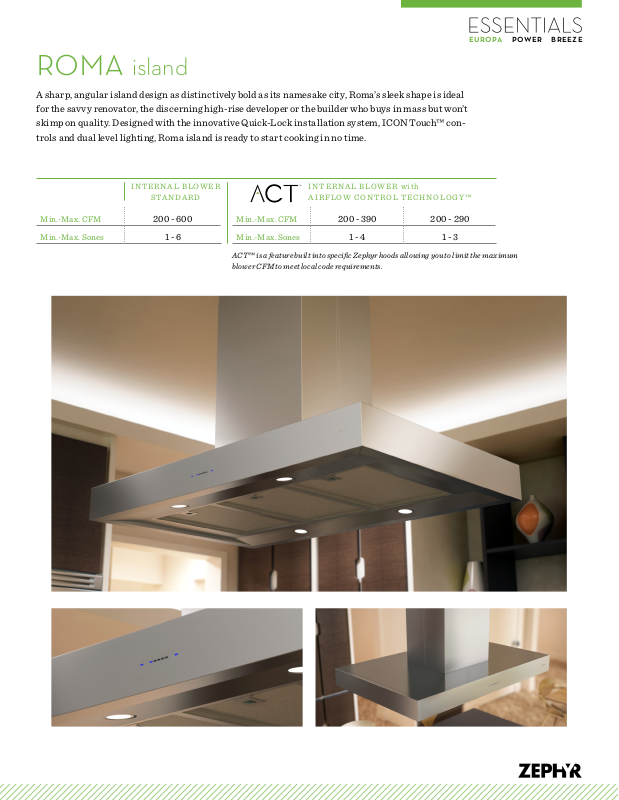

roma island
C
A sharp, angular island design as distinctively bold as its namesake city, Roma’s sleek shape is ideal
for the savvy renovator, the discerning high-rise developer or the builder who buys in mass but won’t
skimp on quality. Designed with the innovative Quick-Lock installation system, ICON Touch™ controls and dual level lighting, Roma island is ready to start cooking in no time.
eu ro pa power breeze
INTERNAL BLOWER
STANDARD
Min.-Max. CFM 200 - 600
Min.-Max. Sones 1 - 6
TM
INTERNAL BLOWER with
AIRFLOW CONTROL TECHNOLOGY™
Min.-Max. CFM 200 - 390 200 - 290
Min.-Max. Sones 1 - 4 1 - 3
ACT™ is a feature b uilt into specifi c Zephyr hoods a llowing you to l imit the maximum
blowe r CFM to meet local c ode requireme nts.
roma island | e uro pa
TOP
14”
SIzE
zRM-E 36CS
zRM-E42CS
PERF ORMANCE
INTE RNAL, M IN.-MAX . BLOWER CFM
INTERNAL, MIN.-MAX. SONES 1 - 6
eu ro pa power breeze
36”
42”
200 - 600
COLOR
STAINLESS STEEL
DUAL LEVEL LIGHTING Ye s
RECIRCULATING OPTION Yes
DUCT COVER EXTENSION OPTION Yes, Up to 12’ Ceiling
DUCT SPECIFICATIONS
VERTICAL - INTERNA L
HORIZONTAL - INTERNAL NA
FEATURES
ACT™
CONT ROLS ICON Touch™
SPEED LEVELS 3
AUTO DELAY-OFF No
LIGHTING Halogen, 50W x4
FI LTER S
zRM-E 36CS
zRM-E42CS
SS
Yes
Aluminum Mesh x 2
Aluminum Mesh x 3
6”
21 14 /16”
3 15/16”
35 7/8”, 41 7/8”
FRONT
12”
STANDARD
min. duc ted - 28”
min. recirc. - 32”
max. - 39”
Z1C- 01RM
min. duc ted - 50 1/2”
min. recirc. - 54 1/2”
max. - 79”
26 15 /16”
AC POwER 120V, 60Hz at Max. 4.2A
OPTIONAL ACCESSORIES
RECIRCULATING KIT
DUCT COVER EXTENSION Z1C-01RM
UNIVERSAL M AKE-UP AIR KIT MUA006A
MOUNTING HEIGHT* 26” - 34”
Specifications subject to change, check zephyronline.com for up-to-date information.
CEILING HEIGHT 8’ 8.5’ 9’ 9.5’ 10’ 10.5’ 11’ 12’
STA NDAR D
DUCT COVER
EXT ENSION
DUCT COVER
*Wh en ACT™ is ena bled the maxi mum speed lev els will chan ge. ACT 390 CFM = 4 s peeds and ACT 29 0 CFM = 3 speed s.
**Mount ing height refe rs to distance b etween top of a 3 6” tall cooki ng surface an d bottom of hoo d.
zRM-E 36CS
zRM-E42CS
wA RR AN TY 3 Years Parts, 1 Year Labor
Ducted Mou nting Height* 26”- 32” 27”- 34” 33”- 34” NA NA NA NA NA
Recir c. Mounting Height * 26”-2 8” 27”- 34” 33”- 34” NA NA NA NA NA
Ducted Mou nting Height* NA NA NA 26 ”-2 7.5 ” 26”- 33.5” 2 6”-34” 2 6”-34” 29 ”-34”
Recir c. Mounting Height * NA NA NA NA 26 ”-29.5” 2 6”-34” 26 ”-34” 29 ”-34”
ZRC-02RM
ZRC-01RM
SIDE
11 3 /16”
5”
6”
3 1/2”
4 1/8”
9 3/16”
CL
DEC13 .0201 Z ephyr Ventilat ion | 2277 Harb or Bay Parkwa y Alamed a, CA 94502 | 88 8.880.VEN T | zephyronl ine.com
