Zephyr ZPHY1745 Users manual

WWW.ZEPHYRONLINE.COM

Ai

gy

TM

Anzio Island

ZAZ-M90DS
ZAZ-E42DS

Luce Island

ZLC-M90CS
ZLC-E42CS

Roma Island

ZRM-E36FS
ZRM-E42FS

Ravenna Island

ZRE-M90BBSGG
ZRE-E42BBSGG

EN Use, Care, and Installation Guide

FR Guide d’utilisation, d’entretien et d’installation

C

MAR22.0101

rflow Control Te chnolo

CORE

ZAZ, ZLC, ZRM, ZRE

ISLAND

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

2

ZEPHYRONLINE.COM

Safety Information ............................................................................ 4-6

Types of Safety Warnings ................................................................... 4

General Safety ..................................................................................4-5

Operation ........................................................................................... 6

Electrical Requirements ...................................................................... 6

Federal Communication Commission Interface Statement ................. 6

List of Materials ...................................................................................7

Installation Instructions .....................................................................8-19

Ducting Calculation Sheet .................................................................. 8

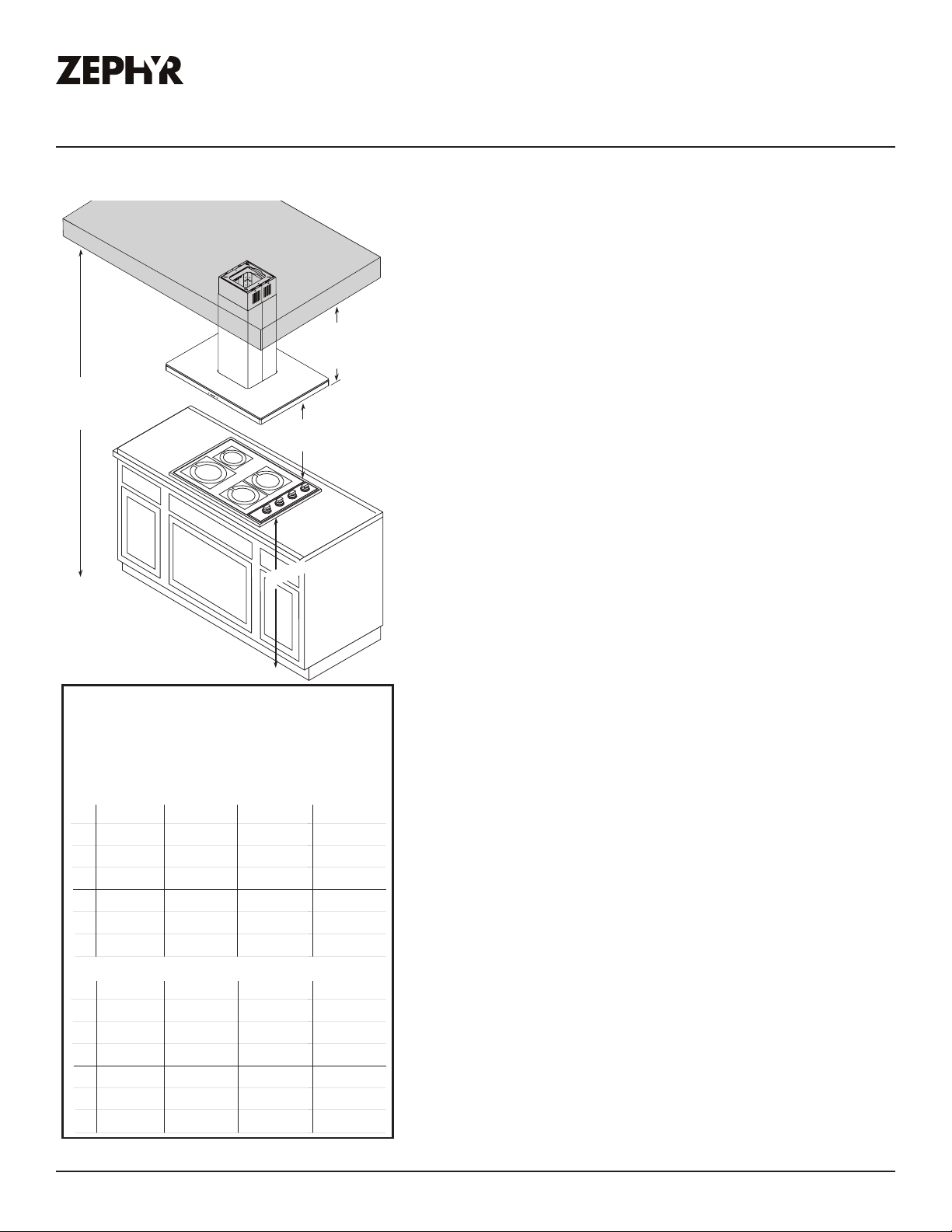

Mounting Height, Clearance, & Ducting ............................................. 9

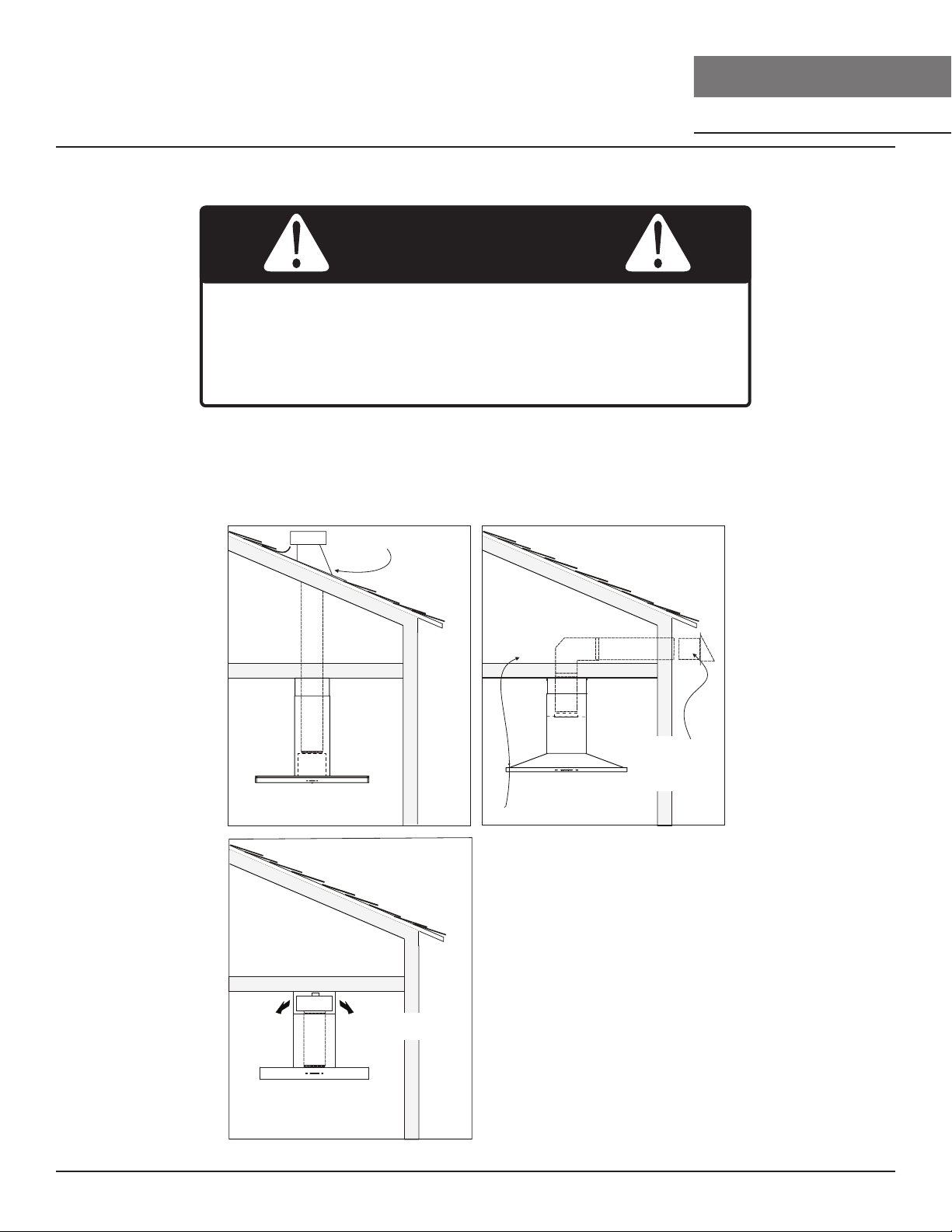

Ducting Options .................................................................................10

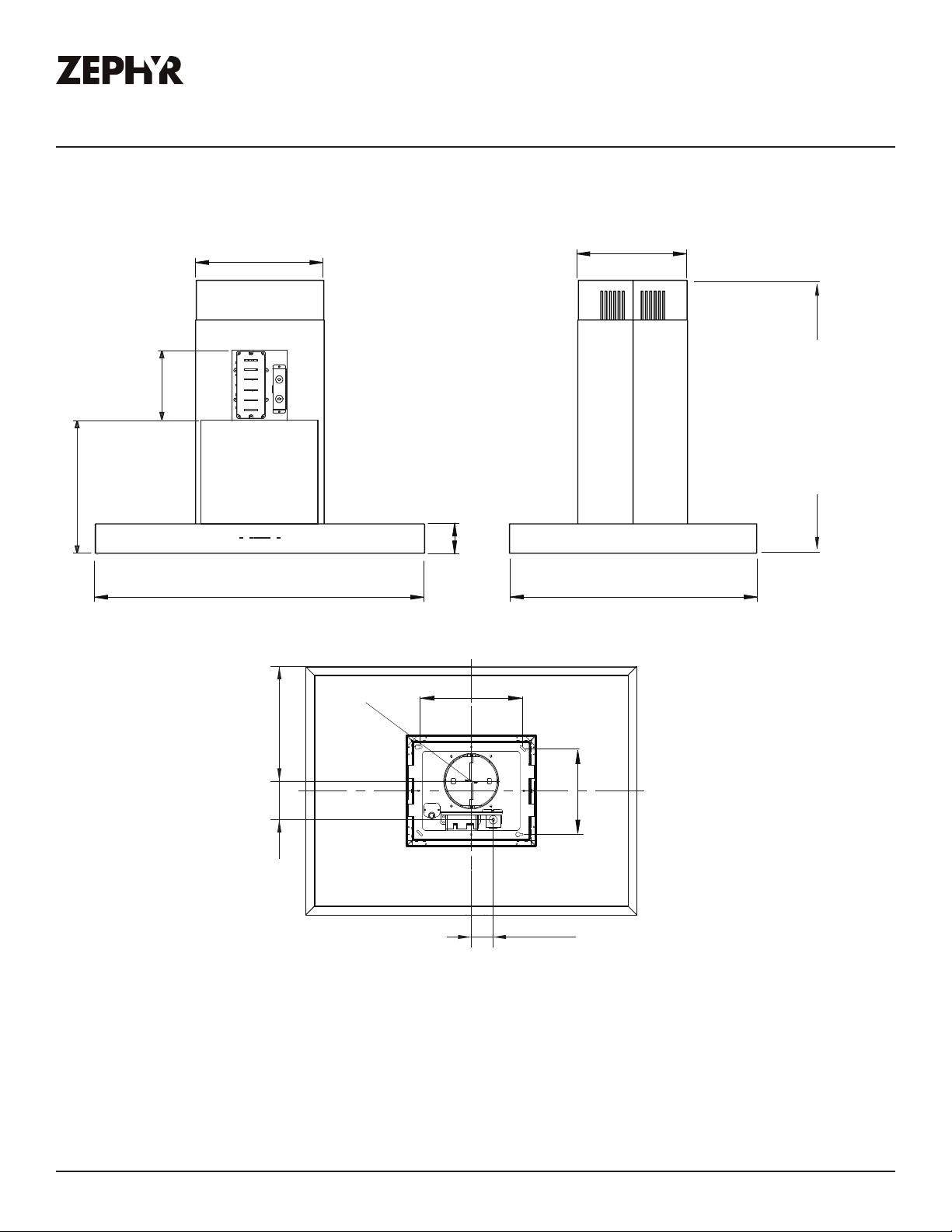

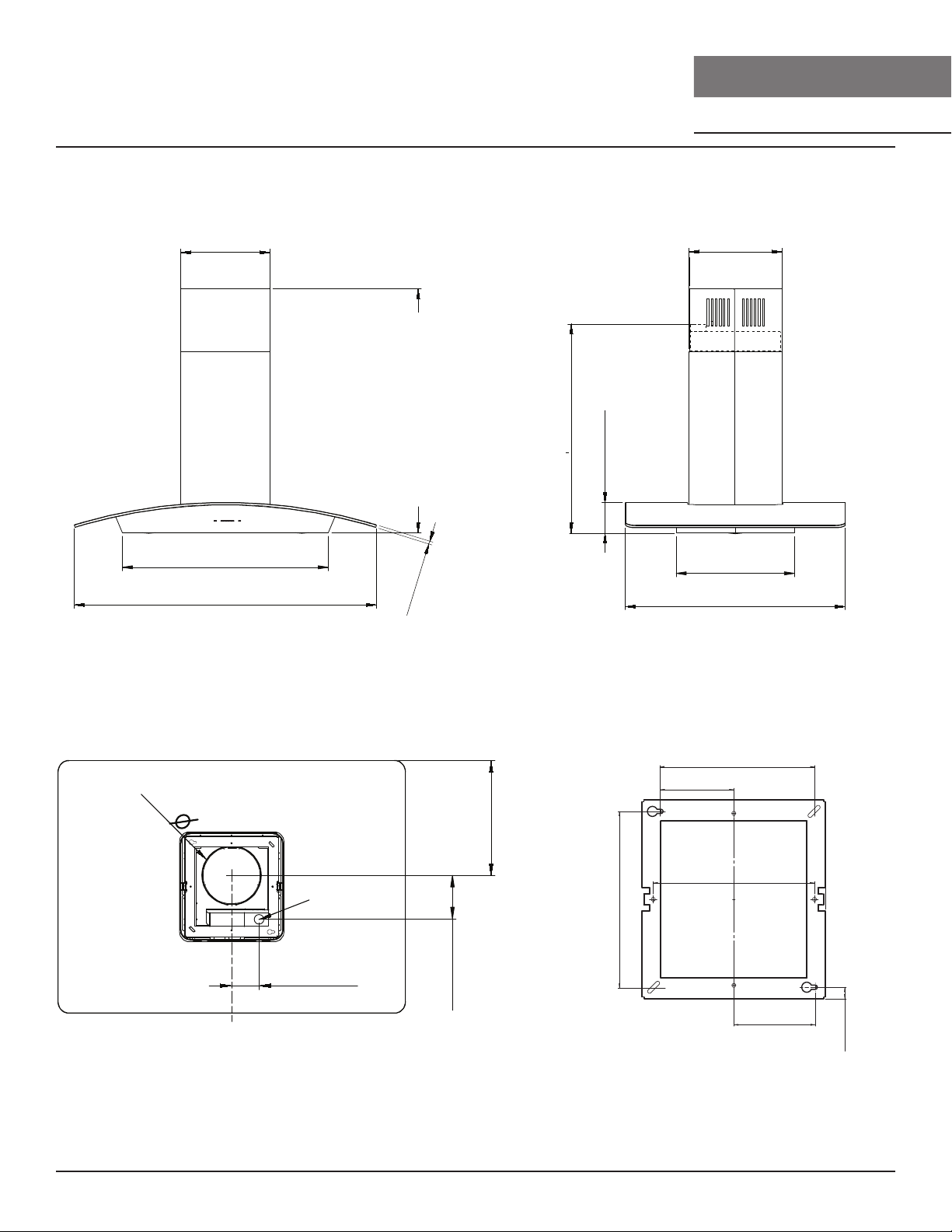

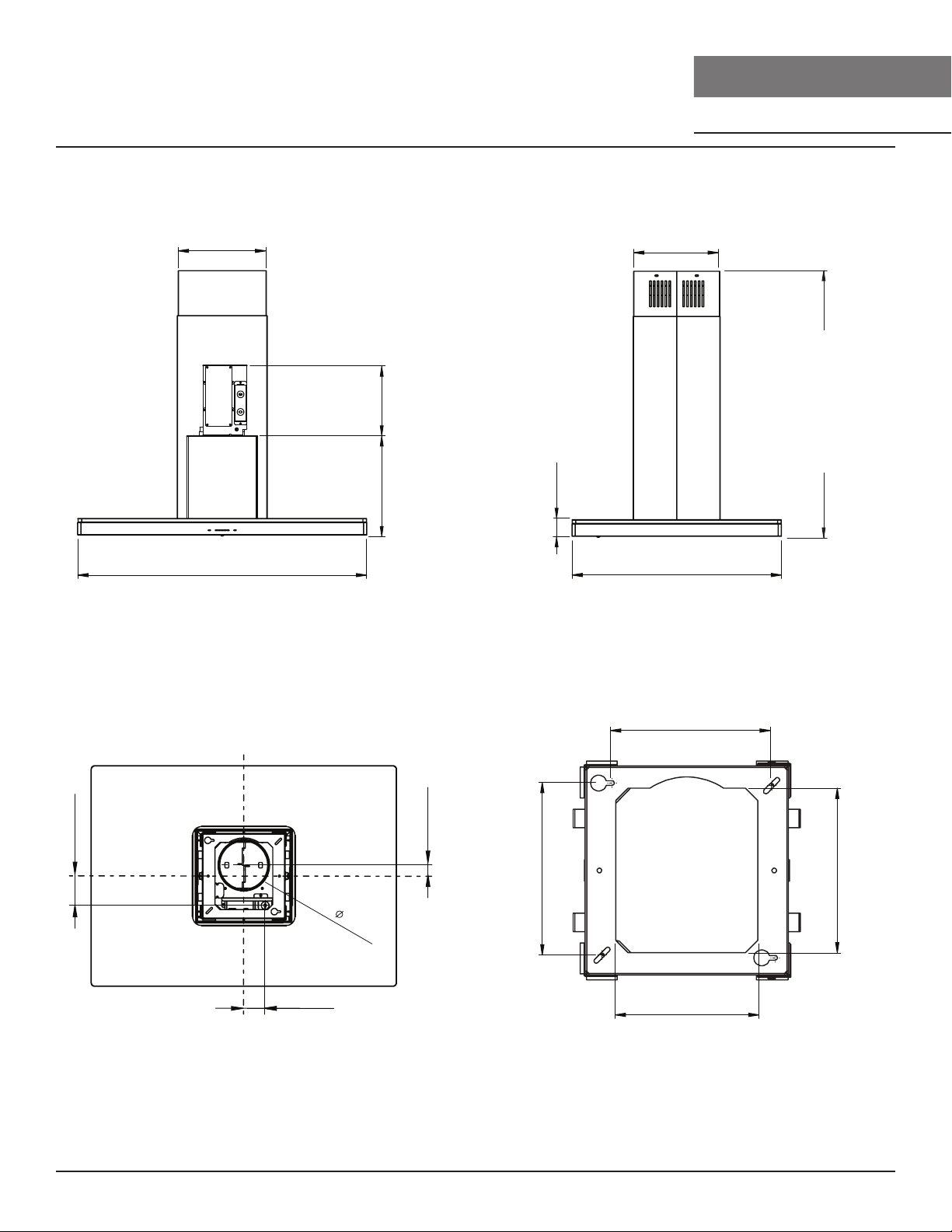

ZAZ Hood Specifications ..................................................................... 11

ZLC Hood Specifications ....................................................................12

ZRM Hood Specifications ....................................................................13

ZRE Hood Specifications .....................................................................14

Electrical Supply .................................................................................15

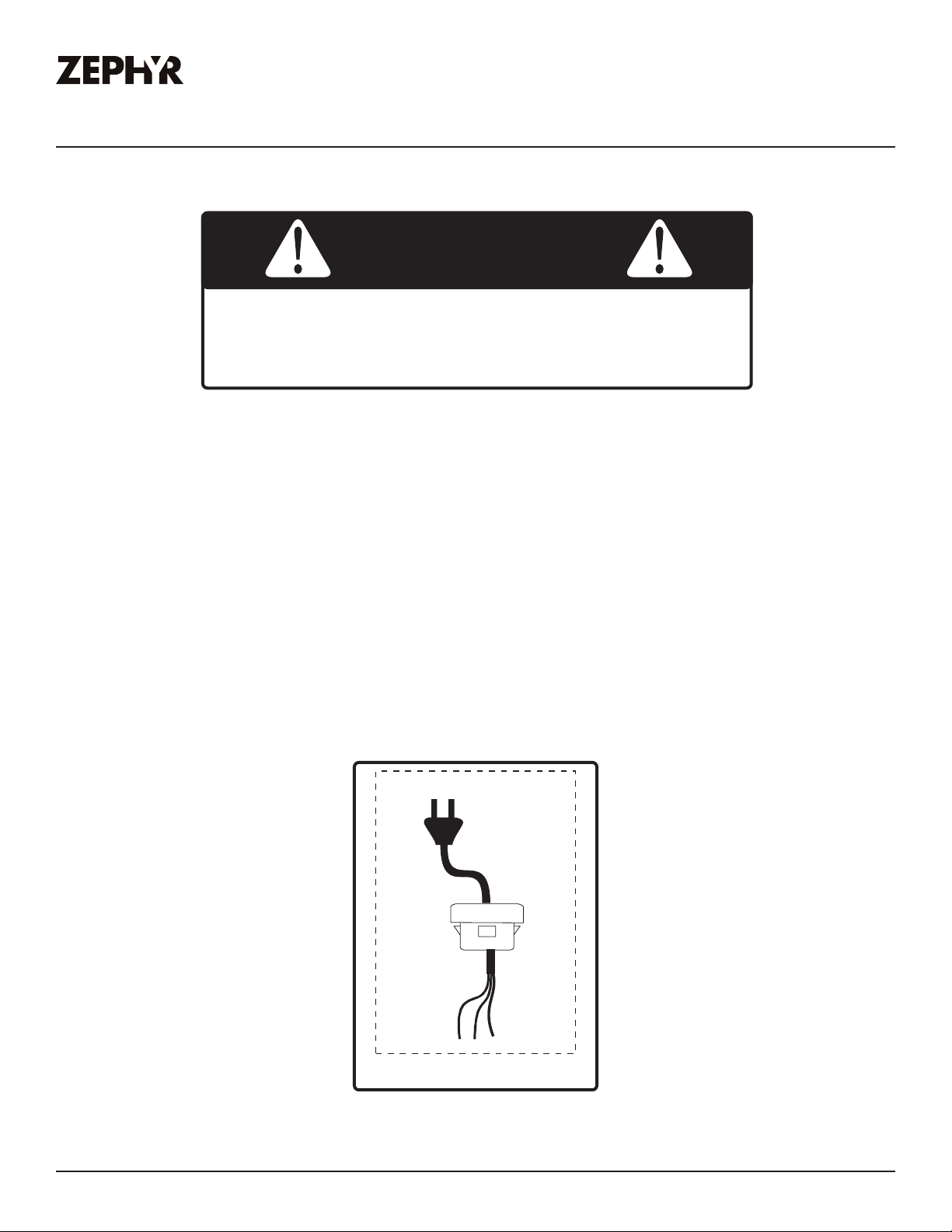

Cable Lock .........................................................................................15

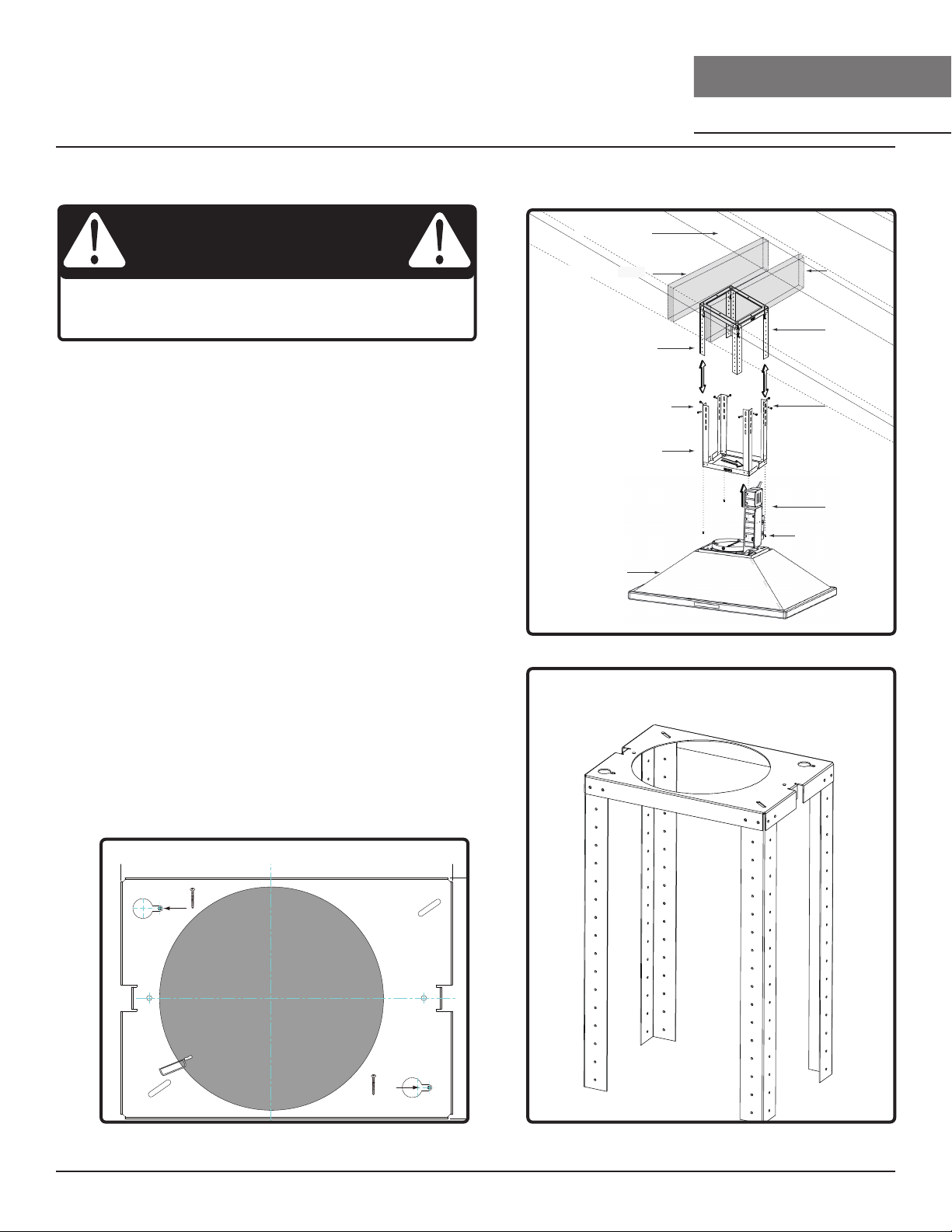

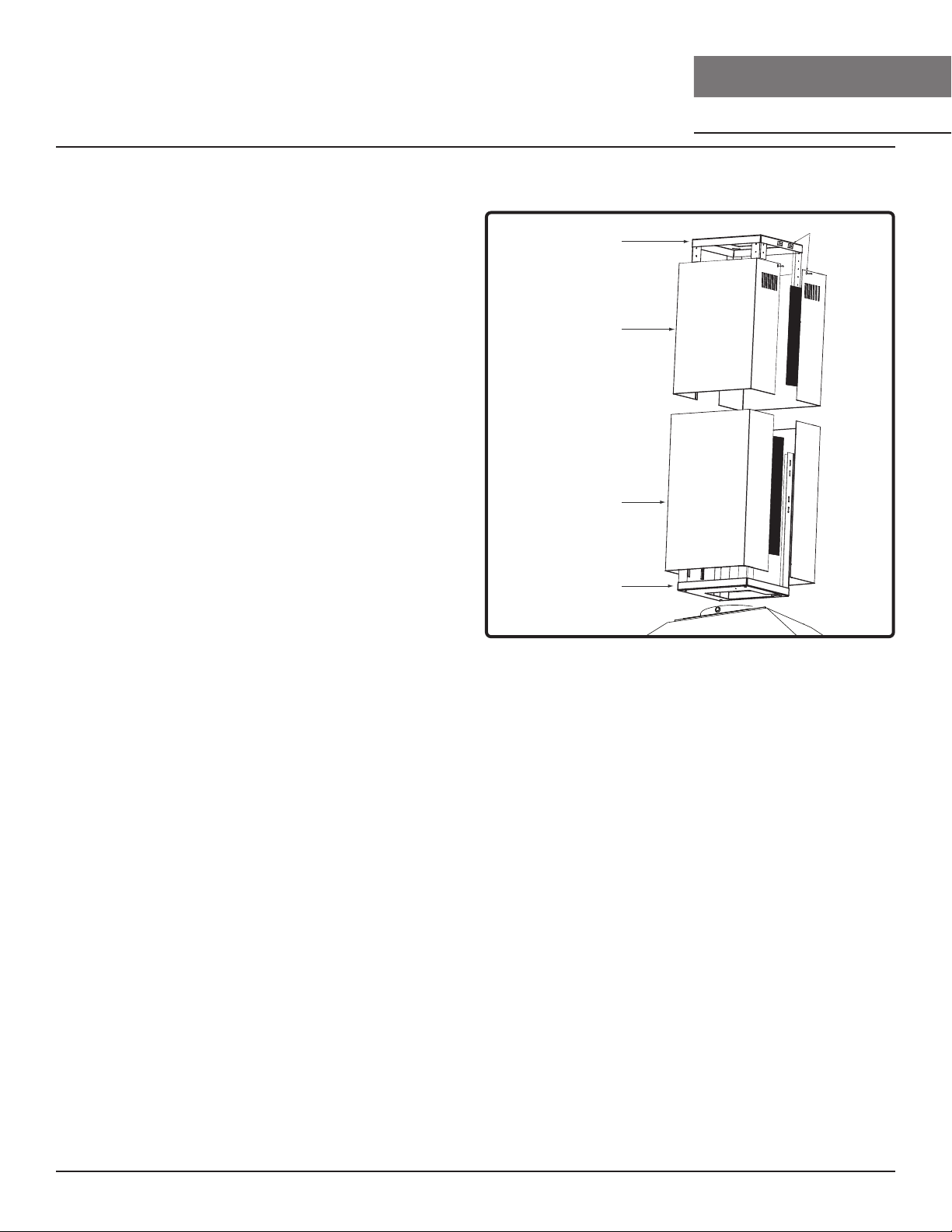

Mounting the Hood .......................................................................... 16-18

Ductless Recirculation ........................................................................19

Features & Controls ......................................................................... 20-23

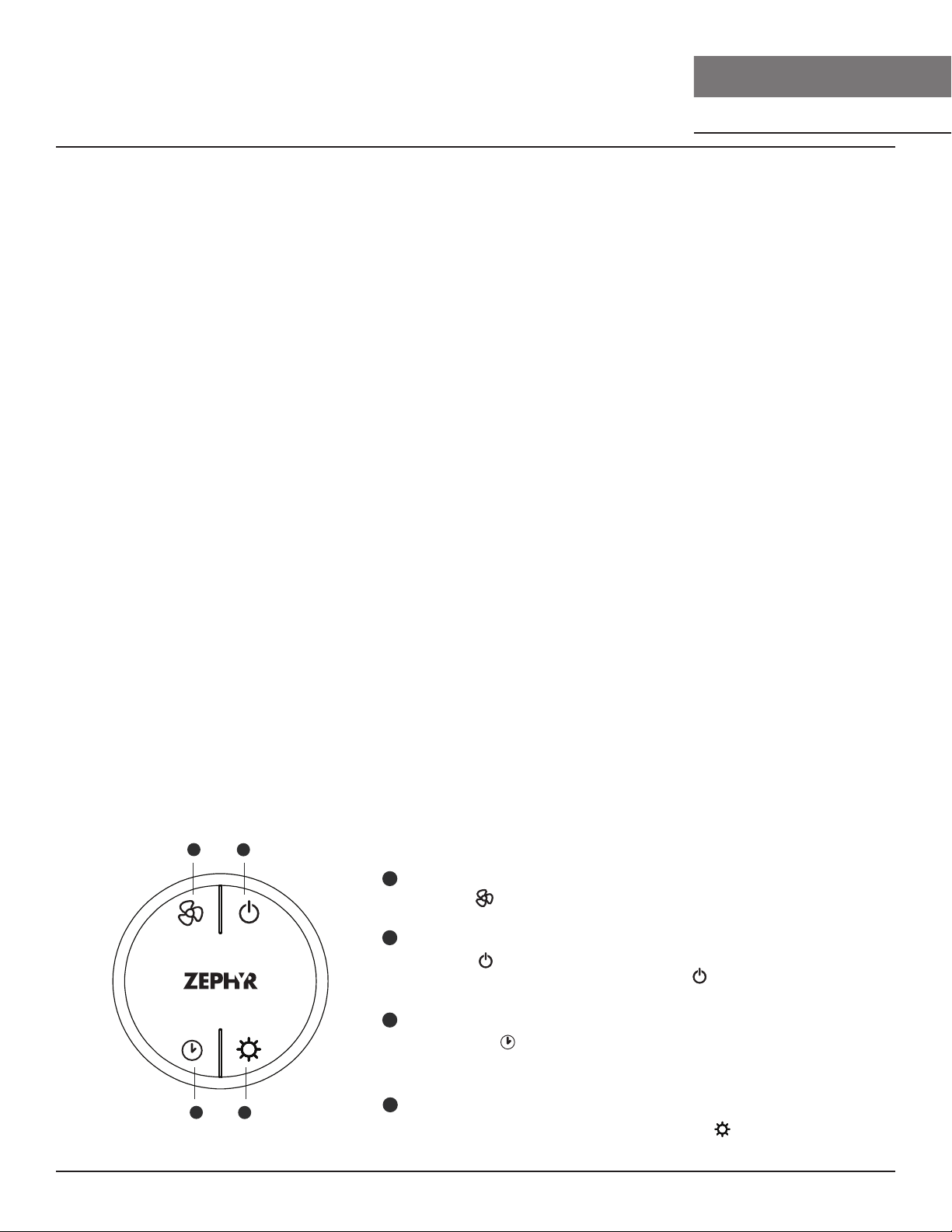

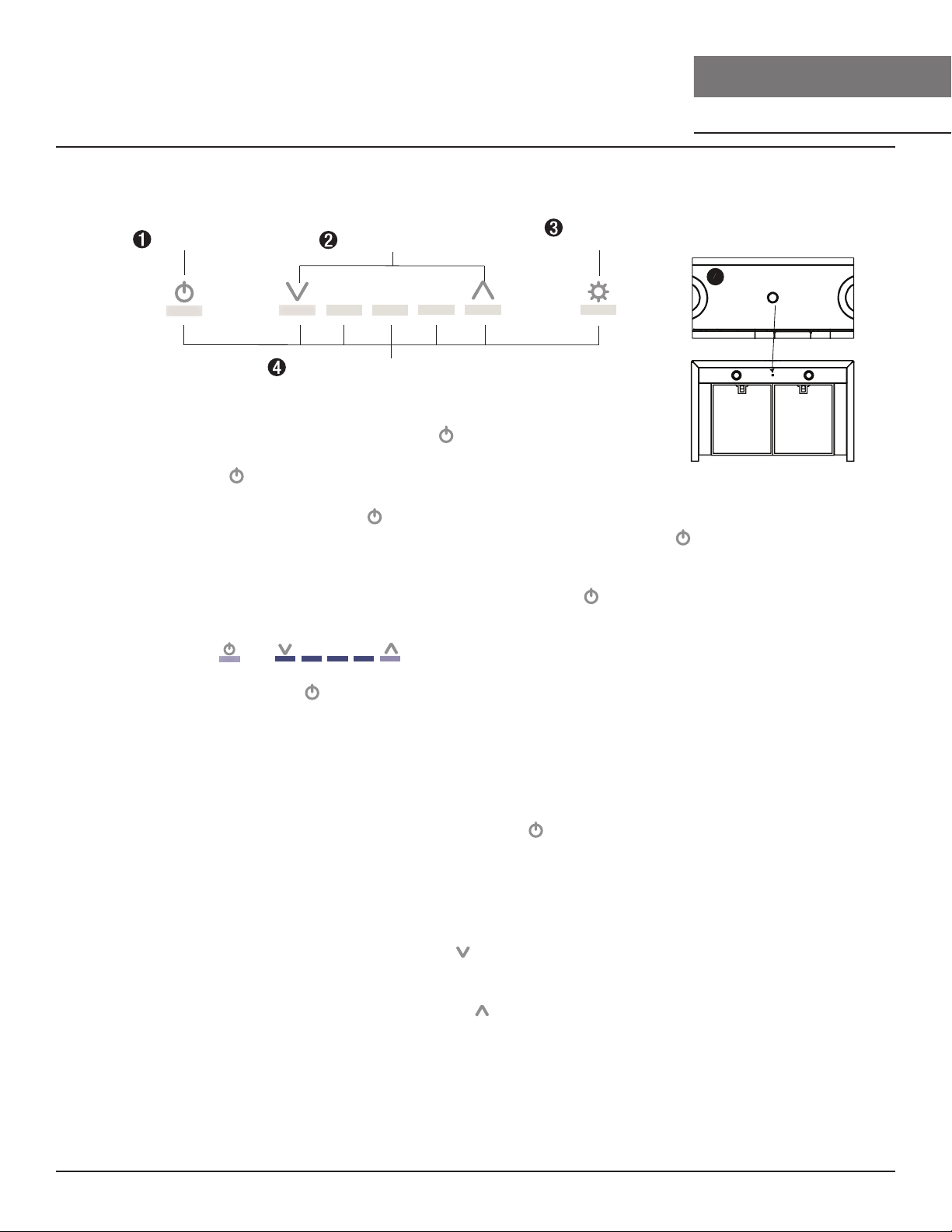

ICON Touch Controls ....................................................................... 20-21

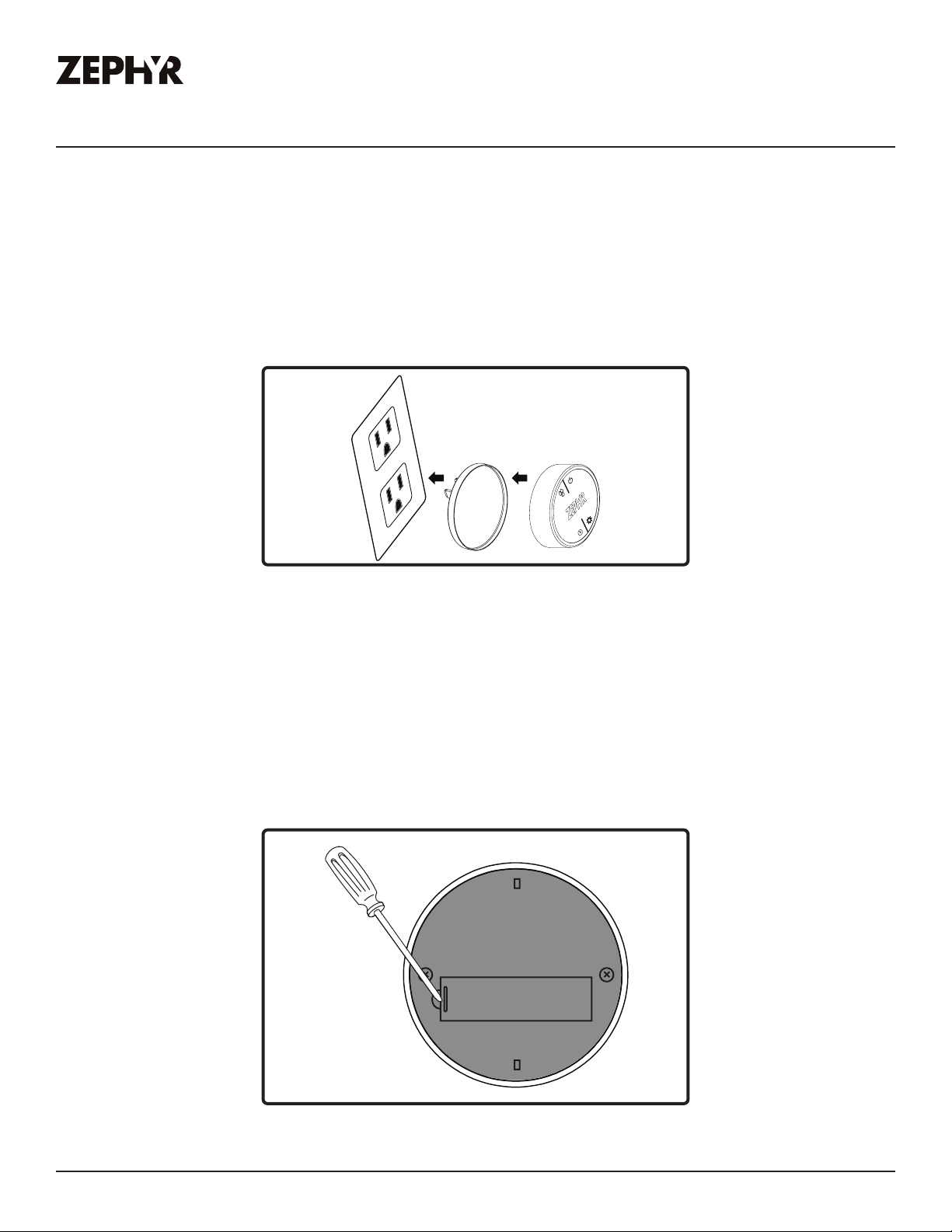

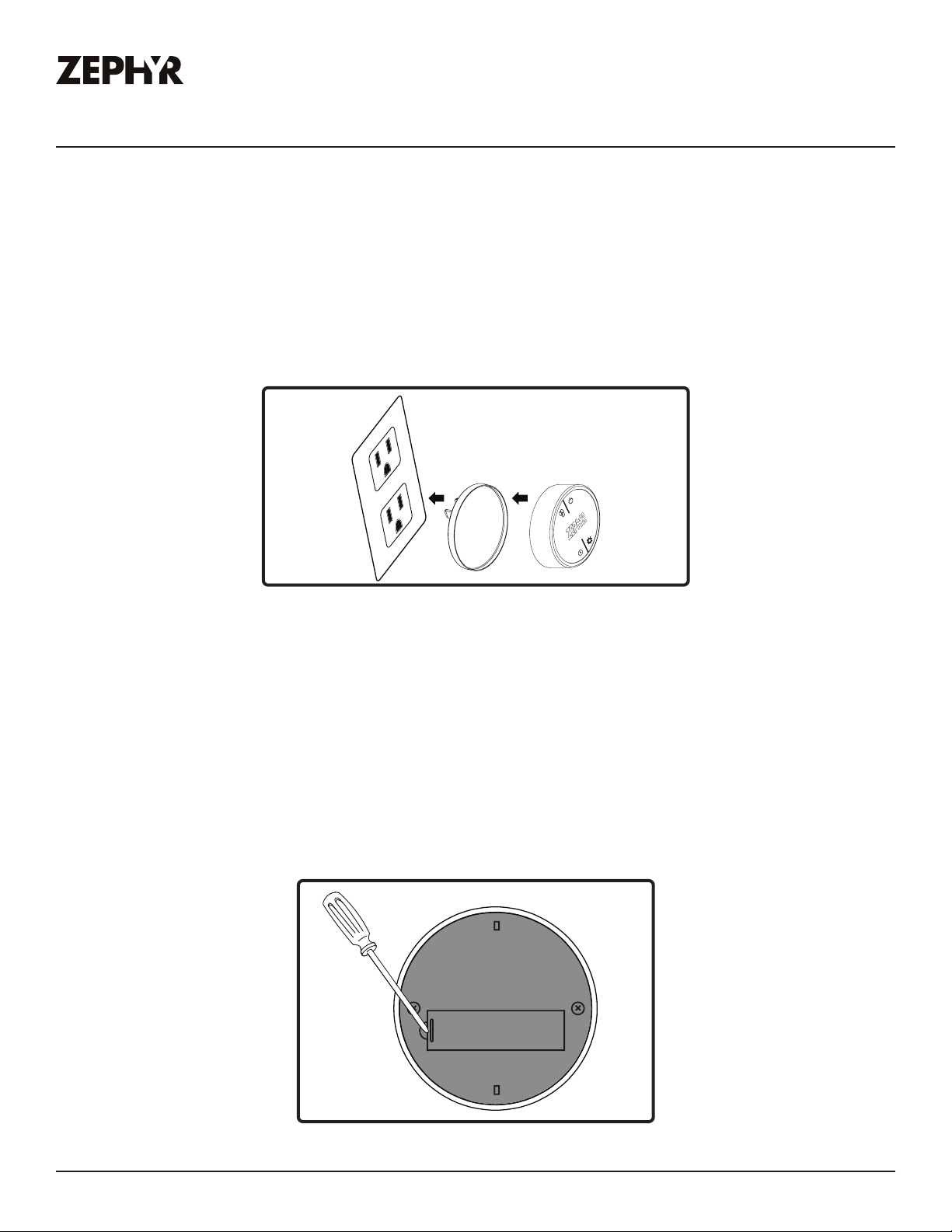

Optional Remote Control .................................................................22-23

Maintenance ................................................................................... 23-24

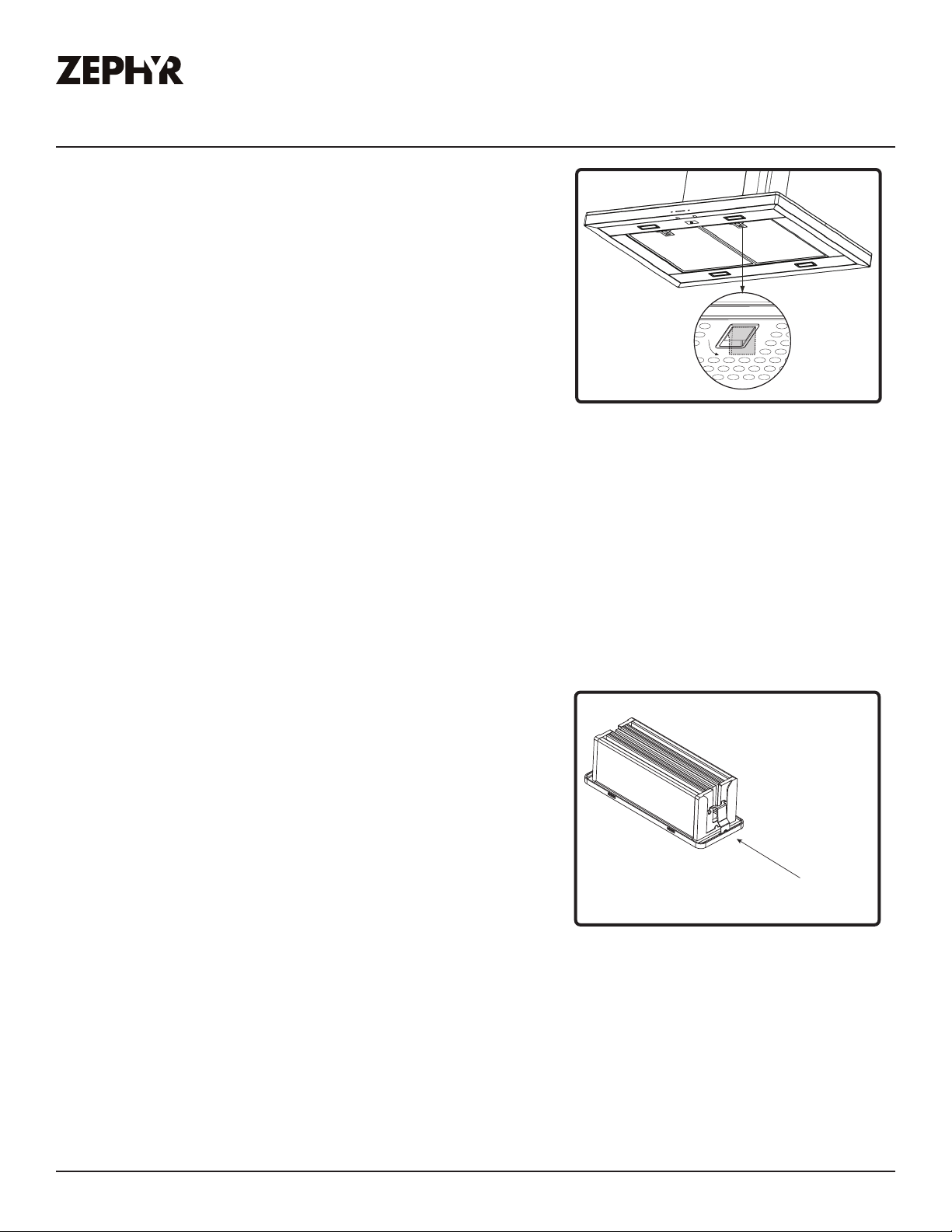

Hood & Filter Cleaning .....................................................................23-24

LumiLight LED ................................................................................... 24

ACT™ Conversion ............................................................................ 25-26

Airflow Control Technology (ACT™) ................................................... 25

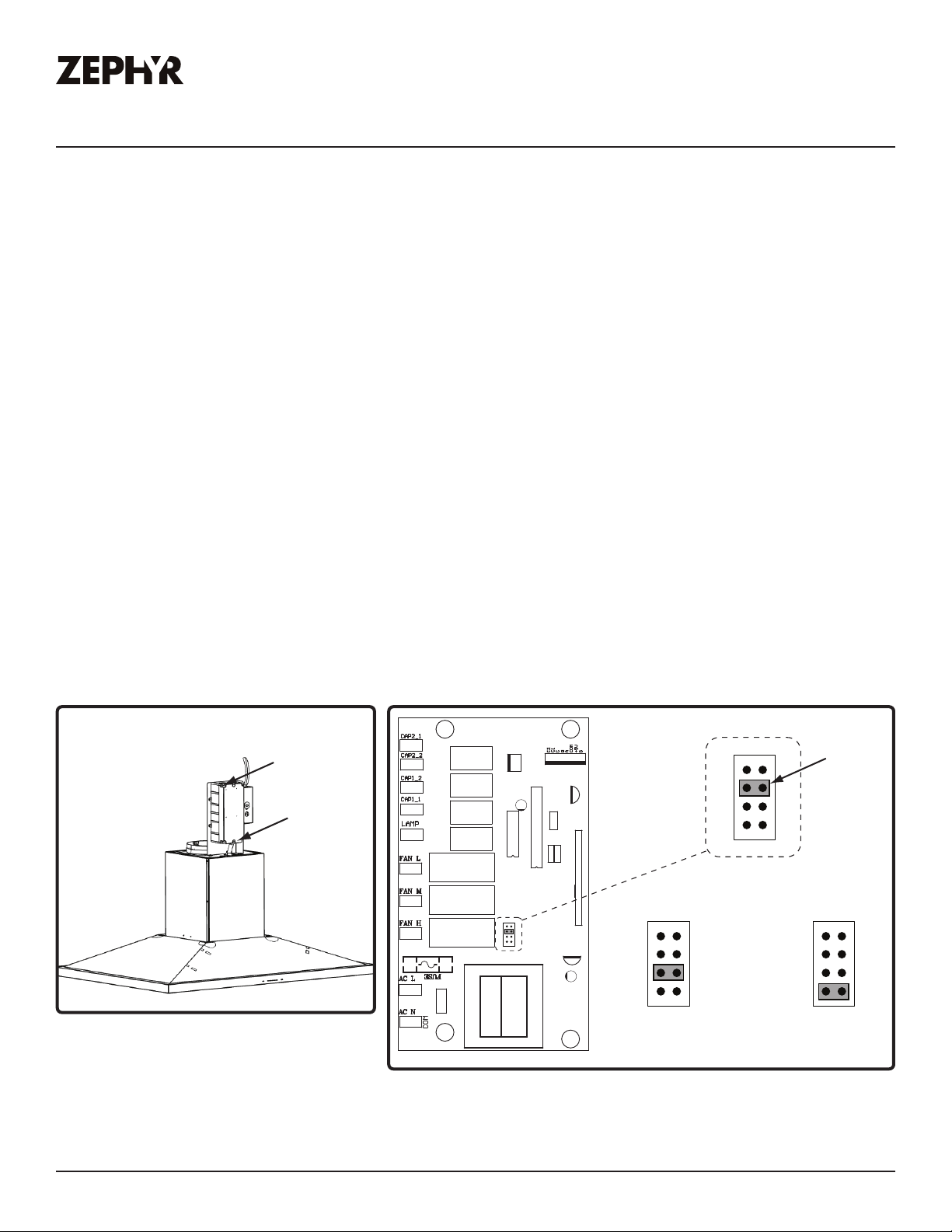

Enabling ACT™ .................................................................................. 26

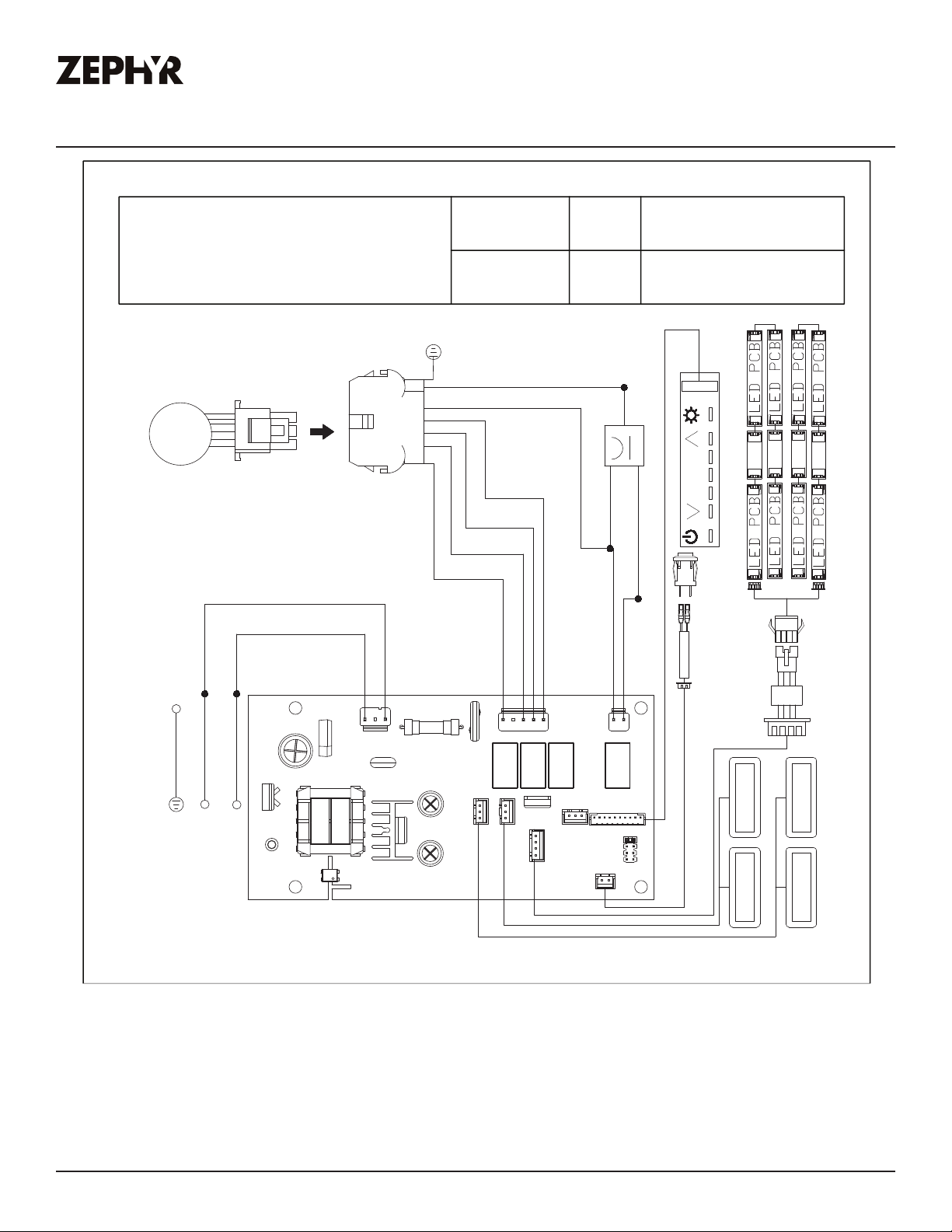

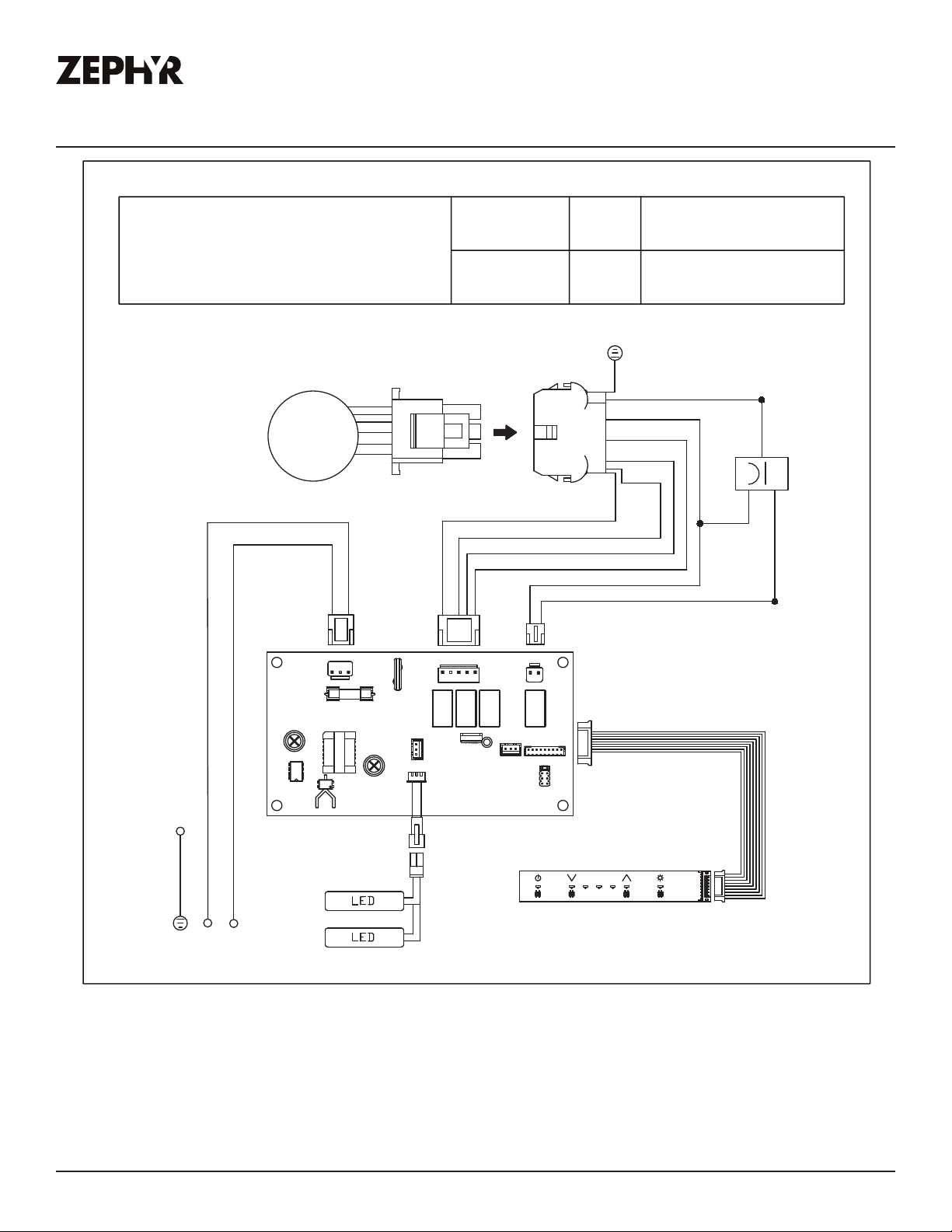

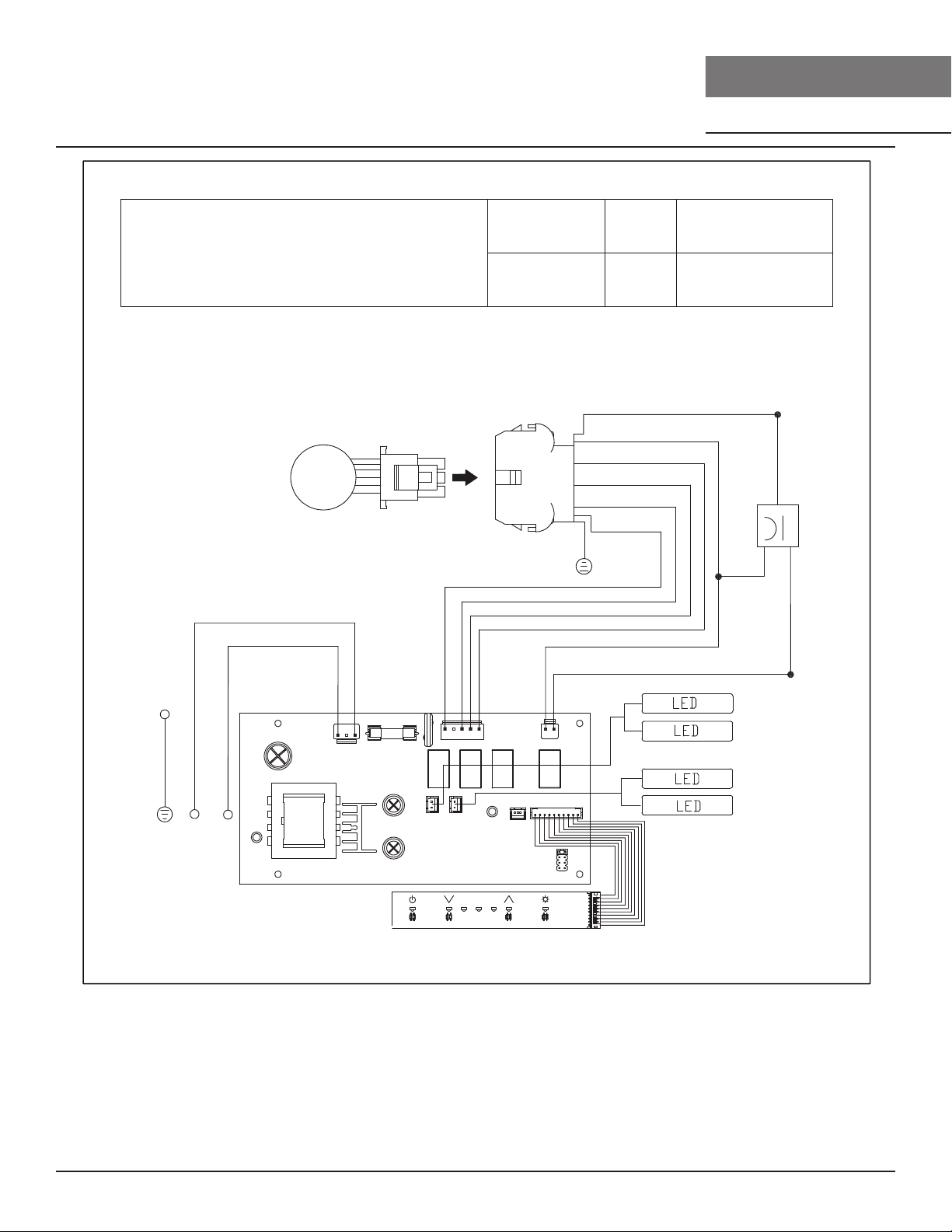

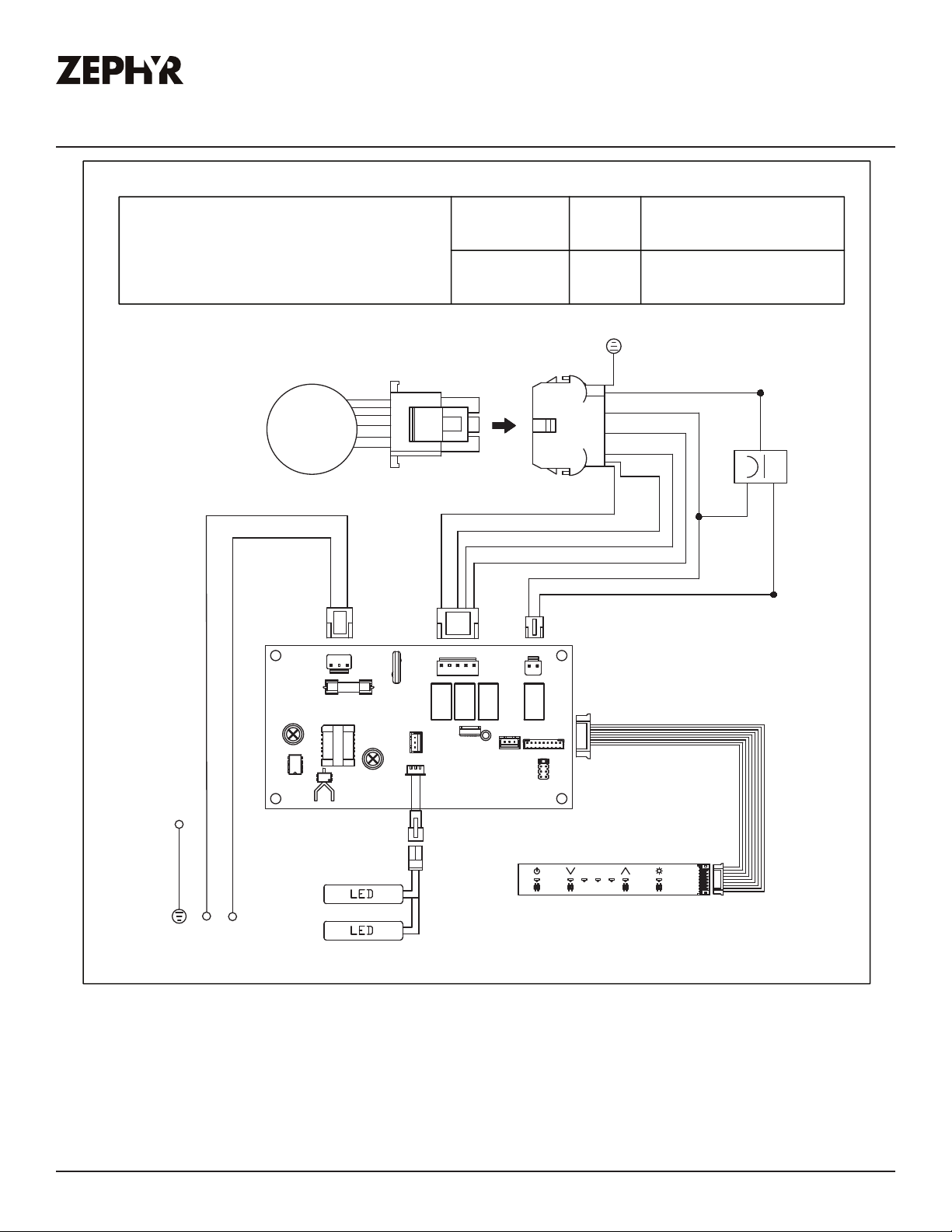

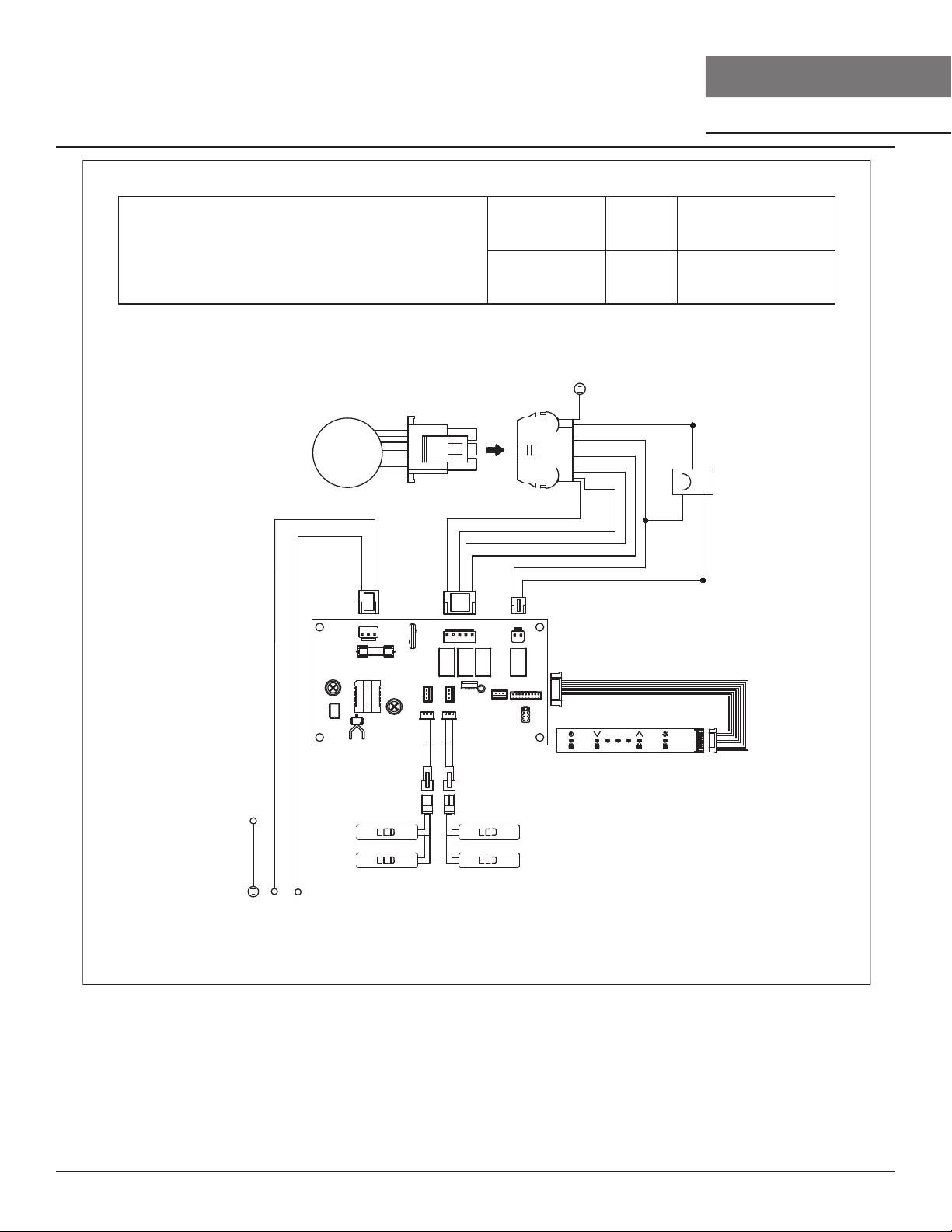

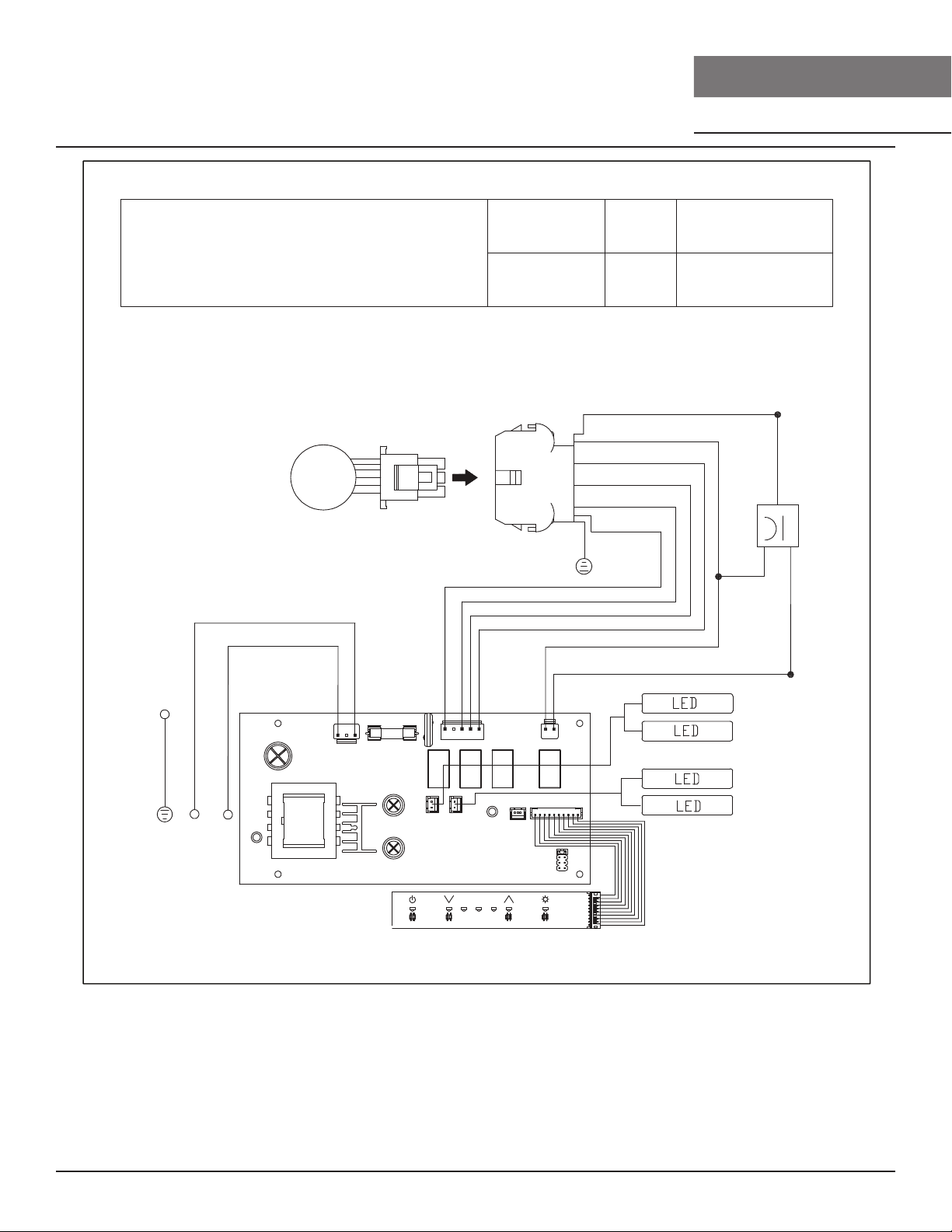

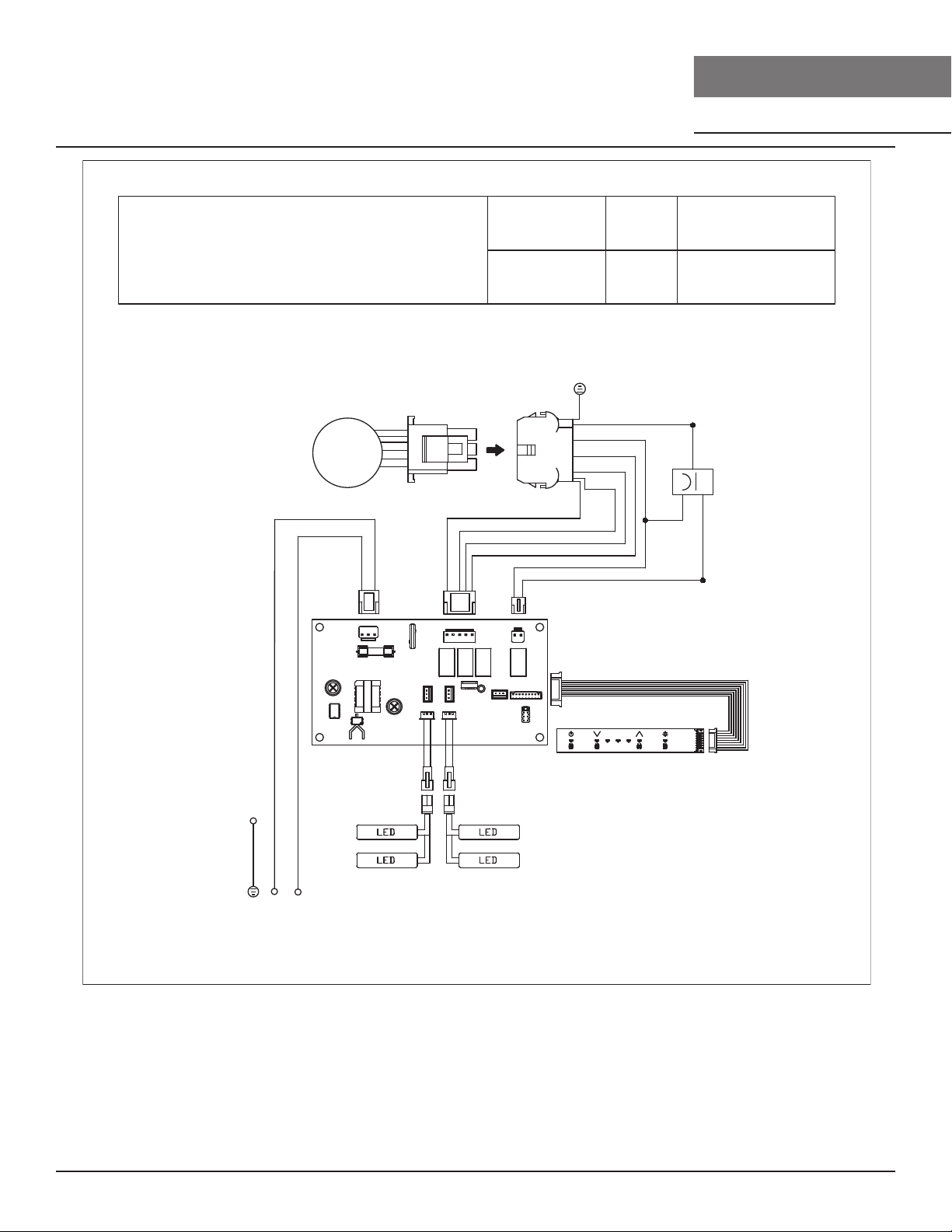

Wiring Diagram ................................................................................27-31

Troubleshooting............................................................................... 32-33

List of Parts & Accessories .................................................................. 34

Limited Warranty ...............................................................................35

Product Registration ...........................................................................36

Contents

Page

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

3

CORE

Safety Information

READ AND SAVE THESE INSTRUCTIONS

Your safety and the safety of others are very important.

We have provided many important safety messages in this

manual for your appliance. Always read and obey all safety

messages.

This is the Safety Alert Symbol. This symbol alerts you to

potential hazards that can cause severe bodily injury or death.

All safety messages will follow the Safety Alert Symbol and either

the words “DANGER” “WARNING” or “CAUTION”

DANGER

Danger means that failure to heed this safety statement may

result in severe injury or death.

WARNING

ZAZ, ZLC, ZRM, ZRE

ISLAND

WARNING

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the manufacturer.

b) Before servicing or cleaning unit, switch power o at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.

CAUTION

For General Ventilating Use Only. Do Not Use To Exhaust
Hazardous Or Explosive Materials And Vapors. Take care

when using cleaning agents or detergents. Suitable for use in

household cooking area.

Warning means that failure to heed this safety statement
may result in extensive product damage, serious personal

injury, or death.

CAUTION

Caution means that failure to heed this safety statement

may result in minor or moderate personal injury, property or

equipment damage.

General Safety

WARNING

To reduce the risk of fire or electric shock, do not use this fan

with any solid-state control device.

WARNING

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:

a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.

b) Always turn hood ON when cooking at high heat or
when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).

c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.

d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

4

ZEPHYRONLINE.COM

Safety Information

READ AND SAVE THESE INSTRUCTIONS

WARNING

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn o the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.

b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a

violent steam explosion will result.
d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you
already know how to operate it.

2) The fire is small and contained in the area where it
started.

3) The fire department is being called.

4) You can fight the fire with your back to an exit

Based on “Kitchen Firesafety Tips” published by NFPA.

WARNING

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.

b) Sucient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code
authorities.

c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.

d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be

marked as appropriate for the application and be connected
to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.

WARNING

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

To reduce risk of fire and to properly exhaust air outside, do
not vent exhaust air into spaces within walls, ceilings, attics,

crawl spaces, or garages.

WARNING

Prop. 65 Warning for California Residents: This product may

contain chemicals known to the State of California to cause

cancer, birth defects, or other reproductive harm.

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

5

CORE

Safety Information

ZAZ, ZLC, ZRM, ZRE

ISLAND

READ AND SAVE THESE INSTRUCTIONS

Operation

► Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and

loose clothing.

► The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,

maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and
the warranty of the unit automatically expires due to improper maintenance.

NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

Electrical Requirements

Important:

► Observe all governing codes and ordinances.
► It is the customer’s responsibility to be aware of these below:
► To contact a qualified electrical installer.
► To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest

edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.

► If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path

is adequate.

► Do not ground to a gas pipe.
► Check with a qualified electrician if you are not sure the range hood is properly grounded.
► Do not have a fuse in the neutral or ground circuit.
► This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected

by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram

on product.

► A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and

install appropriate connector if necessary.

* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

Federal Communication Commission Interface Statement

► This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

► This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following

measures:

► Reorient or relocate the receiving antenna.

► Increase the separation between the equipment and receiver.

► Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

► Consult the dealer or an experienced radio/TV technician for help.

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

6

ZEPHYRONLINE.COM

(2) Top Duct Covers

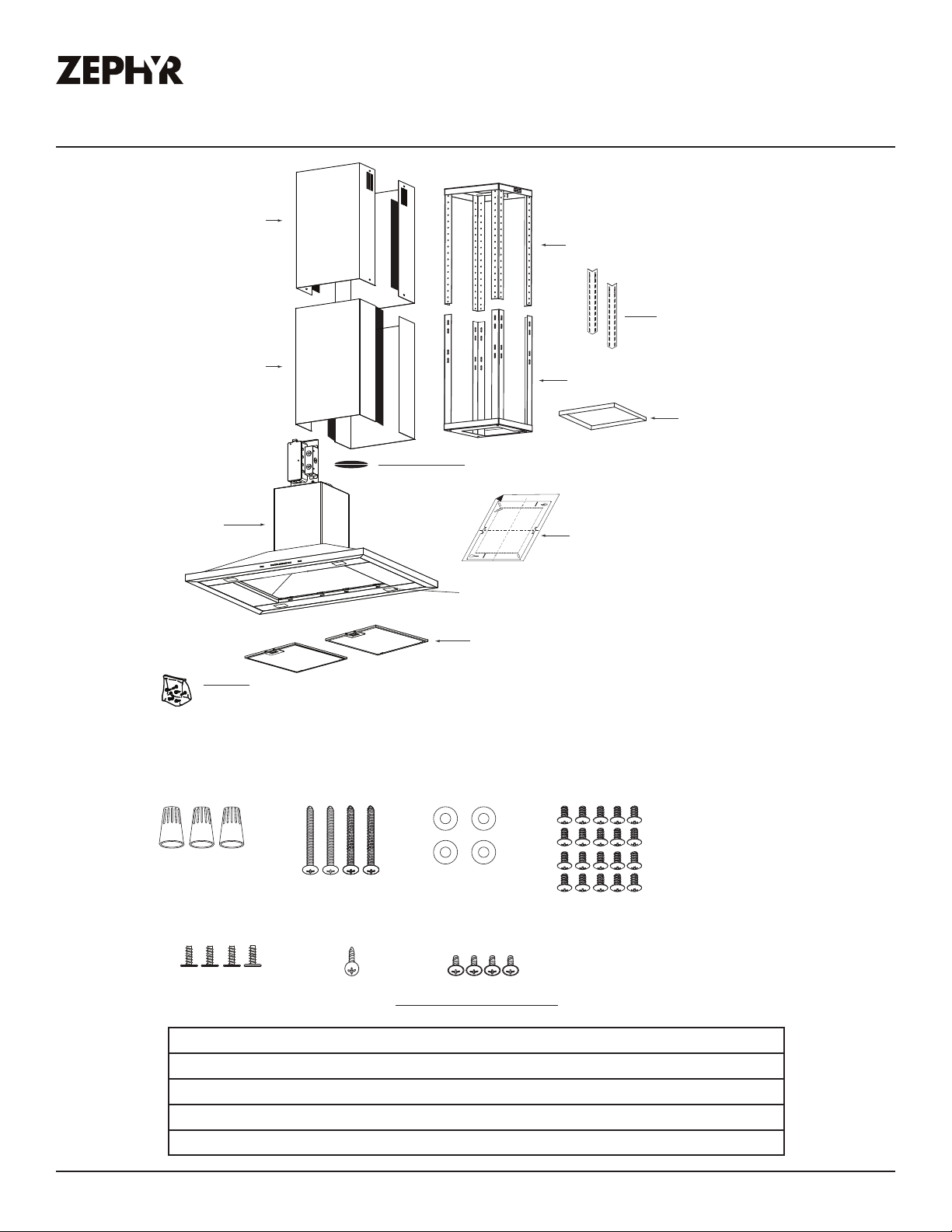

List of Materials

(1) Top Support Frame

(2) Lateral support brackets

(ZLC ONLY)

(2) Bottom Duct Covers

(1) Hood Body

(1) Hardware package

HARDWARE PACKAGE CONTENTS

(3) Wire Nuts

(4) M4 x 1”

wood screws

(1) 6” round damper (pre-installed)

A

(4) LumiLight LED

(2) Mesh Filters
(ZAZ-E42 & ZRM-E42 x 3)

(4) ø12 OD / ø5

ID Washers

Front of Hood

C

/

L

B

Cut-Out Shaded Area

(20) M4 x 8 pan-head

machine screws
(ZLC x 8)

(1) Bottom Support Frame

(1) Square support bracket

(ZAZ ONLY)

(1) Paper ceiling template

(4) 3/16 x 1/4” flat-head

machine screws

(1) M4 x 12

safety screw

(4) 3/16 x1/4 pan-head

machine scews

(ZRE only)

Parts Not Supplied

Ducting, conduit and all installation tools
Cable locking connector (if required by local codes)
Extension duct covers
Optional recirculating kit
Optional remote control

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

7

CORE

Installation Instructions

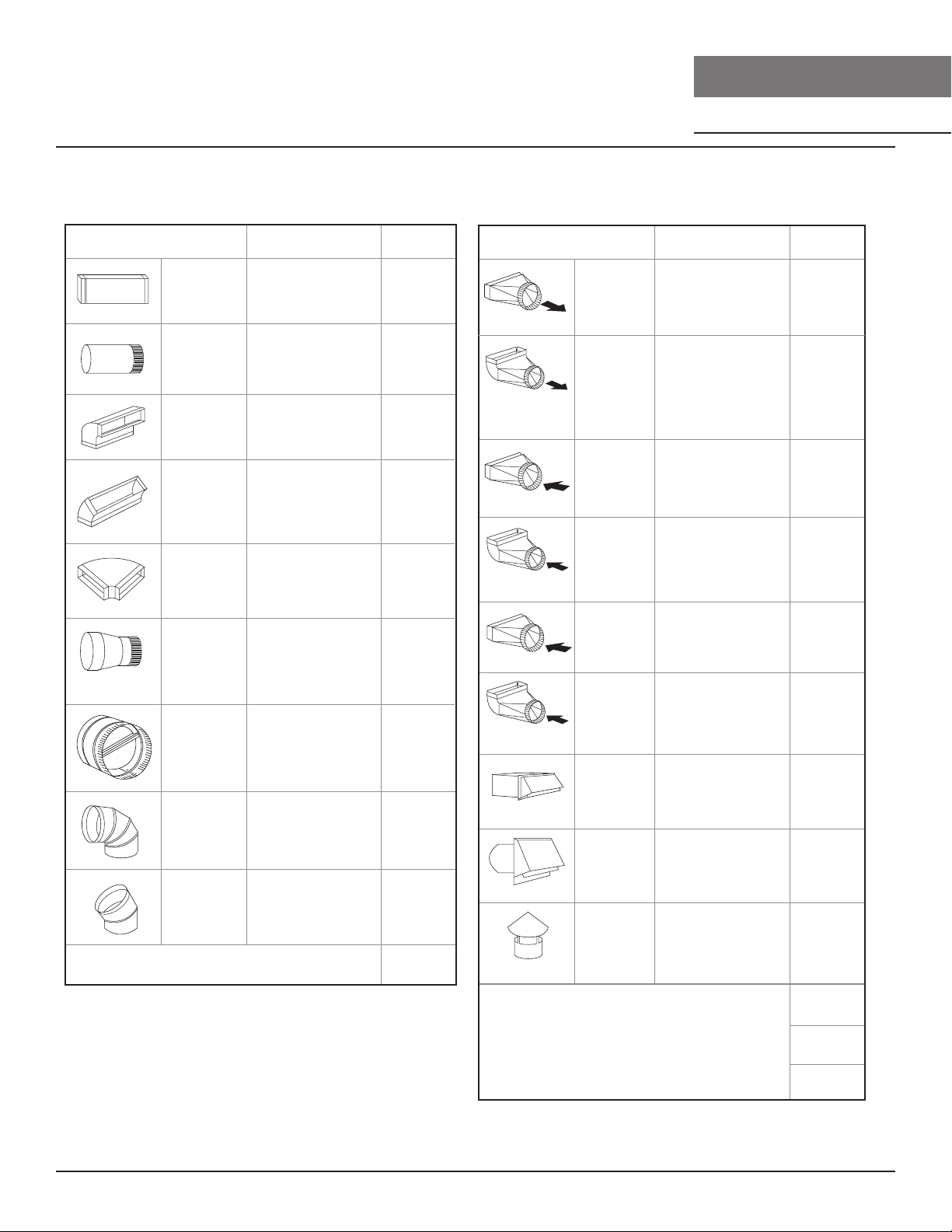

Ducting Calculation Sheet

Duct pieces

3- 1/ 4” x 10”
Rect.,
straight

6”, 7”, 8”, 10”
Round,
straight

3- 1/ 4” x 10”
Rect. 90
elbow

3- 1/ 4” x 10”
Rect. 45
elbow

3- 1/ 4” x 10”
Rect. 90
flat elbow

7” to 6” or
8” to 7” Round
tapered
reducer

6”, 7“, 8”
Round
in-line
damper

6”, 7”, 8”, 10”
Round,

0

90

elbow

6”, 7”, 8”, 10”
Round,

0

45

elbow

Equivalent number
length x used =

1 Ft. x ( ) =

1 Ft. x ( ) =

15 Ft. x ( ) =

0

9 Ft. x ( ) =

0

24 Ft. x ( ) =

0

25 Ft. x ( ) =

15

Ft. x ( ) =

15 Ft.

9 Ft. x ( ) =

Subtotal column 1 =

x ( ) =

To tal

Ft.

Ft.

Ft.

Ft.

Ft.

Ft.

Ft.

Ft.

Ft.

Ft.

Duct pieces

3- 1/ 4” x 10”
Rect. to
6” round
transition

3- 1/ 4” x 10”
Rect. to
6” round
transition

0

elbow

90

6” round to
3- 1/ 4” x 10”
rect.
transition

6” round to
3- 1/ 4” x 10”
rect.
transition

0

90

elbow

7” round to
3 1/ 4” x 10”
rect.
transition

7” round to
3- 1/ 4” x 10”
rect.
transition

0

90

elbow

3- 1/ 4” x 10”
Rect.
wall cap
with damper

6”, 7”, 8”, 10”
Round, wall
cap with
damper

6”, 7”, 8”, 10”
Round
roof cap

ZAZ, ZLC, ZRM, ZRE

Equivalent number
length x used =

5 Ft. x ( ) =

20 Ft. x ( ) =

1 Ft. x ( ) =

16 Ft. x ( ) =

8 Ft. x ( ) =

23 Ft. x ( ) =

30 Ft. x ( ) =

30 Ft. x ( ) =

30 Ft. x ( ) =

To tal

ISLAND

Ft.

Ft.

Ft.

Ft.

Ft.

Ft.

Ft.

Ft.

Ft.

Subtotal column 2 =

Maximum Duct Length: For satisfactory air movement,

the total duct length

should not exceed 150 equivalent feet.

Subtotal column 1 =

Totalductwork =

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

8

Ft.

Ft.

Ft.

Installation Instructions

ZEPHYRONLINE.COM

Mounting Height, Clearance, & Ducting

A minimum of 6” round duct must be used to maintain
maximum air flow eciency.

Always use rigid type metal ducts only. Flexible ducts could
restrict air flow by up to 50%.

Also use calculation (on page 8) to compute total available
duct run when using elbows, transitions and caps.

min. D
min. E
max. F

A : Minimum Ducted Hood Height
B : Minimum Recirculating Hood Height
C : Maximum Hood Height
D : Minimum Ducted Ceiling Height
E : Minimum Recirculating Ceiling Height
F : Maximum Ceiling Height

Standard Duct Cover

ZAZ ZLC ZRM

A

31-

1/2

”

36”

B

50”

C

91-

1/2

” (7’ 7-

D

96” (8’ 0”)

E

120” (10’)

F

ZAZ ZLC ZRM

47”

A

51”

B

C

80”

107” (8’ 11”)

D

111” (9’ 3”)

E

150” (12’ 6”)

F

29”

32-

1/2

1/2

46-

1/2

”)

89” (7’ 5”)

92-

1/2

” (7’ 8-

116-

1/2

” (9’ 8-

Extension Duct Cover

47”

51”

80”

107” (8’ 11”)

111” (9’ 3”)

150” (12’ 6”)

”

”

1/2

1/2

”)

”)

88” (7’ 4”)

91” (7’ 7”)

109” (9’ 1”)

110-

110-

150” (12’ 6”)

28”

31”

39”

50-

50-

1/2

1/2

36”

1/2

1/2

80”

” (9’ 2-

” (9’ 2-

min. A
min. B
max. C

24” min.
34” max.

ZRE

28-

28-

88-

1/2

88-

1/2

109” (9’ 1”)

48-

”

48-

”

1/2

”)

108-

1/2

1/2

”)

1/2

109-

148” (12’ 4”)

1/2

1/2

39”

” (7’ 4-

” (7’ 4-

ZRE

1/2

1/2

78”

” (9’

” (9’

ALWAYS, when possible, reduce the number or transitions
and turns. If long duct run is required, increase duct size.

If turns or transitions are required; install as far away from
hood duct output and as far apart, between the two as
possible.

Minimum mount height between range top to hood bottom
should be no less than 24”. Maximum mount height should
be no higher than 34”.

It is important to install the hood at the proper mounting
height. Hoods mounted too low could result in heat
damage and fire hazard; while hoods mounted too high
will be hard to reach and will lose its performance and
eciency.

If available, also refer range manufacturer’s height
clearance requirements and recommended hood mounting
height above range.

”

”

For shipment and installation damages:

► Please fully inspect unit for damage before installation.

1/2

”)

1/2

”)

► If the unit is damaged in shipment, return the unit to the

store in which it was bought for repair or replacement.

► If the unit is damaged by the customer, repair or

”

”

replacement is the responsibility of the customer.

► If the unit is damaged by the installer (if other than

1/2

”)

1/2

”)

the customer), repair of replacement must be made by
arrangement between customer and installer.

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

9

CORE

Roof Pitch w/
Flashing & Cap

Sot or crawl space

(blower

housing)

ductless
recirculating

side wall cap
w/ gravity damper

Installation Instructions

ZAZ, ZLC, ZRM, ZRE

Ducting Options

WARNING

Fire Hazard: NEVER exhaust air or terminate ductwork into

spaces between walls, crawl spaces, ceilings, attics, or garages.

All exhaust must be ducted to the outside, unless using the

recirculating option.

► Use single wall rigid metal ductwork only.

► Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct

Tape.

ISLAND

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

10

ZEPHYRONLINE.COM

FRONT SIDE

TOP

TOP SUPPORT FRAME

(top view)

C/L

8-

1/8

”

7-

9/16

”

3-

9/16

”

13/16”

4-

3/16

”

8-1/4”

STANDARD
min. ducted - 31-

1/2

”
min. recirc. - 36”
max. - 50”

Z1C-00AZ
min. ducted - 47”
min. recirc. - 51”
max. - 80”

10-

5/8

”

25-

9/16

”

1-

3/16

”

11”

35-

7/16

”, 41-

15/16

”

9-

7/16

”

16-

9/16

”

5-

1/4

”

5-

15/16

”

3-

1/2

”

AC In

1-

1/4

”

C/L

C/L

1-

7/8

”

5-

5/16

”

ZAZ Hood Specications

Installation Instructions

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

11

CORE

FRONT

SIDE

TOP of HOOD

TOP SUPPORT FRAME

(top view)

FRONT

11”

35-

7/16

”, 41-

7/8

”

STANDARD
min. ducted - 29”
min. recirc. - 32-

1/2

”

max. - 46-

1/2

”

Z1C-00LC
min. ducted - 47”
min. recirc. - 51”
max. - 80”

6”

C/L

C/L

9-

7/16

”12-

3/8

”

2-

1/16

”

10-

5/8

”

25-

9/16

”

3-

7/16

”

2-

1/2

”

1-

1/4

”

7-

9/16

”

7-

13/16

”

8-

1/8

”

6-

3/4

”

Installation Instructions

ZLC Hood Specications

ZAZ, ZLC, ZRM, ZRE

ISLAND

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

12

ZEPHYRONLINE.COM

3”

STANDARD
min. ducted - 28”
min. recirc. - 31”
max. - 39”

Z1C-01RM EXTENSION
min. ducted - 50-

1/2

”

min. recirc. - 50-

1/2

”

max. - 80”

12”

AC-IN

CL

FRONT SIDE

TOP

14”

9-

11/16

”

11-

3/16

”

35-

7/8

”, 41-

7/8

” 26-

7/8

”

12-

7/16

”

4-

3/16

”

11”

ø 6”

9-

7/16

”

2-

3/8

”

ZRM Hood Specications

Installation Instructions

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

13

CORE

FRONT SIDE

TOP TOP SUPPORT FRAME

10-

3/8

”

23-

15/16

”

35-

3/16

”

25-

9/16

”

24-

1/2

”

3-

9/16

”

10-

7/8

”

2-

3/4

”

11-

5/8

”

4-

3/8

”

(top of electrical box)

13-

3/4

”

5/16”

C/L

6”

8”

8-

3/4

”

8-

1/4

”

3-

3/4

”

4-

3/16

”

5/8”

elec. k/o

STANDARD
min. ducted - 28-

1/2

”

min. recirc. - 28-

1/2

”

max. - 38”

Z1C-01REBS EXTENSION
min. ducted - 48-

1/2

”

min. recirc. - 48-

1/2

”

max. - 78”

Installation Instructions

ZRE Hood Specications

ZAZ, ZLC, ZRM, ZRE

ISLAND

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

14

Installation Instructions

Cable Lock

ZEPHYRONLINE.COM

Electrical Supply

WARNING

Electrical wiring must be done by qualified person(s) in

accordance with all applicable codes and standards. Turn o

electrical power at service entrance before wiring.

For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not
use extension cord or adapter plug with this appliance.

Follow national electrical codes or prevailing local codes and ordinances.

This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product.

Cable Lock

A cable locking connector (not supplied) might be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)

FIG. A

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

15

CORE

1

2

Ceiling Joists

Wood Blocking

Top Support Frame

Support Frame Arm

Bottom Support Frame

Hood Body

3

Mounting Screws
(pre-installed)

4

A

B

Cut-Out Shaded Area

Top Support Frame

Side

Front

Installation Instructions

Mounting the Hood

CAUTION

At least two installers are required due to the weight

and size of the hood.

1. Determine mounting location on ceiling and
temporarily tape paper template (included with
the hood) to the ceiling. Cut out internal shaded
area of template to allow the ducting and electrical
to pass through. If necessary, add wood blocking
(min. 2” x 4”) to ceiling joists located behind the
drywall to reinforce the mounting location*. (FIG.
B1). Secure (2) M6 x 1” wood screws to points A and
B of the paper template (FIG. C). Do not completely
tighten screws, leave approximately 1/4” exposed.

ZAZ, ZLC, ZRM, ZRE

ISLAND

2. Remove screws securing top and bottom support
frames together. Adjust support frame to
accommodate the desired hood height and re­assemble the frame using the previously removed
screws (2 screws for each support frame arm). (FIG.
B3).

*Hood is intended to be mounted to a finished ceiling.

FRONT

FIG. B

16

FIG. C

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

FIG. D

ZEPHYRONLINE.COM

BLOWER

HOUSING

Bottom Support Frame

(secures to top of blower housing)

Key Holes

front - facing controls

back

Mounting the Hood

3. Lift support frame assembly up to the ceiling
making sure the word “front” on the top support
frame faces the front of the hood where the
controls will be located. (FIG. D) The key holes
on the top support frame should cover the wood
screws previously installed in the ceiling. Slide
support frame towards narrow end of key holes to
lock the frame in place. Install the last (2) M6 x 1”
wood screws with washers into the two remaining
corners of the top support frame to secure it to the
ceiling. Tighten all screws.

Installation Instructions

4. ZRE ONLY: Remove aluminum mesh filters from
hood. Place canopy over blower housing and
secure it to hood body using (4) 3/16 x 1/4 pan
head machine screws through filter opening. (FIG.
E)

5. Lift hood and align the (4) pre-installed mounting
screws located on top of the unit body (FIG. A4)
with the (4) key holes on the Bottom of Support
Frame. (FIG. F). Slide hood towards the narrow end
of key holes to lock into place. Hand tighten each
of the (4) screws with a screwdriver to secure hood
to Bottom Support Frame. Further secure bottom
support frame to unit body by one M4 x 12 safety
screw. (FIG. G).

6. Remove tape securing electronics mounting bracket
to hood and reposition electronics mounting
bracket. Install electrical and duct work.

7. Power up hood, verify all functions and check for
leaks around duct tape.

FIG. E

FIG. F

FIG. G

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

17

CORE

1

Top Duct Covers

Top Support Frame

Bottom Duct Covers

Bottom Support Frame

Installation Instructions

Mounting the Hood

8. Assemble Top Duct Covers (with louver holes)
together over Top Support Frame, secure Top
Duct Covers together by magnetic strips.
NOTE: If using hood in ductless recirculating
mode, you must install the air diverter plate to
the Top Support Frame prior to assembling the
duct covers.

9. Secure Top Duct Covers to Top Support Frame
by using (4) 3/16 x 1/4 screws (2 screws for
each Top Duct Cover). (FIG. H1).

10. Assemble Bottom Duct Covers together over
Top Duct Covers and secure together by
magnetic strips. Bottom Duct Covers should
rest on top of the Hood Body.

ZAZ, ZLC, ZRM, ZRE

ISLAND

FIG. H

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

18

Installation Instructions

ZEPHYRONLINE.COM

Ductless Recirculation

Ductless recirculation is intended for applications where an exhaust duct work is not possible to be
installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood.
Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is
then purified and re-circulated back within the home.

We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new
duct work, if possible. The hood is most eective and ecient as an exhaust hood. Only when the
exhaust option is not possible should you recourse to converting the hood into a recirculating hood.

When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard
Metal Filter set. Order according to its part number below. The standard mesh filters are intended to
capture residue from cooking, and the optional charcoal filters help to purify fumes exhausted from
cooking for recirculation.

Recirculating Kit Installation (required if no ducting is used)

For detailed installation instructions, please refer to the manual included with the recirculating kit.
The kit includes the charcoal filters, filter attachment clip, and air diverter plate.

Hood Model

ZAZ ZRC-02AZ 2 Z0F-C091 2

ZLC ZRC-00LC 1 Z0F-C092 1
ZRM-E36DS ZRC-02RM 2 Z0F-C002 2
ZRM-E42DS ZRC-01RM 3 Z0F-C002 3

ZRE ZRC-00RE 2 Z0F-C002 2

1. Purchase recirculating kit per the part number above. Secure air diverter plate to top support
frame. Open sides of air diverter plate should face left and right to direct air through the louver
holes located on the top duct cover. Run 6” ducting from top of hood and secure to air diverter
plate.

2. Remove mesh filters from hood. Install charcoal filters as referenced with the manual included with
recirculation kit. Reinstall mesh filters.

Recirculating Kit

Part Number

Quantity to

Order

Charcoal Filter

Replacement Part

Number

Quantity to

Order

3. Turn on charcoal filter replace indicator on control panel. The microprocessor in the controls will
indicate the need to change the charcoal filter after 120 hours of continuous use.

DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need to be changed more often depending
on cooking habits.

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

19

CORE

Lights Low/High/O

Adjust 5 Speed Levels

Power / Delay O

Features & Controls

ICON Touch Controls

1 POWER / DELAY OFF BUTTON
Power Button Function

- Button will turn power on and o for entire hood (fan and lights).

- Hood will remember the last speed and light level it was turned o at.
(Example: Press Button to turn o hood when on fan speed 4 and high lights.
Press Button again and the hood will turn back on at speed 4 and high lights
level.)

Delay O Button Function

- With the fan on press and hold the Button for two seconds. The fan will change
to speed 1 and the 5 minute delay o timer will start.
+ LEDs will illuminate and slowly blink in accordance
with the time remaining until the fan and lights automatically turn o.

- Pressing Button while Delay O Function is enabled will turn the hood o and
cancel the Delay O Function.

Display (speed level, delay o, filter clean/change)

ZAZ, ZLC, ZRM, ZRE

Lighted Glass Button

5

MODEL ZLC ONLY

ISLAND

ACT Verification

- Airflow Control Technology (ACT) allows the installer to set the maximum fan
CFM to align with local codes and regulations.

- To verify the maximum fan CFM:

- With hood o, hold the Button for two seconds. If all five fan speed
indicators illuminate = default maximum CFM. If four fan speed indicators
illuminate = 390 maximum CFM. If 3 fan speed indicators illuminate = 290
maximum CFM.

2 SPEED SELECTION BUTTON
Fan Speed Decrease Button

- Press this button to decrease fan speed. 5, 4, 3, 2, 1.

- If fan is On Speed 1 and this button is pressed, fan will power O.

Fan Speed Increase Button

- Press this button to increase fan speed. Fan On, 1, 2, 3, 4, 5.

- If hood is O and this button is pressed, fan will turn On Speed 1.

Act Enabled Speed Selections

- When ACT is enabled, the number of fan speeds will be reduced as follows:

- 390 CFM = Maximum 4 speeds

- 290 CFM = Maximum 3 speeds

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

20

ZEPHYRONLINE.COM

ICON Touch Controls

3 LIGHTS BUTTON

- Lights have two levels, Low and High.

- From o, press one time for Low. Press again for High. Press again to power lights
o.

4 DISPLAY INDICATORS
Mesh Filter Clean Reminder (always enabled)

- After 30 hours of fan usage, the button indicator will begin to slowly blink
indicating it is time to clean the mesh filters.

- To reset: With hood o: hold the button for three seconds. All LED indicators
will blink two times confirming the 30 hour timer has been reset.
Charcoal Filter Replace Indicator (disabled by default, must be enabled if

recirculating hood)

- To enable Charcoal Filter Replacement Reminder:

- With hood o, hold button and button simultaneously for two
seconds. All LED indicators will illuminate for three seconds confirming the
Charcoal Filter Replace Reminder is enabled.

- To disable Charcoal Filter Replacement Reminder:

- With hood o, hold button and button simultaneously for two
seconds. All LED indicators will blink two times confirming the Charcoal Filter
Replace Reminder is disabled.

- After 120 hours of fan usage the button will slowly blink indicating the char
coal filters need replacment.

- To reset: With hood o, hold the button for two seconds. All LED indicators will
blink two times confirming the 120 hour timer has been reset.

Features & Controls

5 LIGHTED GLASS BUTTON (MODEL ZLC ONLY)

- Press to cycle glass color from White, Blue, Amber and O.

- Press and hold for 3 seconds to activate demo mode. While in demo mode each
color will gradually change every 10 seconds.

- Pressing to power o the LED lights will also power o the lighted glass.

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

21

CORE

Blower On/

Speed Selection

er will

Features & Controls

ZAZ, ZLC, ZRM, ZRE

ISLAND

Optional RF Remote Control

To enable RF remote control capabilities, the remote control accessory kit is required. The part
number for the kit is RC-0002.

FCC Caution

To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment. (Example ­use only shielded interface cables when connecting to computer or peripheral device. This device
complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1)
This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.

Installation

To install remote control accessory kit, please follow these steps below.

1. Locate PC board box on top of blower housing.

2. Remove 2-4 screws attaching PC board cover.

3. Connect the red wiring from the remote control control board to red connector in hood PC board.

4. Adhere remote control control board near PC board box.

5. The blue antenna wire needs to be extended for optimal signal. There is no need to secure it.

Synchronization

To create a unique link between your hood and remote control please follow these steps.

1. With hood o, press and hold the Lights button on the hood until the controls illuminate and flash.

2. Press a button on the remote, and the remote control will be synchronized with the hood.

RF Remote Control Functions

5 Min Delay O

1

3

Blower On/

2

Power O

4

Lights On/Dim/O

1

Blower On / Speed Selection

Press to power on blower and cycle through all blower speeds.

2

Blower On / Power O

By pressing , the blowers will power on at the last speed setting. Press
again and the entire hood will power o, including lights.

Delay O

3

By pressing , the blower and lights will enter Delay O mode. The blow
change to speed 1 and a 5 minute timer will begin counting down.

Lights On/Dim/O

4

Switch between light levels by pressing . Turn o the lights by cycling through
the dierent light levels.

Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide

22
