CORE
TM
C
RAVENNA
WALL
Min. - Max. CFM
Min. - Max. Sones
INTERNAL BLOWER
STANDARD
200 - 600
1 - 6
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
200 - 390 200 - 290
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
29
10
23
15/16”
15/16”,

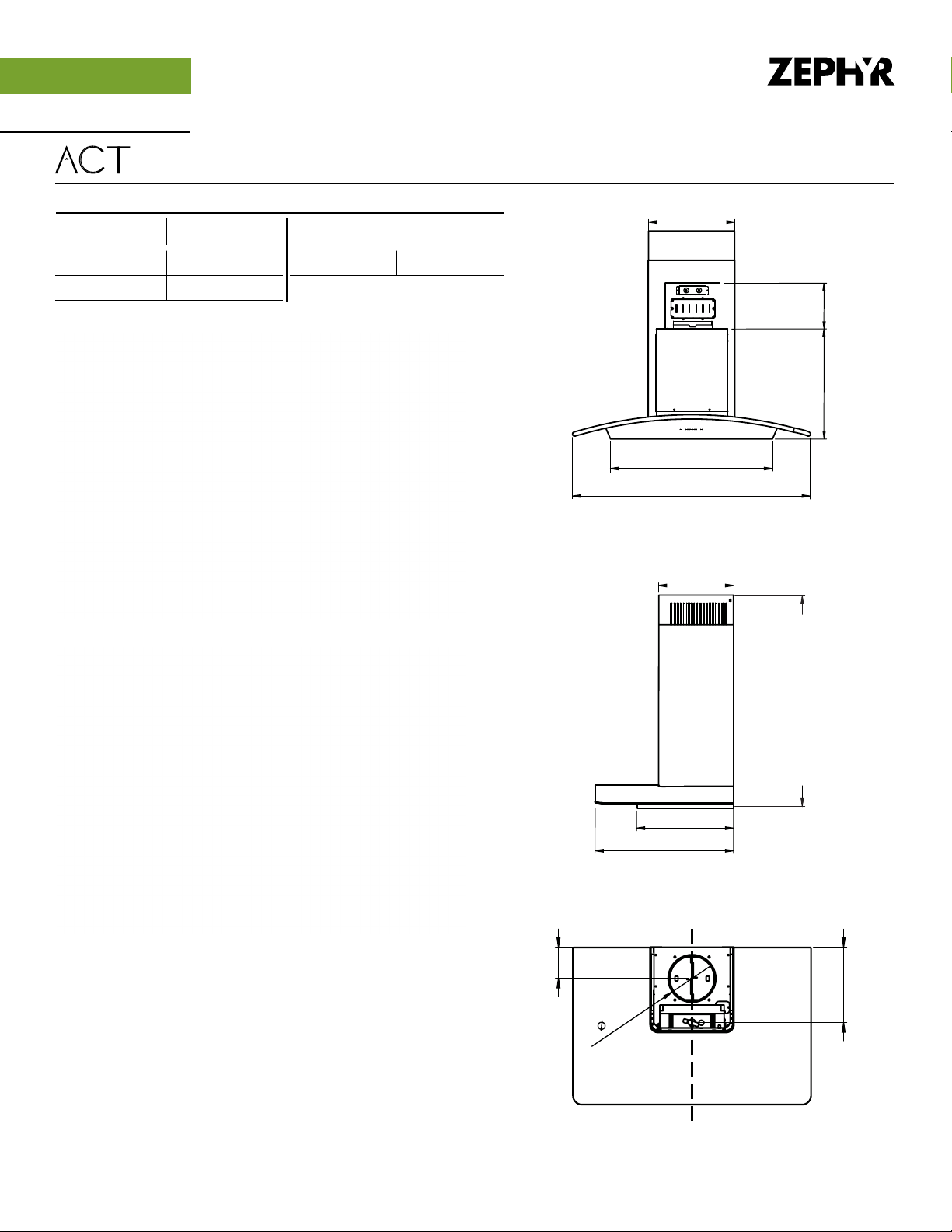

FRONT
3/8”
35
ZEPHYRONLINE.COM
1/4”
6
5/16”
15
3/16”
Stainless Steel with Clear Glass Canopy
Black Stainless Steel with Smoke-Gray Glass Canopy
15/16”
3
6”
19
10
13
3/4”
SIDE
9/16”
3/4”
STANDARD
min. ducted - 23”
min. recirc. - 27 1/2”
max. - 42 1/2”
Z1C-00RV
Z1C-00RVBS
min. ducted - 41”
min. recirc. - 46”
max. - 80”
1/2”
AC In
9
C/L
TOP
CORE
TM
C
RAVENNA
WALL
MODEL
Stainless Steel w/ Clear Glass
Black Stainless Steel w/
Smoke-Gray Glass
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
ACT 390 CFM (Min. - Max.)
ACT 290 CFM (Min. - Max.)
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Filters
Recirculating Option
Duct Cover Extension Option
ZRV-E30CGC
ZRV-E30CBSGG
30”
200 - 600
1 - 6
200 - 390
200 - 290
390, 290
ICON Touch®
5*
Yes
LumiLight LED, 6W x2
Yes
Aluminum Mesh x1
Yes
Yes, Up to 12’ Ceiling
ZEPHYRONLINE.COM
ZRV-M90CGC
ZRV-M90CBSGG
36”
200 - 600
1 - 6
200 - 390
200 - 290
390, 290
ICON Touch®
5*
Yes
LumiLight LED, 6W x2
Yes
Aluminum Mesh x1
Yes
Yes, Up to 12’ Ceiling
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
6” Round
NA
120V, 60Hz at Max. 4A
6” Round
NA
120V, 60Hz at Max. 4A
OPTIONAL ACCESSORIES
Wireless Remote Control Kit
Recirculating Kit
Duct Cover Extension
RC-0002
ZRC-00RV
Z1C-00RVBS (Black SS)
Z1C-00RV (SS)
Make-Up Air Kit
MOUNTING HEIGHT RANGE**
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
EXTENSION
DUCT COVER
*When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds.
**Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Ducted Mounting Height**
Recirc Mounting Height**
Ducted Mounting Height**
Recirc Mounting Height**
MUA006A
26” - 34”
3 years parts, 1 year labor
8’
26” - 33.5”
26” - 28.5”
NA
NA
RC-0002
ZRC-00RV
Z1C-00RVBS (Black SS)
Z1C-00RV (SS)
MUA006A
26” - 34”
3 years parts, 1 year labor
8.5’
26” - 34”
26” - 34”
NA
NA
9’
29.5” - 34”
29.5” - 34”
26” - 30.5”
26” - 26”
9.5 ’
NA
NA
26” - 34”
26” - 32”
10’
NA
NA
26” - 34”
26” - 34”
10.5’
NA
NA
26” - 34”
26” - 34”
11’
NA
NA
26” - 34”
26” - 34”
12’
NA
NA
28” - 34”
28” - 34”
Airflow Control Technology™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
MAY22.0101
