Zephyr ZPHY1741 Installation & Assembly
WWW.ZEPHYRONLINE.COM
Ai
gy
TM
Siena Pro Island
ZSL-E42CS, ZSL-E48CS
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation
C
rflow Control Te chnolo
APR22.0101
CORE
SIENA PRO ISLAND
ISLAND
2
Siena Pro Island Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information ............................................................................ 4-6
Types of Safety Warnings ................................................................... 4
General Safety ..................................................................................4-5
Operation ........................................................................................... 6
Electrical Requirements ...................................................................... 6
Federal Communication Commission Interface Statement ................. 6
List of Materials ...................................................................................7
Installation Instructions .....................................................................8-16
Ducting Calculation Sheet .................................................................. 8

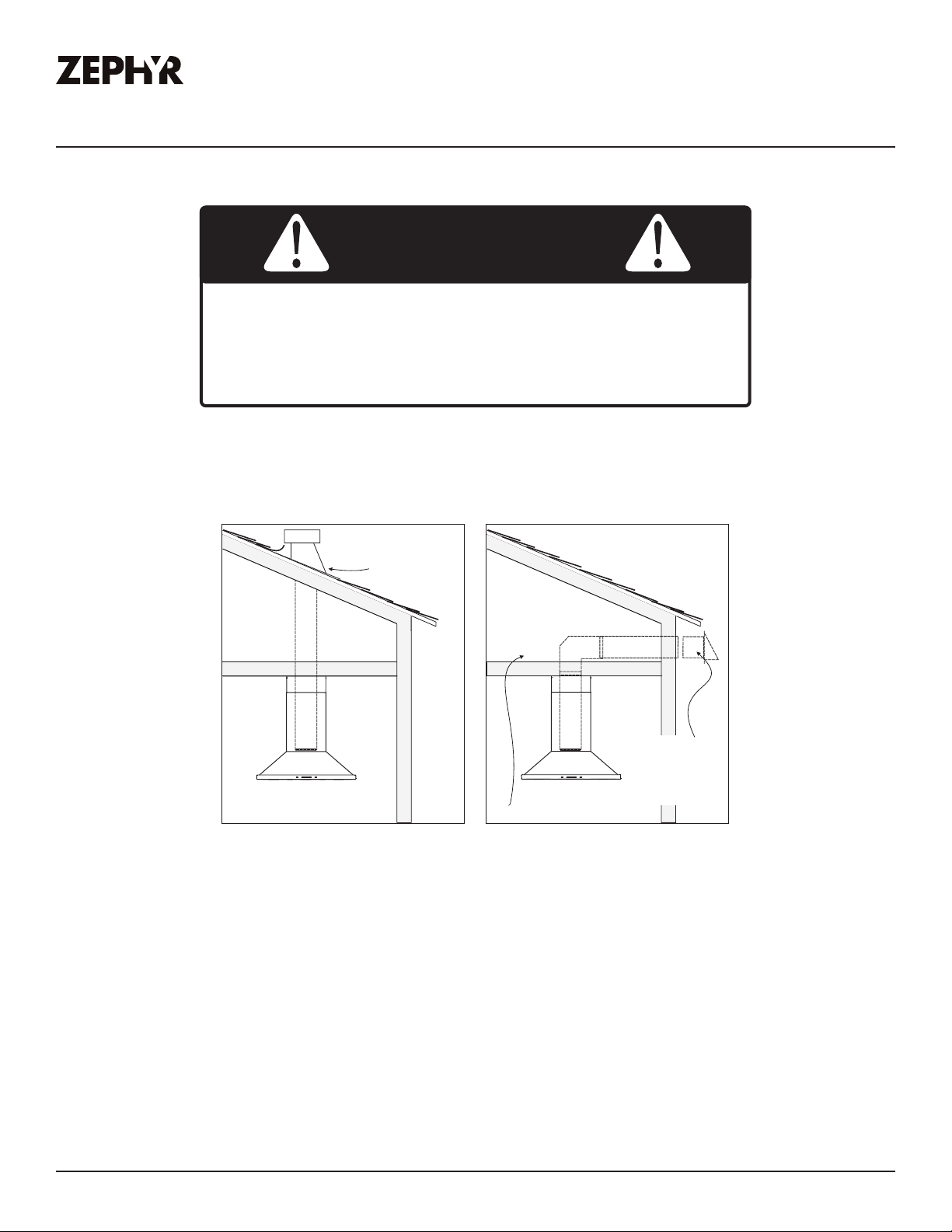

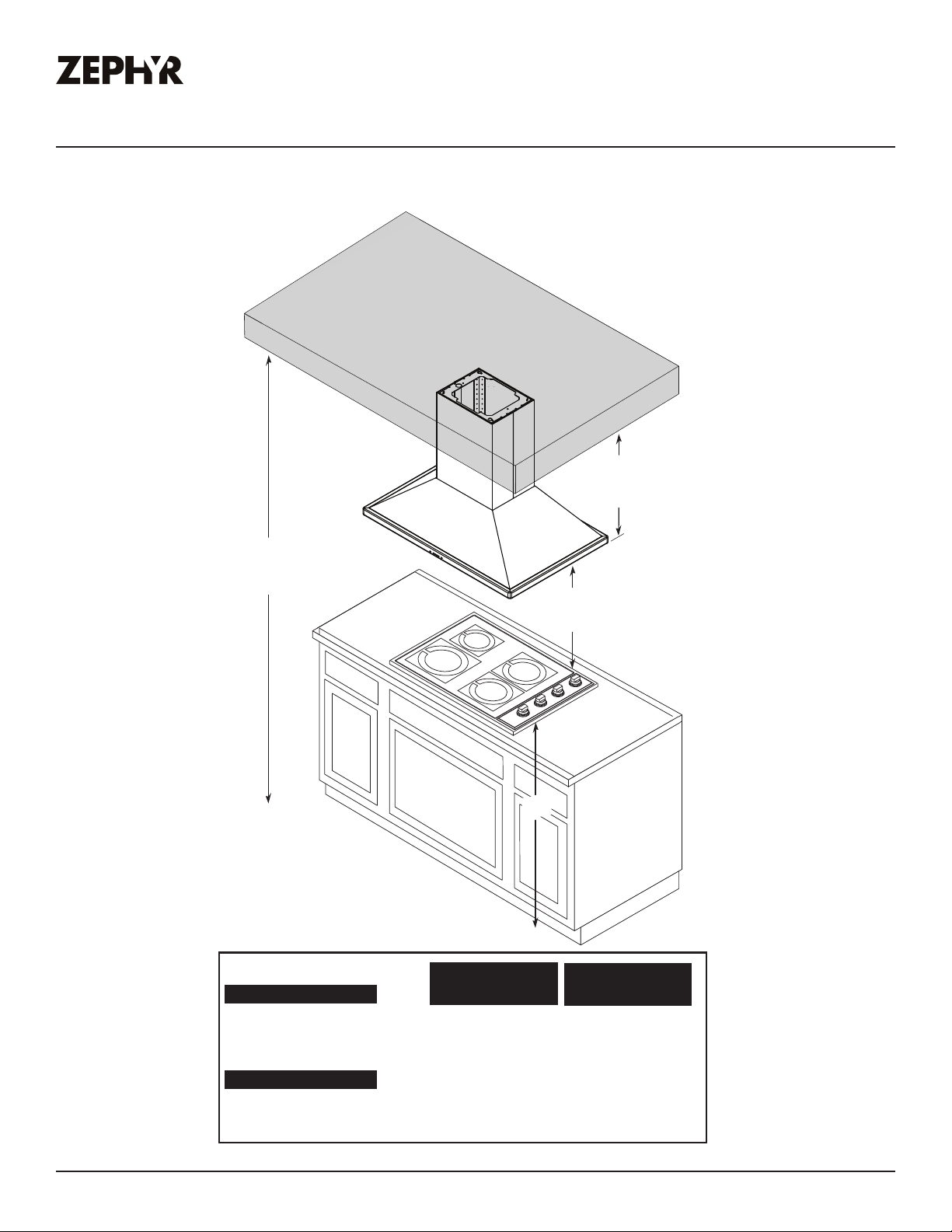

Mounting Height, Clearance, & Ducting ...........................................9-10
Ducting Options .................................................................................11

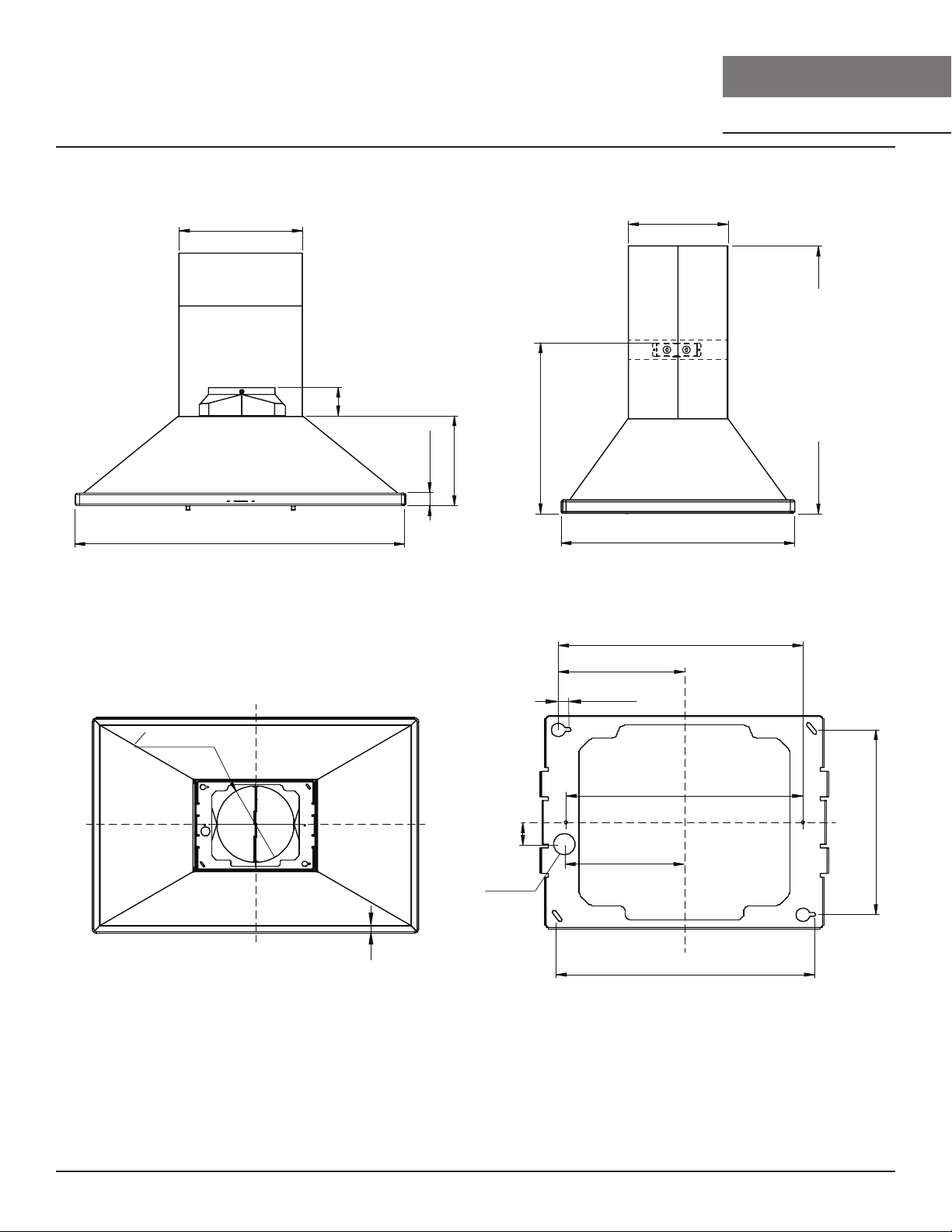

Hood Specifications ............................................................................12
Electrical Supply .................................................................................13

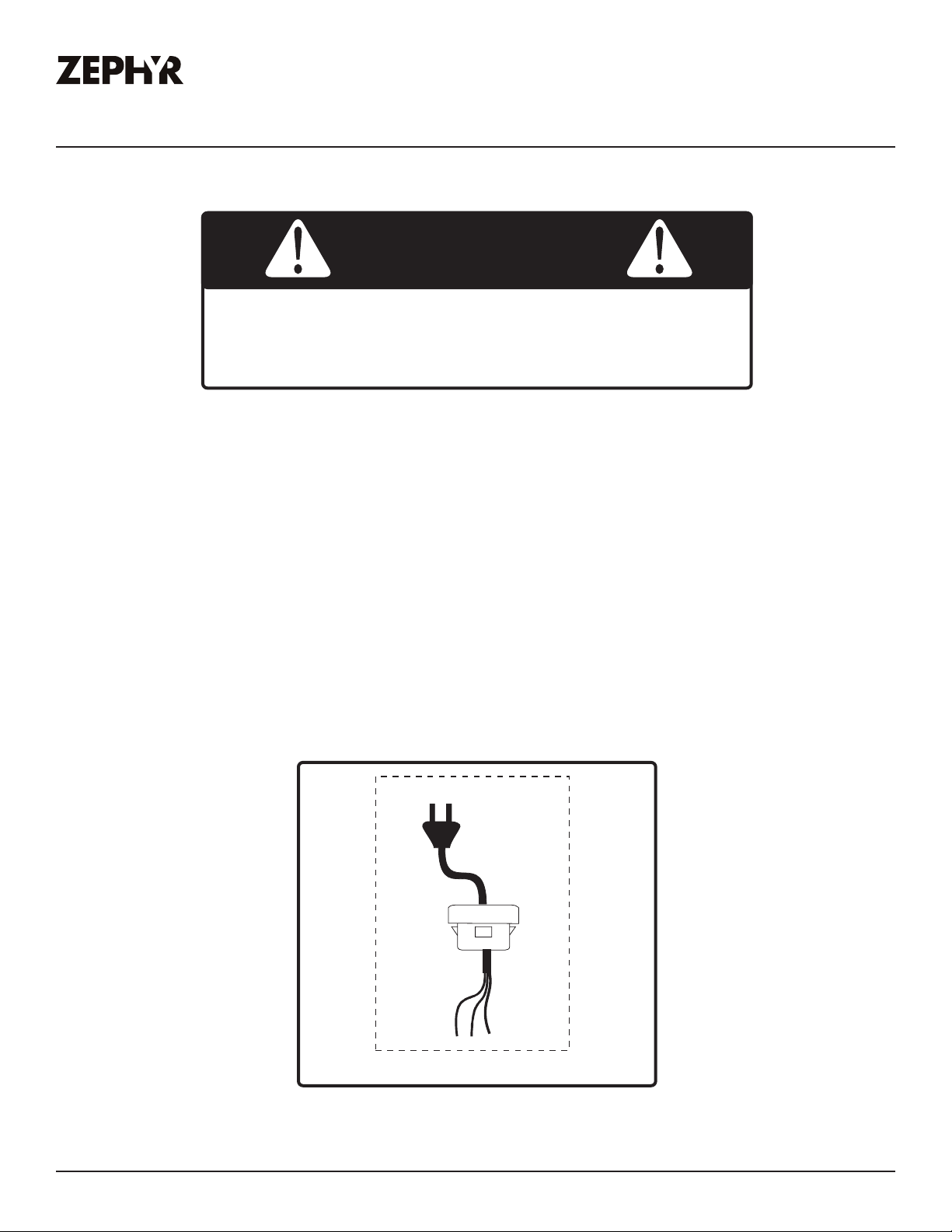

Cable Lock .........................................................................................13

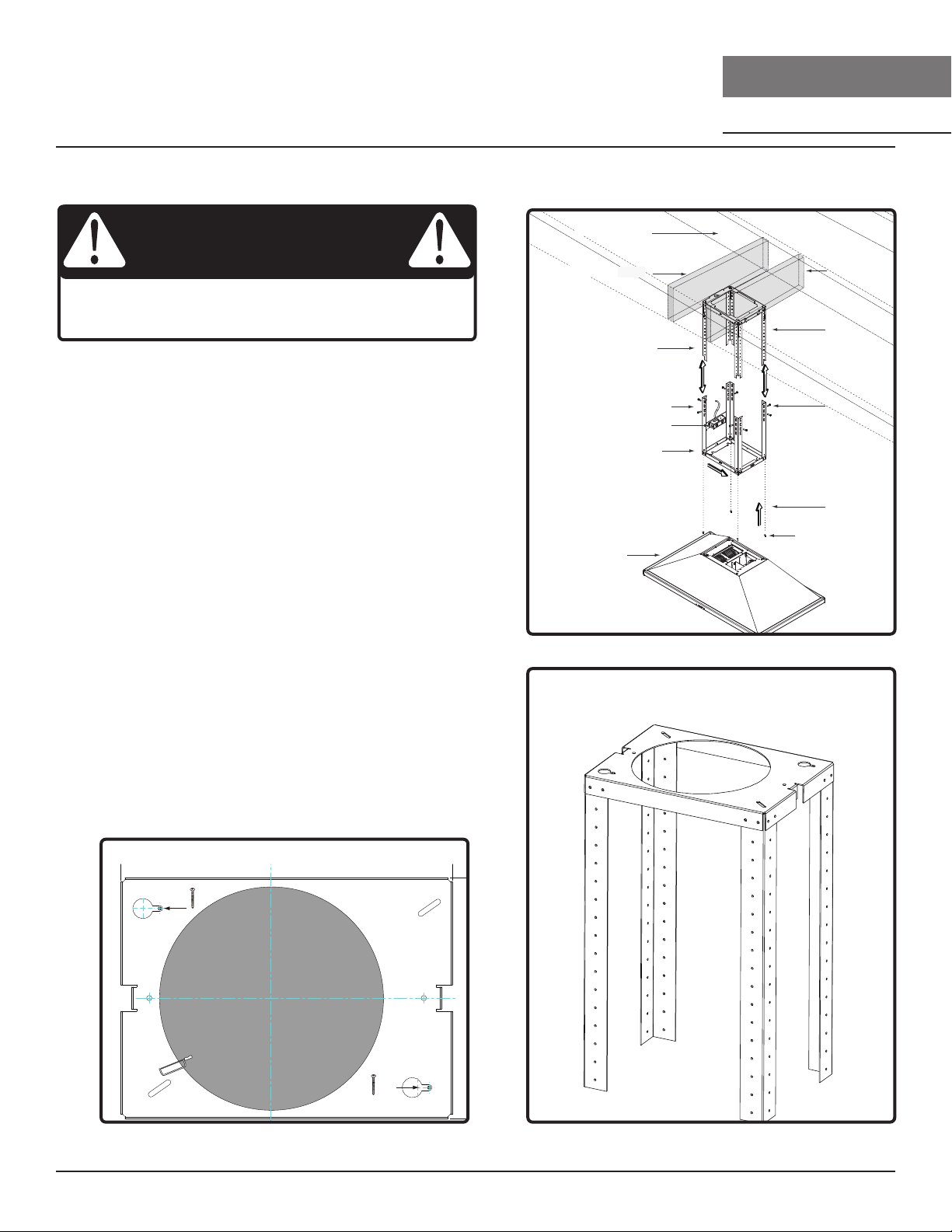

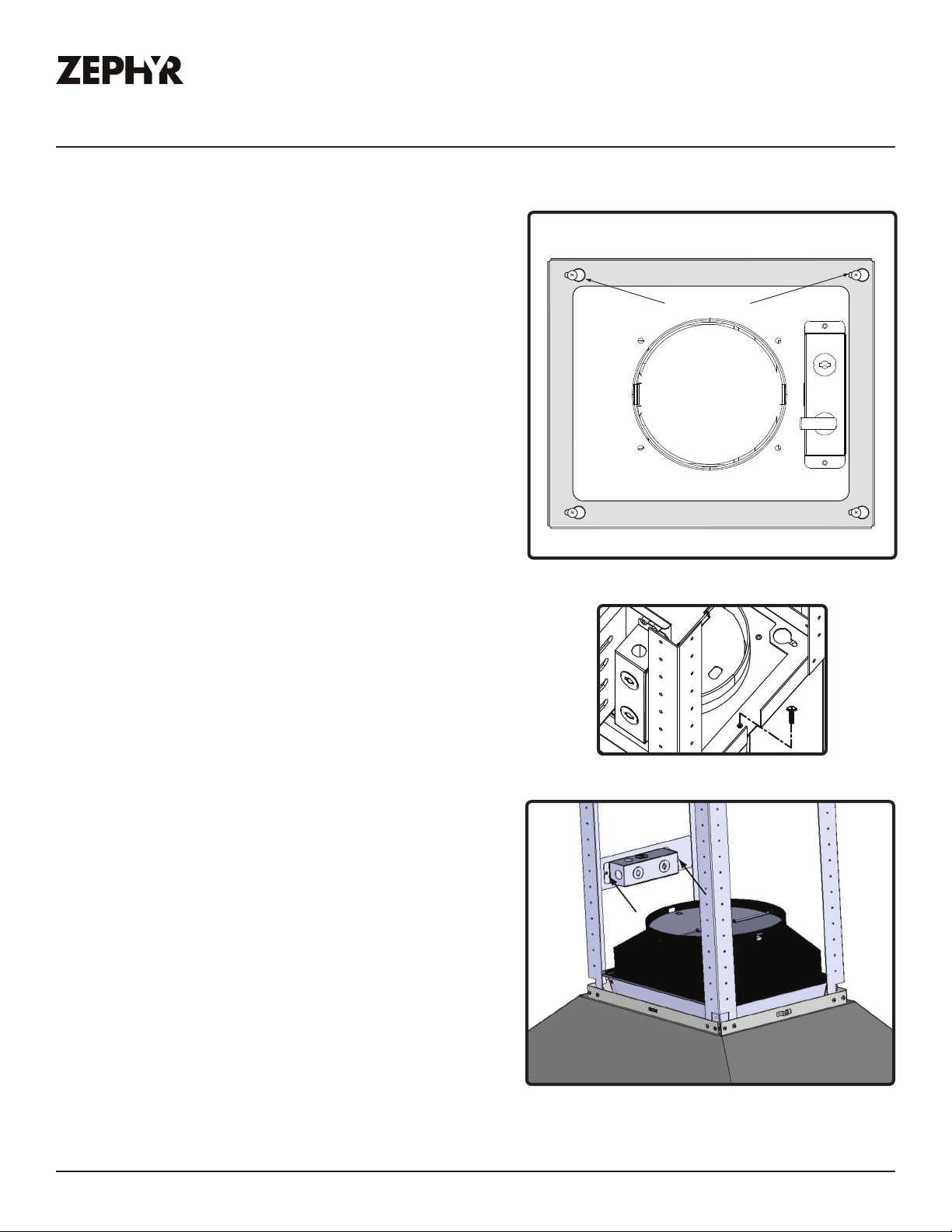

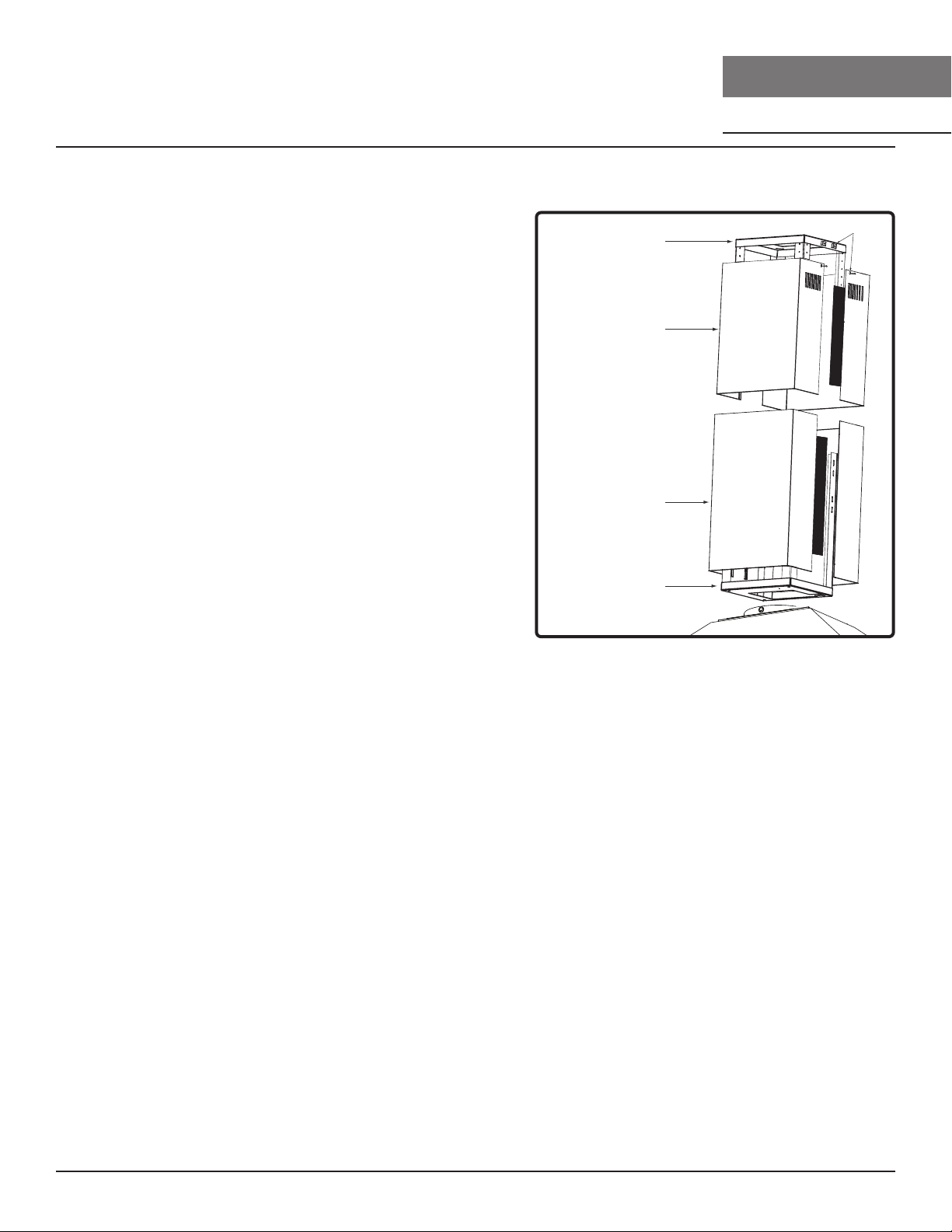

Mounting the Hood .......................................................................... 14-16
Features & Controls ..........................................................................17-20

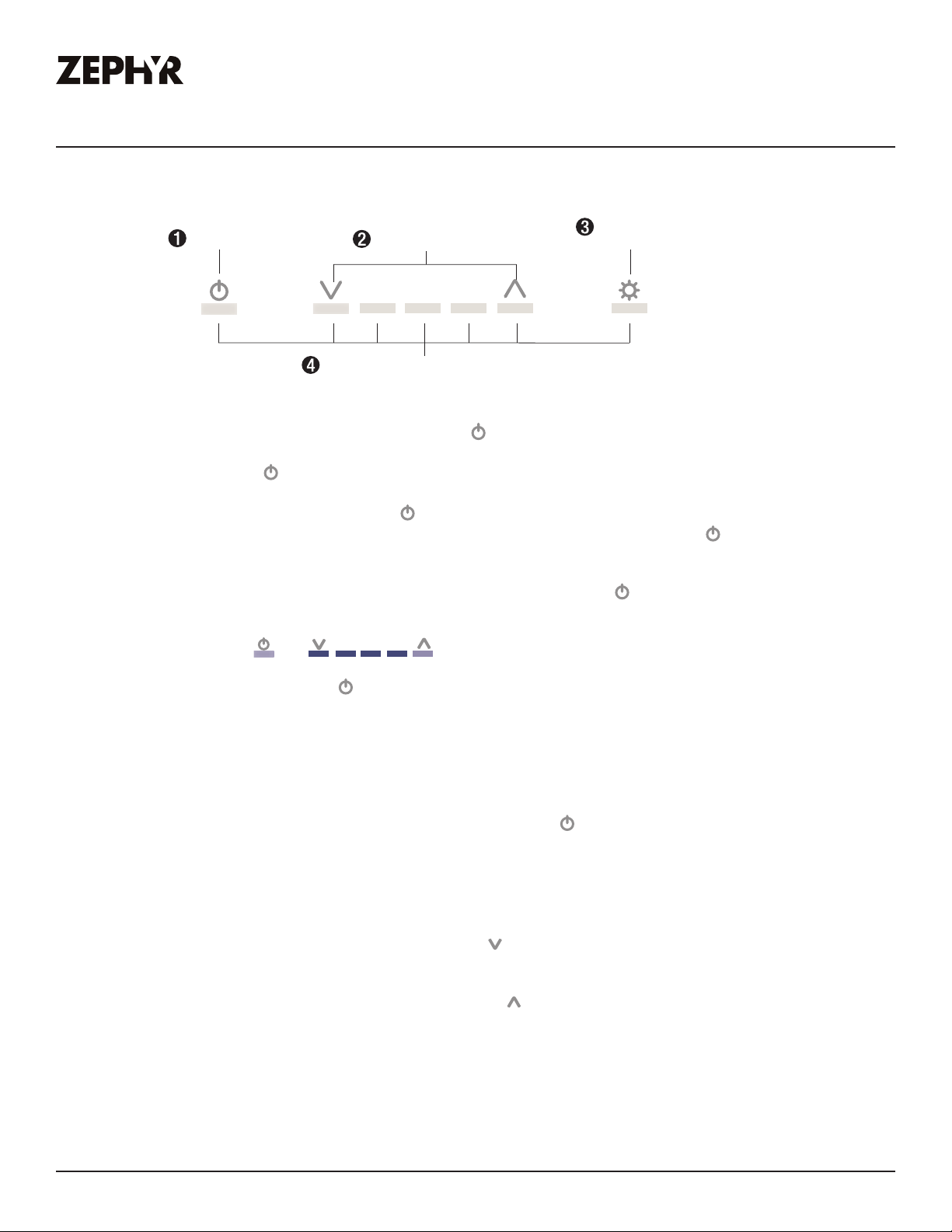

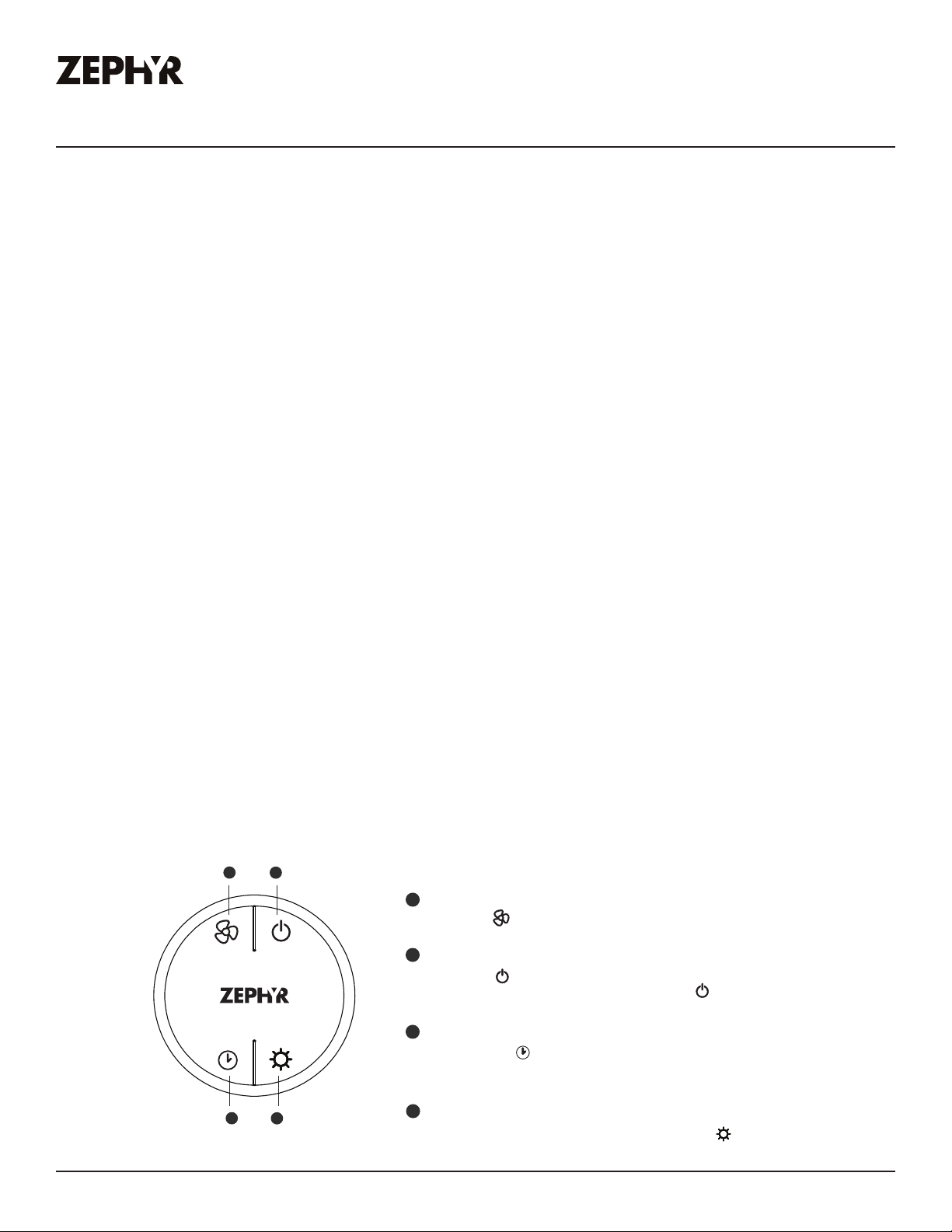

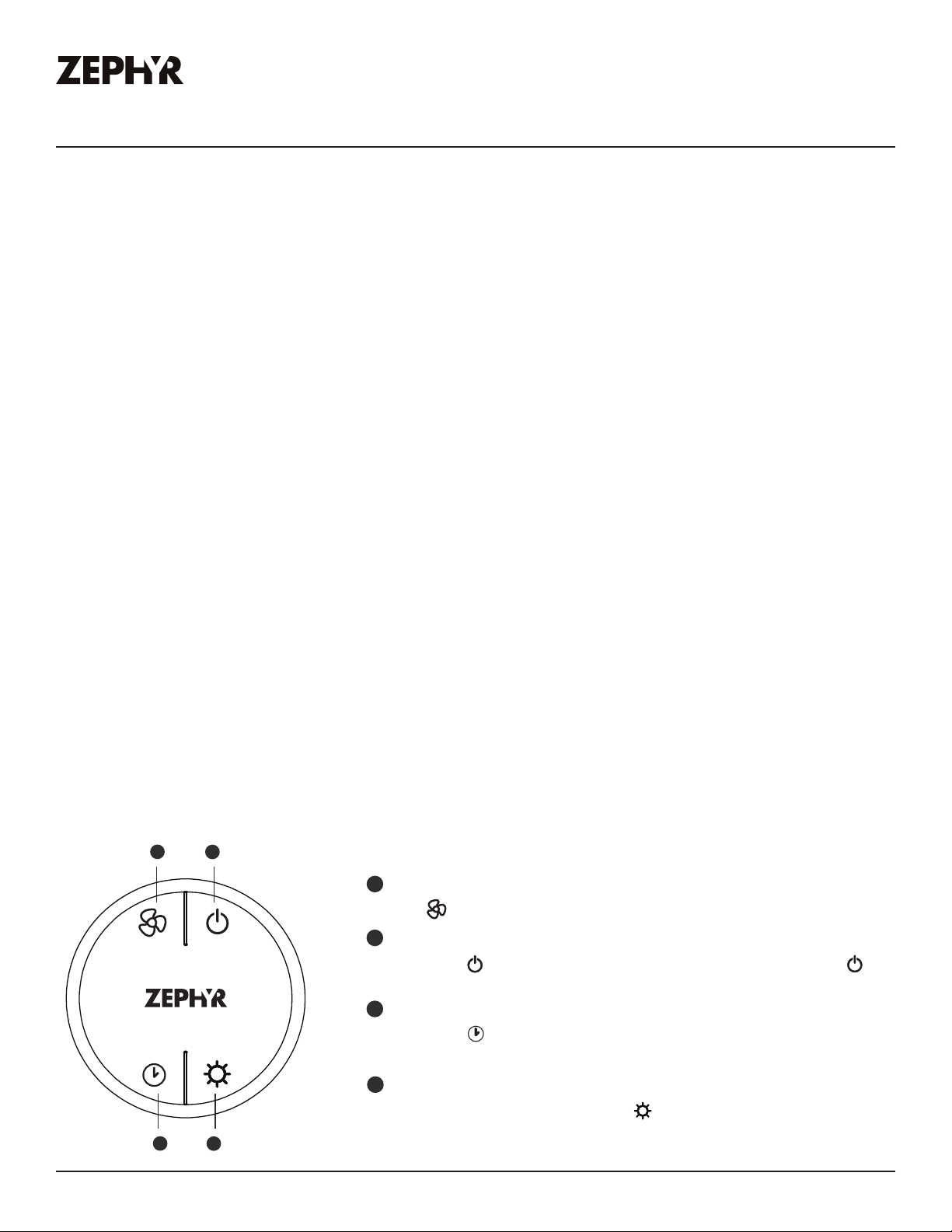

ICON Touch Controls ........................................................................17-18

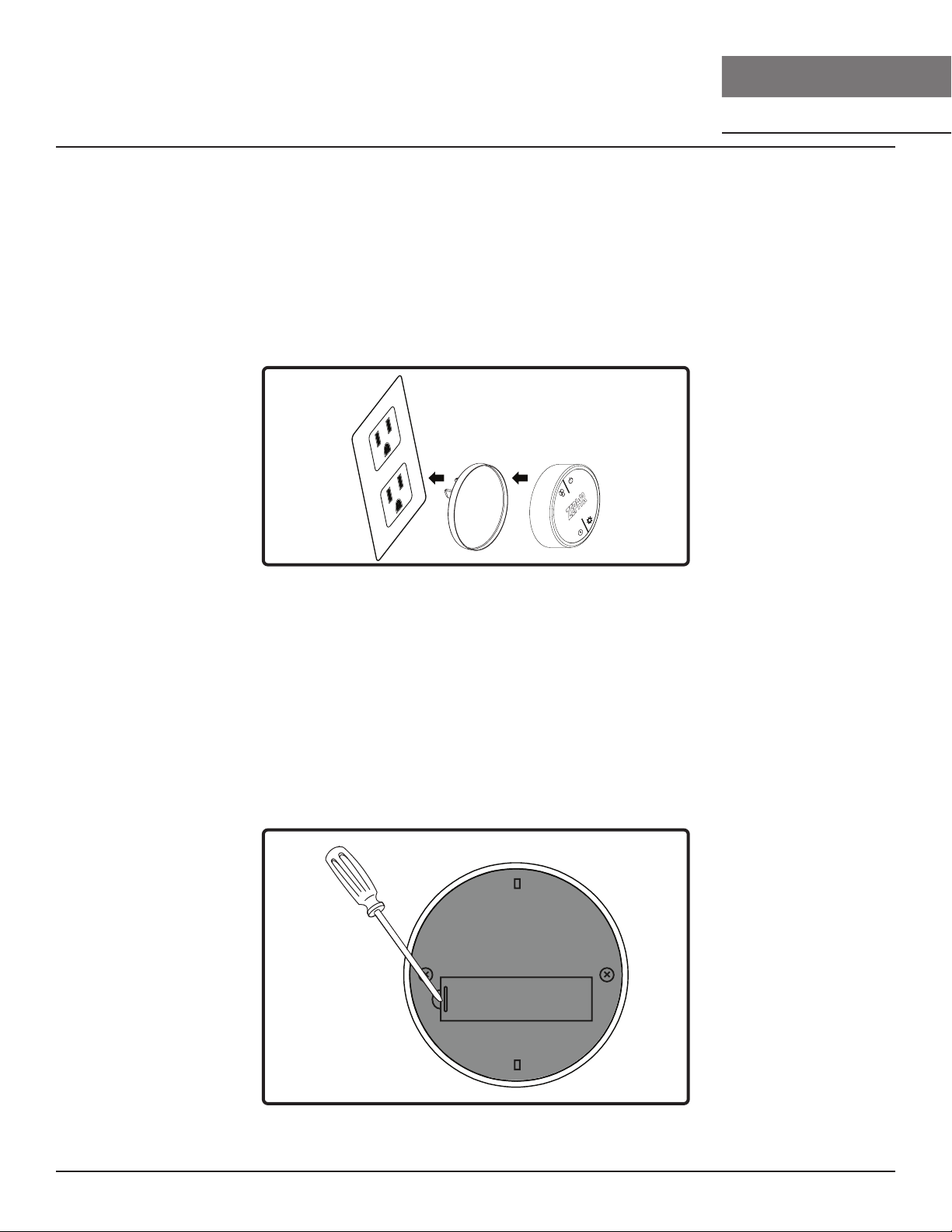

Optional RF Remote Control ............................................................ 19-20
Maintenance ....................................................................................21-22

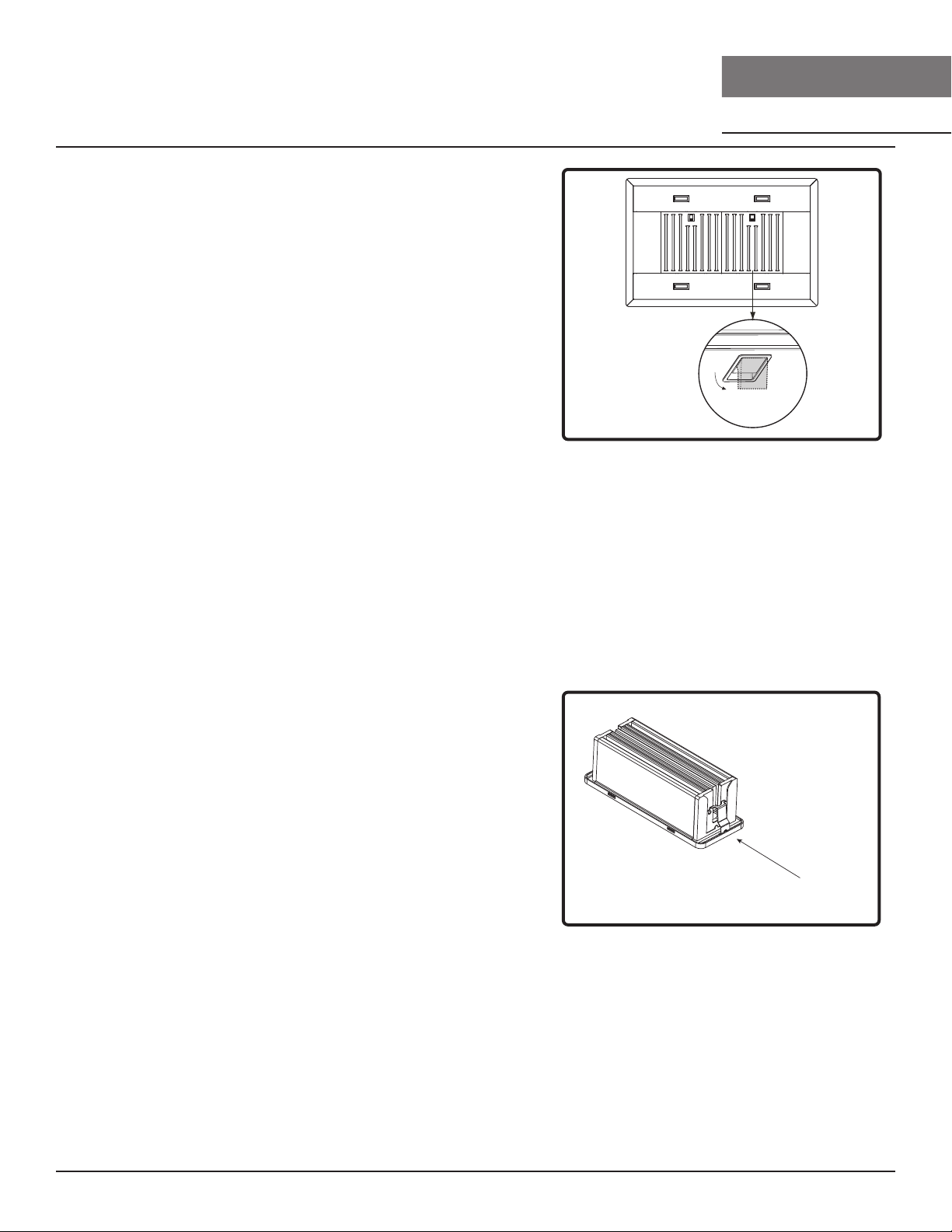

Hood & Filter Cleaning .....................................................................21-22
LumiLight LED ................................................................................... 22

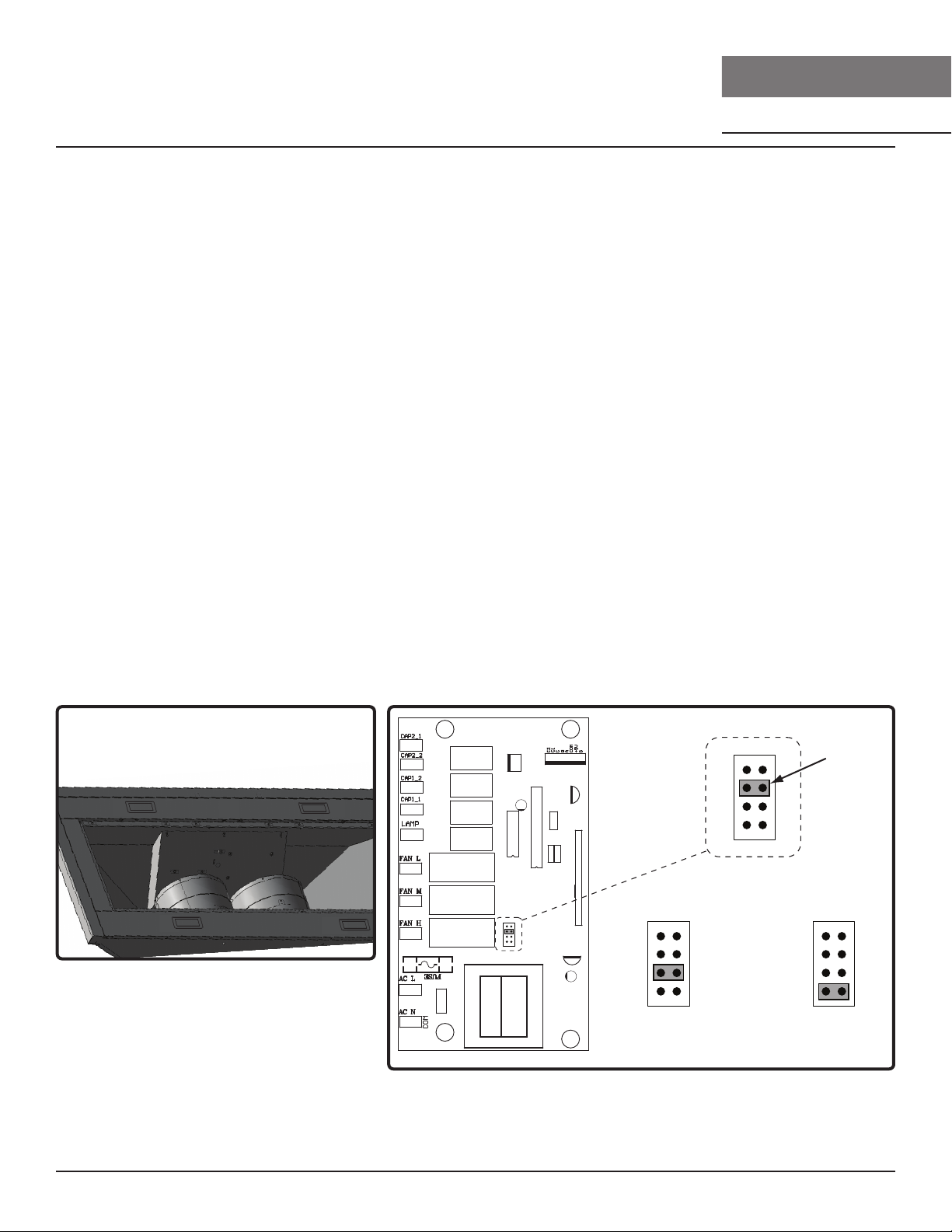

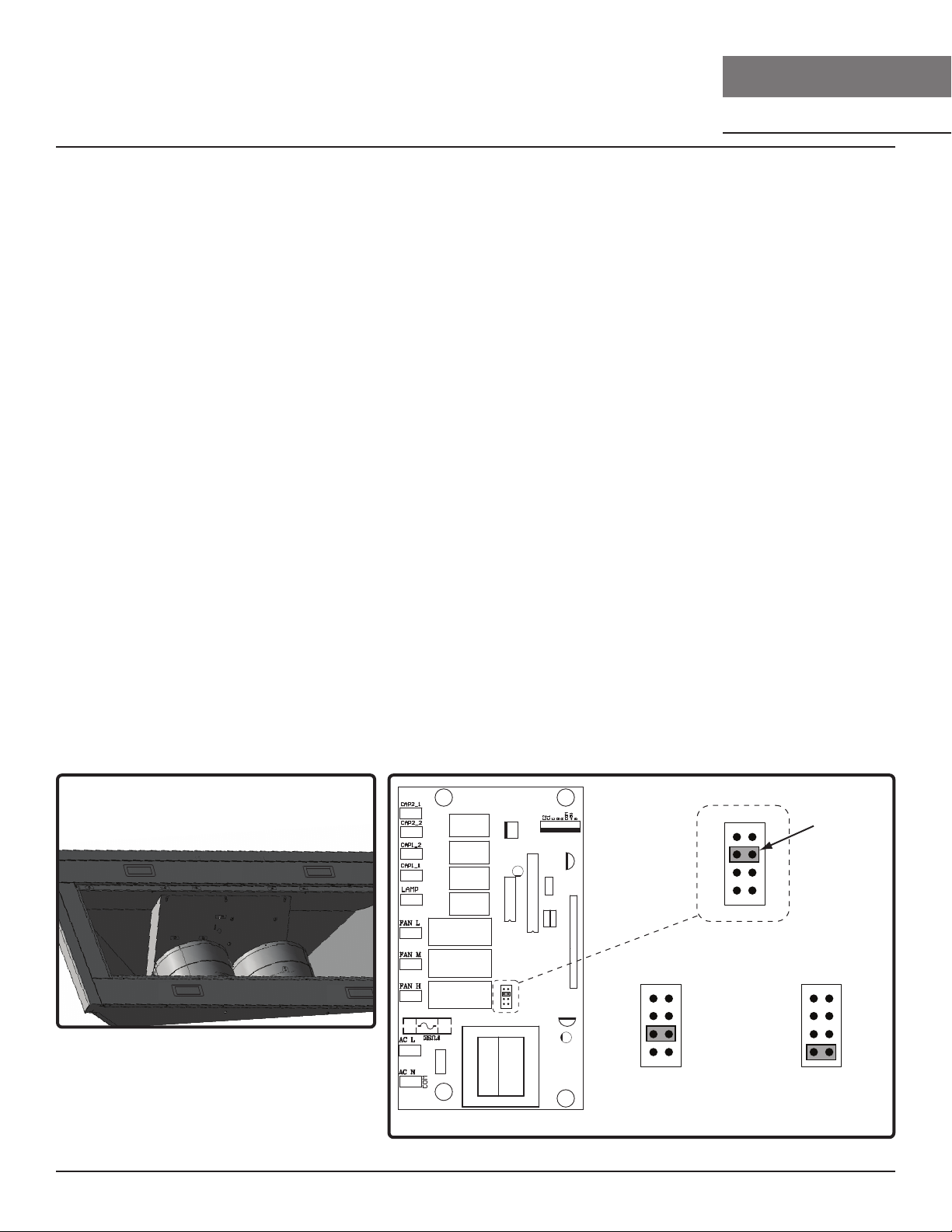

ACT™ Conversion ............................................................................ 23-24
Airflow Control Technology (ACT™) ................................................... 23
Enabling ACT™ .................................................................................. 24

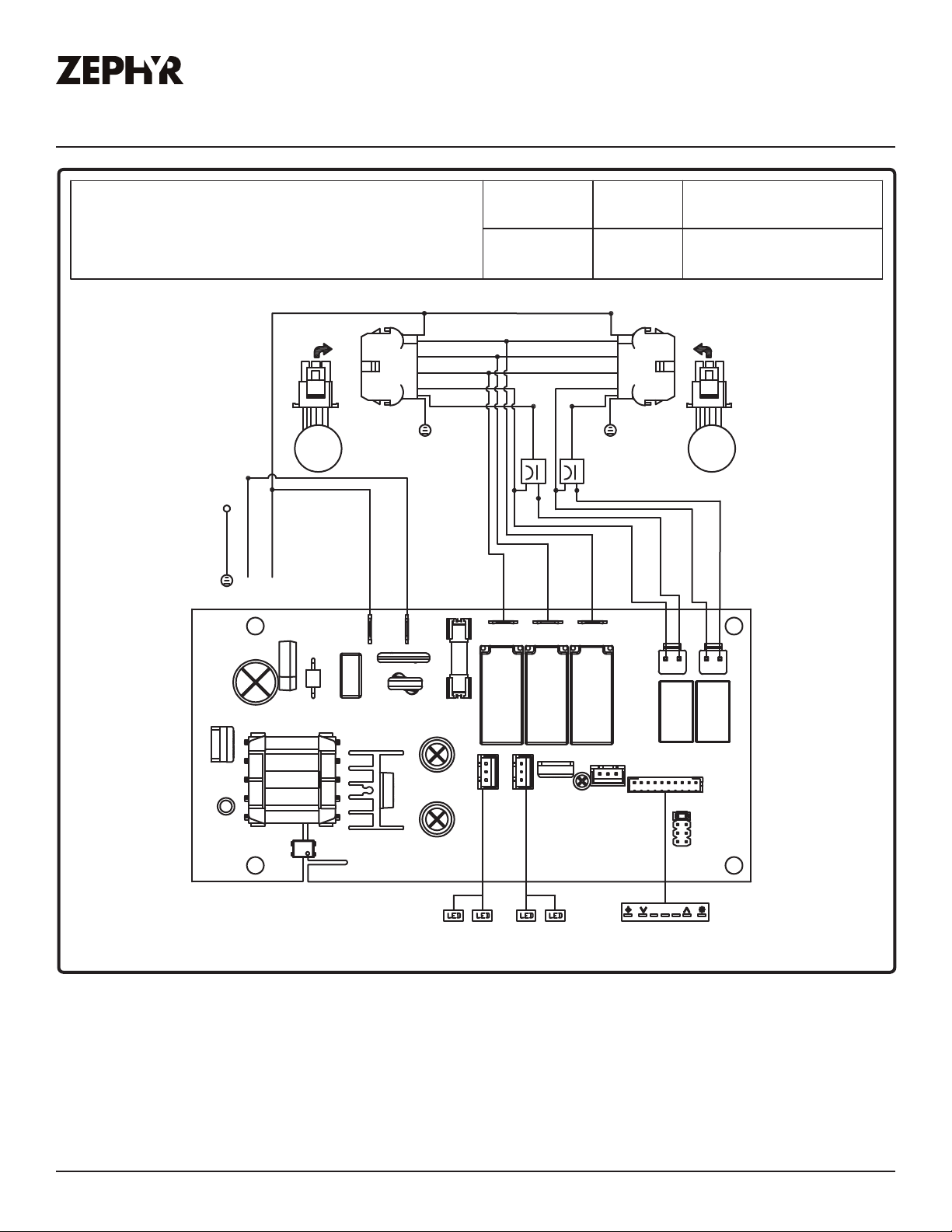

Wiring Diagram .................................................................................. 25
Troubleshooting............................................................................... 26-27
List of Parts & Accessories .................................................................. 28
Limited Warranty ...............................................................................29
Product Registration ...........................................................................30
Contents
Page
Siena Pro Island Use, Care, and Installation Guide
3
CORE
Safety Information
READ AND SAVE THESE INSTRUCTIONS
Your safety and the safety of others are very important.
We have provided many important safety messages in this
manual for your appliance. Always read and obey all safety
messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can cause severe bodily injury or death.
All safety messages will follow the Safety Alert Symbol and either
the words “DANGER” “WARNING” or “CAUTION”
DANGER
Danger means that failure to heed this safety statement may
result in severe injury or death.
WARNING
SIENA PRO ISLAND
ISLAND
WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power o at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
CAUTION
For General Ventilating Use Only. Do Not Use To Exhaust
Hazardous Or Explosive Materials And Vapors. Take care
when using cleaning agents or detergents. Suitable for use in
household cooking area.
Warning means that failure to heed this safety statement
may result in extensive product damage, serious personal
injury, or death.
CAUTION
Caution means that failure to heed this safety statement
may result in minor or moderate personal injury, property or
equipment damage.
General Safety
WARNING
To reduce the risk of fire or electric shock, do not use this fan
with any solid-state control device.
WARNING
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.
4
Siena Pro Island Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
READ AND SAVE THESE INSTRUCTIONS
WARNING
WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn o the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a
violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you
already know how to operate it.
2) The fire is small and contained in the area where it
started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit
Based on “Kitchen Firesafety Tips” published by NFPA.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
b) Sucient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected
to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
To reduce risk of fire and to properly exhaust air outside, do
not vent exhaust air into spaces within walls, ceilings, attics,
crawl spaces, or garages.
WARNING
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
Siena Pro Island Use, Care, and Installation Guide
5
CORE
Safety Information
SIENA PRO ISLAND
ISLAND
READ AND SAVE THESE INSTRUCTIONS
Operation
► Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and
loose clothing.
► The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and
the warranty of the unit automatically expires due to improper maintenance.
NOTE: Please check www.zephyronline.com for revisions before doing any custom work.
Electrical Requirements
Important:
► Observe all governing codes and ordinances.
► It is the customer’s responsibility to be aware of these below:
► To contact a qualified electrical installer.
► To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest
edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.
► If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path
is adequate.
► Do not ground to a gas pipe.
► Check with a qualified electrician if you are not sure the range hood is properly grounded.
► Do not have a fuse in the neutral or ground circuit.
► This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected
by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram
on product.
► A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and
install appropriate connector if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
Federal Communication Commission Interface Statement
► This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
► This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following
measures:
► Reorient or relocate the receiving antenna.
► Increase the separation between the equipment and receiver.
► Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
► Consult the dealer or an experienced radio/TV technician for help.
6
Siena Pro Island Use, Care, and Installation Guide
ZEPHYRONLINE.COM
List of Materials
(2) Top Duct Covers
(2) Bottom Duct Covers
(1) Hood Body
(1) Hardware package
HARDWARE PACKAGE CONTENTS
(1) 10” round collar w/ damper
(1) Collar Adaptor
(4) LumiLight LED, 6W
(2) Bae Filters
(ZSL-E48CS x 3)
Front of Hood
C
/
L
B
Cut-Out Shaded Area
(1) Paper ceiling template
A
(1) Top Support Frame
(1) Bottom Support Frame
(3) Wire Nuts
(4) 3/16 x 1/4” pan-head
machine screws
(4) M4 x 1”
wood srews
(1) M4 x 12
safety screw
(4) ø12 OD / ø5
ID Washers
Parts Not Supplied
Ducting, conduit and all installation tools
Cable locking connector (if required by local codes)
Extension duct covers (Z1C-01SL)
Optional remote control (RC-0002)
Optional RF remote control (14000005)
Siena Pro Island Use, Care, and Installation Guide
(10) M4 x 8mm sheet
metal screws
(2) Zip Ties
7
CORE
Installation Instructions

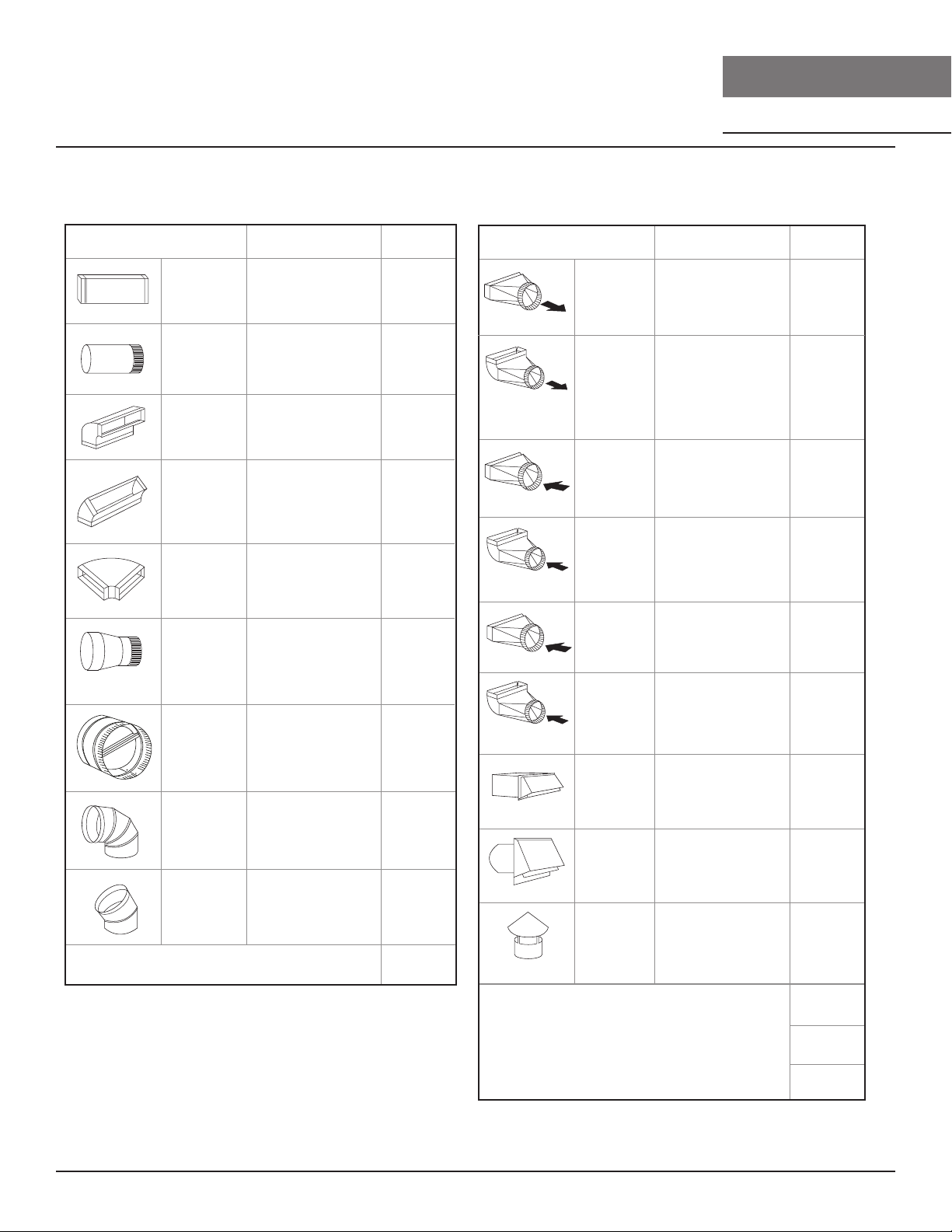

Ducting Calculation Sheet
Duct pieces
3- 1/ 4” x 10”
Rect.,
straight
6”, 7”, 8”, 10”
Round,
straight
3- 1/ 4” x 10”
Rect. 90
elbow
3- 1/ 4” x 10”
Rect. 45
elbow
3- 1/ 4” x 10”
Rect. 90
flat elbow
7” to 6” or
8” to 7” Round
tapered
reducer
6”, 7“, 8”
Round
in-line
damper
6”, 7”, 8”, 10”
Round,
0
90
elbow
6”, 7”, 8”, 10”
Round,
0
45
elbow
Equivalent number
length x used =
1 Ft. x ( ) =
1 Ft. x ( ) =
15 Ft. x ( ) =
0
9 Ft. x ( ) =
0
24 Ft. x ( ) =
0
25 Ft. x ( ) =
15
Ft. x ( ) =
15 Ft.
9 Ft. x ( ) =
Subtotal column 1 =
x ( ) =
To tal
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Duct pieces
3- 1/ 4” x 10”
Rect. to
6” round
transition
3- 1/ 4” x 10”
Rect. to
6” round
transition
0
elbow
90
6” round to
3- 1/ 4” x 10”
rect.
transition
6” round to
3- 1/ 4” x 10”
rect.
transition
0
90
elbow
7” round to
3 1/ 4” x 10”
rect.
transition
7” round to
3- 1/ 4” x 10”
rect.
transition
0
90
elbow
3- 1/ 4” x 10”
Rect.
wall cap
with damper
6”, 7”, 8”, 10”
Round, wall
cap with
damper
6”, 7”, 8”, 10”
Round
roof cap
SIENA PRO ISLAND
Equivalent number
length x used =
5 Ft. x ( ) =
20 Ft. x ( ) =
1 Ft. x ( ) =
16 Ft. x ( ) =
8 Ft. x ( ) =
23 Ft. x ( ) =
30 Ft. x ( ) =
30 Ft. x ( ) =
30 Ft. x ( ) =
To tal
ISLAND
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
8
Maximum Duct Length: For satisfactory air movement,
the total duct length
should not exceed 150 equivalent feet.
Siena Pro Island Use, Care, and Installation Guide
Subtotal column 2 =
Subtotal column 1 =
Totalductwork =
Ft.
Ft.
Ft.
Installation Instructions
ZEPHYRONLINE.COM
Mounting Height, Clearance, & Ducting
min. A
max. B
min. C
max. D
24” min.
34” max.
36”
Standard Extension
Hood Heights Duct Cover Duct Cover
minimum (A) 32 maximum (B) 48-
1/2” 49“
1/2” 81”
Ceiling Heights
minimum (C) 92-
maximum (D) 118-
1/2” (7’ 8-1/2”) 109“ (9’ 1”)
1/2” (9’ 10-1/2“) 151” (12’ 7”)
Siena Pro Island Use, Care, and Installation Guide
9
CORE
Installation Instructions
SIENA PRO ISLAND
ISLAND
Mounting Height, Clearance, & Ducting
A minimum of 10” round duct is recommended to maintain maximum air flow eciency.
Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.
Also use the ducting calculation sheet (on page 8) to compute total available duct run when using
elbows, transitions and caps.
ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required,
increase duct size.
If turns or transitions are required; install as far away from hood duct output and as far apart,
between the two as possible.
Minimum mount height between range top to hood bottom should be no less than 24”.
Maximum mount height should be no higher than 34”.
It is important to install the hood at the proper mounting height. Hoods mounted too low could result
in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its
performance and eciency.
If available, also refer range manufacturer’s height clearance requirements and recommended hood
mounting height above range. Always check your local codes for any dierences.
For shipment and installation damages:
► Please fully inspect unit for damage before installation.
► If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or
replacement.
► If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
► If the unit is damaged by the installer (if other than the customer), repair of replacement must be
made by arrangement between customer and installer.
10
Siena Pro Island Use, Care, and Installation Guide
Installation Instructions
Sot or crawl space
Side wall cap w/
gravity damper
Roof pitch w/
flashing & cap
ZEPHYRONLINE.COM
Ducting Options
WARNING
Fire Hazard: NEVER exhaust air or terminate ductwork into
spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
recirculating option.
► Use single wall rigid metal ductwork only.
► Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Siena Pro Island Use, Care, and Installation Guide
11
CORE
11-
”
Installation Instructions
Hood Specications
15-11/16”
6”
”
9/16
1-
11-3/8”
SIENA PRO ISLAND
ISLAND
15/16
20-7/8”
STANDARD
min. - 32max. - 48-
Z1C-01SL
min. - 49”
max. - 81”
1/2”
1/2”
C/L
(42”) 41-7/8” , (48”) 47-7/8”
FRONT
C/L
O
9-
15/16”
1”
13/16”
AC K/O
6-
5/8”
3/4
C/L
6-5/8”
”
28”
SIDE
1/16
13-
13-
3/4”
”
C/L
12-5/8”
9-15/16”
FRONT
12
TOP of HOOD
TOP SUPPORT FRAME
(top view)
Siena Pro Island Use, Care, and Installation Guide
Installation Instructions
Cable Lock
ZEPHYRONLINE.COM
Electrical Supply
WARNING
Electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards. Turn o
electrical power at service entrance before wiring.
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not
use extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product.
Cable Lock
A cable locking connector (not supplied) might be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)
FIG. A
Siena Pro Island Use, Care, and Installation Guide
13
CORE
1
2
Ceiling Joists
Wood Blocking
Top Support Frame
Support Frame Arm
Bottom Support Frame
Hood Body
3
Mounting Screws
(pre-installed)
4
Junction Box
A
B
Cut-Out Shaded Area
Top Support Frame
Side
Front
Installation Instructions
Mounting the Hood
CAUTION
At least two installers are required due to the weight
and size of the hood.
1. Determine mounting location on ceiling and
temporarily tape paper template (included with
the hood) to the ceiling. Cut out internal shaded
area of template to allow the ducting and electrical
to pass through. If necessary, add wood blocking
(min. 2” x 4”) to ceiling joists located behind the
drywall to reinforce the mounting location*. (FIG.
B1). Secure (2) M6 x 1” wood screws to points A and
B of the paper template (FIG. C). Do not completely
tighten screws, leave approximately 1/4” exposed.
SIENA PRO ISLAND
ISLAND
2. Remove screws securing top and bottom support
frames together. Adjust support frame to
accommodate the desired hood height and reassemble the frame using the previously removed
screws (2 screws for each support frame arm). (FIG.
B3).
*Hood is intended to be mounted to a finished ceiling.
FRONT
FIG. B
14
FIG. C
FIG. D
Siena Pro Island Use, Care, and Installation Guide
Installation Instructions
Bottom Support Frame
(secures to top of blower housing)
Key Holes
front - facing controls
back
ZEPHYRONLINE.COM
Mounting the Hood
3. Lift support frame assembly up to the ceiling
making sure the word “front” on the top support
frame faces the front of the hood where the
controls will be located. (FIG. D) The key holes
on the top support frame should cover the wood
screws previously installed in the ceiling. Slide
support frame towards narrow end of key holes to
lock the frame in place. Install the last (2) M6 x 1”
wood screws with washers into the two remaining
corners of the top support frame to secure it to the
ceiling. Tighten all screws.
4. Lift hood and align the (4) pre-installed mounting
screws located on top of the unit body (FIG. B4)
with the (4) key holes on the Bottom of Support
Frame. (FIG. E). Slide hood towards the narrow end
of key holes to lock into place. Hand tighten each
of the (4) screws with a screwdriver to secure hood
to Bottom Support Frame. Further secure bottom
support frame to unit body by one M4 x 12 safety
screw. (FIG. F).
FIG. E
5. Attach junction box to lower support frame lateral
bracket by (2) M4 x 8mm screws. (FIG. G). Secure
junction box wire from hood to junction box to
support frame arm by (2) zip ties.
FIG. F
FIG. G
Siena Pro Island Use, Care, and Installation Guide
15
CORE
1
Top Duct Covers
Top Support Frame
Bottom Duct Covers
Bottom Support Frame
Installation Instructions
Mounting the Hood
6. Attach collar adaptor to top of hood body by (4)
M4 x 8mm screws. Attach 10" round duct collar
to collar adaptor by (4) M4 x 8mm screws. Install
electrical and duct work. Seal duct with aluminum
duct tape.
7. Power up hood, verify all functions, and check for
leaks around duct tape.
8. Assemble top duct covers (with louver holes)
together over top support frame. Secure top duct
covers together by magnetic strips.
9. Secure top duct covers to top support frame by
using (4) 3/16 x 1/4 screws (2 screws for each top
duct cover) (FIG. H1).
SIENA PRO ISLAND
ISLAND
10. Assemble bottom duct covers together over top
duct covers and secure together by magnetic
strips. Bottom duct c overs should rest on top of
the hood body.
FIG. H
16
Siena Pro Island Use, Care, and Installation Guide
ZEPHYRONLINE.COM
ICON Touch Controls
Features & Controls
Power / Delay O
Display (speed level, delay o, filter clean/change)
1 POWER / DELAY OFF BUTTON
Power Button Function
- Button will turn power on and o for entire hood (fan and lights).
- Hood will remember the last speed and light level it was turned o at.
(Example: Press Button to turn o hood when on fan speed 4 and high lights.
Press Button again and the hood will turn back on at speed 4 and high lights
level.)
Delay O Button Function
- With the fan on press and hold the Button for two seconds. The fan will change
to speed 1 and the 5 minute delay o timer will start.
+ LEDs will illuminate and slowly blink in accordance
with the time remaining until the fan and lights automatically turn o.
- Pressing Button while Delay O Function is enabled will turn the hood o and
cancel the Delay O Function.
Adjust 5 Speed Levels
Lights Low/High/O
ACT Verification
- Airflow Control Technology (ACT) allows the installer to set the maximum fan
CFM to align with local codes and regulations.
- To verify the maximum fan CFM:
- With hood o, hold the Button for two seconds. If all five fan speed
indicators illuminate = default maximum CFM. If three fan speed
indicators illuminate = 590 maximum CFM. If two fan speed indicators
illuminate = 390 maximum CFM.
2 SPEED SELECTION BUTTON
Fan Speed Decrease Button
- Press this button to decrease fan speed. 5, 4, 3, 2, 1.
- If fan is On Speed 1 and this button is pressed, fan will power O.
Fan Speed Increase Button
- Press this button to increase fan speed. Fan On, 1, 2, 3, 4, 5.
- If hood is O and this button is pressed, fan will turn On Speed 1.
Act Enabled Speed Selections
- When ACT is enabled, the number of fan speeds will be reduced as follows:
- 590 CFM = Maximum 3 speeds
- 390 CFM = Maximum 2 speeds
Siena Pro Island Use, Care, and Installation Guide
17
CORE
Features & Controls
ICON Touch Controls
3 LIGHTS BUTTON
- Lights have two levels, Low and High.
- From o, press one time for Low. Press again for High. Press again to power lights
o.
4 DISPLAY INDICATORS
Mesh Filter Clean Reminder (always enabled)
- After 30 hours of fan usage, the button indicator will begin to slowly blink
indicating it is time to clean the mesh filters.
- To reset: With hood o: hold the button for three seconds. All LED indicators
will blink two times confirming the 30 hour timer has been reset.
Charcoal Filter Replace Indicator (disabled by default, must be enabled if
recirculating hood)
- To enable Charcoal Filter Replacement Reminder:
- With hood o, hold button and button simultaneously for two
seconds. All LED indicators will illuminate for three seconds confirming the
Charcoal Filter Replace Reminder is enabled.
- To disable Charcoal Filter Replacement Reminder:
- With hood o, hold button and button simultaneously for two
seconds. All LED indicators will blink two times confirming the Charcoal Filter
Replace Reminder is disabled.
- After 120 hours of fan usage the button will slowly blink indicating the char
coal filters need replacment.
- To reset: With hood o, hold the button for two seconds. All LED indicators will
blink two times confirming the 120 hour timer has been reset.
SIENA PRO ISLAND
ISLAND
18
Siena Pro Island Use, Care, and Installation Guide
Loading...
