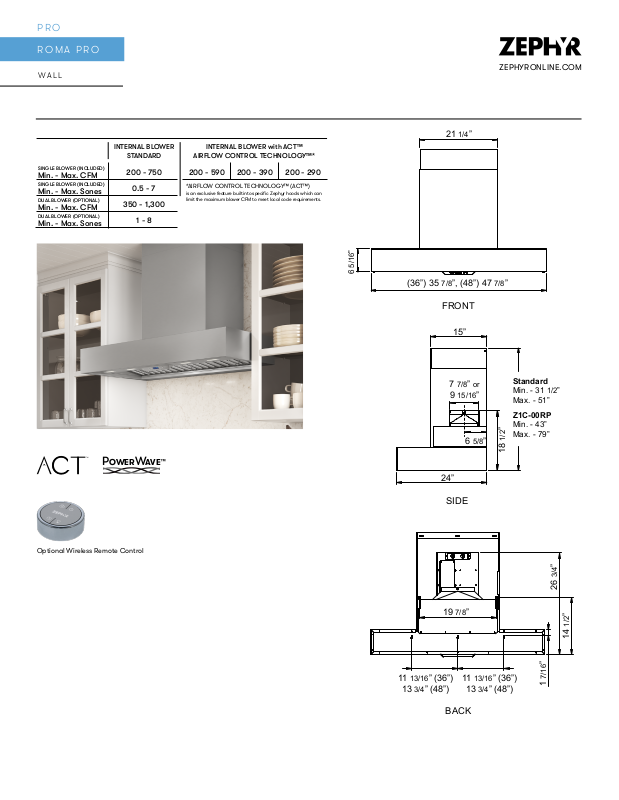

Zephyr ZPHY1740 Dimensions
PRO
6 5/16”
TM
C
POWERW
™
AVE
ROMA PRO
WALL
SINGLE BLOWER (INCLUDED)
Min. - Max. CFM
SINGLE BLOWER (INCLUDED)
Min. - Max. Sones
DUAL BLOWER (OPTIONAL)
Min. - Max. CFM
DUAL BLOWER (OPTIONAL)
Min. - Max. Sones
INTERNAL BLOWER
STANDARD
200 - 750
0.5 - 7
350 - 1,300
1 - 8
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
200 - 590 200 - 390 200 - 290
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
ZEPHYRONLINE.COM
21 1/4”
(36”) 35 7/8”, (48”) 47 7/8”
FRONT
15”
Optional Wireless Remote Control
7 7/8” or
9 15/16”
24”
SIDE
19 7/8”
6 5/8”
Standard
Min. - 31
Max. - 51”
Z1C-00RP
Min. - 43”
Max. - 79”
18 1/2”
1/2”
3/4”
26
14 1/2”
13/16” (36”)
11
13
3/4” (48”)
11 13/16” (36”)
13
3/4” (48”)
1 7/16”
BACK
PRO
TM
C
P
W
™
ROMA PRO
WALL
MODEL
Stainless Steel
Size
BLOWER PERFORMANCE
Included Single Blower
ACT 590*
ACT 390*
ACT 290*
Optional Dual Blower
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
CleanAir Function
Directional Lighting
Dual-Level Lighting
Filters
Grease Collection Tray
Wireless Remote Control
Recirculating Option
Duct Cover Extension Option
ADA Compliant
ZRP-E36BS
36”
200-750 CFM, 0.5-7 Sones
200-590 CFM
200-390 CFM
200-290 CFM
350-1,300 CFM, 1-8 Sones
590, 390, 290, Single Blower Only
Electronic LCD
6**
Yes
Yes
LumiLight LED, 6W x2
Yes
Pro Bae x2
Yes
Yes, Optional
No
Yes
Yes (w/ remote accessory)
ZEPHYRONLINE.COM
ZRP-E48BS
48”
200-750 CFM, 0.5-7 Sones
200-590 CFM
200-390 CFM
200-290 CFM
350-1,300 CFM, 1-8 Sones
590, 390, 290, Single Blower Only
Electronic LCD
6**
Yes
Yes
LumiLight LED, 6W x4
Yes
Pro Bae x3
Yes
Yes, Optional
No
Yes
Yes (w/ remote accessory)
DUCT SPECIFICATIONS
Vertical Single Internal Blower
Horizontal Single Internal Blower
Vertical Dual Internal Blower
Horizontal Dual Internal Blower
AC POWER (Single Blower)
AC POWER (Dual Blower)
8” Round
NA
10” Round
NA
120V, 60Hz at Max. 5A
120V, 60Hz at Max. 8A
8” Round
NA
10” Round
NA
120V, 60Hz at Max. 5A
120V, 60Hz at Max. 8A
OPTIONAL ACCESSORIES
Wireless Remote Control
Dual Internal Blower
Duct Cover Extension
Stainless Steel Telescopic Backsplash
Make-Up Air Kit (Single Blower)
Make-Up Air Kit (Dual Blower)
MOUNTING HEIGHT RANGE***
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
DUCT COVER
EXTENSION
*ACT™ only available with single internal blower.
**When ACT™ is enabled the number of fan speeds will be reduced to maximum 3 speeds.
***Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
MAY22.0101
Ducted Mounting Height***
Ducted Mounting Height***
Airflow Control Technology™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
14000005
PBD-1300B
Z1C-00RP
AK1716
MUA008A
MUA010A
24” - 36”
3 years parts, 1 year labor
8’
24” - 28.5”
NA
8.5’
24” - 34.5”
NA
14000005
PBD-1300B
Z1C-00RP
AK1718
MUA008A
MUA010A
24” - 36”
3 years parts, 1 year labor
9’
24” - 36”
24” - 29”
OWER
9.5 ’
27” - 36”
24” - 35”
PowerWave™ 3-Phase Blower Technology
AVE
delivers best-in-class performance with unparalleled quiet operation. It provides
more power while minimizing noise and improving eciency. Plus, its 1,300 CFM
blower option makes it the most powerful dual-internal blower on the market.
10’
33” - 36”
24” - 36”
10.5’
NA
24” - 36”
11’
NA
24” - 36”
12’
NA
29” - 36”
