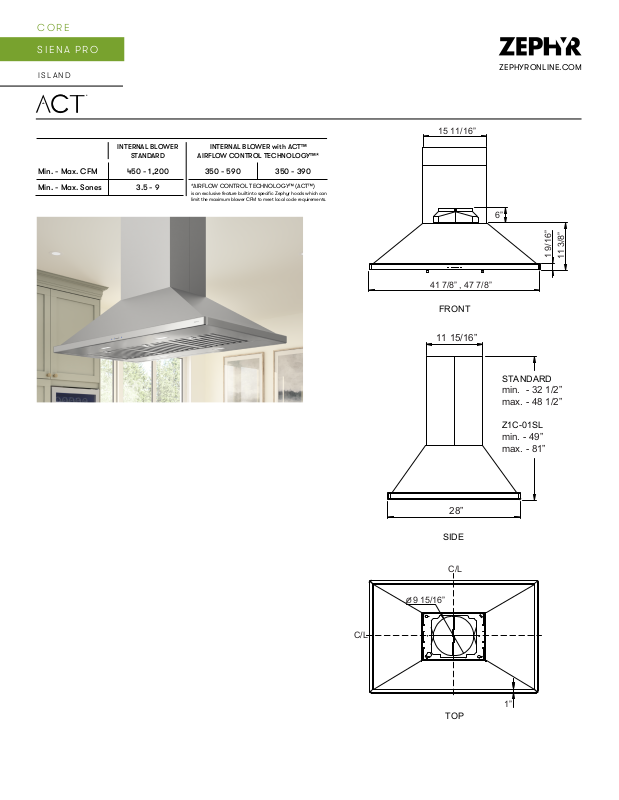

Zephyr ZPHY1739 Dimensions
CORE
TM
C
SIENA PRO
ISLAND
Min. - Max. CFM
Min. - Max. Sones
INTERNAL BLOWER
STANDARD
450 - 1,200
3.5 - 9
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
350 - 590 350 - 390
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
15 11/16”
41 7/8” , 47 7/8”
FRONT
11 15/16”
ZEPHYRONLINE.COM
6”
1 9/16”
11 3/8”
C/L
O
9 15/16”
STANDARD
min. - 32 1/2”
max. - 48 1/2”
Z1C-01SL
min. - 49”
max. - 81”
28”
SIDE
C/L
1”
TOP
CORE
SIENA PRO
ISLAND
MODEL
Stainless Steel
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
ACT 590 CFM (Min. - Max.)
ACT 390 CFM (Min. - Max.)
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Filters
Recirculating Option
Quick-Lock Installation System
Magnetic Duct Covers
Extension Duct Cover Option
ZSL-E42CS
42”
450 - 1,200
3.5 - 9
350 - 590
350 - 390
590, 390
ICON Touch®
5*
Yes
LumiLight LED, 6W x4
Yes
Hybrid Baes x2
No
Yes
Yes
Yes, Up to 12’ Ceiling
ZEPHYRONLINE.COM
ZSL-E48CS
48”
450 - 1,200
3.5 - 9
350 - 590
350 - 390
590, 390
ICON Touch®
5*
Yes
LumiLight LED, 6W x4
Yes
Hybrid Baes x3
No
Yes
Yes
Yes, Up to 12’ Ceiling
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
OPTIONAL ACCESSORIES
Wireless Remote Control Kit
Extension Duct Cover
Make-Up Air Kit
MOUNTING HEIGHT RANGE**
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
Ducted Mounting Height*
10” Round
NA
120V, 60Hz at Max. 9A
RC-0002
Z1C-01SL
MUA010A
26” - 34”
3 years parts, 1 year labor
8.5’8’
26” - 27.5”NA26” - 33.5”NA26” - 34”NA29.5” - 34”
10” Round
NA
120V, 60Hz at Max. 9A
RC-0002
Z1C-01SL
MUA010A
26” - 34”
3 years parts, 1 year labor
9’ 9.5 ’ 10’ 10.5’ 11’ 12’
EXTENSION
DUCT COVER
*When ACT™ is enabled the maximum speed levels will change. ACT 590 CFM = 3 speeds and ACT 390 CFM = 2 speeds.
**Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
JUN22.0101
Ducted Mounting Height*
26” - 33”NA26” - 34”NA26” - 34”NA26” - 34”NA27” - 34”
