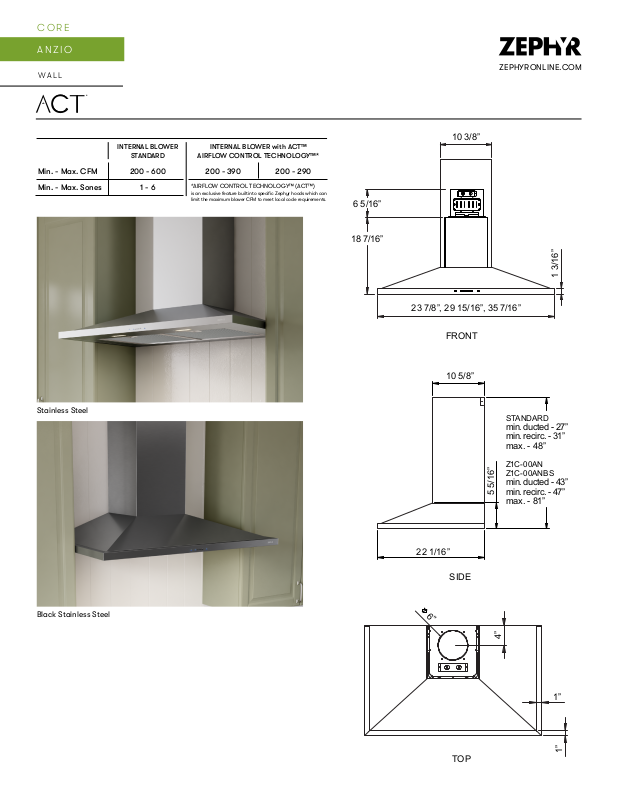

Zephyr ZPHY1718 Specifications
CORE
TOP
TM
C
ANZIO
WALL
Min. - Max. CFM
Min. - Max. Sones
INTERNAL BLOWER
STANDARD
200 - 600
1 - 6
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
200 - 390 200 - 290
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
ZEPHYRONLINE.COM
10 3/8”
6 5/16”
18 7/16”
1 3/16”
23 7/8”, 29 15/16”, 35 7/16”
FRONT
Stainless Steel
Black Stainless Steel
22 1/16”
6
”
10 5/8”
SIDE
STANDARD
min. ducted - 27”
min. recirc. - 31”
max. - 48”
Z1C- 0 0A N
Z1C- 0 0A NBS
min. ducted - 43”
min. recirc. - 47”
5 5/16”
max. - 81”
4”
1”
1”
CORE
TM
C
ANZIO
WALL
MODEL
Black Stainless Steel
Stainless Steel
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
ACT 390 CFM (Min. - Max.)
ACT 290 CFM (Min. - Max.)
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Filters
Recirculating Option
Duct Cover Extension Option
ADA Compliant
ZAN-E24DS
24”
200 - 600
1 - 6
200 - 390
200 - 290
390, 290
ICON Touch®
5*
Yes
LumiLight LED, 6W x1
Yes
Aluminum Mesh x1
Yes
Yes, Up to 12’ Ceiling
Yes, w/ remote accessory
ZAN-E30DBS
ZAN-E30DS
30”
200 - 600
1 - 6
200 - 390
200 - 290
390, 290
ICON Touch®
5*
Yes
LumiLight LED, 6W x2
Yes
Aluminum Mesh x2
Yes
Yes, Up to 12’ Ceiling
Yes, w/ remote accessory
ZEPHYRONLINE.COM
ZAN-M90DBS
ZAN-M90DS
36”
200 - 600
1 - 6
200 - 390
200 - 290
390, 290
ICON Touch®
5*
Yes
LumiLight LED, 6W x2
Yes
Aluminum Mesh x2
Yes
Yes, Up to 12’ Ceiling
Yes, w/ remote accessory
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
6” Round
NA
120V, 60Hz at Max. 4A
6” Round
NA
120V, 60Hz at Max. 4A
OPTIONAL ACCESSORIES
Wireless Remote Control Kit
Recirculating Kit
Duct Cover Extension
RC-0002
ZRC-01AN
Z1C-00AN (SS)
RC-0002
ZRC-01AN
Z1C-00ANBS (Black SS)
Z1C-00AN (SS)
Stainless Steel Telescopic Backsplash
Make-Up Air Kit
Hybrid Bae Filter Kit (2 lters)
MOUNTING HEIGHT RANGE**
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
DUCT COVER
EXTENSION
*When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds.
**Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Ducted Mounting Height***
Recirc Mounting Height***
Ducted Mounting Height***
Recirc Mounting Height***
NA
MUA006A
Z0F-B002
26” - 34”
3 years parts, 1 year labor
8’
26” - 33”
26” - 29”
NA
NA
AK1710
MUA006A
Z0F-B002
26” - 34”
3 years parts, 1 year labor
8.5’
26” - 34”
26” - 34”
NA
NA
9’
26” - 34”
26” - 34”
26” - 29”
NA
9.5 ’
29.5” - 34”
29.5” - 34”
26” - 34”
26” - 31”
6” Round
NA
120V, 60Hz at Max. 4A
RC-0002
ZRC-01AN
Z1C-00ANBS (Black SS)
Z1C-00AN (SS)
NA
MUA006A
Z0F-B002
26” - 34”
3 years parts, 1 year labor
10’
NA
NA
26” - 34”
26” - 34”
10.5’
NA
NA
26” - 34”
26” - 34”
11’
NA
NA
26” - 34”
26” - 34”
12’
NA
NA
27” - 34”
27” - 34”
Airflow Control Technology™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
MAY22.0101
