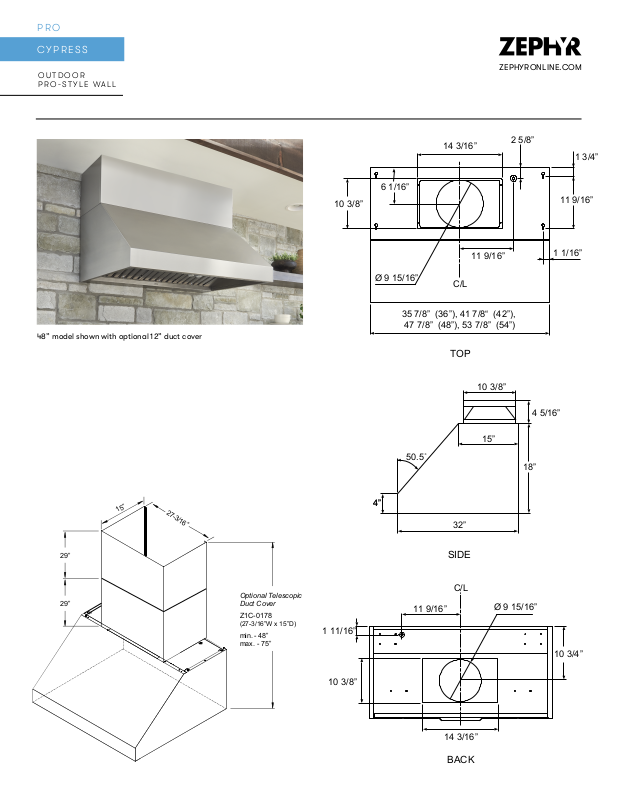

Zephyr ZPHY1708 Specifications
BACK
1 3/4”
1 11/16”
PRO
CYPRESS
OUTDOOR
PRO-STYLE WALL
48” model shown with optional 12” duct cover
10 3/8”
14 3/16”
6 1/16”
Ø 9 15/16”
C/L
35 7/8” (36”), 41 7/8“ (42”),
47 7/8” (48”), 53 7/8” (54”)
TOP
ZEPHYRONLINE.COM
2 5/8”
11 9/16”
11 9/16”
1 1/16”
29”
29”
10 3/8”
4 5/16”
15”
50.5˚
18”
”
5
1
27-3/16”
4”4”
32”
SIDE
Optional Telescopic
Duct Cover
Z1C-0178
(27-3/16”W x 15”D)
min. - 48”
max. - 75”
11 9/16”
10 3/8”
C/L
Ø 9 15/16”
10 3/4”
14 3/16”
PRO
CYPRESS
OUTDOOR
PRO-STYLE WALL
MODEL
Stainless Steel
Size
Net Width
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
FEATURES
Controls
Speed Levels
Lighting
Dual-Level Lighting
Filters
Recirculating Option
High Quality Stainless Steel
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
AK7836CS
36”
35-7/8”
450 - 1,200
3.5 - 9
Metallic Knob
3
LumiLight LED, 6W x2
Yes
Pro Bae x3
No
304S
10” Round
10” Round
120V, 60Hz at Max. 9A
AK7842CS
42”
41-7/8”
450 - 1,200
3.5 - 9
Metallic Knob
3
LumiLight LED, 6W x2
Yes
Pro Bae x3
No
304S
10” Round
10” Round
120V, 60Hz at Max. 9A
AK7848CS
48”
47-7/8”
450 - 1,200
3.5 - 9
Metallic Knob
3
LumiLight LED, 6W x4
Yes
Pro Bae x4
No
304S
10” Round
10” Round
120V, 60Hz at Max. 9A
ZEPHYRONLINE.COM
AK7854CS
54”
53-7/8”
450 - 1,200
3.5 - 9
Metallic Knob
3
LumiLight LED, 6W x4
Yes
Pro Bae x4
No
304S
10” Round
10” Round
120V, 60Hz at Max. 9A
OPTIONAL ACCESSORIES
12” Duct Cover
Duct Cover (10’ - 12’ ceilings)
MOUNTING HEIGHT RANGE*
WARRANTY
*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
AK0736BS
Z1C-0178
30” - 36”
3 years parts, 1 year labor
AK0742BS
Z1C-0178
30” - 36”
3 years parts, 1 year labor
AK0748BS
Z1C-0178
30” - 36”
3 years parts, 1 year labor
AK0754BS
Z1C-0178
30” - 36”
3 years parts, 1 year labor
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
APR22.0101
