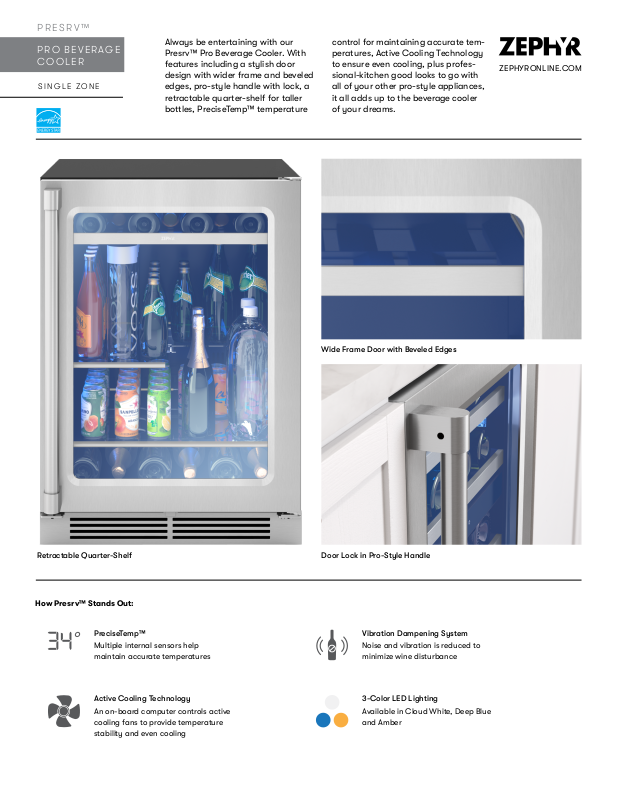

Zephyr ZPHY1696 Specifications
PRESRV™
PRO BEVERAGE
COOLER
SINGLE ZONE
Always be entertaining with our
Presrv™ Pro Beverage Cooler. With
features including a stylish door
design with wider frame and beveled
edges, pro-style handle with lock, a
retractable quarter-shelf for taller
bottles, PreciseTemp™ temperature
control for maintaining accurate temperatures, Active Cooling Technology
to ensure even cooling, plus professional-kitchen good looks to go with
all of your other pro-style appliances,
it all adds up to the beverage cooler
of your dreams.
ZEPHYRONLINE.COM
How Presrv™ Stands Out:
Multiple internal sensors help
maintain accurate temperatures
Wide Frame Door with Beveled Edges
Door Lock in Pro-Style HandleRetractable Quarter-Shelf
Vibration Dampening SystemPreciseTemp™
Noise and vibration is reduced to
minimize wine disturbance
Active Cooling Technology
An on-board computer controls active
cooling fans to provide temperature
stability and even cooling
3-Color LED Lighting
Available in Cloud White, Deep Blue
and Amber
(max. Ø 3-1/2”)
PRESRV™
PRO BEVERAGE
COOLER
SINGLE ZONE
ZEPHYRONLINE.COM
MODEL
Pro Beverage Cooler
Size
Dimensions
Weight
Installation Type
Refrigerant Type
FEATURES
Capacity
Volume
Temperature Range
Sound Level
Door Finish
Cabinet Finish
Interior Finish
Field-Reversible Door
Zero-Clearance Door Hinge
Door Glass
Shelving - Wood
Shelving - Beverage
Controls
Lighting
Door Open Alarm
Door Lock
Sabbath Mode
Air Filtration
PreciseTemp™
Active Cooling Technology
Vibration Dampening System
PRPB24C01AG
24”
23-7/8”W x 33-7/8”H x 23-5/8”D
131lbs.
Compact / Built-in / Freestanding
R600a
13 bottles (750 ml), 84 12oz cans or
7 bottles (750 ml), 112 12oz cans
5.6 cu/ft
34° - 50° F
39 dBA
304-grade Stainless + Glass
Black
Black
Yes
Yes
Dual-pane, Low-e Argon-filled*
1 full-extension, black wood rack w/
stainless trim
1 adjustable, transparent-gray glass
retractable quarter-shelf
1 adjustable, transparent-gray glass
shelf w/ airflow openings
Electronic Capacitive Touch
3-Color LED
Cloud White, Deep Blue, Amber
Yes, after 3 minutes
Yes
Yes
Yes, w/ carbon filter
Yes
Yes
Yes
2-1/4”
Min.
23-7/8”
Top
View
Wall
46-1/8”
M
a
x
1
3
5
º
26”
23-5/8”
21-4/5”
Side
View
33-7/8” - 34-1/2”
24-1/4”
30”
27-4/5”
AC POWER
115V, 60Hz at Max. 1.0A
OPTIONAL ACCESSORIES
Retractable Quarter-Shelf
Standard Glass Shelf
WARRANTY
50150016
50150015
2 years parts, 5 years compressor
1 year labor
*Dual-pane, argon-filled glass improves insulation to minimize
heat exchange and increases soundproofing characteristics.
The Low-e coating helps minimize the amount of UV and
infrared light that passes through the glass door.
Transforming the Kitchen through Design, Discovery, and Care
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.8368
MAR22.0101
7 Bottles (max. Ø 3-1/2”)
42 cans (std. 12oz)
42 cans (std. 12oz)
6 Bottles
or 28 cans (std. 12oz)
