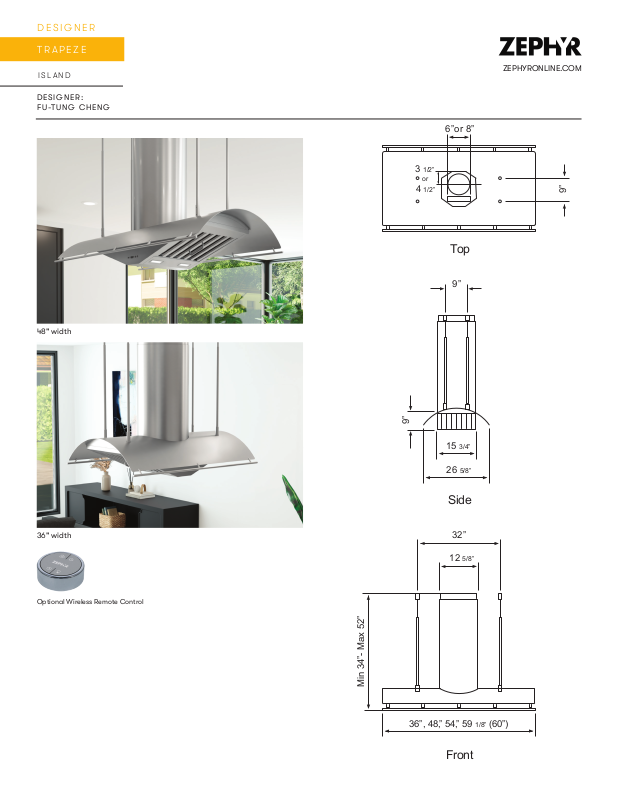

Zephyr ZPHY1692 Specifications
DESIGNER
Top
Front
Side
36”, 48,” 54,” 59 1/8” (60”)
Min 34”- Max 52”
32”
12
5/8”
26 5/8”
15 3/4”
9”
9”
9”
6” or 8”
3 1/2”
4 1/2”
or
TRAPEZE
ISLAND
DESIGNER:
FU-TUNG CHENG
48" width
ZEPHYRONLINE.COM
36" width
Optional Wireless Remote Control
DESIGNER
TRAPEZE
ISLAND
DESIGNER:
FU-TUNG CHENG
MODEL
Stainless Steel
Size
PERFORMANCE
Internal Blower (CBI-290C)*
Internal Blower (CBI-390A)*
Internal Blower (CBI-600A)*
In-Line Blower (PBN-1000A)*
External Blower (CBE-1000)*
FEATURES
Controls
Speed Levels
Auto Delay-O
Directional Lighting
Tri-Level Lighting
Filters
Wireless Remote Control Option
Recirculating Option
Extension Duct Cover
ADA Compliant
CTP-E36CSX
36”
200-290 CFM, 1.4-3 sones
200-390 CFM, 1.4-5 sones
240-600 CFM, 1.8-6 sones
500-1,000 CFM, sones NA
500-1,000 CFM, sones NA
Electronic Touch Controls
3
Yes
LumiLight LED, 6W x2
Yes
Professional Bae
Yes, RF
No
Yes, Up to 12’ Ceiling
Yes (with remote accessory)
CTP-E48CSX
48”
200-290 CFM, 1.4-3 sones
200-390 CFM, 1.4-5 sones
240-600 CFM, 1.8-6 sones
500-1,000 CFM, sones NA
500-1,000 CFM, sones NA
Electronic Touch Controls
3
Yes
LumiLight LED, 6W x4
Yes
Professional Bae
Yes, RF
No
Yes, Up to 12’ Ceiling
Yes (with remote accessory)
CTP-E54CSX
54”
200-290 CFM, 1.4-3 sones
200-390 CFM, 1.4-5 sones
240-600 CFM, 1.8-6 sones
500-1,000 CFM, sones NA
500-1,000 CFM, sones NA
Electronic Touch Controls
3
Yes
LumiLight LED, 6W x4
Yes
Professional Bae
Yes, RF
No
Yes, Up to 12’ Ceiling
Yes (with remote accessory)
ZEPHYRONLINE.COM
CTP-E60CSX
60”
200-290 CFM, 1.4-3 sones
200-390 CFM, 1.4-5 sones
240-600 CFM, 1.8-6 sones
500-1,000 CFM, sones NA
500-1,000 CFM, sones NA
Electronic Touch Controls
3
Yes
LumiLight LED, 6W x4
Yes
Professional Bae
Yes, RF
No
Yes, Up to 12’ Ceiling
Yes (with remote accessory)
DUCT SPECIFICATIONS
Vertical - Internal Blower
Vertical - External/In-Line Blower
Horizontal
AC POWER
Hood w/ CBI-290C
Hood w/ CBI-390A
Hood w/ CBI-600A
Hood w/ PBN-1000A
Hood w/ CBE-1000
OPTIONAL ACCESSORIES
Extension Duct Cover
Make-Up Air Kit
Wireless Remote Control
MOUNTING HEIGHT RANGE***
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
Ducted Mounting Height***
6” Round
10” - 8”**
NA
120V, 60Hz, Max. 0.95A
120V, 60Hz, Max. 2.1A
120V, 60Hz, Max. 2.95A
120V, 60Hz, Max. 5.65A
120V, 60Hz, Max. 6.45A
Z1C-00TP
MUA006A (600 CFM)
MUA008A (1,000CFM)
14000005
26” - 36”
3 years parts, 1 year labor
8.5’8’
26” - 26”NA26” - 32”NA26” - 36”NA26” - 36”
6” Round
10” - 8”**
NA
120V, 60Hz, Max. 0.95A
120V, 60Hz, Max. 2.1A
120V, 60Hz, Max. 2.95A
120V, 60Hz, Max. 5.65A
120V, 60Hz, Max. 6.45A
Z1C-00TP
MUA006A (600 CFM)
MUA008A (1,000CFM)
14000005
26” - 36”
3 years parts, 1 year labor
6” Round
10” - 8”**
NA
120V, 60Hz, Max. 0.95A
120V, 60Hz, Max. 2.1A
120V, 60Hz, Max. 2.95A
120V, 60Hz, Max. 5.65A
120V, 60Hz, Max. 6.45A
Z1C-00TP
MUA006A (600 CFM)
MUA008A (1,000CFM)
14000005
26” - 36”
3 years parts, 1 year labor
9’ 9.5 ’ 10’ 10.5’ 11’ 12’
32” - 36”
6” Round
10” - 8”**
NA
120V, 60Hz, Max. 0.95A
120V, 60Hz, Max. 2.1A
120V, 60Hz, Max. 2.95A
120V, 60Hz, Max. 5.65A
120V, 60Hz, Max. 6.45A
Z1C-00TP
MUA006A (600 CFM)
MUA008A (1,000CFM)
14000005
26” - 36”
3 years parts, 1 year labor
EXTENSION
DUCT COVER
*Blower sold separately.
**10” round duct connects to external and in-line blower. Must transition from 10” to 8” before duct passes through ceiling. A 10” to 8” adapter is included with external and in-line blowers.
***Mounting height refers to distance between top of a 36" tall cooking surface and bottom of hood.
Specications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
JUL22.0101
