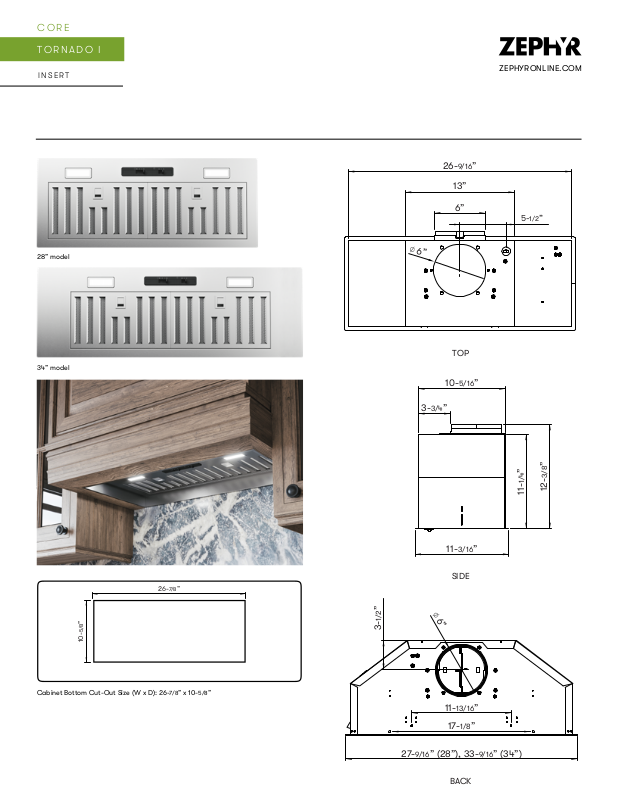

Page 1
CORE
BACK
TORNADO I
INSERT
28” model
34” model
ZEPHYRONLINE.COM
26-9/16”
13”
6”
5-1/2”
6”
TOP
10-5/16”
26-7/ 8”
10-5/8”
Cabinet Bottom Cut-Out Size (W x D): 26-7/8” x 10-5/8”
3-
3/4”
3/8”
12-
11-1/4”
11-3/16”
SIDE
6”
3-1/2”
11-
13/16”
17- 1/8”
9/16” (28”), 33-9/16” (34”)
27-
Page 2
CORE
TORNADO I
INSERT
MODEL
Stainless Steel
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
FEATURES
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Filters
Recirculating Option
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
AK8100BS
28” (27-9/16”)
200 - 600
1.4 - 6
Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Hybrid Bae x2
Yes
6” Round
6” Round
120V, 60Hz at Max. 3A
ZEPHYRONLINE.COM
AK8134BS
34” (33-9/16”)
200 - 600
1.4 - 6
Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Hybrid Bae x2
Yes
6” Round
6” Round
120V, 60Hz at Max. 3A
OPTIONAL ACCESSORIES
30” Liner (17-1/2” - 20-1/2” Depth)
36” Liner (17-1/2” - 20-1/2” Depth)
Recirculating Kit
Make-Up Air Kit
AK0800AS
AK0836AS
ZRC-0080
MUA006A
NA
AK0836AS
ZRC-0080
MUA006A
MOUNTING HEIGHT RANGE*
Electric Cooking Surface
Gas Cooking Surface
WARRANTY
*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
20” - 36”
24” - 36”
10 years parts, 1 year labor
20” - 36”
24” - 36”
10 years parts, 1 year labor
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
FEB22.0101
