(30”) 25-
3/16
”,(36”) 31-
3/16
”
2-
1/16
”
8”
6-
7/8
”
(30”) 6-
5/16
”
(36”) 9-
5/16
”
2”
4-
5/8
”
1-
9/16
”
35.87°
7-
3/8
”
7-
15/16
”
21”
1-
3/16
”
8-
3/4
”
3-
1/4
”
(30”) 6-
5/16
”
(36”) 9-
5/16
”
(30”) 29-
7/8
”,(36”) 35-
7/8
”

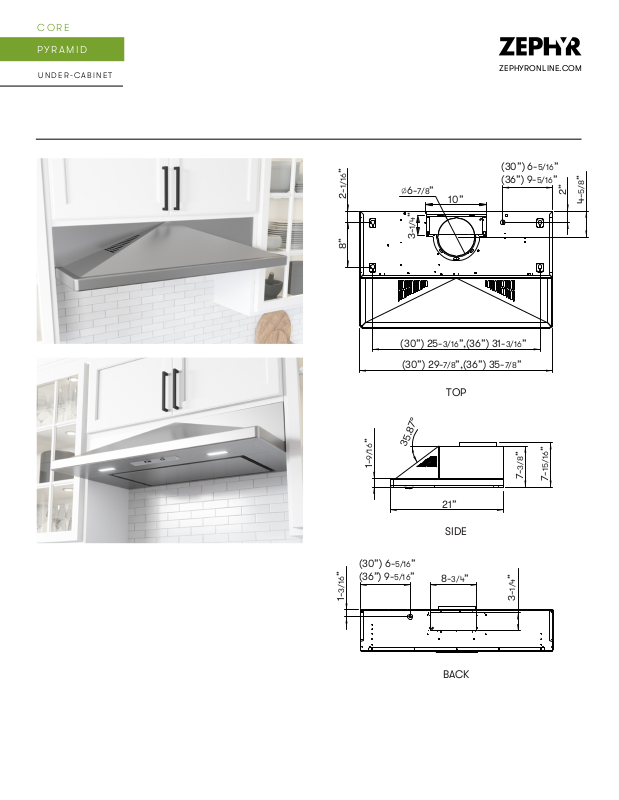

TOP
SIDE
BACK
10”
3-
1/4
”
CORE
PYRAMID
UNDER-CABINET
ZEPHYRONLINE.COM
CORE
PYRAMID
UNDER-CABINET
MODEL
Stainless Steel
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
FEATURES
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Filters
Perimeter Aspiration System
Recirculating Option
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
ZPY-E30BS
30”
210 - 400
2 - 5
Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Aluminum Mesh x2
Yes
Yes
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2A
ZPY-E36BS
36”
210 - 400
2 - 5
Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Aluminum Mesh x2
Yes
Yes
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2A
ZEPHYRONLINE.COM
ZPY-E30BS290
30”
120 - 290
1.1 - 3.2
Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Aluminum Mesh x2
Yes
Yes
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2A
OPTIONAL ACCESSORIES
Recirculating Kit
Stainless Steel Telescopic Backsplash
Damper, 7” Round
MOUNTING HEIGHT RANGE*
WARRANTY
*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
ZRC-00PY
AK1710
AK00067
24” - 32”
3 years parts, 1 year labor
ZRC-00PY
AK1716
AK00067
24” - 32”
3 years parts, 1 year labor
DID YOU KNOW?
The Perimeter Aspiration System moves airow away from the central area
of the hood and evenly distributes it through narrow openings around the
perimeter of the hood. This ventilation method increases air velocity and
improves the capture of cooking contaminants.
ZRC-00PY
AK1710
AK00067
24” - 32”
3 years parts, 1 year labor
Specications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
AUG21.0101
