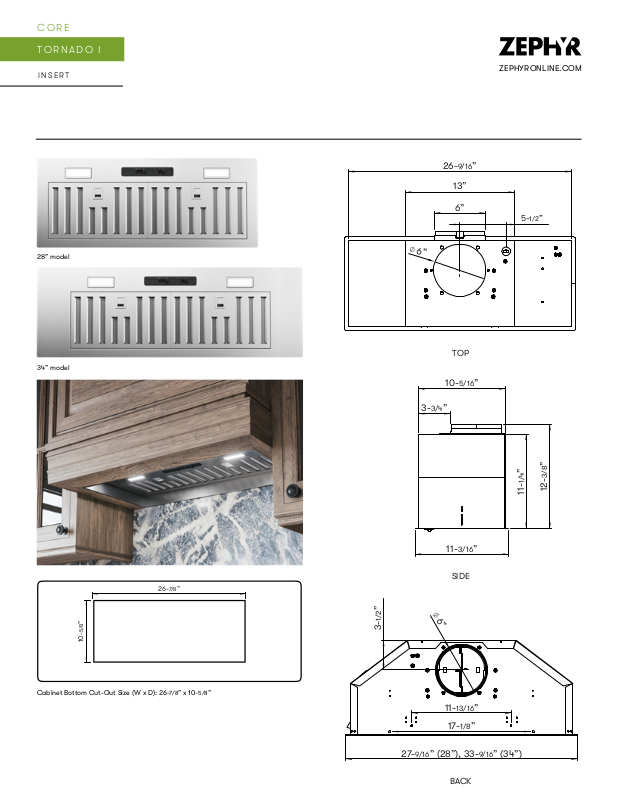

Zephyr ZPHY1536 Specifications

CORE

BACK

TORNADO I

INSERT

28” model

34” model

ZEPHYRONLINE.COM

26-9/16”

13”

6”

5-1/2”

6”

TOP

10-5/16”

26-7/ 8”

10-5/8”

Cabinet Bottom Cut-Out Size (W x D): 26-7/8” x 10-5/8”

3-

3/4”

3/8”

12-

11-1/4”

11-3/16”

SIDE

6”

3-1/2”

11-

13/16”

17- 1/8”

9/16” (28”), 33-9/16” (34”)

27-

CORE

TORNADO I

INSERT

MODEL
Stainless Steel
Size

BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)

FEATURES
Controls
Speed Levels

Auto Delay-O

Lighting
Dual-Level Lighting
Filters
Recirculating Option

DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER

AK8100BS
28” (27-9/16”)

200 - 600

1.4 - 6

Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Hybrid Bae x2
Yes

6” Round
6” Round
120V, 60Hz at Max. 3A

ZEPHYRONLINE.COM

AK8134BS
34” (33-9/16”)

200 - 600

1.4 - 6

Mechanical Slide
3
No
LumiLight LED, 6W x2
Yes
Hybrid Bae x2
Yes

6” Round
6” Round
120V, 60Hz at Max. 3A

OPTIONAL ACCESSORIES
30” Liner (17-1/2” - 20-1/2” Depth)
36” Liner (17-1/2” - 20-1/2” Depth)
Recirculating Kit
Make-Up Air Kit

AK0800AS
AK0836AS
ZRC-0080
MUA006A

NA
AK0836AS
ZRC-0080
MUA006A

MOUNTING HEIGHT RANGE*
Electric Cooking Surface
Gas Cooking Surface

WARRANTY

*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.

20” - 36”
24” - 36”

10 years parts, 1 year labor

20” - 36”
24” - 36”

10 years parts, 1 year labor

Specifications subject to change, check zephyronline.com for up-to-date information.
