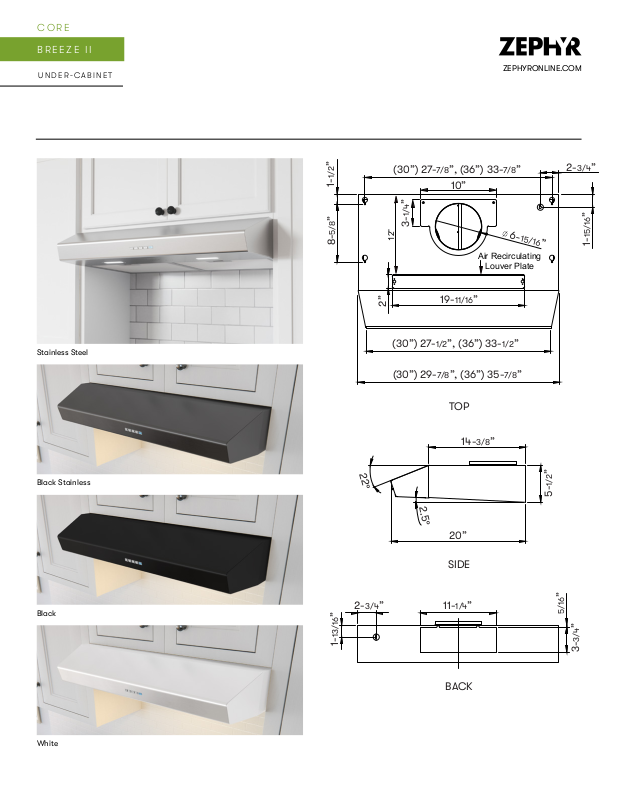

Page 1
CORE
BREEZE II
UNDER-CABINET
Stainless Steel
1/2”
1-
5/8”
8-
(30”) 27-
3-1/4”
12”
2”
(30”) 27-
ZEPHYRONLINE.COM
7/8 ”, (36”) 33-7/8”
10”
6-
Air Recirculating
Louver Plate
11/16”
19-
1/2”, (36”) 33-1/2”
15/16
2-3/4”
”
1-15/16”
Black Stainless
Black
13/16”
1-
22º
2-3/4”
(30”) 29-7/8 ”, (36”) 35-7/8”
TOP
14-3/8”
2.5º
20”
SIDE
11-
1/4”
5-1/2”
5/16”
3/4”
3-
White
BACK
Page 2
CORE
BREEZE II
UNDER-CABINET
MODEL
Black
White
Black Stainless Steel
Stainless Steel
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
FEATURES
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Filters
Recirculating Option
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
AK1200CB
AK1200CW
AK1200CBS
AK1200CS
30” (29-7/8”)
175 - 400
1.9 - 4.5
Electronic Touch
3
Yes
LumiLight LED, 6W x2
Yes
Aluminum Mesh x2
Yes
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2A
ZEPHYRONLINE.COM
AK1236CB
AK1236CW
AK1236CBS
AK1236CS
36” (35-7/8”)
175 - 400
1.9 - 4.5
Electronic Touch
3
Yes
LumiLight LED, 6W x2
Yes
Aluminum Mesh x2
Yes
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2A
OPTIONAL ACCESSORIES
Recirculating Kit
Stainless Steel Telescopic Backsplash
Damper, 7” Round
ZRC-0012
AK1710
AK00067
ZRC-0012
AK1716
AK00067
MOUNTING HEIGHT RANGE*
Electric Cooking Surface
Gas Cooking Surface
WARRANTY
*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
20” - 32”
24” - 32”
3 years parts, 1 year labor
20” - 32”
24” - 32”
3 years parts, 1 year labor
Specications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
AUG21.0101
