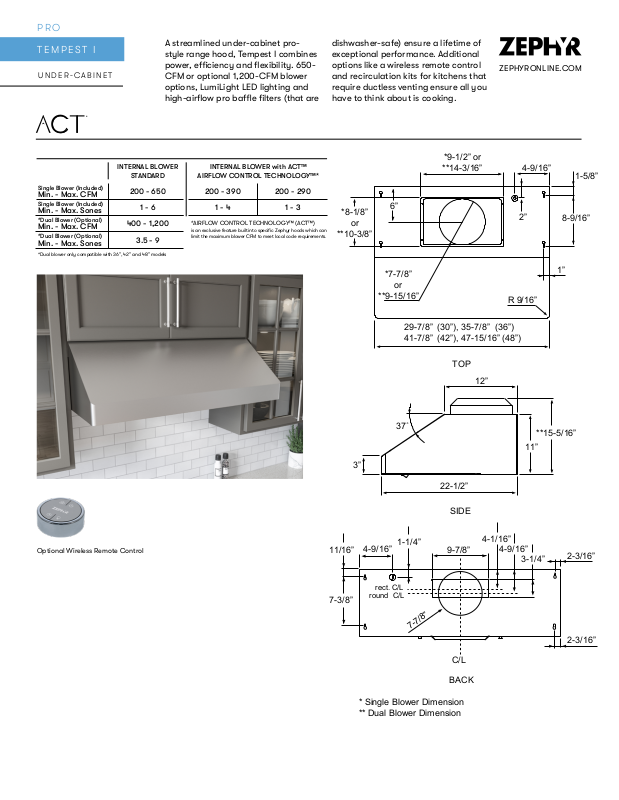

Zephyr ZPHY1452 Specifications
1-5/8”
11/16”
TM
C
PRO
TEMPEST I
UNDER-CABINET
A streamlined under-cabinet prostyle range hood, Tempest I combines
power, eciency and flexibility. 650CFM or optional 1,200-CFM blower
options, LumiLight LED lighting and
high-airflow pro bae filters (that are
dishwasher-safe) ensure a lifetime of
exceptional performance. Additional
options like a wireless remote control
and recirculation kits for kitchens that
require ductless venting ensure all you
have to think about is cooking.
ZEPHYRONLINE.COM
INTERNAL BLOWER
STANDARD
Single Blower (Included)
Min. - Max. CFM
Single Blower (Included)
Min. - Max. Sones
*Dual Blower (Optional)
Min. - Max. CFM
*Dual Blower (Optional)
Min. - Max. Sones
*Dual blower only compatible with 36”, 42” and 48” models
200 - 650
1 - 6
400 - 1,200
3.5 - 9
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
200 - 390
1 - 4
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
200 - 290
1 - 3
*8-1/8”
or
**10-3/8”
*9-1/2” or
**14-3/16”
6”
*7-7/8”
or
**9-15/16”
29-7/8” (30”), 35-7/8” (36”)
41-7/8” (42”), 47-15/16” (48”)
TOP
37˚
12”
4-9/16”
2”
R 9/16”
11”
8-9/16”
1”
**15-5/16”
Optional Wireless Remote Control
3”
4-9/16”
rect. C/L
7-3/8”
round C/L
* Single Blower Dimension
** Dual Blower Dimension
1-1/4”
7-7/8”
22-1/2”
SIDE
9-7/8”
C/L
BACK
4-1/16”
4-9/16”
3-1/4”
2-3/16”
2-3/16”
PRO
TM
C
TEMPEST I
UNDER-CABINET
MODEL
Stainless Steel
Size
BLOWER PERFORMANCE
Included Single Blower
ACT 390
ACT 290
Optional Dual Blower
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
CleanAir Function
Lighting
Dual-Level Lighting
Filters
Wireless Remote Control Option
Dual Internal Blower Option
Recirculating Option**
ADA Compliant
AK7000CS
30”
200-650 CFM
200-390 CFM
200-290 CFM
NA
390, 290, Single Blower Only
Electronic Touch
6*
Yes
Yes
LumiLight LED, 6W x2
Yes
Pro Bae x2
Yes, RF
No
Yes, Single Blower Only
Yes (with remote accessory)
AK7036CS
36”
200-650 CFM
200-390 CFM
200-290 CFM
400-1,200 CFM
390, 290 Single Blower Only
Electronic Touch
6*
Yes
Yes
LumiLight LED, 6W x2
Yes
Pro Bae x2
Yes, RF
Yes
Yes, Single Blower Only
Yes (with remote accessory)
AK7042CS
42”
200-650 CFM
200-390 CFM
200-290 CFM
400-1,200 CFM
390, 290, Single Blower Only
Electronic Touch
6*
Yes
Yes
LumiLight LED, 6W x2
Yes
Pro Bae x2
Yes, RF
Yes
Yes, Single Blower Only
Yes (with remote accessory)
ZEPHYRONLINE.COM
AK7048CS
48”
200-650 CFM
200-390 CFM
200-290 CFM
400-1,200 CFM
390, 290, Single Blower Only
Electronic Touch
6*
Yes
Yes
LumiLight LED, 6W x2
Yes
Pro Bae x3
Yes, RF
Yes
Yes, Single Blower Only
Yes (with remote accessory)
DUCT SPECIFICATIONS
Vertical Single Internal Blower
Horizontal Single Internal Blower
Vertical Dual Internal Blower
Horizontal Dual Internal Blower
AC POWER (Single Blower)
AC POWER (Dual Blower)
8” Round
3-1/4” x 10” or 8” Round
NA
NA
120V, 60Hz at Max. 5A
NA
8” Round
3-1/4” x 10” or 8” Round
10” Round
NA
120V, 60Hz at Max. 5A
120V, 60Hz at Max. 9A
8” Round
3-1/4” x 10” or 8” Round
10” Round
NA
120V, 60Hz at Max. 5A
120V, 60Hz at Max. 9A
OPTIONAL ACCESSORIES
12” Duct Cover
24” Duct Cover
Wireless Remote Control
Dual Internal Blower Kit
Recirculating Kit
Stainless Steel Telescopic Backsplash
Make-Up Air Kit (Single Blower)
Make-Up Air Kit (Dual Blower)
MOUNTING HEIGHT RANGE***
WARRANTY
*When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 3 speeds and ACT 290 CFM = 2 speeds.
**Recirculating kit includes a return-air box which adds an additional 4” to the hood height. Recirculating kit is only compatible with single blower.
***Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
AK0720
AK1720
14000005
NA
ZRC-7000C
AK1710
MUA008A
NA
26” - 36”
3 years parts, 1 year labor
AK0726
AK1726
14000005
PBD-1200A
ZRC-7036C
AK1716
MUA008A
MUA010A
26” - 36”
3 years parts, 1 year labor
AK0722
AK1722
14000005
PBD-1200A
ZRC-7042C
AK1712
MUA008A
MUA010A
26” - 36”
3 years parts, 1 year labor
8” Round
3-1/4” x 10” or 8” Round
10” Round
NA
120V, 60Hz at Max. 5A
120V, 60Hz at Max. 9A
AK0728
AK1728
14000005
PBD-1200A
ZRC-7048C
AK1718
MUA008A
MUA010A
26” - 36”
3 years parts, 1 year labor
Airflow Control Technology™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
SEP21.0101
