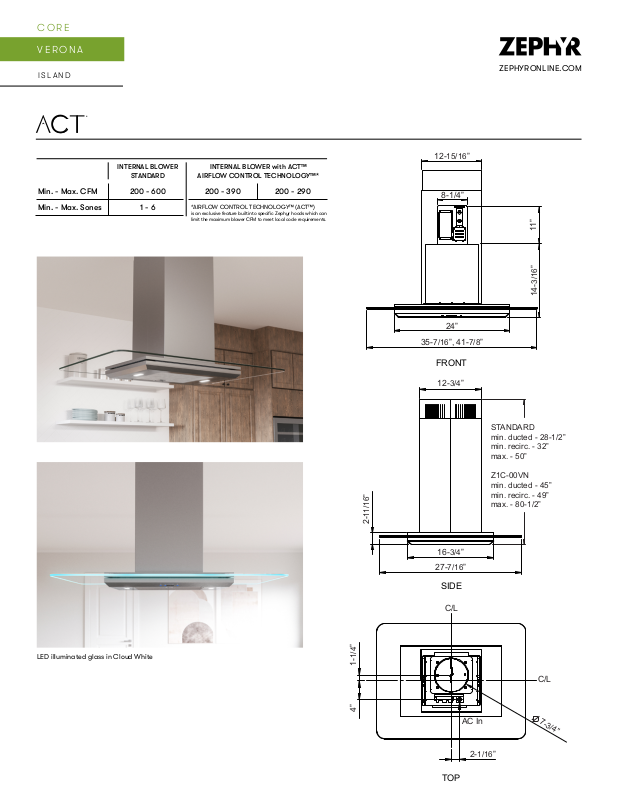

Zephyr ZPHY1430 Specifications
CORE
TM
C
VERONA
ISLAND
Min. - Max. CFM
Min. - Max. Sones
INTERNAL BLOWER
STANDARD
200 - 600
1 - 6
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
200 - 390 200 - 290
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
12-15/16”
8-1/4”
24”
35-
7/16”, 41-7/8”
ZEPHYRONLINE.COM
11”
3/16”
14-
2-11/16”
FRONT
12-3/4”
16-3/4”
7/16”
27-
SIDE
C/L
STANDARD
min. ducted - 28-1/2”
min. recirc. - 32”
max. - 50”
Z1C-00VN
min. ducted - 45”
min. recirc. - 49”
max. - 80-1/2”
LED illuminated glass in Cloud White
1-1/4”4”
C/L
AC In
7-
3/4
”
2-1/16”
TOP
CORE
TM
C
VERONA
ISLAND
MODEL
Stainless Steel w/ Glass canopy
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
ACT 390 CFM (Min. - Max.)
ACT 290 CFM (Min. - Max.)
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
LED Illuminated Glass
Filters
Recirculating Option
Quick-Lock Installation
Magnetic Duct Covers
Extension Duct Cover Option
ZVN-M90BG
36”
200 - 600
1 - 6
200 - 390
200 - 290
Yes
ICON Touch®
5*
Yes
LumiLight LED, 6W x2
Yes
Yes; Cloud White, Deep Blue
& Amber
Aluminum Mesh x1
Yes
Yes
Yes
Yes, Up to 12’ Ceiling
ZEPHYRONLINE.COM
ZVN-E42BG
42”
200 - 600
1 - 6
200 - 390
200 - 290
Yes
ICON Touch®
5*
Yes
LumiLight LED, 6W x2
Yes
Yes; Cloud White, Deep Blue
& Amber
Aluminum Mesh x1
Yes
Yes
Yes
Yes, Up to 12’ Ceiling
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
8” Round
NA
120V, 60Hz at Max. 4A
8” Round
NA
120V, 60Hz at Max. 4A
OPTIONAL ACCESSORIES
Recirculating Kit
Extension Duct Cover
Make-Up Air Kit
MOUNTING HEIGHT RANGE**
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
EXTENSION
DUCT COVER
*When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds.
**Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Ducted Mounting Height*
Recirc Mounting Height*
Ducted Mounting Height*
Recirc Mounting Height*
ZRC-00VN
Z1C-00VN
MUA006A
24” - 34”
3 years parts, 1 year labor
8’
24” - 31.5”
24” - 28”
NA
NA
8.5’
24” - 34”
24” - 34”
NA
NA
ZRC-00VN
Z1C-00VN
MUA006A
24” - 34”
3 years parts, 1 year labor
9’
24” - 34”
24” - 34”
24” - 27”
NA
9.5 ’
28” - 34”
28” - 34”
24” - 33”
24” - 29”
10’
34” - 34”
34” - 34”
24” - 34”
24” - 34”
10.5’
NA
NA
24” - 34”
24” - 34”
11’
NA
NA
24” - 34”
24” - 34”
12’
NA
NA
27.5” - 34”
27.5” - 34”
AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
NOV21.0101
