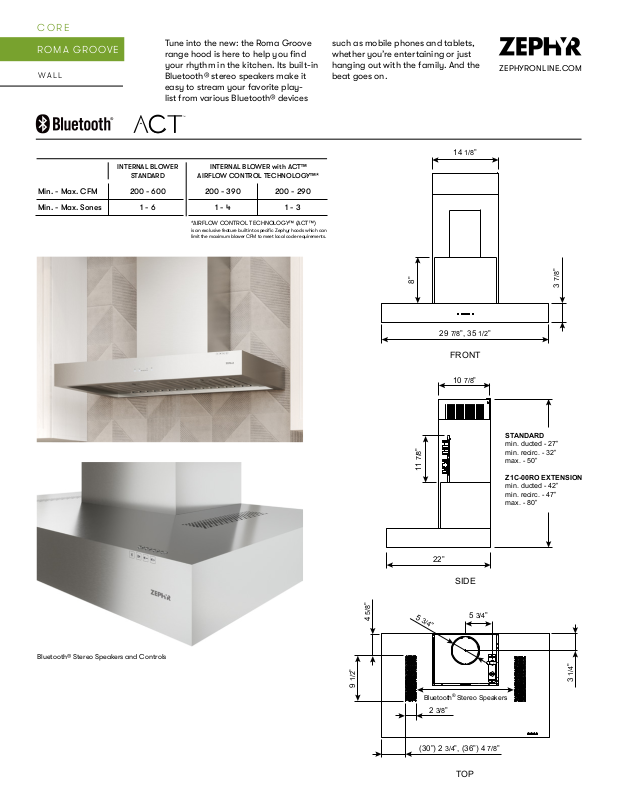

CORE
TM
C
ROMA GROOVE
WALL
Min. - Max. CFM
Min. - Max. Sones
Tune into the new: the Roma Groove
range hood is here to help you nd
your rhythm in the kitchen. Its built-in
Bluetooth® stereo speakers make it
easy to stream your favorite playlist from various Bluetooth® devices
INTERNAL BLOWER
STANDARD
200 - 600
1 - 6
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
200 - 390
1 - 4
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specic Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
200 - 290
1 - 3
such as mobile phones and tablets,
whether you’re entertaining or just
hanging out with the family. And the
beat goes on.
14
1/8”
ZEPHYRONLINE.COM
8”
7/8”
11
3 7/8”
29 7/8”, 35 1/2”
FRONT
10 7/8”
STANDARD
min. ducted - 27”
min. recirc. - 32”
max. - 50”
Z1C-00RO EXTENSION
min. ducted - 42”
min. recirc. - 47”
max. - 80”
22”
Bluetooth® Stereo Speakers and Controls
SIDE
5/8”
4
1/2”
9
5
3/4
”
Bluetooth®Stereo Speakers
3/8”
2
(30”) 2 3/4”, (36”) 4 7/8”
5 3/4”
3 1/4”
TOP
CORE
TM
C
ROMA GROOVE
WALL
MODEL
Stainless Steel
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
ACT 390 CFM (Min. - Max.)
ACT 290 CFM (Min. - Max.)
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Bluetooth® Stereo Speakers
Filters
Recirculating Option
Extension Duct Cover Option
ZRG-E30AS
30”
200 - 600
1 - 6
200 - 390
200 - 290
390, 290
ICON Touch®
5*
Yes
BriteStrip™ LED, x1
Yes
Yes
Bae x2
Yes
Yes, Up to 12’ Ceiling
ZEPHYRONLINE.COM
ZRG-M90AS
36”
200 - 600
1 - 6
200 - 390
200 - 290
390, 290
ICON Touch®
5*
Yes
BriteStrip™ LED, x1
Yes
Yes
Bae x2
Yes
Yes, Up to 12’ Ceiling
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
6” Round
NA
120V, 60Hz at Max. 4A
6” Round
NA
120V, 60Hz at Max. 4A
OPTIONAL ACCESSORIES
Recirculating Kit
Extension Duct Cover
Stainless Steel Telescopic Backsplash
Make-Up Air Kit
MOUNTING HEIGHT RANGE**
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
EXTENSION
DUCT COVER
*When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 3 speeds and ACT 290 CFM = 2 speeds.
**Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Ducted Mounting Height**
Recirc Mounting Height**
Ducted Mounting Height**
Recirc Mounting Height**
ZRC-00RG
Z1C-00RO
AK1710
MUA006A
24” - 34”
3 years parts, 1 year labor
8’
26” - 34”
26” - 29.5”
NA
NA
8.5’
26” - 34”
26” - 34”
NA
NA
ZRC-00RG
Z1C-00RO
NA
MUA006A
24” - 34”
3 years parts, 1 year labor
9’
26” - 34”
26” - 34”
26” - 31”
26” - 27”
9.5 ’
30.5” - 34”
30.5” - 34”
26” - 34”
26” - 33”
10’
NA
NA
26” - 34”
26” - 34”
10.5’
NA
NA
26” - 34”
26” - 34”
11’
NA
NA
26” - 34”
26” - 34”
12’
NA
NA
31” - 34”
31” - 34”
v4.1
Airflow Control Technology™ (ACT™)
is an exclusive feature built into specic Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
Specications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
AUG21.0101
