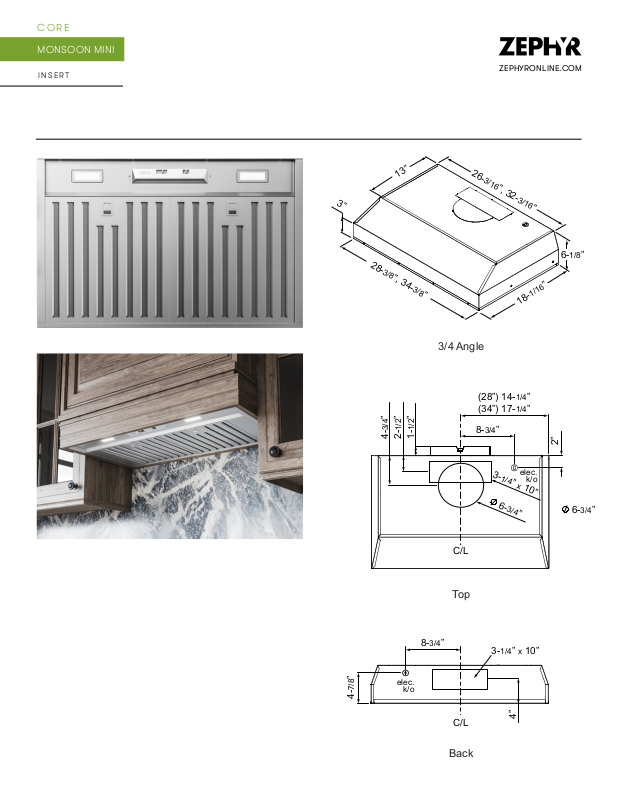

Zephyr ZPHY1389 Specifications

CORE

MONSOON MINI

INSERT

3”

28-

3/8

13”

”, 34-

3/8

”

26-

3/4 Angle

ZEPHYRONLINE.COM

3/16

”, 32-

3/16

”

1/16

18-

6-

1/8”

”

(28”) 14-1/4”

3-

1/4”

2”

elec.

1/4

k/o

”

x

10”

6-

3/4

”

6-3/4”

(34”) 17-

1/2”1-1/2”

2-

4-3/4”

8-3/4”

C/L

Top

8-3/4”

elec.

4-7/8”

k/o

1/4” x 10”

3-

C/L

Back

4”

CORE

MONSOON MINI

INSERT

MODEL

Stainless Steel

Size
Blower CFM (Min. - Max.)
Sones (Min. - Max.)

FEATURES
Controls
Speed Levels
Lighting
Dual-Level Lighting
Filters
Recirculating Option

DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER

AK9128BS

28-3/8” (30”)
150 - 300

1.5 - 4

Mechanical Slide
3
LumiLight LED, 6W x2
Yes
Hybrid Bae x2
Yes

7” Round, 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2A

ZEPHYRONLINE.COM

AK9134BS

34-3/8” (36”)
150 - 300

1.5 - 4

Mechanical Slide
3
LumiLight LED, 6W x2
Yes
Hybrid Bae x2
Yes

7” Round, 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2A

OPTIONAL ACCESSORIES
Recirculating Kit
Damper, 7” Round

MOUNTING HEIGHT RANGE*

WARRANTY

*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.

ZRC-9100A
AK00067

24” - 36”

3 years parts, 1 year labor

ZRC-9100A
AK00067

24” - 36”

3 years parts, 1 year labor

Specications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT

FEB21.0101
