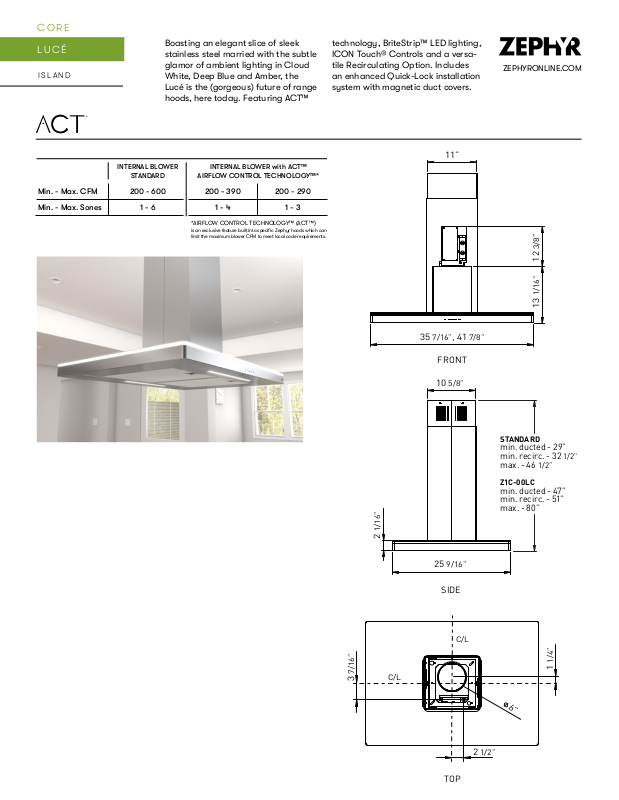

Zephyr ZPHY1353 Specifications
11”
TM
C
CORE
LUCÉ
ISLAND
Boasting an elegant slice of sleek
stainless steel married with the subtle
glamor of ambient lighting in Cloud
White, Deep Blue and Amber, the
Lucé is the (gorgeous) future of range
hoods, here today. Featuring ACT™
technology, BriteStrip™ LED lighting,
ICON Touch® Controls and a versatile Recirculating Option. Includes
an enhanced Quick-Lock installation
system with magnetic duct covers.
ZEPHYRONLINE.COM
Min. - Max. CFM
Min. - Max. Sones
INTERNAL BLOWER
STANDARD
200 - 600
1 - 6
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
200 - 390
1 - 4
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specic Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
200 - 290
1 - 3
35
7/16”
FRONT
10
, 41
5/8”
7/8”
13
3/8”
12
1/16”
STANDARD
min. ducted - 29”
min. recirc. - 32
max. - 46 1/2”
1/2”
7/16”
3
1/16”
2
C/L
25
9/16”
SIDE
C/L
Z1C- 00LC
min. ducted - 47”
min. recirc. - 51”
max. - 80”
1/4”
1
6”
2
1/2”
TOP
CORE
TM
C
LUCÉ
ISLAND
MODEL
Stainless Steel w/ Accent Lighting
Size
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
ACT 390 CFM (Min. - Max.)
ACT 390 Sones (Min. - Max.)
ACT 290 CFM (Min. - Max.)
ACT 290 Sones (Min. - Max.)
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
LED Accent Light
Filters
Recirculating Option
Quick-Lock Installation
Magnetic Duct Covers
Extension Duct Cover Option
ZLC-M90BS
36”
200 - 600
1 - 6
200 - 390
1 - 4
200 - 290
1 - 3
Yes
ICON Touch®
5*
Yes
BriteStrip™ LED x2
Yes
Yes; Cloud White, Deep
Blue & Amber
Aluminum Mesh x2
Yes
Yes
Yes
Yes, Up to 12’ Ceiling
ZEPHYRONLINE.COM
ZLC-E42BS
42”
200 - 600
1 - 6
200 - 390
1 - 4
200 - 290
1 - 3
Yes
ICON Touch®
5*
Yes
BriteStrip™ LED x2
Yes
Yes; Cloud White, Deep
Blue & Amber
Aluminum Mesh x2
Yes
Yes
Yes
Yes, Up to 12’ Ceiling
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
6” Round
NA
120V, 60Hz at Max. 3A
6” Round
NA
120V, 60Hz at Max. 3A
OPTIONAL ACCESSORIES
Recirculating Kit
Extension Duct Cover
Make-Up Air Kit
MOUNTING HEIGHT RANGE**
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
EXTENSION
DUCT COVER
*When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 3 speeds and ACT 290 CFM = 2 speeds.
**Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Specications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
APR20.0101
Ducted Mounting Height**
Recirc Mounting Height**
Ducted Mounting Height**
Recirc Mounting Height**
AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specic Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
ZRC-00LC
Z1C-00LC
MUA006A
26” - 34”
3 years parts, 1 year labor
8’
26” - 33”
26” - 29”
NA
NA
ZRC-00LC
Z1C-00LC
MUA006A
26” - 34”
3 years parts, 1 year labor
8.5’
26” - 34”
26” - 34”
NA
NA
9’
26” - 34”
26” - 34”
26” - 30.5”
26” - 26.5”
9.5 ’
28” - 34”
28” - 34”
26” - 34”
26” - 32.5”
10’
34” - 34”
34” - 34”
26” - 34”
26” - 34”
10.5’
NA
NA
26” - 34”
26” - 34”
11’
NA
NA
26” - 34”
26” - 34”
12’
NA
NA
28” - 34”
28” - 34”
