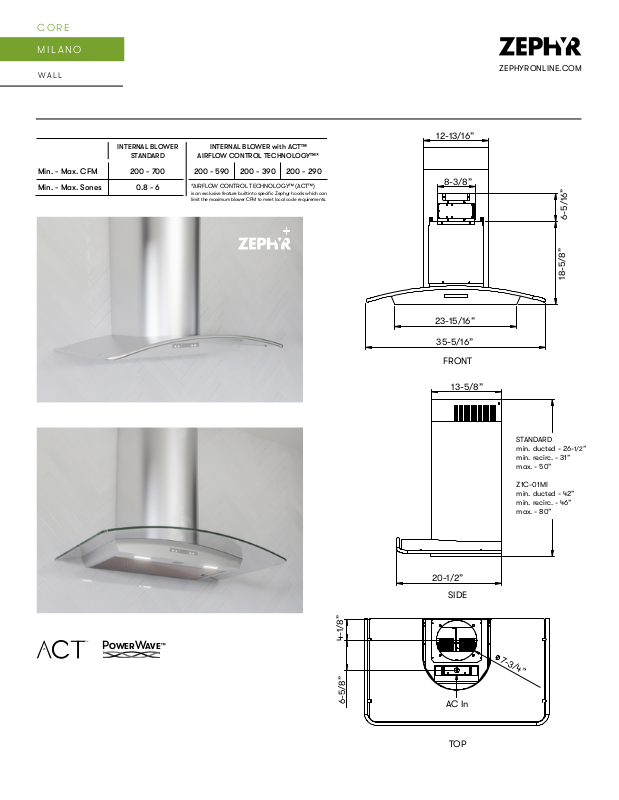

CORE
C
P
W
™
MILANO
WALL
Min. - Max. CFM
Min. - Max. Sones
INTERNAL BLOWER
STANDARD
200 - 700
0.8 - 6
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
200 - 590 200 - 390 200 - 290
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
ZEPHYRONLINE.COM
12-13/16”
8-3/8”
6-5/16”
18-5/8”
23-15/16”
35-5/16”
FRONT
13-5/8”
STANDARD
min. ducted - 26min. recirc. - 31”
max. - 50”
Z1C-01MI
min. ducted - 42”
min. recirc. - 46”
max. - 80”
1/2”
20-1/2”
SIDE
TM
OWER
AVE
4-1/8”
7-3/4”
6-5/8”
AC In
TOP
CORE
C
POWERW
™
AVE
MILANO
WALL
MODEL
Glass Canopy
Stainless Steel Canopy
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
ACT 590 CFM (Min. - Max.)
ACT 390 CFM (Min. - Max.)
ACT 290 CFM (Min. - Max.)
FEATURES
Zephyr Connect App Compatible
Alexa & Google Home Compatible
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
CleanAir Function
Lighting
Tri-Level Lighting
Filters
Recirculating Option
Extension Duct Cover Option
ADA Compliant
ZEPHYRONLINE.COM
ZMI-M90CG
ZMI-M90CS
36”
200 - 700
0.8 - 6
200 - 590
200 - 390
200 - 290
Yes
Yes
590, 390, 290
Proximity Touch
6*
Yes
Yes
LumiLight LED, 6W x2
Yes
Aluminum Mesh x1
Yes
Yes, Up to 12’ Ceiling
Yes, with Zephyr Connect
or Remote
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
8” Round
NA
120V, 60Hz at Max. 5A
OPTIONAL ACCESSORIES
Wireless Remote Control
Recirculating Kit
Extension Duct Cover
Make-Up Air Kit
MOUNTING HEIGHT RANGE**
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
EXTENSION
DUCT COVER
*When ACT™ is enabled the maximum speed levels will change. ACT 590 CFM = 5 speeds, ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds.
**Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Ducted Mounting Height*
Recirc Mounting Height*
Ducted Mounting Height*
Recirc Mounting Height*
Zephyr Connect App
Zephyr Connect App allows you to control your range hood from anywhere
using your mobile device. It includes real time diagnostics and provides
important product information. All you need is a WiFi connection with
access to the internet. It seamlessly integrates with your smart devices
such as Amazon Alexa or Google Home smart speaker for voice activation.
Available to download from Google Play or the App Store.
14000005
ZRC-00MI
Z1C-01MI
MUA008A
24” - 34”
3 years parts, 1 year labor
8’
24” - 33.5”
24” - 29”
NA
NA
8.5’
24” - 34”
24” - 34”
24” - 24”
NA
9’
24” - 34”
24” - 34”
24” - 30”
24” - 26”
9.5 ’
28” - 34”
28” - 34”
24” - 34”
24” - 32”
TM
10’
34” - 34”
34” - 34”
24” - 34”
24” - 34”
Airflow Control Technology™ (ACT™)
is an exclusive feature built into specific Zephyr hoods which can limit the
maximum blower CFM to meet local code requirements.
PowerWave™ 3-Phase Blower Technology
delivers best-in-class performance with unparalleled quiet operation. It
provides more power while minimizing noise and improving eciency.
10.5’
NA
NA
24” - 34”
24” - 34”
11’
NA
NA
24” - 34”
24” - 34”
12’
NA
NA
28” - 34”
28” - 34”
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
DEC21.0101
