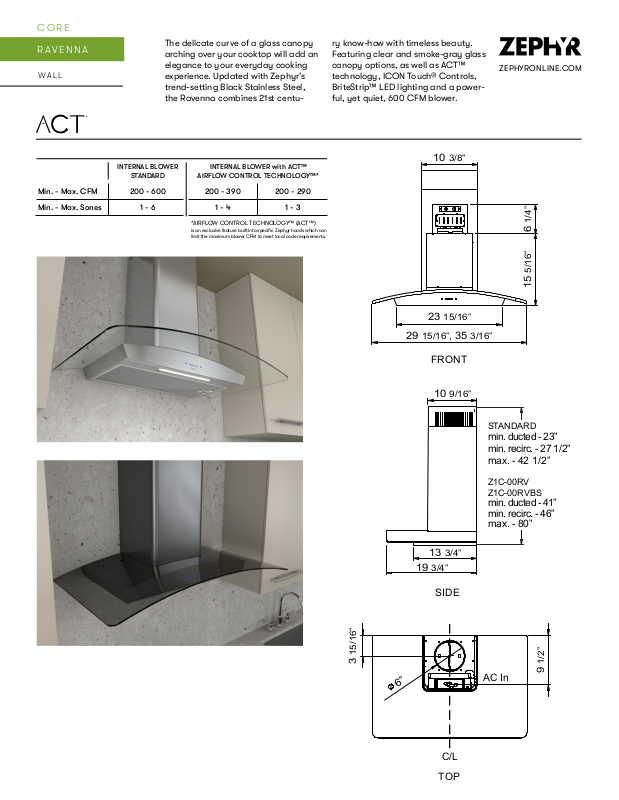

Zephyr ZPHY1169 Specifications
CORE
TM
C
RAVENNA
WALL
The delicate curve of a glass canopy
arching over your cooktop will add an
elegance to your everyday cooking
experience. Updated with Zephyr’s
trend-setting Black Stainless Steel,
the Ravenna combines 21st centu-
ry know-how with timeless beauty.
Featuring clear and smoke-gray glass
canopy options, as well as ACT™
technology, ICON Touch® Controls,
BriteStrip™ LED lighting and a powerful, yet quiet, 600 CFM blower.
ZEPHYRONLINE.COM
Min. - Max. CFM
Min. - Max. Sones
INTERNAL BLOWER
STANDARD
200 - 600
1 - 6
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
200 - 390
1 - 4
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
is an exclusive feature built into specic Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
200 - 290
1 - 3
29
10
23
15/16”
15/16”,
FRONT
10
3/8”
35
9/16”
1/4”
6
5/16”
15
3/16”
STANDARD
min. ducted - 23”
min. recirc. - 27 1/2”
max. - 42 1/2”
15/16”
3
6”
19
13
3/4”
SIDE
3/4”
C/L
Z1C-00RV
Z1C-00RVBS
min. ducted - 41”
min. recirc. - 46”
max. - 80”
AC In
1/2”
9
TOP
CORE
TM
C
RAVENNA
WALL
MODEL
Stainless Steel w/ Clear Glass
Stainless Steel w/ Smoke-Gray Glass
Black Stainless Steel w/
Smoke-Gray Glass
Size
BLOWER PERFORMANCE
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
ACT 390 CFM (Min. - Max.)
ACT 290 CFM (Min. - Max.)
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Filters
Recirculating Option
Duct Cover Extension Option
ZRV-E30BGC
ZRV-E30BGG
ZRV-E30BBSGG
30”
200 - 600
1 - 6
200 - 390
200 - 290
390, 290
ICON Touch®
5*
Yes
BriteStrip™ LED, x1
Yes
Aluminum Mesh x1
Yes
Yes, Up to 12’ Ceiling
ZEPHYRONLINE.COM
ZRV-M90BGC
ZRV-M90BGG
ZRV-M90BBSGG
36”
200 - 600
1 - 6
200 - 390
200 - 290
390, 290
ICON Touch®
5*
Yes
BriteStrip™ LED, x1
Yes
Aluminum Mesh x1
Yes
Yes, Up to 12’ Ceiling
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
6” Round
NA
120V, 60Hz at Max. 4A
6” Round
NA
120V, 60Hz at Max. 4A
OPTIONAL ACCESSORIES
Recirculating Kit
Duct Cover Extension
Stainless Steel Telescopic Backsplash
Make-Up Air Kit
MOUNTING HEIGHT RANGE**
WARRANTY
CEILING HEIGHT
STANDARD
DUCT COVER
EXTENSION
DUCT COVER
*When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds.
**Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
Ducted Mounting Height**
Recirc Mounting Height**
Ducted Mounting Height**
Recirc Mounting Height**
ZRC-00RV
Z1C-00RVBS (Black SS)
Z1C-00RV (SS)
AK1710
MUA006A
26” - 34”
3 years parts, 1 year labor
8’
26” - 33.5”
26” - 28.5”
NA
NA
8.5’
26” - 34”
26” - 34”
NA
NA
ZRC-00RV
Z1C-00RVBS (Black SS)
Z1C-00RV (SS)
NA
MUA006A
26” - 34”
3 years parts, 1 year labor
9’
29.5” - 34”
29.5” - 34”
26” - 30.5”
26” - 26”
9.5 ’
NA
NA
26” - 34”
26” - 32”
10’
NA
NA
26” - 34”
26” - 34”
10.5’
NA
NA
26” - 34”
26” - 34”
11’
NA
NA
26” - 34”
26” - 34”
12’
NA
NA
28” - 34”
28” - 34”
Airflow Control Technology™ (ACT™)
is an exclusive feature built into specic Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
Specications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
AUG21.0101
