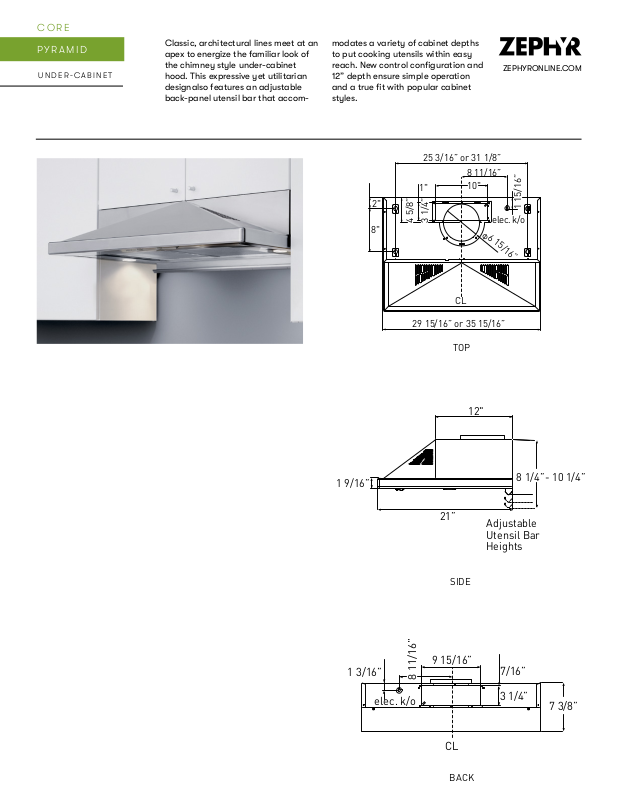

Zephyr ZPHY1038 Specifications
SIDE
BACK
TOP
elec. k/o
CL
1 3/16”
7/16”
9 15/16”
3 1/4”
7 3/8”
8 11/16”
elec. k/o
8"
2"
1"
CL
25 3/16” or 31 1/8”
8 11/16”
1 15/16”
6 15/16”
29 15/16” or 35 15/16”
4 5/8”
3 1/4”
10"
Adjustable
Utensil Bar
Heights
21”
1 9/16”
12"
- 10 1/4”
8 1/4”
CORE
PYRAMID
UNDER-CABINET
Classic, architectural lines meet at an
apex to energize the familiar look of
the chimney style under-cabinet
hood. This expressive yet utilitarian
designalso features an adjustable
back-panel utensil bar that accom-
modates a variety of cabinet depths
to put cooking utensils within easy
reach. New control configuration and
12” depth ensure simple operation
and a true fit with popular cabinet
styles.
ZEPHYRONLINE.COM
CORE
PYRAMID
UNDER-CABINET
MODEL
Stainless Steel
Size
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
FEATURES
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Filters
Recirculating Option
Adjustable Utensil Rail
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
ZPY-E30AS
30”
210 - 400
2 - 5
Mechanical Slide
3
No
Halogen, 50W x2
Yes
Aluminum Mesh x2
Yes
Yes, Up to 3”
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2A
ZPY-E36AS
36”
210 - 400
2 - 5
Mechanical Slide
3
No
Halogen, 50W x2
Yes
Aluminum Mesh x2
Yes
Yes, Up to 3”
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2A
ZEPHYRONLINE.COM
ZPY-E30AS290
30”
120 - 290
1.1 - 3.2
Mechanical Slide
3
No
Halogen, 50W x2
Yes
Aluminum Mesh x2
Yes
Yes, Up to 3”
7” Round or 3-1/4” x 10”
3-1/4” x 10”
120V, 60Hz at Max. 2A
OPTIONAL ACCESSORIES
Recirculating Kit
Bloom™ GU10 LED
Make-Up Air Kit
Damper, 7” Round
MOUNTING HEIGHT RANGE*
WARRANTY
*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
ZRC-0200
Z0B0040
MUA006A
AK00067
24” - 32”
3 years parts, 1 year labor
ZRC-0200
Z0B0040
MUA006A
AK00067
24” - 32”
3 years parts, 1 year labor
ZRC-0200
Z0B0040
NA
AK00067
24” - 32”
3 years parts, 1 year labor
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
JAN20.0101
